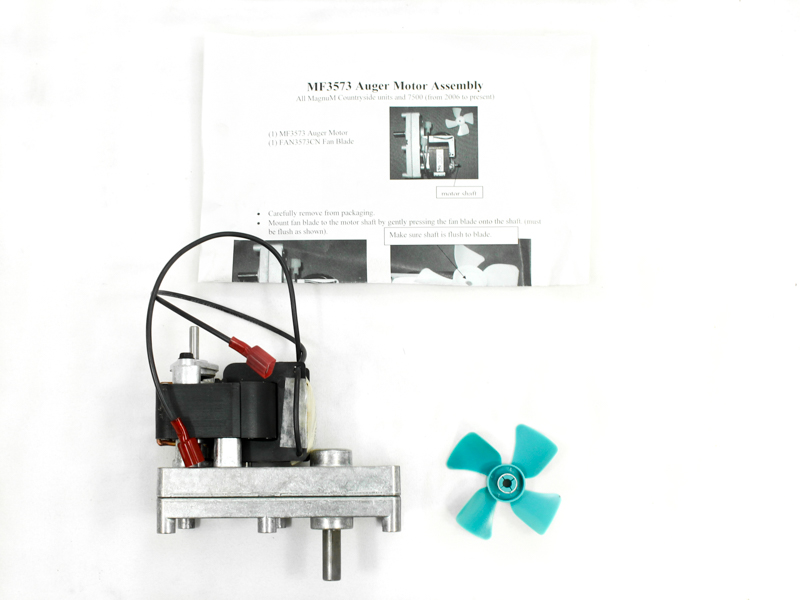

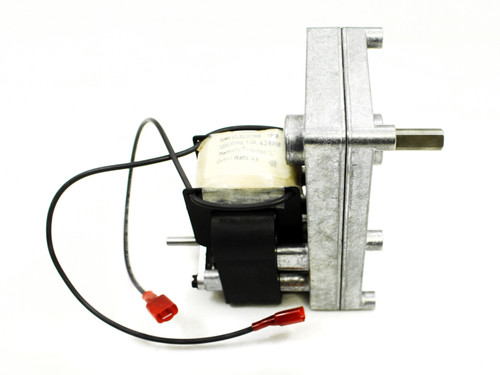

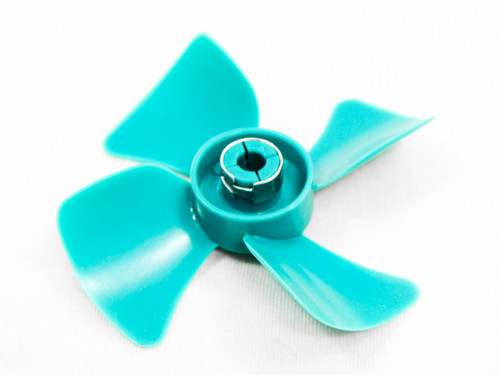

Replacement auger motor with fan blade for MagnuM pellet stoves.

**IMPORTANT**

Check your bracket & feed system before ordering!
Failure to upgrade to the current system or improper installation of the motor may cause the gears inside the new auger motor to break or the motor itself to burn out, which would not be covered under warranty.

NOTES:

1. If your current auger motor is held in place by 4 screws (each about 3" long), with a coupler attached to the auger motor shaft, and a auger machined like a flathead screw driver then you MUST upgrade to the latest auger system. The parts needed are MF3636 and MF3553.
2. Your bracket should have 3 of the 1⁄2” length bolts and 1 of the 1 1⁄4” bolt with spacer. If you do not have the 1 1⁄4” bolt with spacer you must also purchase the M3636 bracket kit.
3. If your bracket is bent or damaged you must replace it!
4. Not all stoves use the same connection type, if your unit needs different female/male spade clips, these can be removed and changed out.

Fits the following models:

MagnuM Pellet Stoves:

• 3500P  - with 1 1/2" auger shaft only
• 3502 - with 1 1/2" auger shaft only
• 3500L - with 1 1/2" auger shaft only
• 6500

MagnuM part # MF3573
OEM MagnuM part

May fit other models, please check your owner’s manual for part number compatibility.
