Clayton Furnace 1600M Parts Diagram

Clayton Furnace 1600M Interactive Parts Finder

Find the exact replacement parts you need for your Clayton Furnace 1600M. This Wood furnace has 54 parts mapped in our interactive diagram below. Common replacement parts include US Stove Clayton & Vogelzang Feed Door Assembly, US Stove & Vogelzang Spring Door Handle - Brass, Breckwell & US Stove Feed Door Latch, Breckwell, US Stove & Vogelzang Ash Door Assembly, and US Stove Spin Damper. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 54 replacement parts available.

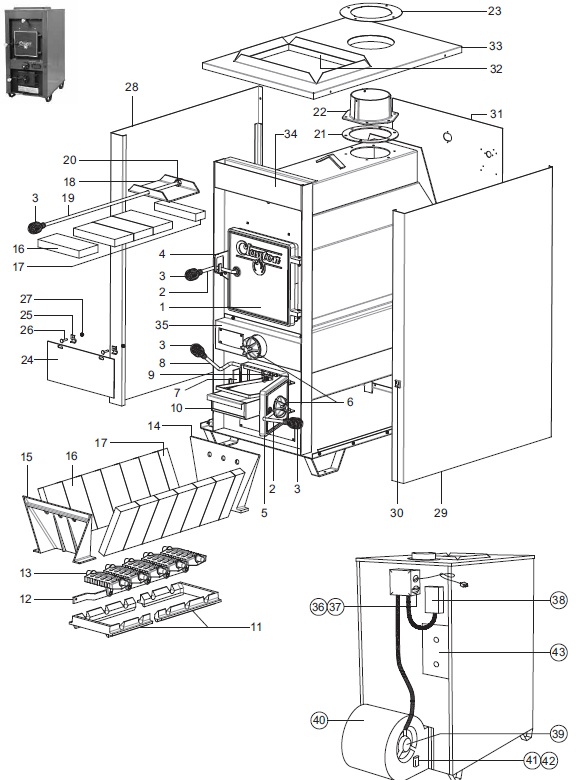

Clayton Furnace 1600M replacement parts diagram
Part #Part NamePart CodePrice
#1US Stove Clayton & Vogelzang Feed Door Assembly (69091)69091$395.00
#10Breckwell & US Stove Ash Pan (68882)68882$75.00
#11Breckwell, US Stove & Vogelzang Grate Retainer (40312)40312$95.00
#12Breckwell, US Stove & Vogelzang Shaker Bar (891341)891341$49.00
#13Breckwell, US Stove & Vogelzang Shaker Grate Section (40314)40314$59.50
#14Breckwell, US Stove & Vogelzang Rear Liner (40313)40313$145.00
#15Breckwell, US Stove & Vogelzang Front Liner (40344)40344$107.00
#16US Stove Firebrick (89066)89066$17.00
#17USSC Half Firebrick (891414)891414$20.00
#18Breckwell, US Stove & Vogelzang Slide Baffle (24231)24231$85.00
#19Baffle Rod for US Stove Furnaces (86603)86603$28.00
#20USSC Lock Nut (83444)83444$5.00
#21Ashley, Breckwell, US Stove & Vogelzang Flue Collar Gasket (88032)88032$23.00
#22Ashley, Breckwell, US Stove & Vogelzang Flue Collar (40246)40246$67.00
#23Breckwell, US Stove & Vogelzang Furnace Flue Collar Ring (891217)891217$33.50
#24Breckwell, US Stove & Vogelzang Smoke Curtain (23800)23800$22.50
#25US Stove Smoke Curtain Clip (23787)23787$14.00
#26US Stove Carriage Bolt (83445)83445$4.75
#27US Stove Kep Nut (83250)83250$4.75
#3US Stove & Vogelzang Spring Door Handle - Brass (89574)89574$17.00
#30Clayton 1600M & Vogelzang VG7100 Blank Snap-In Receptacle (891127)891127$13.00
#32Breckwell, US Stove & Vogelzang Top/Back Insulation (C98871)C98871$33.00
#34US Stove Clayton Front Filler (23817G)23817G$97.30
#35US Stove Clayton Furnace Draft Cover (23818G)23818G$69.45
#37US Stove Clayton Plastic Knob (C9267M)C9267M$14.00
#38Ashley, Clayton, Jensen & Vogelzang Low Limit Thermodisc (80388)80388$85.00
#39US Stove Clayton 1600M 3 Speed Blower Motor (80416)80416$500.00
#4Breckwell & US Stove Feed Door Latch (23786)23786$16.00
#40US Stove Clayton Blower Housing (69281)69281$311.15
#41US Stove Clayton Capacitor (C45699)C45699$25.00
#42US Stove Clayton Furnaces Capacitor Bracket (23880)23880$11.00
#43Breckwell & US Stove Aqua Siphon Cover (23819)23819$45.54
#5Breckwell, US Stove & Vogelzang Ash Door Assembly (68880)68880$322.00
#6US Stove Spin Damper (23859B)23859B$53.50
#7Ashley, Clayton, Beckwell & Vogelzang Ash Door Latch (23823)23823$37.50
#8Breckwell, US Stove & Vogelzang Shaker Handle (69005)69005$49.00
#9Breckwell, US Stove & Vogelzang Shaker Handle Bracket (24204)24204$17.00
#N/SUSSC Lock Nut (83444)83444$5.00
#N/SUS Stove Leg Bolt (83339)83339$5.00
#N/SUS Stove Kep Nut (83250)83250$4.75
#N/SUS Stove Clayton Blower Assembly (C60471)C60471$225.00
