Defiant Flexburn 1975 & 1979 Parts Diagram

Defiant Flexburn 1975 & 1979 Interactive Parts Finder

Find the exact replacement parts you need for your Defiant Flexburn 1975 & 1979. This Wood stove has 91 parts mapped in our interactive diagram below. Common replacement parts include Vermont Castings Brick Support Bracket, Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT, Vermont Castings Defiant Back, Vermont Castings Defiant Refractory Right End, and Vermont Castings Defiant Refractory Left End. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 91 replacement parts available.

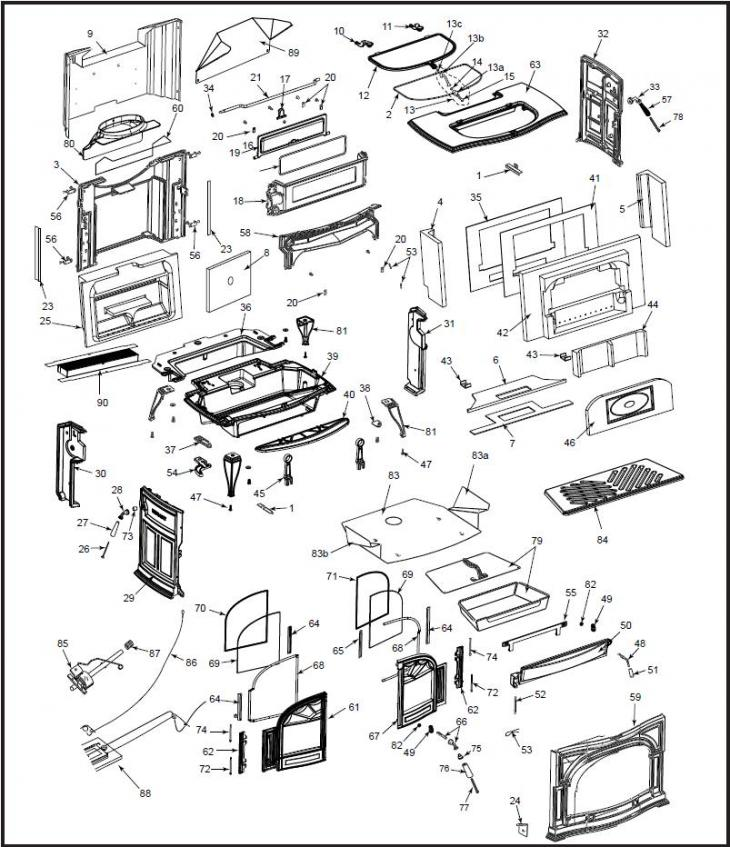

Defiant Flexburn 1975 & 1979 replacement parts diagram
Part #Part NamePart CodePrice
#1Vermont Castings Brick Support Bracket (30005279)30005279$69.00
#10Vermont Castings Left Griddle Quadrant (30002399A)30002399A$40.00
#11Vermont Castings Right Griddle Quadrant (30002401A)30002401A$33.00
#12Vermont Castings Defiant Griddle (30005257A)30005257A$270.00
#13Vermont Castings Complete Griddle Handle (30002775)30002775$63.00
#14Vermont Castings Bushing for Griddle Handles (1201900)1201900$4.00
#15Vermont Castings Screw for Wooden Griddle Handle (1201308)1201308$3.00
#16Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#17Vermont Castings Damper Ramp (1300643)1300643$15.00
#18Vermont Castings Defiant Damper Housing (30002821A)30002821A$164.00
#19Vermont Castings Defiant Damper (30002816)30002816$74.00
#2Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT (1203668)1203668$3.30
#20Vermont Castings Damper Tab (1601488)1601488$3.00
#23Vermont Castings Flexburn Back Refractory Gasket - SOLD PER FOOT (30005270)30005270$2.50
#24Vermont Castings Defiant & Encore Rheostat Bracket (30002863)30002863$43.00
#26Vermont Castings Defiant & Encore Refractory Engine (30005202)30005202$331.00
#26Vermont Castings Damper Handle Screw - Only (1201310)1201310$3.50
#27Vermont Castings Maple Damper Handle - Only (1600664)1600664$7.00
#28Vermont Castings Steel Damper Handle w/Screw Assembly (30002720A)30002720A$63.00
#29Vermont Castings Left Side - Classic Black (30002832A)30002832A$208.00
#3Vermont Castings Defiant Back (30005242A)30005242A$463.00
#30Vermont Castings Defiant Left Air Manifold (30002818)30002818$64.00
#31Vermont Castings Defiant Right Air Manifold (30005243)30005243$70.00
#32Vermont Castings Defiant Right Side - Classic Black (30002831A)30002831A$203.00
#33Vermont Castings Thermostat Handle - Complete - (30002716)30002716$29.00
#34Vermont Castings 3/8" Washer (1202560)1202560$3.00
#35Defiant 2N1 & Encore 2N1 Fireback Plate (30005217)30005217$195.00
#36Vermont Castings Inner Bottom (30005241)30005241$196.00
#37Defiant 1610 NC & Defiant 2N1 1975-1979 Top Ash Door Hinge (1-00-30002836)1-00-30002836$20.00
#38Vermont Castings Defiant Door Handle Bracket (30002844)30002844$72.00
#4Vermont Castings Defiant Refractory Right End (30005206)30005206$86.00
#40Vermont Castings Ashlip - Classic Black (30002811A)30002811A$139.00
#41Vermont Castings Fireback Gasket (30005209)30005209$30.00
#42Vermont Castings Defiant Refractory Fireback (30005203)30005203$395.00
#43Vermont Castings Lower Fireback Retainer (30005248)30005248$24.00
#44Vermont Castings Refractory Inner Cover (30005205)30005205$70.00
#45Vermont Castings Defiant Andiron (30002827A)30002827A$53.00
#46Vermont Castings Defiant Refractory Access Door (30007252)30007252$179.00
#47Vermont Castings Leg Leveler Bolt (1201745)1201745$4.50
#48Vermont Castings Ash Door Handle Shaft (1600622)1600622$32.00
#49Vermont Castings Pawl Assembly - Roller (30005157)30005157$31.00
#5Vermont Castings Defiant Refractory Left End (30005207)30005207$86.00
#50Vermont Castings Defiant CAT-C Ash Door with Hinge & Support (SRV30002810)SRV30002810$209.00
#51Vermont Castings Wooden Ash Door Handle - Only (1600663)1600663$8.00
#52Defiant 1610 NC & Defiant 2N1 1975-1979 Ash Door Hinge Rod (30002826)30002826$20.00
#53Vermont Castings Encore & Defiant Ash Door Cotter Pin (30001749)30001749$3.00
#54Vermont Castings Bottom Ashdoor Hinge Support (1300642A)1300642A$56.00
#55Vermont Castings Defiant Ash Pan Bracket (30001908A)30001908A$64.00
#56Vermont Castings Defiant Rear Side Bracket (30002845)30002845$16.00
#57Vermont Castings Maple Thermostat Handle (1600660)1600660$7.00
#58Vermont Castings Defiant Front Airwash Manifold (30005244)30005244$127.00
#59Vermont Castings Defiant Front - Classic Black (30002830A)30002830A$405.00
#6Vermont Castings Refractory Support (30005233)30005233$44.00
#60Vermont Castings Defiant 7/16" Flue Collar Gasket - SOLD PER FOOT (30001910)30001910$3.00
#61Vermont Castings Left Door - Classic Black (30002813A)30002813A$146.00
#62Vermont Castings Door Hinge Strip (1300645A)1300645A$43.00
#63Vermont Castings Defiant Top - Classic Black (30002834A)30002834A$394.00
#64Vermont Castings 6 1/4" Glass Clip (30001715)30001715$53.00
#65Vermont Castings 8-1/2" Glass Clip - Right Door Only (30001716)30001716$53.00
#66Vermont Castings Front Steel Door Handle (30002717)30002717$55.00
#67Vermont Castings Right Door - Classic Black (30002812A)30002812A$220.00
#68Vermont Castings 7/16" Round Black Gasket - SOLD PER FOOT (7000910)7000910$2.00
#69Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#7Vermont Castings Refractory Support Gasket (30005237)30005237$14.00
#70Vermont Castings Door Glass (30005247)30005247$110.00
#71Vermont Castings Door Glass (30005247)30005247$110.00
#72Vermont Castings Long Door Pin (30002727)30002727$6.00
#73Vermont Castings Defiant & Encore 7/16" Spacer (1201779)1201779$4.00
#74Vermont Castings Long Door Pin (30002727)30002727$6.00
#75Vermont Castings Complete Fallaway Handle Assembly (30004175K)30004175K$48.00
#76Vermont Castings Maple Damper Handle - Only (1600664)1600664$7.00
#77Vermont Castings Damper Handle Screw - Only (1201310)1201310$3.50
#78Vermont Castings Thermostat Handle Long Screw - Only (1201243)1201243$3.00
#79Vermont Castings Ash Pan Assembly (30001690)30001690$156.00
#8Vermont Castings Back Insulation Board (30005269)30005269$71.00
#80Vermont Castings Flue Collar - Classic Black (30001576A)30001576A$176.00
#81Vermont Castings Defiant Leg (30002835A)30002835A$64.00
#82Vermont Castings Large Pawl Jam Nut (1203290)1203290$3.00
#83Vermont Castings Bottom Heat Shield (30005037)30005037$116.00
#83bVermont Castings Bottom Heat Shield Left Wing (30005039)30005039$92.00
#84Vermont Castings Bottom Grate (30005234A)30005234A$186.00
#85Vermont Castings Thermostat Coil & Rod Assembly (5005470)5005470$63.00
#86Vermont Castings Primary Air Cable - Thermostat Cable (5005471)5005471$23.00
#87Vermont Castings Friction Spring (1201846)1201846$4.00
#88Vermont Castings Primary Air Valve Assembly (30005275)30005275$119.00
#89Vermont Castings Vertical Flue Collar Heat Shield (30005265)30005265$141.00
#90Vermont Castings Catalytic Combustor (30006623)30006623$317.00
