Harman Exception (F200) Wood Parts Diagram

Harman Exception (F200) Wood Interactive Parts Finder

Find the exact replacement parts you need for your Harman Exception (F200) Wood. This Wood stove has 50 parts mapped in our interactive diagram below. Common replacement parts include Harman Top Wing, Harman Exception Damper Weldment, Harman Exception F200 Damper Arm Cover, Harman Exception F200 Damper Link, and Harman Exception F200 Wooden Knob - Package of 3. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 50 replacement parts available.

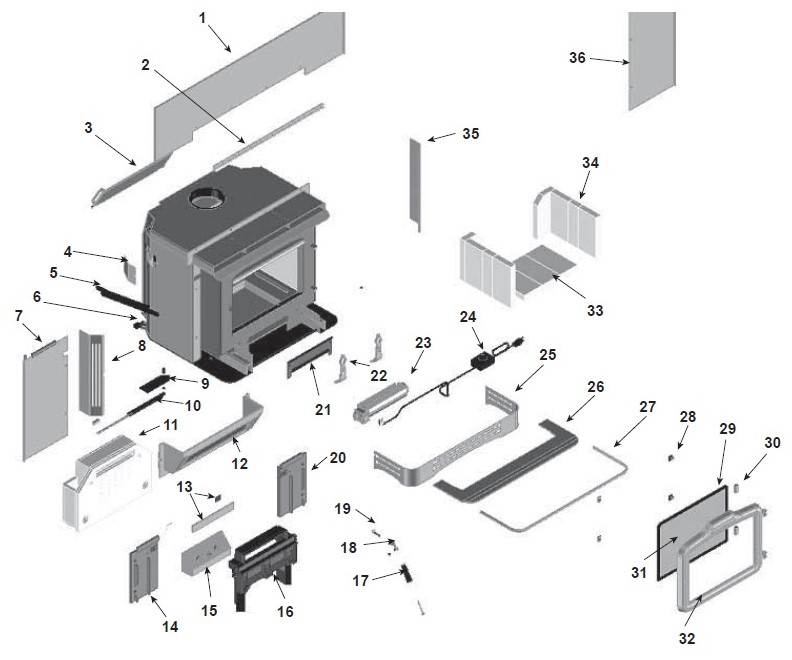

Harman Exception (F200) Wood replacement parts diagram
Part #Part NamePart CodePrice
#1Harman Top Wing (1-10-34126W) 1-10-34126W$315.00
#10Harman Air Adjuster (1-10-34112W) 1-10-34112W$183.00
#11Harman TL200 and F200 Ceramic Fiber Afterburner (3-40-05171)3-40-05171$371.00
#12Harman Exception Cast Damper Frame (1-10-08057)1-10-08057$359.00
#12AHarman Exception & Exception Insert Damper Gasket (1-00-108636)1-00-108636$21.00
#13AHarman TL200 and F200 Afterburner Steel and Clips (1-00-08611)1-00-08611$110.00
#14Harman Exception Series Left Plate Assembly (1-10-08058)1-10-08058$225.00
#15Harman Exception Ramp Assembly (1-10-08111)1-10-08111$160.00
#16Harman Exception Afterburner Hood Weldment (1-10-08200)1-10-08200$899.00
#17Harman Wooden Door Handle with Screw (1-00-00122)1-00-00122$30.00
#19Harman TLC2000, TL200, F200 and DVC500 Paw Bolt (4-31-08055)4-31-08055$25.00
#19AHarman Door Handle Assembly - Nickel (1-00-08176)1-00-08176$105.00
#20Harman Exception Series Right Plate Assembly (1-10-08059)1-10-08059$225.00
#21Harman Exception F200 Airslide Cover (2-00-34121B)2-00-34121B$58.00
#22Harman Andiron Extension Kit with Hardware (2-00-05222-1)2-00-05222-1$71.00
#23Harman Exception F200 Blower (4-21-02524)4-21-02524$299.00
#24Harman Woodstove Blower Power Cord with VSC (3-20-06652)3-20-06652$155.00
#25Harman Exception F200 Front Base Cover (2-00-34122P)2-00-34122P$123.00
#26Harman Exception F200 Ash Lip (2-00-34105P)2-00-34105P$213.00
#27Harman Exception F200 Ashlip Trim (3-43-34001)3-43-34001$73.00
#29Harman 1/4" Rope Glass Gasket - 10 Feet (1-00-11862)1-00-11862$25.00
#3Harman Exception Damper Weldment (1-10-08077)1-10-08077$202.00
#30Harman Door Pins - 3/8" x 1-7/8" (4-30-00138B)4-30-00138B$49.00
#31Harman TL200 & F200 Door Glass (1-00-05174)1-00-05174$350.00
#32AHarman TL200 & TLC-2000 Cast Door (1-10-08159A) 1-10-08159A$485.00
#32CHarman Exception Series Classic Black Door Kit (1-00-08125-1)1-00-08125-1$1,015.00
#32DHarman Door Gasket - 1/2" x 20' (1-00-1086204)1-00-1086204$51.00
#33Harman Firebrick 9 x 4-1/2 x 1-1/4 - Set of 7 (1-00-900450125)1-00-900450125$110.00
#34Harman Exception Pre-Cut Brick Set (1-00-08119)1-00-08119$200.00
#34AHarman CW30 & Exception Brick Insulation (3-40-05185)3-40-05185$45.00
#35Harman Exception F200 Right Side Cover (2-00-34128P)2-00-34128P$123.00
#36Harman Right Wing (1-10-34125W) 1-10-34125W$244.00
#3AHarman TL200 & F200 Damper Clip Set (1-00-05226)1-00-05226$30.00
#3BHHT Door Rope Gasket - 30 Feet (1-00-00888)1-00-00888$48.00
#4Harman Exception F200 Damper Arm Cover (2-00-34133B)2-00-34133B$50.00
#4AHarman Exception F200 & TL200 Damper Arm (1-10-08107)1-10-08107$49.00
#4BHarman Exception F200 Outside Damper Arm (2-00-34117L)2-00-34117L$33.00
#5Harman Exception F200 Damper Link (2-00-34120)2-00-34120$69.00
#6Harman Exception F200 Wooden Knob - Package of 3 (3-40-05662-3)3-40-05662-3$29.00
#7Harman Left Wing (1-10-34124W) 1-10-34124W$244.00
#8Harman Exception F200 Left Side Cover (2-00-34127P)2-00-34127P$123.00
#9Harman Exception F200 AirSlide (2-00-34113L) 2-00-34113L$13.00
