Hotblast Furnace 1300 Parts Diagram

Hotblast Furnace 1300 Interactive Parts Finder

Find the exact replacement parts you need for your Hotblast Furnace 1300. This Wood furnace has 57 parts mapped in our interactive diagram below. Common replacement parts include Ashley, Breckwell, US Stove & Vogelzang Flue Collar, Ashley, Breckwell, US Stove & Vogelzang Flue Collar Gasket, US Stove & Vogelzang Pipe Plug, Johnson, US Stove & Vogelzang Shaker Frame, and Johnson, US Stove & Vogelzang Shaker Grate. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 57 replacement parts available.

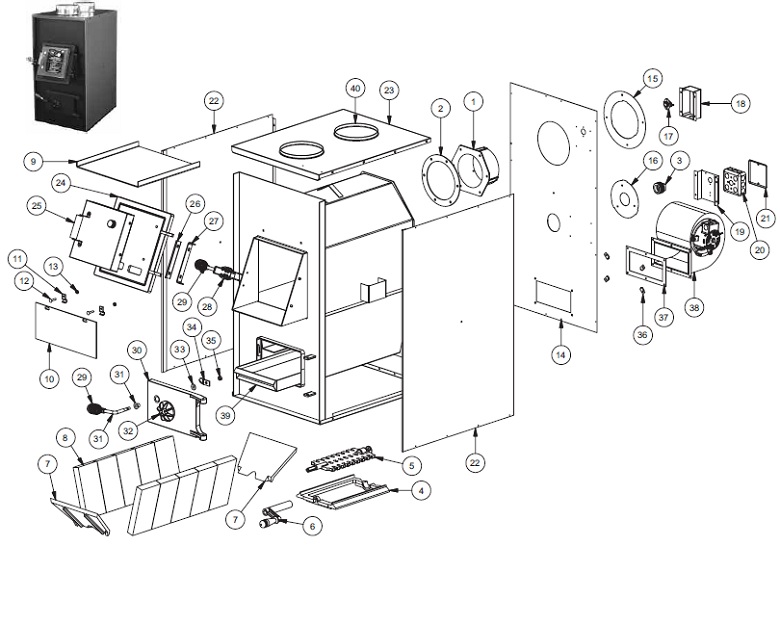

Hotblast Furnace 1300 replacement parts diagram
Part #Part NamePart CodePrice
#1Ashley, Breckwell, US Stove & Vogelzang Flue Collar (40246)40246$67.00
#10Breckwell, US Stove & Vogelzang Smoke Curtain (23800)23800$22.50
#11US Stove Smoke Curtain Clip (23787)23787$14.00
#12US Stove Carriage Bolt (83445)83445$4.75
#13US Stove Kep Nut (83250)83250$4.75
#15Breckwell, US Stove & Vogelzang Furnace Flue Collar Ring (891217)891217$33.50
#16US Stove & Vogelzang Furnace Forced Draft Ring (22762B)22762B$28.32
#17Ashley, US Stove & Vogelzang Low Limit Thermodisc (80314)80314$34.00
#18US Stove & Vogelzang Blower Thermostat Bracket (68234)68234$25.00
#19Ashley, US Stove & Vogelzang Relay Box Bracket (22140)22140$21.42
#2Ashley, Breckwell, US Stove & Vogelzang Flue Collar Gasket (88032)88032$23.00
#20Ashley, US Stove & Vogelzang Junction Box (80131)80131$10.68
#21US Stove Junction Box Cover (80231)80231$7.00
#24Ashley, US Stove & Vogelzang Feed Door Assembly (68217)68217$235.00
#26Ashley & US Stove Door Hinge Spacer (24232)24232$13.00
#27US Stove Feed Door Bracket (22662)22662$20.00
#28Ashley, US Stove & Vogelzang Feed Door Locking Mechanism (891097)891097$56.00
#29US Stove & Vogelzang Spring Door Handle - Brass (89574)89574$17.00
#3US Stove & Vogelzang Pipe Plug (86402)86402$17.00
#30US Stove & Vogelzang Ash Door Assembly (68218)68218$194.25
#31Johnson, US Stove & Vogelzang Handle Assembly (891098)891098$42.00
#32US Stove Spin Damper (23859B)23859B$53.50
#34Ashley, US Stove & Vogelzang Door Latch (86626)86626$7.00
#36US Stove Hotblast Blower Clip Nut (83340)83340$4.77
#37Ashley, US Stove & Vogelzang Blower Gasket (89319)89319$11.00
#39Johnson and US Stove HotBlast Ash Pan (68238)68238$54.00
#4Johnson, US Stove & Vogelzang Shaker Frame (40256)40256$151.11
#40Ashley, US Stove & Vogelzang 8" Collar (891214)891214$19.00
#5Johnson, US Stove & Vogelzang Shaker Grate (40257)40257$109.00
#6USSC HotBlast and Johnson Shaker Handle (40260)40260$23.00
#7Johnson, US Stove & Vogelzang Front/Rear Liner (40264)40264$84.00
#8US Stove Firebrick (89066)89066$17.00
#9US Stove Company Hot Blast Flue Baffle (23397)23397$66.00
#N/SUSSC Door Gasket Kit (DGK3)DGK3$50.00
#N/SUS Stove Power Supply Cord (80232)80232$33.00
#N/SUS Stove & Vogelzang Fan Control Cord Assembly (68231)68231$32.50
#N/SUS Stove Leg Bolt (83339)83339$5.00
#N/SUS Stove Leg Bolt (83339)83339$5.00
#N/SUSSC #10 Washer - 7/32" x 1/2" (83278)83278$4.77
#N/SUS Stove Kep Nut (83250)83250$4.75
