Hotblast Furnace 1500 Parts Diagram

Hotblast Furnace 1500 Interactive Parts Finder

Find the exact replacement parts you need for your Hotblast Furnace 1500. This Wood furnace has 50 parts mapped in our interactive diagram below. Common replacement parts include Ashley, Breckwell, US Stove & Vogelzang Flue Collar Gasket, Ashley, Breckwell, US Stove & Vogelzang Flue Collar, Us Stove Hotblast Cabinet Back, Johnson, US Stove & Vogelzang Front/Back Liner, and US Stove HotBlast, and Johnson Front Liner. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 50 replacement parts available.

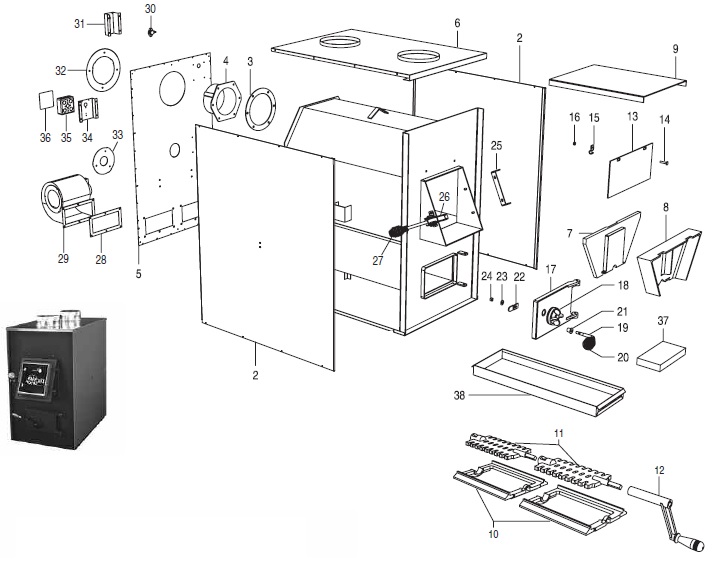

Hotblast Furnace 1500 replacement parts diagram
Part #Part NamePart CodePrice
#10Johnson, US Stove & Vogelzang Shaker Frame (40256)40256$151.11
#11Johnson, US Stove & Vogelzang Shaker Grate (40257)40257$109.00
#12USSC HotBlast and Johnson Shaker Handle (40260)40260$23.00
#13Breckwell, US Stove & Vogelzang Smoke Curtain (23800)23800$22.50
#14US Stove Carriage Bolt (83445)83445$4.75
#15US Stove Smoke Curtain Clip (23787)23787$14.00
#16US Stove Kep Nut (83250)83250$4.75
#17US Stove & Vogelzang Ash Door Assembly (68218)68218$194.25
#18US Stove Spin Damper (23859B)23859B$53.50
#19Johnson, US Stove & Vogelzang Handle Assembly (891098)891098$42.00
#20US Stove & Vogelzang Spring Door Handle - Brass (89574)89574$17.00
#22Ashley, US Stove & Vogelzang Door Latch (86626)86626$7.00
#25US Stove Feed Door Bracket (22662)22662$20.00
#26Ashley, US Stove & Vogelzang Feed Door Locking Mechanism (891097)891097$56.00
#27US Stove & Vogelzang Spring Door Handle - Brass (89574)89574$17.00
#28Ashley, US Stove & Vogelzang Blower Gasket (89319)89319$11.00
#3Ashley, Breckwell, US Stove & Vogelzang Flue Collar Gasket (88032)88032$23.00
#30Ashley, US Stove & Vogelzang Low Limit Thermodisc (80314)80314$34.00
#31US Stove & Vogelzang Blower Thermostat Bracket (68234)68234$25.00
#33US Stove & Vogelzang Furnace Forced Draft Ring (22762B)22762B$28.32
#34Ashley, US Stove & Vogelzang Relay Box Bracket (22140)22140$21.42
#35Ashley, US Stove & Vogelzang Junction Box (80131)80131$10.68
#36US Stove Junction Box Cover (80231)80231$7.00
#37US Stove Firebrick (89066)89066$17.00
#38US Stove HotBlast and Johnson Ash Pan (68228)68228$67.00
#4Ashley, Breckwell, US Stove & Vogelzang Flue Collar (40246)40246$67.00
#5Us Stove Hotblast Cabinet Back (23459R)23459R$160.25
#7Johnson, US Stove & Vogelzang Front/Back Liner (40258)40258$78.00
#8US Stove HotBlast, and Johnson Front Liner (40269)40269$117.00
#9US Stove & Vogelzang Flue Baffle (23398)23398$62.00
#N/SUS Stove Kep Nut (83250)83250$4.75
#N/SAshley & US Stove Door Hinge Spacer (24232)24232$13.00
#N/SUSSC Door Gasket Kit (DGK3)DGK3$50.00
#N/SUSSC #10 Washer - 7/32" x 1/2" (83278)83278$4.77
#N/SUS Stove Hotblast Blower Clip Nut (83340)83340$4.77
#N/SUS Stove Leg Bolt (83339)83339$5.00
#N/SUS Stove & Vogelzang Fan Control Cord Assembly (68231)68231$32.50
