Madison 1655 Parts Diagram

Madison 1655 Interactive Parts Finder

Find the exact replacement parts you need for your Madison 1655. This Wood stove has 56 parts mapped in our interactive diagram below. Common replacement parts include Vermont Castings Madison 1650 & 1655 Outer Bottom, Vermont Castings Madison1650-1655 Left Side - Classic Black, Vermont Castings Madison 1650-1655 Back - Classic Black, Vermont Castings Madison 1650-1655 Secondary Manifold - Left, and Vermont Castings Madison 1650-1655 Front. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 56 replacement parts available.

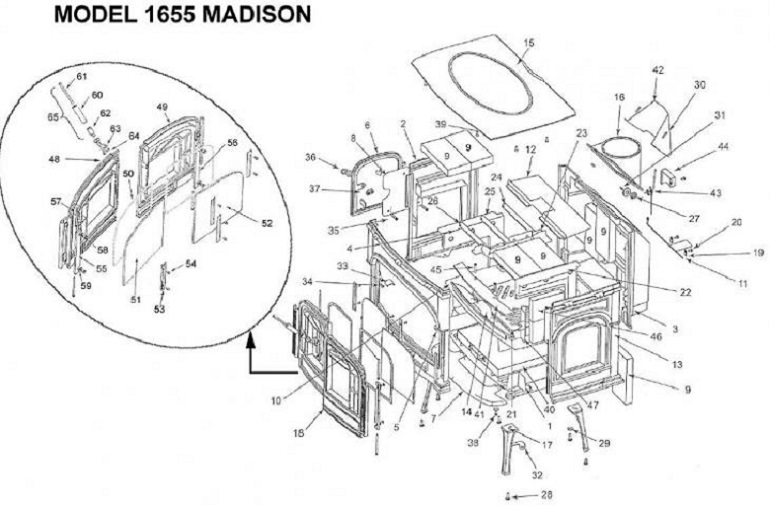

Madison 1655 replacement parts diagram
Part #Part NamePart CodePrice
#1Vermont Castings Madison 1650 & 1655 Outer Bottom (30000795A)30000795A$311.00
#10Madison 1650-1655 Inner Bottom (30000799)30000799$131.00
#11Vermont Castings Madison & Seville Primary Air Flap (30000778)30000778$215.00
#12Vermont Castings Madison 1650 & 1655 Fireback (30000813)30000813$67.00
#14Madison 1650-1655 Primary Air Manifold (30001491)30001491$42.00
#15Vermont Castings Madison 1650-1655 Top - Classic Black (30000817A)30000817A$491.00
#16Vermont Castings Dutchwest Exhaust Flue (7000969A)7000969A$118.00
#17Vermont Castings Madison 1650-1655 Leg (30000816A)30000816A$24.00
#19Vermont Castings Damper Tab (1601488)1601488$3.00
#2Vermont Castings Madison1650-1655 Left Side - Classic Black (30000797A)30000797A$203.00
#21Madison 1650-1655 Grate (30001445)30001445$78.00
#22Vermont Castings Madison 1650-1655 Secondary Manifold - Right (30000801)30000801$74.00
#23Vermont Castings Madison 1650-1655 Brick Support (30000804)30000804$60.00
#24Vermont Castings Madison 1650-1655 Secondary Air Tube - Rear (30001493)30001493$97.00
#25Vermont Castings Madison 1650-1655 Secondary Air Tube - Middle (30001494)30001494$74.00
#26Vermont Castings Madison 1650-1655 Secondary Air Tube - Front (30001495)30001495$86.00
#27Vermont Castings Friction Spring (1201846)1201846$4.00
#28Vermont Castings Leg Leveler Bolt (1201745)1201745$4.50
#3Vermont Castings Madison 1650-1655 Back - Classic Black (30000798A)30000798A$407.00
#30Majestic and Vermont Castings 1" Striker Bolt (1200907)1200907$3.50
#31Vermont Castings 1/4"- 20 Plain Square Nut (1203329)1203329$3.00
#32Vermont Castings Door Handle Holder Insert (1600600)1600600$14.00
#33Vermont Castings Door Latch (1408628)1408628$37.00
#34Vermont Castings Griddle Handle Stub Screw (1200996)1200996$3.50
#35Vermont Castings 1/4-20 x 1-3/4 Bolt (1200830)1200830$7.00
#36Majestic & Vermont Castings Front Door Handle w/ Shaft (5004245)5004245$47.00
#38Vermont Castings Hex Head Cap Screw (1201372)1201372$3.00
#4Vermont Castings Madison 1650-1655 Secondary Manifold - Left (30000802)30000802$74.00
#40Vermont Castings Madison 1650 & 1655 Ash Pan Assembly (30001167)30001167$120.00
#41Vermont Castings Madison 1650-1655 Primary Air Cover Plate (30001393)30001393$39.00
#42Madison 1650-1655 Flue Collar Heat Shield (30001456)30001456$49.00
#43Vermont Castings Thermostat Assembly for Madison 1650-1655 (30001390)30001390$95.00
#44Vermont Castings Madison 1650-1655 Thermostat Cover (30001414)30001414$92.00
#45Vermont Castings Flat Head Screw (30001444)30001444$10.00
#46Intrepid NC 1640 & Madison 1650-1655 Back/Side Brick (30000969)30000969$57.50
#46Intrepid NC 1640 & Madison 1650-1655 Back/Side Brick (30000969)30000969$57.50
#47Vermont Castings Brick Support Bracket (30000986)30000986$38.00
#5Vermont Castings Madison 1650-1655 Front (30000808)30000808$186.00
#51Vermont Castings Defiant Encore, Encore, & Madison Right Door Glass (1408629A)1408629A$99.00
#52Vermont Castings Defiant Encore and Madison Left Door Glass (1408630)1408630 $99.00
#60Vermont Castings Fallaway Ceramic Handle - Ceramic Part Only (1600620)1600620$8.99
#61Vermont Castings Oval Head Handle Screw - Screw Only (1201294)1201294$6.00
#7Vermont Castings Madison 1650-1655 Ashlip (30000815A)30000815A$84.00
#8Madison 1650-1655 Door End Inner Shield (30000812)30000812$38.00
#9Vermont Castings Firebrick (1601103)1601103$15.00
#9Vermont Castings Firebrick (1601103)1601103$15.00
#9Vermont Castings Firebrick (1601103)1601103$15.00
#9Vermont Castings Firebrick (1601103)1601103$15.00
