Plate Steel Wood Stove 2000 Parts Diagram

Plate Steel Wood Stove 2000 Interactive Parts Finder

Find the exact replacement parts you need for your Plate Steel Wood Stove 2000. This Wood stove has 37 parts mapped in our interactive diagram below. Common replacement parts include USSC Feed Door Assembly, USSC Feed Door Latch, US Stove Hex Cap Screw, US Stove and Ashley Door Hinge Pad, and US Stove Flat Washer. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 37 replacement parts available.

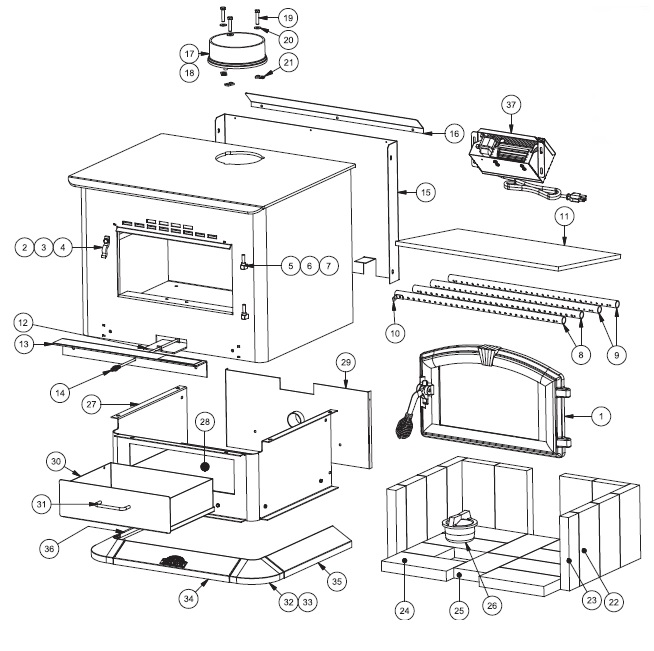

Plate Steel Wood Stove 2000 replacement parts diagram
Part #Part NamePart CodePrice
#1USSC Feed Door Assembly (69516)69516$194.00
#11USSC Refractory Insulation (88146)88146$77.00
#12US Stove 2000 & 2500 Damper Slide (891516)891516$22.00
#13US Stove 2000/2500/3000 Hearth Plate (891517)891517$47.00
#14USSC Small Spring Handle - Nickel (891331)891331$8.00
#15US Stove 2000 & 2500 Rear Heat Shield (891514)891514$92.79
#16US Stove Air Deflector (891528)891528$19.00
#17USSC Flue Collar (40292A)40292A$38.00
#18US Stove 1/4" Flue Collar Gasket - SOLD PER FOOT (88042)88042$6.00
#19US Stove Flue Collar Hex Head Bolt (83432)83432$5.00
#2USSC Feed Door Latch (25080B)25080B$16.00
#20US Stove Flat Washer (83045)83045$4.75
#21US Stove Flue Collar Weld Tab (83431)83431$5.00
#22US Stove Firebrick (89066)89066$17.00
#23USSC Half Firebrick (891414)891414$20.00
#24USSC Half Firebrick (24103)24103$12.00
#25USSC Firebrick (891530A)891530A$8.50
#26USSC Ash Plug (40561)40561$43.00
#3US Stove Hex Cap Screw (83508)83508$4.75
#30US Stove 2000, 2500 & 3000 Ash Pan (891527)891527$60.00
#31USSC Ash Pan Handle - Brushed Nickel (891137)891137$34.00
#37USSC Blower Assembly (891492)891492$299.00
#5US Stove and Ashley Door Hinge Pad (891373)891373$11.00
#6US Stove Flat Washer (83045)83045$4.75
#8USSC Secondary Air Tube (86643)86643$44.00
#9USSC Secondary Air Tube (86645)86645$44.00
