Dutchwest Sequoia 2160 Parts Diagram

Dutchwest Sequoia 2160 Interactive Parts Finder

Find the exact replacement parts you need for your Dutchwest Sequoia 2160. This Wood stove has 63 parts mapped in our interactive diagram below. Common replacement parts include Vermont Castings Sequoia 2160 Bottom, Vermont Castings Sequoia 2160 Back, Vermont Castings Sequoia 2160 Inner Bottom, Vermont Castings Sequoia 2160 Inner Back, and Vermont Castings Sequoia 2160 Inner Top. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 63 replacement parts available.

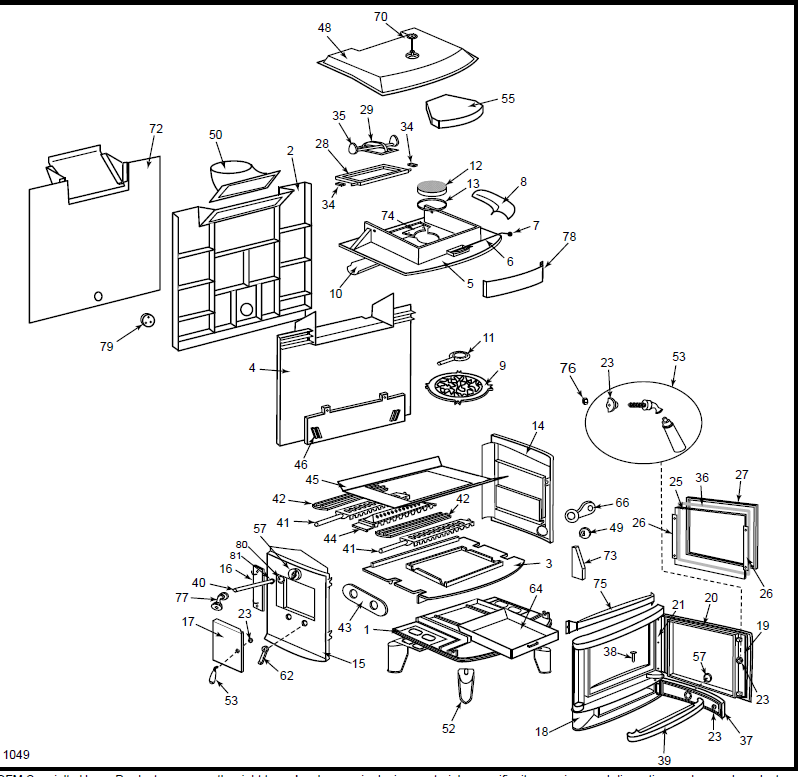

Dutchwest Sequoia 2160 replacement parts diagram
Part #Part NamePart CodePrice
#1Vermont Castings Sequoia 2160 Bottom (7000992)7000992$263.00
#10Vermont Castings Sequoia 2160 Inner Top Channel (7001007A)7001007A$91.00
#11Vermont Castings Air Distributor (7000952)7000952$43.00
#13Vermont Castings Dutchwest 6" Interam Combustor Gasket (1203533A)1203533A$18.00
#14Vermont Castings Sequoia 2160 Painted Side - Right (7000997A)7000997A$287.00
#15Vermont Castings Sequoia 2160 Painted Side - Left (7000996A)7000996A$275.00
#16Vermont Castings Sequoia & Seneca Side Door Hinge Plate (700G808)700G808$23.00
#17Vermont Castings Sequoia 2160 Door - Side (7001001A)7001001A$124.00
#18Vermont Castings Sequoia 2160 Painted Front (7000998A)7000998A$503.00
#19Vermont Castings Sequoia 2160 Door - Front (7001002A)7001002A$213.00
#2Vermont Castings Sequoia 2160 Back (7000993A)7000993A$359.00
#20Vermont Castings 3/8" Low Density Door Gasket- SOLD PER FOOT (1203589)1203589$2.00
#21Vermont Castings Dutchwest Sequoia Upper Front Door Hinge (700G806)700G806$33.00
#23Vermont Castings Set Screw (1200563)1200563$3.00
#24Vermont Castings Set Screw (1200563)1200563$3.00
#25Consolidated Dutchwest Sequoia 2160 and 455C Glass (7001011)7001011$235.00
#26Vermont Castings Reliance & Sequoia Glass Retainer (7001012)7001012$33.00
#28Vermont Castings Dutchwest & Sequoia Damper (7000954A)7000954A$58.00
#29Dutchwest & Sequoia Damper Adjuster (7000950A)7000950A$63.00
#3Vermont Castings Sequoia 2160 Inner Bottom (7000994)7000994$162.00
#34Vermont Castings Damper Tab (1601488)1601488$3.00
#35Vermont Castings Dutchwest & Sequoia Damper Crank (7000951)7000951$40.00
#36Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#37Vermont Castings Dutchwest & Sequoia Ash Door (7000820A)7000820A$121.00
#38Sequoia 2160 & Sequoia 455C Ash Door Hinge Pin (1201837)1201837$12.00
#39Vermont Castings Sequoia 2160 Hearth (7001100A)7001100A$124.00
#4Vermont Castings Sequoia 2160 Inner Back (7000995)7000995$227.00
#40Vermont Castings Bypass Gate Operating Rod - Unthreaded (7001131)7001131$23.00
#41Vermont Castings Sequoia 2160 Rocker Grate (7001092)7001092$52.00
#42Vermont Castings Sequoia Shaker Grate Cover (7000803A)7000803A$49.00
#43Vermont Castings Sequoia 2160 Grate Seal (7001090)7001090$51.00
#44Vermont Castings Sequoia Fixed Grate (7000802A)7000802A$79.00
#45Vermont Castings Sequoia 2160 Grate Frame (7000999)7000999$136.00
#46Vermont Castings Sequoia Back Grate (7000808)7000808$54.00
#48Vermont Castings Sequoia 2160 Painted Top (7001000A)7001000A$431.00
#49Seneca 2169-2170 & Sequoia 455C Fan Plate (1406063)1406063$39.00
#5Vermont Castings Sequoia 2160 Inner Top (7001115)7001115$161.00
#50BVermont Castings 8" Oval Flue Collar - Classic Black (0000555)0000555$199.00
#52Vermont Castings Dutchwest & Sequoia Leg (7000829A)7000829A$72.00
#53Vermont Castings Dutchwest Ash Door Handle - Gold (5004271)5004271$55.00
#55Vermont Castings Dutchwest Refractory Assembly (1602515)1602515$191.00
#57Vermont Castings Dutchwest Large Brass Dial (7000011)7000011$41.00
#6Vermont Castings Dutchwest Sequoia 2160 Air Valve (7001009)7001009$34.00
#62Vermont Castings Sequoia Shaker Grate Tool (7000835A)7000835A$56.00
#64Vermont Castings Sequoia Ash Pan (700G802)700G802$149.00
#66Vermont Castings Dutchwest Fan Kit (0009973)0009973$629.00
#7Vermont Castings Air Control Decorative Brass Cap (1602470)1602470$9.00
#72Vermont Castings Dutchwest Sequoia 2160 Rear Heat Shield (0001060)0001060$319.00
#73Vermont Castings Dutchwest & Sequoia 2160 Andiron (7001008A)7001008A$73.00
#74Vermont Castings Inner Top Web (7001110A)7001110A$86.00
#75Vermont Castings Sequoia 2160 Air Manifold (7001006)7001006$60.00
#76Vermont Castings Large Pawl Jam Nut (1203290)1203290$3.00
#77Vermont Castings Dutchwest Damper Handle Stub w/Screw - Gold (5004267)5004267$55.00
#78Vermont Castings Air Divider (30001900)30001900$10.00
#79Vermont Castings Sequoia Fan Plate (7000831A)7000831A$54.00
#8Vermont Castings Sequoia 2160 Outside Air Tube (7001005)7001005$52.00
#81Consolidated Dutchwest Bypass Operating Rod Clip (1203058)1203058$6.00
#9Vermont Castings Dutchwest & Sequoia Baffle (7000953A)7000953A$90.00
