Harman 300i Wood Parts Diagram

Harman 300i Wood Interactive Parts Finder

Find the exact replacement parts you need for your Harman 300i Wood. This Wood stove has 51 parts mapped in our interactive diagram below. Common replacement parts include Harman 300I Rear Air Jacket, Harman TL300 & 300i Combustion Package Cover, Harman Damper Frame Assembly with Gasket, Harman Damper Linkage, and Harman TL300 & 300i Damper Shaft Cover. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 51 replacement parts available.

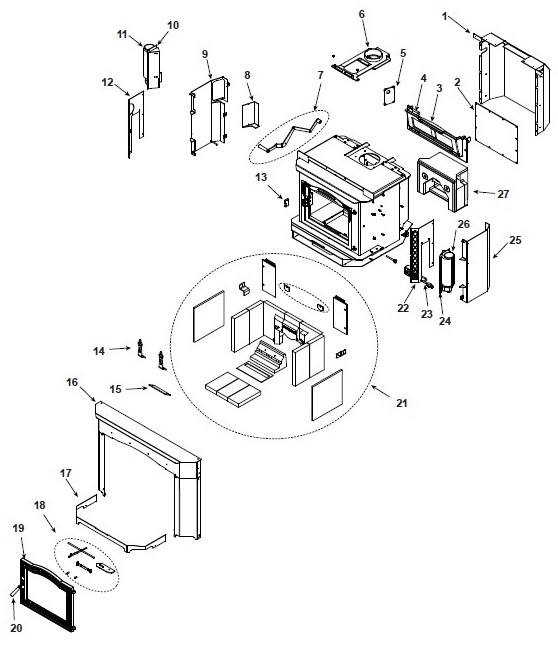

Harman 300i Wood replacement parts diagram
Part #Part NamePart CodePrice
#1Harman 300I Rear Air Jacket (2-00-300103W)2-00-300103W$431.00
#10Harman 300i Lower Bracket - Left (2-00-300106-1B)2-00-300106-1B$158.00
#11Harman Convection Blower - Left (3-21-55416)3-21-55416$250.00
#12Harman 300I Side Shield - Left (2-00-300123P)2-00-300123P$275.00
#13Harman Load Door Latch with Hardware (1-00-06903)1-00-06903$54.00
#14Harman Andiron Extension Kit with Hardware (2-00-05222-1)2-00-05222-1$71.00
#15Harman 300i Airslide Cover Kit (1-00-300132)1-00-300132$59.00
#16Harman 300i Standard Wing - Black (1-00-300130-1)1-00-300130-1$579.00
#16AHarman 300i Wing Support Hardware Pack (1-00-300)1-00-300$59.00
#17Harman 300I Lower Base Cover (2-00-300125P)2-00-300125P$251.00
#18Harman 300i Airslide Adjuster (1-10-300102W)1-10-300102W$133.00
#18AHarman 300i & TL300 Airslide Rod Bracket (2-00-06963B)2-00-06963B$60.00
#18BHarman TL300 & 300i Air Slide Weldment (1-10-06950W)1-10-06950W$31.00
#19Harman Door Assembly w/ Glass (1-10-06920A)1-10-06920A$1,278.00
#19AHarman Door Glass with Gasket (1-00-06932)1-00-06932$349.00
#2Harman TL300 & 300i Combustion Package Cover (2-00-06922L)2-00-06922L$150.00
#20Harman & Vermont Castings Wooden Door Handle - Set of 2 (1-00-00247)1-00-00247$27.00
#20AHarman Door Handle Assembly (1-00-249119)1-00-249119$89.00
#21Harman Rear Brick Clips - Set of 2 (1-00-249153)1-00-249153$50.00
#21.11Harman TL300 & 300i Shoe Brick Gasket (3-44-06951)3-44-06951$19.00
#21.12Harman Combustion Shoe Brick (3-40-00100)3-40-00100$258.00
#21.13Harman Woodstove Right Side Inlet Brick (3-40-00104)3-40-00104$224.00
#21.14Harman Inside Plate Assembly - Right (1-10-249118A)1-10-249118A$114.00
#21.15Harman 1/4" Rope Glass Gasket - 10 Feet (1-00-11862)1-00-11862$25.00
#21.2Harman Inside Plate Assembly - Left (1-10-249117A)1-10-249117A$116.00
#21.3Harman 1/4" Rope Glass Gasket - 10 Feet (1-00-11862)1-00-11862$25.00
#21.4Harman Side Brick Bracket - 2 Pack (1-00-06945)1-00-06945$74.00
#21.5Harman 300i & TL300 Brick Insulation (3-40-06944)3-40-06944$18.00
#21.6Harman Heatilator Eco-Choice & Harman Firebrick (3-40-86125)3-40-86125$24.00
#21.7Harman Left Side Inlet Brick (3-40-00103)3-40-00103$224.00
#21.8Harman Logo Brick (3-40-00101)3-40-00101$167.00
#21.9Harman Firebrick 9 x 4-1/2 x 1-1/4 - Set of 7 (1-00-900450125)1-00-900450125$110.00
#22Harman 300I Side Shield - Right (2-00-300124P)2-00-300124P$275.00
#23Harman 300i Woodstove Blower Power Cord with VSC (3-20-300140)3-20-300140$165.00
#24Harman 300i Blower Bracket - Right (2-00-300106-2B)2-00-300106-2B$139.00
#25Harman 300I Rear Side - Right (2-00-300105B)2-00-300105B$263.00
#26Harman Blower - Right (SRV3-21-32080)SRV3-21-32080$349.00
#27AHarman Combustion Package Cap (2-00-06996B)2-00-06996B$203.00
#3Harman Damper Frame Assembly with Gasket (1-10-249106)1-10-249106$473.00
#4Harman Damper Linkage (1-10-249146)1-10-249146$126.00
#5Harman TL300 & 300i Damper Shaft Cover (1-10-06918W)1-10-06918W$113.00
#6Harman Flue Plate (1-10-300122W)1-10-300122W$383.00
#7Harman 300i Linkage Kit (1-00-300101)1-00-300101$323.00
#8Harman 300i Damper Arm Cover (2-00-300121P)2-00-300121P$122.00
#9Harman 300I Left Rear Side (2-00-300104B)2-00-300104B$275.00
