Harman Accentra FS Parts Diagram

Harman Accentra FS Interactive Parts Finder

Find the exact replacement parts you need for your Harman Accentra FS. This Pellet stove has 163 parts mapped in our interactive diagram below. Common replacement parts include Harman Flue Tailpipe - Cast, Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set, Harman Accentra-Cast Right Feeder Shield, Harman Right Feeder Shield, and Harman Right Feeder Shield. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 163 replacement parts available.

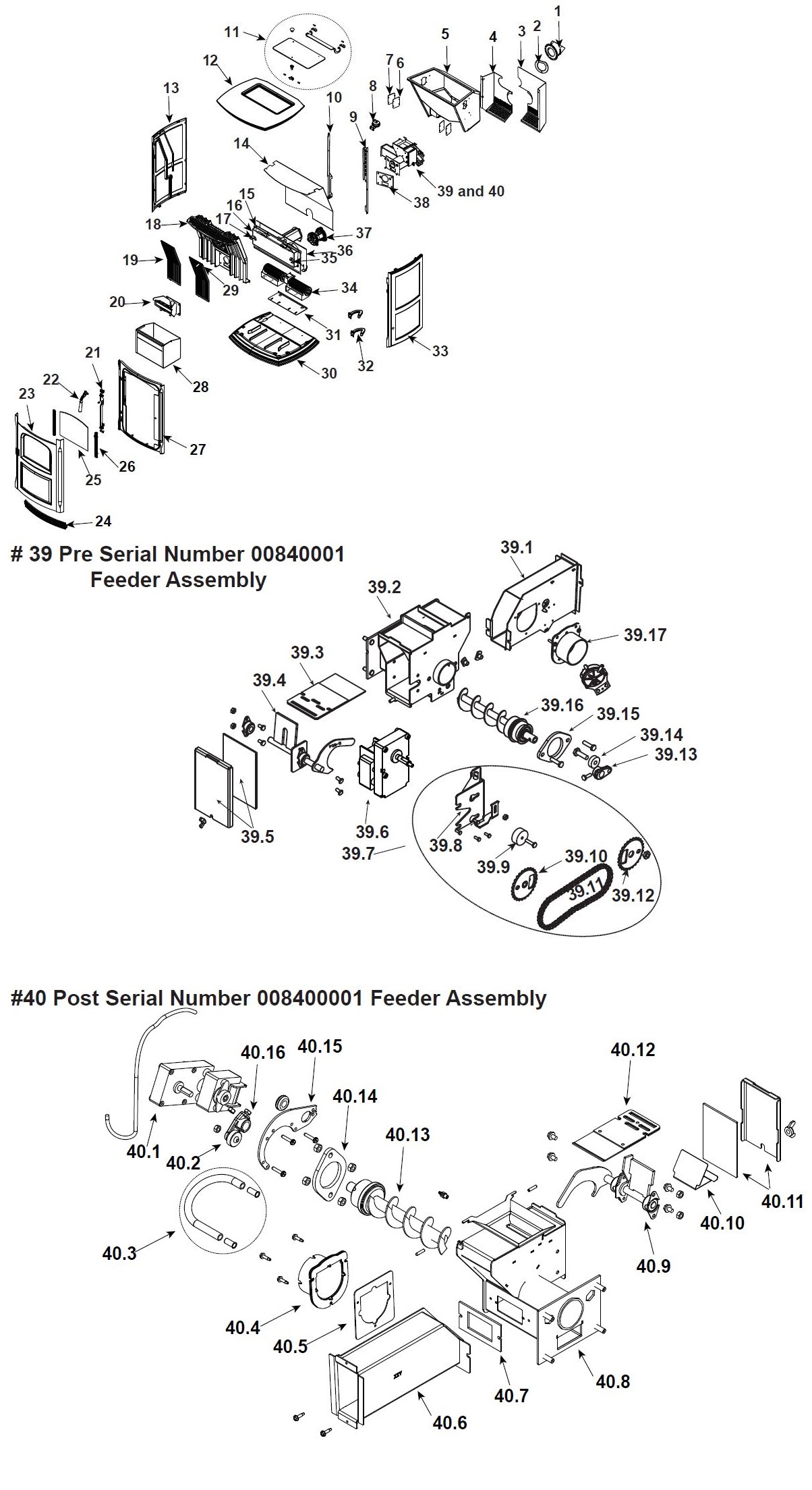

Harman Accentra FS replacement parts diagram
Part #Part NamePart CodePrice
#1Harman Flue Tailpipe - Cast (3-00-247237)3-00-247237$38.00
#10Harman Accentra-Cast Z Bracket - Left (2-00-247139B)2-00-247139B$143.00
#11Harman Accentra FS and XXV Hopper Lid Glass (3-40-247100)3-40-247100$117.00
#12Harman Cast Top - Black (4-00-247236S)4-00-247236S$671.00
#13Harman Accentra Left Cast Side Plate (4-00-247106D)4-00-247106D$455.00
#14Harman Accentra Air Jacket Top (2-00-247219B)2-00-247219B$239.00
#15Harman Accentra Cast Combustion Housing (4-00-247104)4-00-247104$287.00
#16Harman Accentra Combustion Intake Weldment (1-10-247124W)1-10-247124W$179.00
#17Harman Combustion Manifold Latch - Left (2-00-247126-1S)2-00-247126-1S$67.00
#18Harman Accentra Cast Heat Exchanger (4-00-247103)4-00-247103$366.00
#19Harman Accentra Cast Accordion Cover (3-00-247105)3-00-247105$92.00
#2Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#20Harman Accentra FS Burn Pot Weldment (1-10-08736)1-10-08736$305.00
#21aHarman Accentra Door Latch Bar (2-00-247175L)2-00-247175L$19.00
#21bHarman Accentra Dowel Pin Retainer (2-00-247187L)2-00-247187L$14.00
#21cHarman Accentra FS Shoulder Screw Set (3-30-1105-5)3-30-1105-5$35.00
#21dHarman Accentra FS Dowel Pin - 5 Pack (3-30-2017)3-30-2017$9.00
#22aHarman Accentra Cast Door Handle - Painted (3-00-247112P)3-00-247112P$83.00
#22bHarman & Vermont Castings Wooden Door Handle - Set of 2 (1-00-00247)1-00-00247$27.00
#23Harman Accentra Door Assembly - Painted (1-10-247109A)1-10-247109A$1,307.00
#24Harman Cast Air Grill - Black (3-00-247114-1)3-00-247114-1$108.00
#25Harman Accentra & Absolute43 C Door Glass with Gasket (1-00-777000)1-00-777000$219.00
#26Harman Glass Clips with Hardware (1-00-777619)1-00-777619$89.00
#27Harman Accentra Cast Front Frame (4-00-247108C)4-00-247108C$380.00
#28Harman Accentra FS Ash Pan Weldment (1-10-247160)1-10-247160$270.00
#29Harman Accentra Accordion Cover Latch with Hardware (1-00-247131)1-00-247131$49.00
#30Harman Accentra Base Plate - Painted (4-00-247110D)4-00-247110D$635.00
#31Harman Accentra-Cast Convection Blower Plate (2-00-247117S)2-00-247117S$62.00
#32Harman Accentra Cast Door Hinge (4-00-247113)4-00-247113$46.00
#33Harman Accentra Right Cast Side Plate (4-00-247107D)4-00-247107D$599.00
#34Harman Distribution Blower (1-00-29145)1-00-29145$409.00
#35Harman Accentra Combustion Manifold Latch - Right (2-00-247126-2S)2-00-247126-2S$62.00
#36Harman Accentra Air Jacket BTM Weldment (1-10-247121S)1-10-247121S$587.00
#37Harman & Heatilator Eco-Choice Combustion Blower Motor (3-21-08639)3-21-08639$214.00
#38Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#39Harman Accentra Feeder Assembly (1-10-247677A)1-10-247677A$1,427.00
#39.1Harman Accentra Air intake Weldment (1-10-247221W)1-10-247221W$91.00
#39.10Harman 3-1/2" Sprocket with Hub (1-10-08550W)1-10-08550W$109.00
#39.11Harman 60 Pin Drive Chain (3-50-06667)3-50-06667$26.00
#39.12Harman 3 1/2" Sprocket (2-00-06626M)2-00-06626M$59.00
#39.13Harman Cast Cam Block (3-00-00153)3-00-00153$28.00
#39.14Harman UL Feeder Cam Bearing (3-31-3014)3-31-3014$11.00
#39.15Harman & Heatilator Feeder Bearing Retainer (1-00-04035)1-00-04035$27.00
#39.16Harman Feeder Auger (3-50-00465)3-50-00465$236.00
#39.17Harman Air Intake Damper Assembly (1-10-06466W)1-10-06466W$120.00
#39.2Harman Feeder Weldment (1-10-677150)1-10-677150$329.00
#39.3Harman Feeder Slide Plate Assembly (1-10-08037)1-10-08037$51.00
#39.4Harman Accentra FS Pusher Arm Assembly (1-10-247220)1-10-247220$95.00
#39.5Harman Feeder Cleanout Covers and Gaskets - 2 Sets (1-00-677152)1-00-677152$59.00
#39.6Harman 4 RPM CCW Auger Motor (3-20-08752)3-20-08752$189.00
#39.7Harman Sprocket and Chain Kit (1-00-06626)1-00-06626$262.00
#39.8Harman Gear Motor Bracket (1-10-677005)1-10-677005$105.00
#39.9Harman Feeder Tensioner (3-31-00075)3-31-00075$9.00
#3aHarman Accentra-Cast Right Feeder Shield (1-10-247142P)1-10-247142P$199.00
#3bHarman Right Feeder Shield (1-10-247554)1-10-247554$194.00
#3cHarman Right Feeder Shield (1-10-247854)1-10-247854$263.00
#40Harman Accentra Feeder Assembly (1-10-247777A)1-10-247777A$1,859.00
#40.1Harman 4 RPM CW Outboard Auger Motor (3-20-00677) - Made in America3-20-00677$200.00
#40.11Harman & Heatilator Eco-Choice UL Feeder Cover and Gasket - 2 Sets (1-00-677122)1-00-677122$79.00
#40.12Harman & Heatilator UL Slide Plate Assembly (1-10-677121A)1-10-677121A$99.00
#40.13Harman & Heatilator Eco-Choice UL Feeder Auger (3-50-00565)3-50-00565$191.00
#40.14Harman & Heatilator Feeder Bearing Retainer (1-00-04035)1-00-04035$27.00
#40.15Harman & Heatilator Eco-Choice UL Auger Motor Mount with Grommet (1-00-247406)1-00-247406$24.00
#40.16Harman and Heatilator Eco-Choice UL Cast Feeder Cam Block (3-00-677154)3-00-677154$23.00
#40.2Harman UL Feeder Cam Bearing (3-31-3014)3-31-3014$11.00
#40.3Harman & Heatilator Eco-Choice Feeder Air Crossover Tube Kit (1-00-67900)1-00-67900$43.00
#40.4HHT UL Air Intake Assembly with Gasket (1-10-06810A)1-10-06810A$56.00
#40.5Harman and Heatilator Eco-Choice Feeder Air Intake Gasket (3-44-72224)3-44-72224$4.50
#40.6Harman UL Feeder Air Intake (1-10-247239)1-10-247239$251.00
#40.7Harman Ultra Air Intake Gasket (UL Feeder Snout Gasket) (3-44-677160)3-44-677160$7.50
#40.8Harman UL Feeder Weldment (1-10-724132)1-10-724132$427.00
#40.9Harman & Heatilator Eco-Choice UL Feeder Pusher Arm (1-10-677187W)1-10-677187W$104.00
#4bHarman Accentra Feeder Shield - Left (1-10-247553)1-10-247553$215.00
#5aHarman Hopper Assembly (1-10-247213A) 1-10-247213A$634.00
#5bHarman Accentra Hopper Assembly (1-10-247778A)1-10-247778A$733.00
#5cHarman Hopper Assembly (1-10-247260A) 1-10-247260A$733.00
#6Harman Accentra Top Bolt Down Cover (2-00-247185L)2-00-247185L$10.00
#7Harman Accentra Top Bolt Down Cover Gasket (1-00-07383)1-00-07383$32.00
#9Harman Accentra-Cast Right Z Bracket (2-00-247119B)2-00-247119B$143.00
#N/SHarman & Heatilator Eco-Choice Hopper Throat Gasket (3-44-677185)3-44-677185$18.00
#N/SHarman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#N/SHarman Grommet 7/16" ID x 3/4" OD (3-31-960021)3-31-960021$7.00
#N/SHarman 48" Hopper Lid Switch (3-20-232108)3-20-232108$93.00
#N/SHarman Accentra FS Hopper Lid Gasket (3-44-247300)3-44-247300$36.00
#N/SHarman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#N/SHarman Hopper Lid Knob with Screw - Gold (1-00-02000)1-00-02000$43.00
#N/SHarman Hopper Hinge Plate (2-00-06695L)2-00-06695L$13.00
#N/SHarman & Vermont Castings Hopper Ball Spring Plunger - Single (3-31-5500)3-31-5500$8.00
#N/SHarman Hopper Lid Ball Spring Mount Bracket - Set of 4 (2-00-247116)2-00-247116$78.00
#N/SHarman Accentra FS Glass Hopper Lid (1-10-247100)1-10-247100$280.00
#N/SHarman Accentra Glass Hopper Lid Hinge - Pre SN 11340 (1-10-247151)1-10-247151$134.00
#N/SHarman Hopper Lid Hinge (2-00-06694)2-00-06694$126.00
#N/SHarman Accentra Hopper Lid Latches - Set of 4 (1-00-247167)1-00-247167$38.00
#N/SHarman Hopper Lid Latch - Single Set (1-00-0669697)1-00-0669697$30.00
#N/SHarman 5/16" Push Retainers - 100 Pack (3-31-94807-100)3-31-94807-100$34.00
#N/SHarman Hopper Lid Screw Posts & Washers - Set of 2 (1-00-129004)1-00-129004$5.50
#N/SHarman & Heatilator Burnpot Clean Out Cover - 2 Sets (1-00-06623)1-00-06623$22.00
#N/SHarman & Heatilator Eco-Choice Flame Guide (3-00-08534)3-00-08534$44.00
#N/SHarman Genuine 16 Fin 306 Watt Igniter (3-20-677200)3-20-677200$117.00
#N/SHarman & Heatilator Wingscrew 1/4-20 X 5/8 - 2 Pack (3-31-782108)3-31-782108$6.50
#N/SHarman Accentra Door - Painted (4-00-247109P)4-00-247109P$647.00
#N/SHarman Accentra FS Door - Majolica Brown (4-00-247109-14S)4-00-247109-14S$767.00
#N/SHHT Door Rope Gasket - 30 Feet (1-00-00888)1-00-00888$48.00
#N/SHarman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#N/SHarman Accentra Top Bolt Down Cover Gasket (1-00-07383)1-00-07383$32.00
#N/SHarman & Heatilator Eco Choice Exhaust Blower 5" Single Paddle Fan Blade (3-20-40985)3-20-40985$25.00
#N/SHarman & Heatilator Motor Mounting Bracket Grommet & Spacer (1-00-960026)1-00-960026$4.00
#N/SHarman & Heatilator Eco-Choice Feeder Air Crossover Tube Kit (1-00-67900)1-00-67900$43.00
#N/SHarman Feeder Repair Kit (1-00-677150)1-00-677150$563.00
#N/SHarman and Heatilator Eco-Choice Feeder Air Intake Gasket (3-44-72224)3-44-72224$4.50
#N/SHarman & Heatilator Eco-Choice 1/2" Pillow Block - Single (3-31-3614087)3-31-3614087$7.50
#N/SHarman Accentra-Cast Feeder Pusher Arm (1-10-06684)1-10-06684$99.00
#N/SHHT Silicone Tubing 9mm x 13mm x 5' (1-00-511427)1-00-511427$49.00
#N/SHarman & Heatilator Eco-Choice Hopper Throat Gasket (3-44-677185)3-44-677185$18.00
#N/SHarman & Heatilator Eco-Choice Hopper Switch Feeder Fitting - 2 Pack (1-00-142818)1-00-142818$65.00
#N/SHarman & Heatilator Eco-Choice 1/2" Pillow Block - Single (3-31-3614087)3-31-3614087$7.50
#N/SHarman Air Wash O-Rings - 10 Pack - (1-00-939639)1-00-939639$38.00
#N/SHarman & Heatilator Eco-Choice Arrow Burn Pot Scraper (2-00-773850)2-00-773850$11.00
#N/SHarman Circuit Board with Knobs & Shafts (1-00-05886)1-00-05886$296.00
#N/SHarman Control Board Plate Assembly (1-10-247157S)1-10-247157S$659.00
#N/SHarman Accentra & XXV Color Control Label (3-90-247266)3-90-247266$24.00
#N/SHarman & Heatilator Circuit Board D-Shaped Knob and Shaft (1-00-015605)1-00-015605$3.75
#N/SHarman & Heatilator Eco-Choice Diagnostic Display Module (3-20-05401)3-20-05401$949.00
#N/SHarman & Heatilator Digital Diagnostic Meter (DDM) Replacement Cable Kit (1-00-05402)1-00-05402$144.00
#N/SHarman Accentra FS Distribution Blower Gasket (3-44-247118)3-44-247118$12.00
#N/SHarman Accentra-Cast Convection Blower Screen Frame (2-00-247173B)2-00-247173B$117.00
#N/SHarman & Heatilator Draft Meter Assembly (1-00-00637)1-00-00637$1,343.00
#N/SHarman Draft Meter Bolt and Tube (1-00-04004)1-00-04004$26.00
#N/SHarman Accentra-Cast Flame Guide Bracket (2-00-247435)2-00-247435$133.00
#N/SHarman 5 Amp Ceramic Fuses - 5 Pack (3-20-23705-5)3-20-23705-5$39.00
#N/SHarman Door Gasket (1-00-37525)1-00-37525$18.00
#N/SHarman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#N/SHarman & Heatilator Eco-Choice Hopper Muffler & Fittings (1-00-18186618)1-00-18186618$25.00
#N/SHarman Hopper Switch Retrofit Kit (1-00-232108)1-00-232108$252.00
#N/SHarman Accentra FS Combustion Blower Inlet Reduction Ring (1-00-247234)1-00-247234$208.00
#N/SHarman Large Caution Label (3-90-00247)3-90-00247$22.00
#N/SHarman Leg Leveling Kit - Set of 4 (1-00-12302)1-00-12302$55.00
#N/SHarman & Heatilator Eco-Choice Power Cord - 8' (3-20-39685)3-20-39685$22.00
#N/SHarman Accentra and XXV Rocker Switch (3-20-07625)3-20-07625$25.00
#N/SHarman Room Air Sensor (3-20-00906)3-20-00906$34.00
#N/SHHT Silicone Tubing - 1/8" x 5' (1-00-5113574)1-00-5113574$45.00
#N/SHarman & Heatilator Eco-Choice Thermistor Probe - ESP Probe (3-20-11744)3-20-11744$132.00
#N/SHarman Thermister Probe - ESP Probe Red Wires (3-20-00844)3-20-00844$97.00
#N/SHarman Thermostat Extension (3-20-00607)3-20-00607$21.00
#N/SHarman Touch Up Paint - Black (3-42-1990)3-42-1990$32.00
#N/SHarman, Quadra-Fire & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)3-42-19905$24.00
#N/SHarman, Heat N Glo & Quadra-Fire Touch Up Paint - Majolica Brown (1-00-0014)1-00-0014$30.00
#N/SHarman Wire Harness (3-20-08727)3-20-08727$67.00
#N/SHarman Accentra FS 1/4"-20 x 1/4" Screws - 10 Pack (3-30-3013)3-30-3013$9.00
#N/SHarman 1/4-20 x 3/8" Button Head Screw - 100 Pack (3-30-3014-100)3-30-3014-100$39.00
#N/SHarman Accentra FS Shoulder Screw Set (3-30-1105-5)3-30-1105-5$35.00
