Harman Accentra52i Parts Diagram

Harman Accentra52i Interactive Parts Finder

Find the exact replacement parts you need for your Harman Accentra52i. This Pellet stove has 109 parts mapped in our interactive diagram below. Common replacement parts include Harman Accentra Series Side Hinges, Harman Cage Roller Hardware Kit, Harman Accentra 52i/-TC Pipe Stub for 4 inch Flex/ PL with Gasket, Harman Pipe Stub Plate Gasket, and Harman Frame Jacking - All Thread. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 109 replacement parts available.

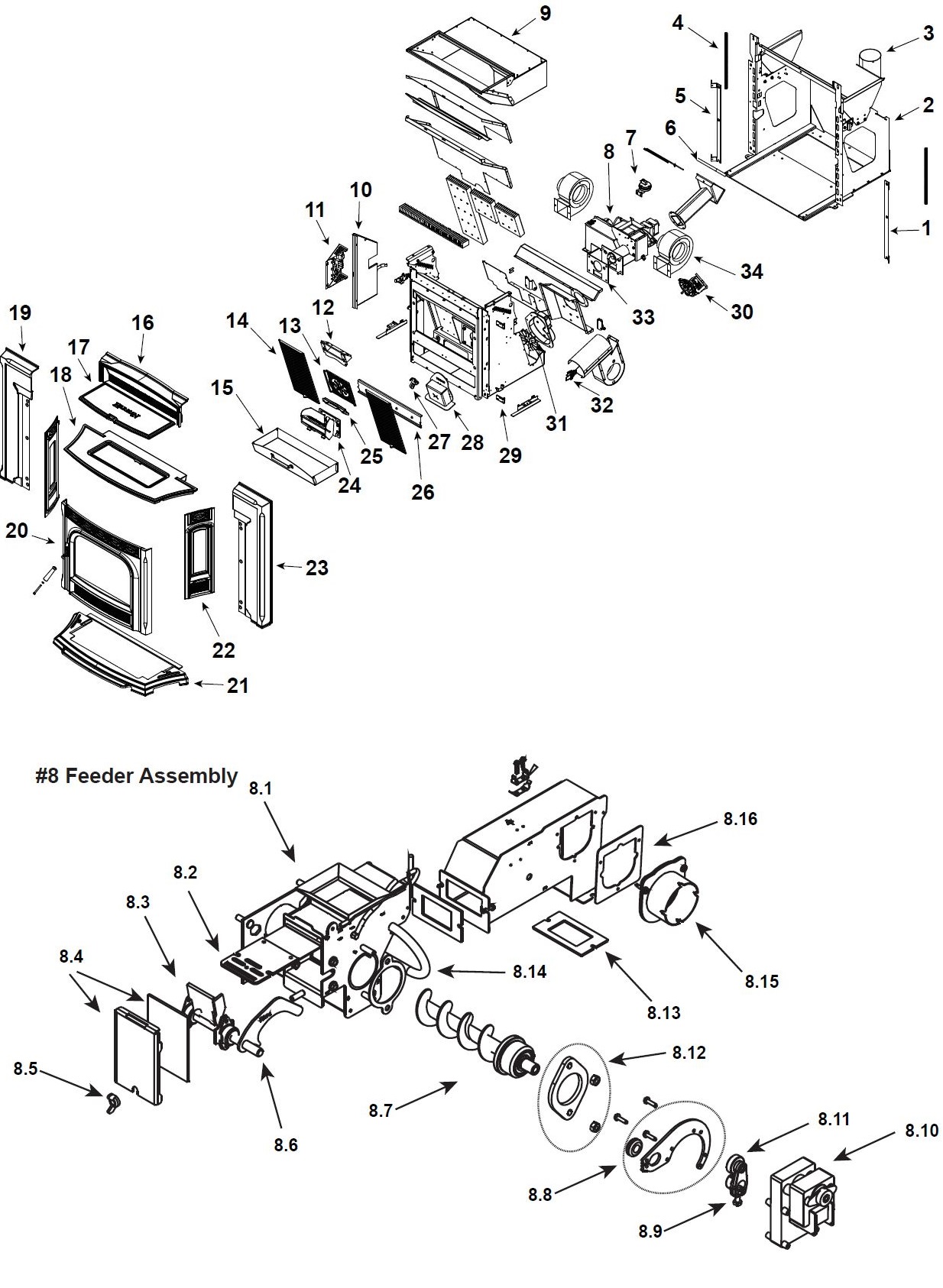

Harman Accentra52i replacement parts diagram
Part #Part NamePart CodePrice
#1Harman Accentra Series Side Hinges (1-00-574075)1-00-574075$195.00
#10Harman Accentra52I Control Board Heat Shield (2-00-574082B)2-00-574082B$395.00
#11Harman Accentra52i Control Board Mounting Plate (1-10-574121)1-10-574121$215.00
#12Harman Medallion Holder (1-10-574098W)1-10-574098W$94.00
#13Harman Cast Center Medallion (3-00-584027)3-00-584027$59.00
#14Harman Accentra Heat Exchange Cover - Cast (SRV3-00-674050)SRV3-00-674050$85.00
#15Harman Ash Pan (1-10-574007A)1-10-574007A$303.00
#16aHarman Accentra 52i Center Wing with Hardware (4-00-574323P)4-00-574323P$476.00
#16bHarman Center Wing Cast - Majolica Brown (1-10-574323-14)1-10-574323-14$1,154.00
#17aHarman Accentra52i Hopper Lid with Label (4-00-574320P)4-00-574320P$419.00
#17bHarman Cast Hopper Lid - Majolica Brown (1-10-574320-14)1-10-574320-14$995.00
#18aHarman Accentra Cast Iron Top with Gasket (4-00-574319P)4-00-574319P$815.00
#18bHarman Accentra52i 14" Cast Top with Gasket - Majolica Brown (1-10-574319-14)1-10-574319-14$1,691.00
#19aHarman Accentra52i & Accentra52i-TC Left Cast Wing - Painted (4-00-574321P)4-00-574321P$469.00
#19bHarman Accentra 52i/TC Cast Left Wing - Majolica Brown (1-10-574321-14)1-10-574321-14$1,111.00
#20aHarman Door with Gasket - Black (4-00-674053A)4-00-674053A$738.00
#20bHarman XXV Door (4-00-674053-14A)4-00-674053-14A$1,286.00
#21aHarman ACCENTRA52i & ACCENTRA52i-TC Cast Bottom Ash Lip - Black (3-00-574318P)3-00-574318P$541.00
#21bHarman Accentra52i/-TC Cast Bottom Ashlip - Majolica Brown (1-10-574318-14)1-10-574318-14$1,547.00
#22aHarman Cast Side Panel (4-00-674054P)4-00-674054P$287.00
#22bHarman Accentra52i-TC Cast Side Panel - Majolica Brown (1-10-574054-14)1-10-574054-14$792.00
#23aHarman Accentra 52i Right Wing with Hardware (4-00-574322P)4-00-574322P$459.00
#23bHarman Accentra 52i/TC Cast Right Wing - Majolica Brown (1-10-574322-14)1-10-574322-14$934.00
#24Harman Burn Pot Weldment (1-00-574605)1-00-574605$382.00
#25Harman and Heatilator Eco-Choice Flame Guide (3-00-03000)3-00-03000$48.00
#26Harman Accentra52i/-TC Cleanout Plate Assembly (1-00-574086)1-00-574086$152.00
#27Harman Combustion Cover Latch Assembly (1-00-574080)1-00-574080$98.00
#28Harman Combustion Cover (1-10-574087A)1-10-574087A$319.00
#29Harman Hinge Plate (3-00-674047)3-00-674047$21.00
#3Harman Accentra 52i/-TC Pipe Stub for 4 inch Flex/ PL with Gasket (1-00-574034)1-00-574034$249.00
#30Harman & Heatilator Eco-Choice Combustion Blower Motor (3-21-08639)3-21-08639$214.00
#31HHT Exhaust Blower 5" Double-Paddle Fan Blade (3-20-502221)3-20-502221$24.00
#32Harman & Heatilator Spring Latches with Hardware - 2 Pack (1-00-00927)1-00-00927$71.00
#33Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#34Harman Distribution Blower (3-21-33647)3-21-33647$286.00
#4Harman Frame Jacking - All Thread (3-31-00949)3-31-00949$15.00
#5Harman Accentra Series Side Hinges (1-00-574075)1-00-574075$195.00
#6Harman Insert Docking Gasket - Silicone (3-44-06108)3-44-06108$47.00
#8Harman Accentra 52i Feeder Assembly (1-10-574055A)1-10-574055A$1,607.00
#8.1Harman UL Feeder Weldment (1-10-724132)1-10-724132$427.00
#8.10Harman 4 RPM CW Feeder Motor (3-20-60906)3-20-60906$214.00
#8.11Harman UL Feeder Cam Bearing (3-31-3014)3-31-3014$11.00
#8.12Harman & Heatilator Feeder Bearing Retainer (1-00-04035)1-00-04035$27.00
#8.13Harman Ultra Air Intake Gasket (UL Feeder Snout Gasket) (3-44-677160)3-44-677160$7.50
#8.14Harman & Heatilator Eco-Choice Feeder Air Crossover Tube Kit (1-00-67900)1-00-67900$43.00
#8.15HHT UL Air Intake Assembly with Gasket (1-10-06810A)1-10-06810A$56.00
#8.16Harman and Heatilator Eco-Choice Feeder Air Intake Gasket (3-44-72224)3-44-72224$4.50
#8.2Harman & Heatilator UL Slide Plate Assembly (1-10-677121A)1-10-677121A$99.00
#8.3Harman & Heatilator Eco-Choice 1/2" Pillow Block - Single (3-31-3614087)3-31-3614087$7.50
#8.4Harman & Heatilator Eco-Choice UL Feeder Cover and Gasket - 2 Sets (1-00-677122)1-00-677122$79.00
#8.5Harman 5/16" Wing Nut - Single (3-30-8012)3-30-8012$2.00
#8.6Harman & Heatilator Eco-Choice UL Feeder Pusher Arm (1-10-677187W)1-10-677187W$104.00
#8.7Harman & Heatilator Eco-Choice UL Feeder Auger (3-50-00565)3-50-00565$191.00
#8.8Harman & Heatilator Eco-Choice UL Auger Motor Mount with Grommet (1-00-247406)1-00-247406$24.00
#8.9Harman and Heatilator Eco-Choice UL Cast Feeder Cam Block (3-00-677154)3-00-677154$23.00
#9aHarman 20" Hopper Assembly (1-10-574334A) 1-10-574334A$529.00
#9bHarman 22" Hopper Assembly (1-10-574339A) 1-10-574339A$530.00
#9cHarman Accentra 52i Hopper Assembly 24" (1-10-574038A)1-10-574038A$489.00
#DOORHANDLEHarman & Vermont Castings Wooden Door Handle - Set of 2 (1-00-00247)1-00-00247$27.00
#N/SHarman Cage Roller Hardware Kit (1-00-02243)1-00-02243$48.00
#N/SHarman Pipe Stub Plate Gasket (3-44-574045)3-44-574045$74.00
#N/SHarman Accentra52i/-TC Jack Plate (1-10-574099W)1-10-574099W$29.00
#N/SHHT Silicone Tubing - 1/8" x 5' (1-00-5113574)1-00-5113574$45.00
#N/SHHT Silicone Tubing 9mm x 13mm x 5' (1-00-511427)1-00-511427$49.00
#N/SHarman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#N/SHarman & Heatilator Eco-Choice Hopper Throat Gasket (3-44-677185)3-44-677185$18.00
#N/SHarman Circuit Board with Knobs & Shafts (1-00-05886)1-00-05886$296.00
#N/SHarman & Heatilator Circuit Board D-Shaped Knob and Shaft (1-00-015605)1-00-015605$3.75
#N/SHarman Control Board Label (3-90-07766)3-90-07766$12.00
#N/SHarman 5 Amp Ceramic Fuses - 5 Pack (3-20-23705-5)3-20-23705-5$39.00
#N/SHarman Accentra52i Hopper Lid Hinges with Hardware (1-00-574324)1-00-574324$131.00
#N/SAccentra 52i Hopper Lid Latch Kit (1-00-574345)1-00-574345$189.00
#N/SHarman Painted Front Door Latch (3-00-249119P)3-00-249119P$38.00
#N/SHarman Door Glass with Gasket (1-00-677000)1-00-677000$337.00
#N/SHarman Glass Clips - 4 Pack (1-00-249140)1-00-249140$68.00
#N/SVermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#N/SHHT Door Rope Gasket - 30 Feet (1-00-00888)1-00-00888$48.00
#N/SHarman Latch Trim Plate (2-00-674206P)2-00-674206P$80.00
#N/SHarman Door Latch Roller Hardware (1-00-05230)1-00-05230$43.00
#N/SHarman Accentra Series Magnetic Latch Assembly - 2 Sets (1-00-08288)1-00-08288$29.00
#N/SHarman Genuine 16 Fin 306 Watt Igniter (3-20-677200)3-20-677200$117.00
#N/SHarman & Heatilator Burnpot Clean Out Cover - 2 Sets (1-00-06623)1-00-06623$22.00
#N/SHarman & Heatilator Wingscrew 1/4-20 X 5/8 - 2 Pack (3-31-782108)3-31-782108$6.50
#N/SHarman & Heatilator Eco-Choice Ceramic Fiber Insert Plate Gasket (3-44-237639)3-44-237639$9.00
#N/SHarman Tadpole Gasket 1 1/2" x 3/8" x 5' (1-00-10050)1-00-10050$18.00
#N/SHHT Combustion Blower Mounting Screws - 4 Pack (1-00-53483208)1-00-53483208$4.50
#N/SHarman & Heatilator Eco-Choice Arrow Burn Pot Scraper (2-00-773850)2-00-773850$11.00
#N/SHarman & Heatilator Eco-Choice Diagnostic Display Module (3-20-05401)3-20-05401$949.00
#N/SHarman & Heatilator Digital Diagnostic Meter (DDM) Replacement Cable Kit (1-00-05402)1-00-05402$144.00
#N/SHarman & Heatilator Draft Meter Assembly (1-00-00637)1-00-00637$1,343.00
#N/SHarman Draft Meter Bolt and Tube (1-00-04004)1-00-04004$26.00
#N/SHarman 14' Power Cord (3-20-674200)3-20-674200$45.00
#N/SHarman Room Air Sensor (3-20-00906)3-20-00906$34.00
#N/SHarman 14' Room Sensor Cord (3-20-674101)3-20-674101$40.00
#N/SHarman Thermister Probe - ESP Probe Red Wires (3-20-00844)3-20-00844$97.00
#N/SHarman, Quadra-Fire & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)3-42-19905$24.00
#N/SHarman, Heat N Glo & Quadra-Fire Touch Up Paint - Majolica Brown (1-00-0014)1-00-0014$30.00
#N/SHarman Wire Harness (3-20-08727)3-20-08727$67.00
#N/SHarman ACCENTRA52i DK Blue Pigtail (3-20-574122)3-20-574122$9.00
#N/SHarman ACCENTRA52i Sky Blue Pigtail (3-20-574123)3-20-574123$9.00
#N/SHarman Accentra52i Hardware Pack (1-00-574439)1-00-574439$52.00
#N/SHarman Smoke Shield with Hardware (1-00-574430)1-00-574430$166.00
