Harman Accentra52i-TC Parts Diagram

Harman Accentra52i-TC Interactive Parts Finder

Find the exact replacement parts you need for your Harman Accentra52i-TC. This Pellet stove has 106 parts mapped in our interactive diagram below. Common replacement parts include Harman Accentra Series Side Hinges, Harman Frame Jacking - All Thread, Harman Accentra52i/-TC Jack Plate, Harman Cage Roller Hardware Kit, and Harman Accentra 52i/-TC Pipe Stub for 4 inch Flex/ PL with Gasket. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 106 replacement parts available.

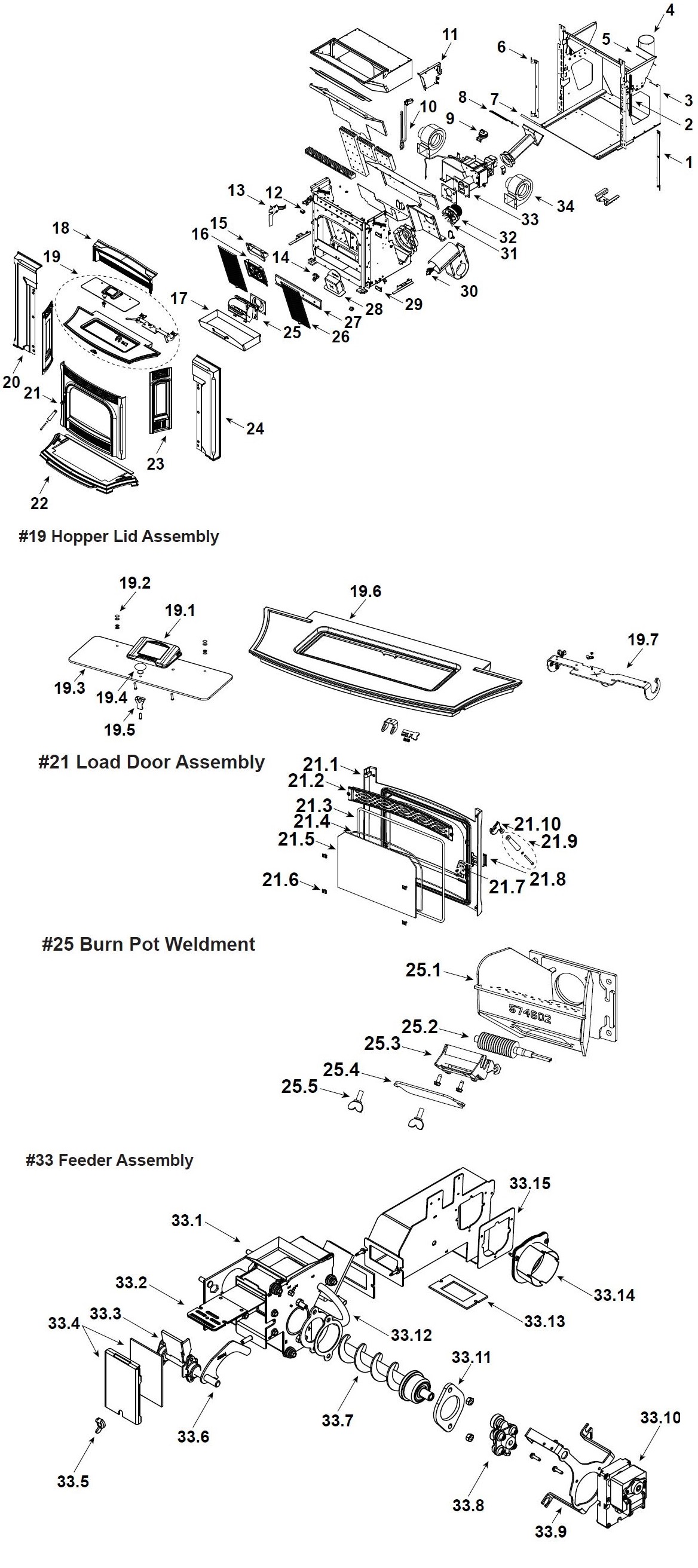

Harman Accentra52i-TC replacement parts diagram
Part #Part NamePart CodePrice
#1Harman Accentra Series Side Hinges (1-00-574075)1-00-574075$195.00
#10Harman Accentra52i-TC & P42i-TC Power Cord 14' (3-20-584024)3-20-584024$34.00
#11Harman Accentra 52i-TC & P42i-TC Control Board Mounting Plate (1-10-584012A)1-10-584012A$155.00
#12Harman Wire Harness (3-20-08727)3-20-08727$67.00
#13Harman Accentra52i-TC & P42i-TC Line Filter Mounting Bracket (1-00-584034)1-00-584034$116.00
#14Harman Combustion Cover Latch Assembly (1-00-574080)1-00-574080$98.00
#15Harman Medallion Holder (1-10-574098W)1-10-574098W$94.00
#16Harman Cast Center Medallion (3-00-584027)3-00-584027$59.00
#17Harman Ash Pan (1-10-574007A)1-10-574007A$303.00
#18aHarman Accentra 52i Center Wing with Hardware (4-00-574323P)4-00-574323P$476.00
#18bHarman Center Wing Cast - Majolica Brown (1-10-574323-14)1-10-574323-14$1,154.00
#19.1Harman Touch Control (1-00-777552)1-00-777552$604.00
#19.2Harman Hopper Lid Screw Posts & Washers - Set of 2 (1-00-129004)1-00-129004$5.50
#19.3Harman Accentra52i-TC Touch Control Hopper Lid Glass (3-40-574365)3-40-574365$168.00
#19.4Harman Hopper Lid Knob with Screw - Black (1-00-02000-1)1-00-02000-1$53.00
#19.6aHarman Accentra 52I-TC Black Top with Gasket (4-00-584020P)4-00-584020P$575.00
#19.6bHarman Accentra52i-TC Top with Gasket - Majolica Brown (1-00-584020-14)1-00-584020-14$1,643.00
#19.7Harman Accentra52i-TC & P42I-TC Hopper Lid Hinge (1-00-584003)1-00-584003$208.00
#2Harman Frame Jacking - All Thread (3-31-00949)3-31-00949$15.00
#20aHarman Accentra52i & Accentra52i-TC Left Cast Wing - Painted (4-00-574321P)4-00-574321P$469.00
#20bHarman Accentra 52i/TC Cast Left Wing - Majolica Brown (1-10-574321-14)1-10-574321-14$1,111.00
#21.10Harman Painted Front Door Latch (3-00-249119P)3-00-249119P$38.00
#21.1aHarman Door with Gasket - Black (4-00-674053A)4-00-674053A$738.00
#21.1bHarman XXV Door (4-00-674053-14A)4-00-674053-14A$1,286.00
#21.2Harman Accentra Insert & Accentra 52i-TC Air Grill (3-00-674052S)3-00-674052S$119.00
#21.3HHT Door Rope Gasket - 30 Feet (1-00-00888)1-00-00888$48.00
#21.4Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#21.5Harman Door Glass with Gasket (1-00-677000)1-00-677000$337.00
#21.6Harman Glass Clips - 4 Pack (1-00-249140)1-00-249140$68.00
#21.7Harman Load Door Latch Retainer (2-00-674098S)2-00-674098S$118.00
#21.8Harman Latch Trim Plate (2-00-674206P)2-00-674206P$80.00
#21.9Harman & Vermont Castings Wooden Door Handle - Set of 2 (1-00-00247)1-00-00247$27.00
#22aHarman ACCENTRA52i & ACCENTRA52i-TC Cast Bottom Ash Lip - Black (3-00-574318P)3-00-574318P$541.00
#22bHarman Accentra52i/-TC Cast Bottom Ashlip - Majolica Brown (1-10-574318-14)1-10-574318-14$1,547.00
#23aHarman Cast Side Panel (4-00-674054P)4-00-674054P$287.00
#23bHarman Accentra52i-TC Cast Side Panel - Majolica Brown (1-10-574054-14)1-10-574054-14$792.00
#24aHarman Accentra 52i Right Wing with Hardware (4-00-574322P)4-00-574322P$459.00
#24bHarman Accentra 52i/TC Cast Right Wing - Majolica Brown (1-10-574322-14)1-10-574322-14$934.00
#25.1Harman Burn Pot Weldment (1-00-574605)1-00-574605$382.00
#25.2aHarman Genuine 16 Fin 306 Watt Igniter (3-20-677200)3-20-677200$117.00
#25.4Harman & Heatilator Burnpot Clean Out Cover - 2 Sets (1-00-06623)1-00-06623$22.00
#25.5Harman & Heatilator Wingscrew 1/4-20 X 5/8 - 2 Pack (3-31-782108)3-31-782108$6.50
#26Harman Accentra Heat Exchange Cover - Cast (SRV3-00-674050)SRV3-00-674050$85.00
#27Harman Accentra52i/-TC Cleanout Plate Assembly (1-00-574086)1-00-574086$152.00
#28Harman Combustion Cover (1-10-574087A)1-10-574087A$319.00
#29Harman Hinge Plate (3-00-674047)3-00-674047$21.00
#30Harman & Heatilator Spring Latches with Hardware - 2 Pack (1-00-00927)1-00-00927$71.00
#31Harman Combustion Blower Fan Blade (1-10-574500A)1-10-574500A$71.00
#32Harman Combustion Blower with Capacitor (1-00-02275)1-00-02275$511.00
#33.1Harman Feeder Body (1-10-680021W)1-10-680021W$529.00
#33.10Harman Accentra52i-TC & P42i-TC Line Filter Mounting Bracket (1-00-584034)1-00-584034$116.00
#33.11Harman & Heatilator Feeder Bearing Retainer (1-00-04035)1-00-04035$27.00
#33.12Harman & Heatilator Eco-Choice Feeder Air Crossover Tube Kit (1-00-67900)1-00-67900$43.00
#33.13Harman Ultra Air Intake Gasket (UL Feeder Snout Gasket) (3-44-677160)3-44-677160$7.50
#33.14HHT UL Air Intake Assembly with Gasket (1-10-06810A)1-10-06810A$56.00
#33.15Harman and Heatilator Eco-Choice Feeder Air Intake Gasket (3-44-72224)3-44-72224$4.50
#33.2Harman & Heatilator UL Slide Plate Assembly (1-10-677121A)1-10-677121A$99.00
#33.3Harman & Heatilator Eco-Choice 1/2" Pillow Block - Single (3-31-3614087)3-31-3614087$7.50
#33.4Harman & Heatilator Eco-Choice UL Feeder Cover and Gasket - 2 Sets (1-00-677122)1-00-677122$79.00
#33.5Harman 5/16" Wing Nut - Single (3-30-8012)3-30-8012$2.00
#33.6Harman & Heatilator Eco-Choice UL Feeder Pusher Arm (1-10-677187W)1-10-677187W$104.00
#33.7Harman & Heatilator Eco-Choice UL Feeder Auger (3-50-00565)3-50-00565$191.00
#33.8Harman Cam Block Assembly (1-10-777620A)1-10-777620A$99.00
#33.9Harman Accentra52i-TC & P42i-TC Motor Mount with Hardware (1-00-584035)1-00-584035$148.00
#4Harman Accentra 52i/-TC Pipe Stub for 4 inch Flex/ PL with Gasket (1-00-574034)1-00-574034$249.00
#5Harman Pipe Stub Plate Gasket (3-44-574045)3-44-574045$74.00
#6Harman Accentra Series Side Hinges (1-00-574075)1-00-574075$195.00
#7Harman Insert Docking Gasket - Silicone (3-44-06108)3-44-06108$47.00
#8Harman Thermister Probe - ESP Probe Red Wires (3-20-00844)3-20-00844$97.00
#N/SHarman Accentra52i/-TC Jack Plate (1-10-574099W)1-10-574099W$29.00
#N/SHarman Cage Roller Hardware Kit (1-00-02243)1-00-02243$48.00
#N/SHHT Silicone Tubing - 1/8" x 5' (1-00-5113574)1-00-5113574$45.00
#N/SHarman Power Entry Module (3-20-803744)3-20-803744$44.00
#N/SHarman Control Board (1-00-05372)1-00-05372$429.00
#N/SHarman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#N/SHarman & Heatilator Eco-Choice Hopper Throat Gasket (3-44-677185)3-44-677185$18.00
#N/SHarman Cable Cover Gasket (3-44-777549)3-44-777549$7.00
#N/SHarman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#N/SHarman Ball Plungers & Retainers - Set of 6 (1-00-5500)1-00-5500$92.00
#N/SHarman Hopper Lid Hinge Pin Plate (1-00-777560)1-00-777560$80.00
#N/SHarman Accentra52i-TC & P42i-TC Hopper Lid Latch Release Kit (1-00-584345)1-00-584345$121.00
#N/SHarman Door Latch Roller Hardware (1-00-05230)1-00-05230$43.00
#N/SHarman Accentra Series Magnetic Latch Assembly - 2 Sets (1-00-08288)1-00-08288$29.00
#N/SHarman & Heatilator Eco-Choice Ceramic Fiber Insert Plate Gasket (3-44-237639)3-44-237639$9.00
#N/SHarman and Heatilator Eco-Choice Flame Guide (3-00-03000)3-00-03000$48.00
#N/SHarman Tadpole Gasket 1 1/2" x 3/8" x 5' (1-00-10050)1-00-10050$18.00
#N/SHarman Blower Mounting Screws - 5 Pack (1-00-832150)1-00-832150$31.00
#N/SHarman UL Feeder Cam Bearing (3-31-3014)3-31-3014$11.00
#N/SHarman and Heatilator Eco-Choice UL Cast Feeder Cam Block (3-00-677154)3-00-677154$23.00
#N/SHHT Silicone Tubing 9mm x 13mm x 5' (1-00-511427)1-00-511427$49.00
#N/SHarman Communication Cable (3-20-72662)3-20-72662$22.00
#N/SHarman & Heatilator Draft Meter Assembly (1-00-00637)1-00-00637$1,343.00
#N/SHarman Draft Meter Bolt and Tube (1-00-04004)1-00-04004$26.00
#N/SHarman Return Air Sensor (3-20-08780)3-20-08780$38.00
#N/SHarman ACCENTRA52i & P42i-TC Room or Return Sensor Extension - 14FT (3-20-584023)3-20-584023$57.00
#N/SHarman, Quadra-Fire & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)3-42-19905$24.00
#N/SHarman, Heat N Glo & Quadra-Fire Touch Up Paint - Majolica Brown (1-00-0014)1-00-0014$30.00
#N/SHarman Wiring Harness (3-20-08888)3-20-08888$53.00
