Harman Advance -Pellet Parts Diagram

Harman Advance -Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Harman Advance -Pellet. This Pellet stove has 55 parts mapped in our interactive diagram below. Common replacement parts include Harman Hopper Assembly, Harman Advance Hopper Lid Glass, Harman Advance Hopper Heat Shield, Harman Advance Cast Top with Gasket, and Harman Advance 3 Piece Tile Kit - Cream. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 55 replacement parts available.

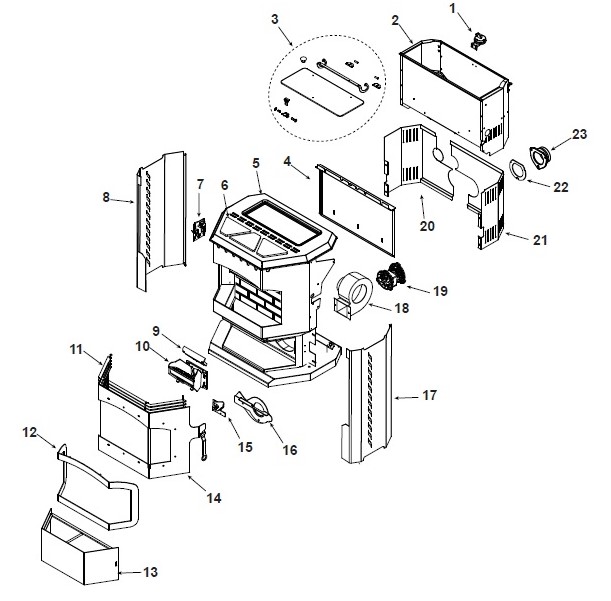

Harman Advance -Pellet replacement parts diagram
Part #Part NamePart CodePrice
#10Harman Burn Pot Weldment (1-10-00675)1-10-00675$337.00
#11Harman Advance FS Gold Grill Weldment (3-43-06642-4)3-43-06642-4$417.00
#11AHarman Advance FS Brushed Stain Grill Weldment (3-43-06642-7)3-43-06642-7$527.00
#11BHarman Advance FS Brushed Nickel Grill Weldment (3-43-06642-8)3-43-06642-8$329.00
#12Harman Advance FS Gold Frame (3-43-06613-4)3-43-06613-4$692.00
#12AHarman Advance FS Brushed Stain Frame (3-43-06613-7)3-43-06613-7$472.00
#13Harman Advance Ash Pan Weldment (1-10-07581A)1-10-07581A$577.00
#14Harman Advance Door Assembly (1-10-08612A)1-10-08612A$1,787.00
#15Harman Advance Retainer Assembly (1-10-08553S)1-10-08553S$95.00
#16Harman Advance Combustion Intake Weldment (1-10-07574W)1-10-07574W$125.00
#17Harman Advance Right Side Door (2-00-06610-2P)2-00-06610-2P$359.00
#18Harman Distribution Blower (3-21-33647)3-21-33647$286.00
#19Harman & Heatilator Eco-Choice Combustion Blower Motor (3-21-08639)3-21-08639$214.00
#2Harman Hopper Assembly (1-10-09731S) 1-10-09731S$886.00
#20Harman Advance UL Feeder Hopper Rear Shield - Left (2-00-06617P)2-00-06617P$227.00
#20AHarman Advance Feeder Shield - Left (2-00-06788P)2-00-06788P$347.00
#21Harman Advance Feeder Shield - Right (2-00-06616P)2-00-06616P$311.00
#21AHarman Advance Feeder Shield - Right (2-00-06789B)2-00-06789B$203.00
#22Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#23Harman Flue Tailpipe - Cast (3-00-247237)3-00-247237$38.00
#2AHarman Hopper Assembly (1-10-09876A) 1-10-09876A$733.00
#2BHarman Hopper Switch Retrofit Kit (1-00-232108)1-00-232108$252.00
#2CHarman Hopper Assembly (1-10-09876A) 1-10-09876A$733.00
#3Harman Advance Hopper Lid Glass (3-40-06693)3-40-06693$94.00
#3AHarman Hopper Lid Latch - Single Set (1-00-0669697)1-00-0669697$30.00
#3BHarman Hopper Lid Knob with Screw - Gold (1-00-02000)1-00-02000$43.00
#4Harman Advance Hopper Heat Shield (2-00-06612B)2-00-06612B$203.00
#5Harman Advance Cast Top with Gasket (4-00-08739P)4-00-08739P$609.00
#6Harman Advance 3 Piece Tile Kit - Cream (3-43-03000-1)3-43-03000-1$69.00
#6AHarman Advance 3 Piece Tile Kit - Black (3-43-03000-3)3-43-03000-3$66.00
#8Harman Advance Left Side Door (2-00-06610-1P)2-00-06610-1P$324.00
#9Harman Flame Guide (3-00-06644)3-00-06644$47.00
#N/AHarman & Heatilator Eco-Choice Ceramic Insert Gasket (3-44-724114)3-44-724114$9.00
#N/AHarman Advance Notched Door Gasket - Tadpole Style (2-00-71611)2-00-71611$49.00
#N/AHarman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#N/AHarman Advance Center Glass with Gasket (1-00-08728)1-00-08728$191.00
#N/AHarman Advance Side Glass with Gasket (1-00-08729)1-00-08729$93.00
#N/AHarman Advance Glass Clip Set (1-00-06600)1-00-06600$245.00
#N/AHarman & Heatilator Burnpot Clean Out Cover - 2 Sets (1-00-06623)1-00-06623$22.00
#N/AHarman Genuine 16 Fin 306 Watt Igniter (3-20-677200)3-20-677200$117.00
#N/SHarman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#N/SHarman Hopper Lid Screw Posts & Washers - Set of 2 (1-00-129004)1-00-129004$5.50
#N/SHarman 5/16" Push Retainers - 100 Pack (3-31-94807-100)3-31-94807-100$34.00
#N/SHarman Hopper Hinge Plate (2-00-06695L)2-00-06695L$13.00
#N/SHarman Hopper Lid Hinge (2-00-06694)2-00-06694$126.00
#N/SHarman 48" Hopper Lid Switch (3-20-232108)3-20-232108$93.00
