Harman Clarity 929 DV Gas Parts Diagram

Harman Clarity 929 DV Gas Interactive Parts Finder

Find the exact replacement parts you need for your Harman Clarity 929 DV Gas. This Gas stove has 25 parts mapped in our interactive diagram below. Common replacement parts include Harman Clarity 929 Rear Log, Harman Clarity 929 Top Log - Twig, Harman Clarity 929 Front Log, Harman Clarity Ember Strip, and Harman Clarity Starting Collar. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 25 replacement parts available.

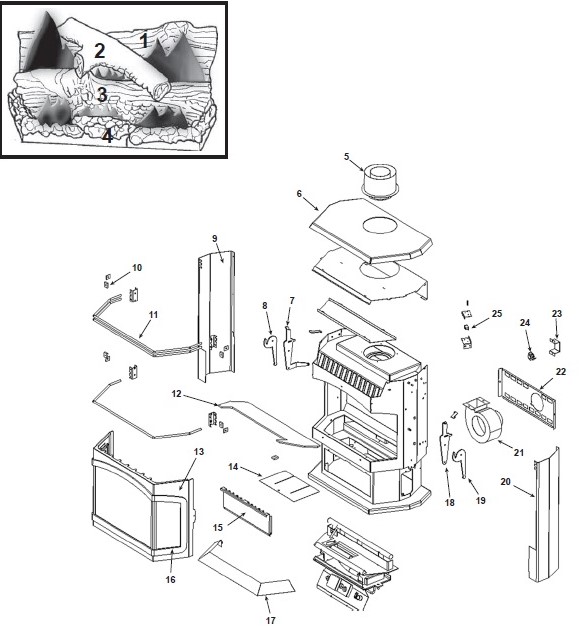

Harman Clarity 929 DV Gas replacement parts diagram
Part #Part NamePart CodePrice
#1Harman Clarity 929 Rear Log (3-40-08235)3-40-08235$56.00
#10Harman Clarity Magnetic Latch - Set of 4 (1-00-08225)1-00-08225$24.00
#12Harman Baffle (2-00-4172L)2-00-4172L$62.00
#13Harman Front Door Assembly - Black (1-10-08287P) 1-10-08287P$1,406.00
#14Harman Control Board Heat Shield (2-00-4210L)2-00-4210L$13.00
#16Harman 16" Door Frame (1-10-4103S) 1-10-4103S$305.00
#17Harman Base Trim (2-00-4169S)2-00-4169S$145.00
#18Harman Right Latch Arm (1-10-08265-2W) 1-10-08265-2W$104.00
#19Harman Right Cam Latch (2-00-4138-2L)2-00-4138-2L$67.00
#2Harman Clarity 929 Top Log - Twig (3-40-08237)3-40-08237$33.00
#20Harman Right Wing Door (1-10-08262-2S) 1-10-08262-2S$285.00
#21Harman Distribution Blower (3-21-33647)3-21-33647$286.00
#22Harman Lower Rear Access Cover (2-00-4177P)2-00-4177P$113.00
#23Harman Clarity 929 DV Snap Disc Fan Control Bracket (2-00-4213P)2-00-4213P$58.00
#24Harman Blower Control Snap Disc (3-20-408412)3-20-408412$35.00
#25Harman Micro Switch (3-20-00907)3-20-00907$27.00
#3Harman Clarity 929 Front Log (3-40-08236)3-40-08236$94.00
#4Harman Clarity Ember Strip (3-40-08401)3-40-08401$42.00
#5Harman Clarity Starting Collar (3-40-3849239)3-40-3849239$58.00
#6Harman Top (1-10-08258S) 1-10-08258S$478.00
#7Harman Left Latch Arm (1-10-08265-1W) 1-10-08265-1W$104.00
#8Harman Left Cam Latch (2-00-4138-1L)2-00-4138-1L$67.00
#9Harman Left Wing Door (1-10-08262-1S) 1-10-08262-1S$285.00
