Harman Exception TL200 Wood Parts Diagram

Harman Exception TL200 Wood Interactive Parts Finder

Find the exact replacement parts you need for your Harman Exception TL200 Wood. This Wood stove has 44 parts mapped in our interactive diagram below. Common replacement parts include Harman TL200 Damper Linkage Arm Weldment w/Knob, Harman TL200 Damper Pivot Arm Weldment, Harman TL200 & TL300 Top Lift Arm Weldment, Harman TL200 and F200 Ceramic Fiber Afterburner, and Harman Exception Series Left Plate Assembly. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 44 replacement parts available.

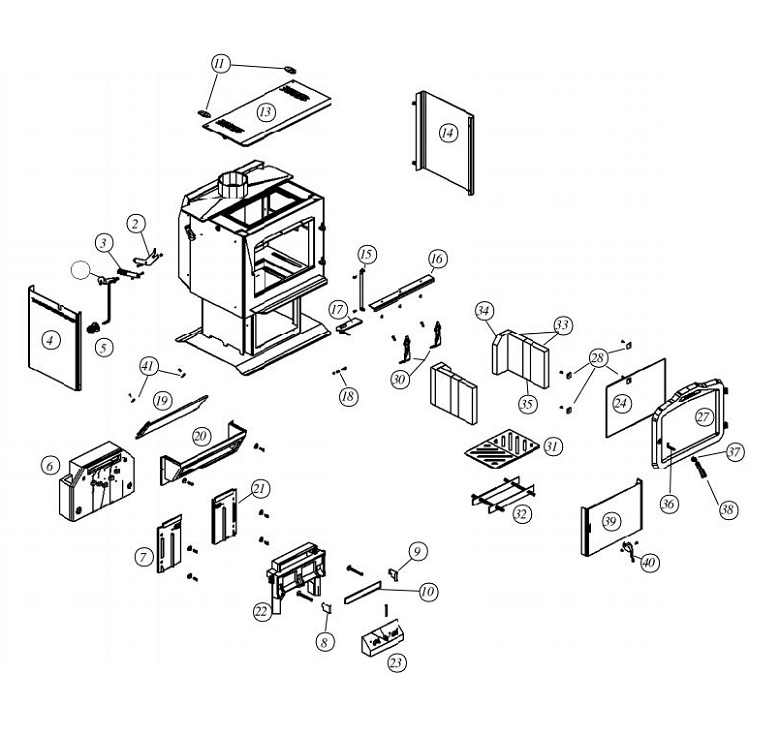

Harman Exception TL200 Wood replacement parts diagram
Part #Part NamePart CodePrice
#1Harman TL200 Damper Linkage Arm Weldment w/Knob (1-10-08074)1-10-08074$215.00
#18Harman & Heatilator Eco-Choice Steel Sleeve Bushing (3-50-05229)3-50-05229$7.00
#19Harman Exception Damper Weldment (1-10-08077)1-10-08077$202.00
#2Harman TL200 Damper Pivot Arm Weldment (1-10-08075)1-10-08075$120.00
#20Harman Exception Cast Damper Frame (1-10-08057)1-10-08057$359.00
#21Harman Exception Series Right Plate Assembly (1-10-08059)1-10-08059$225.00
#22Harman Exception Afterburner Hood Weldment (1-10-08200)1-10-08200$899.00
#23Harman Exception Ramp Assembly (1-10-08111)1-10-08111$160.00
#24Harman TL200 Glass (3-40-05174)3-40-05174$350.00
#3Harman TL200 & TL300 Top Lift Arm Weldment (1-10-08127)1-10-08127$44.00
#30Harman Andiron Extension Kit with Hardware (2-00-05222-1)2-00-05222-1$71.00
#31Harman Exception TL-200 Steel Grate (2-00-05147)2-00-05147$89.00
#33Harman Single Firebrick - 9" x 4-1/2" x 1-1/4" (3-40-900450125)3-40-900450125$17.00
#36Harman TLC2000, TL200, F200 and DVC500 Paw Bolt (4-31-08055)4-31-08055$25.00
#6Harman TL200 and F200 Ceramic Fiber Afterburner (3-40-05171)3-40-05171$371.00
#7Harman Exception Series Left Plate Assembly (1-10-08058)1-10-08058$225.00
#N/SHarman Exception TL200 Ashpan (1-10-05148)1-10-05148$259.00
#N/SHarman CW30 & Exception Brick Insulation (3-40-05185)3-40-05185$45.00
