Harman Invincible RS Parts Diagram

Harman Invincible RS Interactive Parts Finder

Find the exact replacement parts you need for your Harman Invincible RS. This Pellet stove has 57 parts mapped in our interactive diagram below. Common replacement parts include Heat N Glo, Harman & PelPro Brass Knob, Harman & Heatilator Eco-Choice Flame Guide, Harman Ash Pan, Harman Invincible Series Door Handle Assembly, and Harman 5/16" Wing Nut - Single. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 57 replacement parts available.

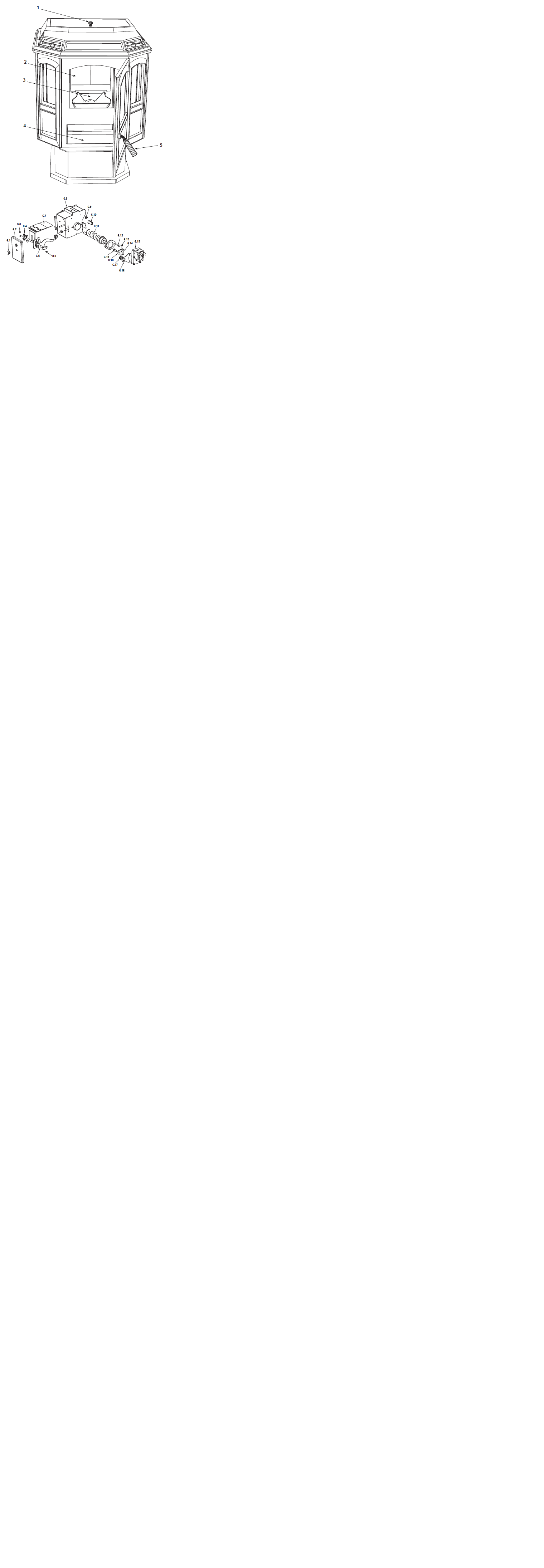

Harman Invincible RS replacement parts diagram
Part #Part NamePart CodePrice
#1Heat N Glo, Harman & PelPro Brass Knob (3-43-02000)3-43-02000$8.00
#3Harman & Heatilator Eco-Choice Flame Guide (3-00-08534)3-00-08534$44.00
#4Harman Ash Pan (1-10-02033)1-10-02033$140.00
#5Harman Invincible Series Door Handle Assembly (1-00-00871)1-00-00871$120.00
#6.1Harman 5/16" Wing Nut - Single (3-30-8012)3-30-8012$2.00
#6.10Harman Micro Switch (3-20-00907)3-20-00907$27.00
#6.11Harman Feeder Auger (3-50-00465)3-50-00465$236.00
#6.12Harman Auger Mounting Bolts - 2 Bolts (3-30-1129)3-30-1129$1.00
#6.13Harman Cam to Auger Bolt - 1/4" x 20 x 3/4" - Single (3-30-1113)3-30-1113$2.00
#6.14Harman Cast Cam Block (3-00-00153)3-00-00153$28.00
#6.15Harman 4 RPM CW Feeder Motor (3-20-60906)3-20-60906$214.00
#6.16Harman Auger Motor Mount with Grommets - 2 Pack (1-00-01534)1-00-01534$15.00
#6.17Harman Rubber Grommet 1/2" ID - Single (3-31-2761)3-31-2761$3.00
#6.18Harman UL Feeder Cam Bearing (3-31-3014)3-31-3014$11.00
#6.19Harman Cam Bearing Bolt - Single (3-30-1134)3-30-1134$2.00
#6.3Harman & Heatilator Eco-Choice 1/4" - 20 Z5 Nut - 4 Pack (3-30-8004)3-30-8004$1.00
#6.4Harman & Heatilator Eco-Choice 1/2" Pillow Block - Single (3-31-3614087)3-31-3614087$7.50
#6.5Harman Pusher Arm Assembly (1-10-08048)1-10-08048$229.00
#6.6Harman Mounting Bolt 1/4" x 20 x 1/2" - Single (3-30-1108)3-30-1108$2.00
#6.7Harman Feeder Slide Plate Assembly (1-10-08037)1-10-08037$51.00
#6.9Harman Auger Mounting T Nut 5/16 - 2 Pack (3-31-23756)3-31-23756$5.00
#N/SHarman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#N/SHarman 5/8" Flat Channel Glass Gasket - 5 Feet (1-00-98187)1-00-98187$30.00
#N/SHHT Door Rope Gasket - 30 Feet (1-00-00888)1-00-00888$48.00
#N/SHarman & Heatilator Hopper Lid Gasket - 10 Feet (1-00-00248)1-00-00248$45.00
#N/SHarman Feed Motor Fan Blade - Single (3-20-2046399)3-20-2046399$12.00
#N/SHarman Wooden Door Handle with Screw (1-00-00122)1-00-00122$30.00
#N/SHarman 3 Piece Ceramic Log Set (3-40-5647)3-40-5647$172.00
#N/SHarman Invincible T and RS Paw Bolt (Modified) (4-31-00702)4-31-00702$25.00
#N/SHarman & Heatilator Eco-Choice Thermistor Probe - ESP Probe (3-20-11744)3-20-11744$132.00
#N/SHarman Room Air Sensor (3-20-00906)3-20-00906$34.00
#N/SHarman Window Trim Spring Clip (3-31-232547)3-31-232547$3.00
#N/SHarman & Heatilator Wingscrew 1/4-20 X 5/8 - 2 Pack (3-31-782108)3-31-782108$6.50
#N/SHarman & Heatilator Circuit Board D-Shaped Knob and Shaft (1-00-015605)1-00-015605$3.75
#N/SHarman Burn Pot Weldment (1-10-05802)1-10-05802$326.00
#N/SHarman Circuit Board with Knobs & Shafts (1-00-06142)1-00-06142$368.00
#N/SHarman Invincible Insert and RS Combustion Blower (3-21-00945)3-21-00945$369.00
#N/SHarman Invincible RS Combustion Blower Gasket (3-44-06178)3-44-06178$12.00
#N/SHarman 1/4" Rope Glass Gasket - 10 Feet (1-00-11862)1-00-11862$25.00
#N/SHarman Distribution Blower (3-21-33647)3-21-33647$286.00
#N/SHarman Invincible Insert and RS Door Latch (2-00-06017)2-00-06017$16.00
#N/SHarman Invincible Insert and RS Door Latch Spacer (2-00-06016)2-00-06016$15.00
#N/SHHT Exhaust Blower 5" Double-Paddle Fan Blade (3-20-502221)3-20-502221$24.00
#N/SHarman Invincible RS & Pellet Pro II Feeder Extention Spring (3-31-00092)3-31-00092$15.00
#N/SHarman 5 Amp Ceramic Fuses - 5 Pack (3-20-23705-5)3-20-23705-5$39.00
