Harman Oakleaf Wood Parts Diagram

Harman Oakleaf Wood Interactive Parts Finder

Find the exact replacement parts you need for your Harman Oakleaf Wood. This Wood stove has 40 parts mapped in our interactive diagram below. Common replacement parts include Harman OAKLEAF Upper Top Heat Shield, Harman Oakleaf & Oakwood Flue Collar Cover with Gasket, Harman Oakwood & Oakleaf Flue Collar, Harman Oakleaf & Oakwood Top Load Door, and Harman Door Gasket. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 40 replacement parts available.

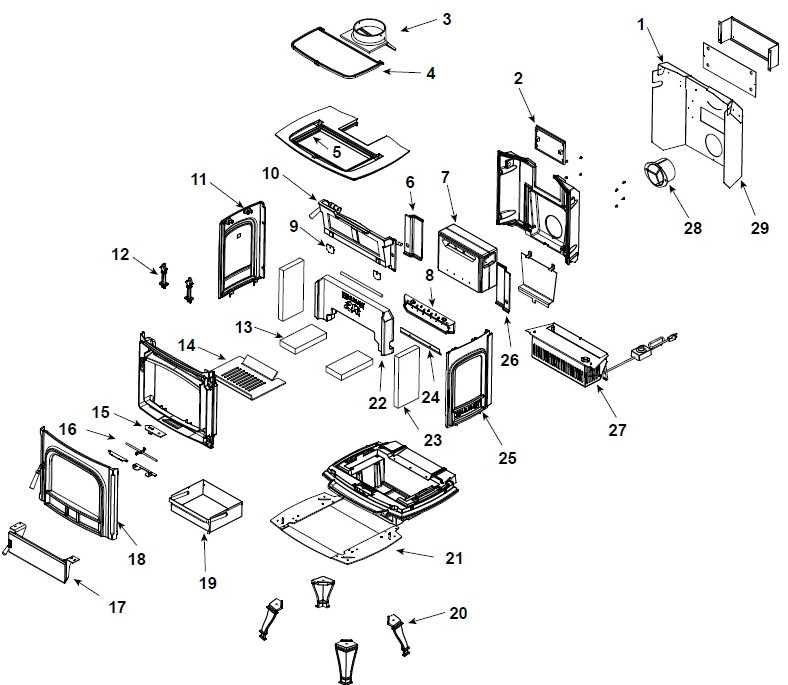

Harman Oakleaf Wood replacement parts diagram
Part #Part NamePart CodePrice
#1Harman OAKLEAF Upper Top Heat Shield (2-00-797053P)2-00-797053P$419.00
#10Harman Oakleaf Damper Frame Assembly (1-10-797103A)1-10-797103A$527.00
#11Harman Oakleaf Side - Left (SRV3-00-797107)SRV3-00-797107$239.00
#12Harman Door Gasket (1-00-37525)1-00-37525$18.00
#13Harman Firebrick 9 x 4-1/2 x 1-1/4 - Set of 7 (1-00-900450125)1-00-900450125$110.00
#14Harman OAKLEAF Grate (2-00-797023B)2-00-797023B$195.00
#15Harman Oakleaf Air Slide (1-10-797010)1-10-797010$70.00
#16Harman Oakleaf Air Slide Shaft (1-10-797013)1-10-797013$108.00
#17Harman Oakleaf Ash Door Assembly (1-10-797110)1-10-797110$311.00
#18Harman Oakleaf Front Door Assembly (1-10-797108)1-10-797108$1,198.00
#19Harman Oakleaf Ash Pan (1-10-797026)1-10-797026$311.00
#1AHarman Oakleaf Upper Rear Heat Shield - Horizontal Termination (1-00-797066)1-00-797066$209.00
#2Harman Oakleaf & Oakwood Flue Collar Cover with Gasket (1-10-249109)1-10-249109$107.00
#20Harman Oakwood & Oakleaf Leg - Painted (4-00-249100P)4-00-249100P$136.00
#21Harman OAKLEAF Base Plate (2-00-797027S)2-00-797027S$107.00
#22Harman Oakleaf Center Brick (3-40-797020)3-40-797020$399.00
#22AHarman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#23Harman Heatilator Eco-Choice & Harman Firebrick (3-40-86125)3-40-86125$24.00
#23AHarman Oakwood & Oakleaf Upper Brick Clips - Set of 2 (1-00-249172)1-00-249172$70.00
#24Harman Oakleaf Center Seal Plate with Gasket (1-10-797034)1-10-797034$256.00
#25Harman Oakleaf Side - Right (SRV3-00-797111)SRV3-00-797111$239.00
#26Harman Oakleaf Inside Plate with Gasket - Right (1-10-797112)1-10-797112$109.00
#27Harman Oakleaf Fan Kit / Blower Assembly (1-00-797032)1-00-797032$659.00
#27AHarman Oakleaf Convection Blower (1-00-7000537)1-00-7000537$368.00
#28Harman Oakleaf Pipe Adapter (1-10-797045)1-10-797045$178.00
#29Harman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#2AHarman Flue Collar Cover Gasket (1-00-00999)1-00-00999$48.00
#3Harman Oakwood & Oakleaf Flue Collar (4-00-249108D)4-00-249108D$196.00
#3AHarman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#4Harman Oakleaf & Oakwood Top Load Door (3-00-249115P)3-00-249115P$305.00
#4AHarman Oakleaf Load Door Handle Kit (1-00-797067)1-00-797067$113.00
#5Harman Door Gasket (1-00-37525)1-00-37525$18.00
#6Harman Left Inside Plate W/Gasket (1-10-797104)1-10-797104$109.00
#6AHarman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#7AHarman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#8Harman Oakleaf Ramp Assembly with Gasket (1-10-797109)1-10-797109$160.00
#8AHarman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#9Harman Rear Brick Clips - Set of 2 (1-00-249153)1-00-249153$50.00
