Harman Oakwood - Wood Parts Diagram

Harman Oakwood - Wood Interactive Parts Finder

Find the exact replacement parts you need for your Harman Oakwood - Wood. This Wood stove has 33 parts mapped in our interactive diagram below. Common replacement parts include Harman Oakwood Outer Shield, Harman Oakwood Inner Shield, Harman Oakwood Rear Housing Cover Assembly with Gasket, Harman Oakleaf & Oakwood Flue Collar Cover with Gasket, and Harman Oakwood Rear Housing. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 33 replacement parts available.

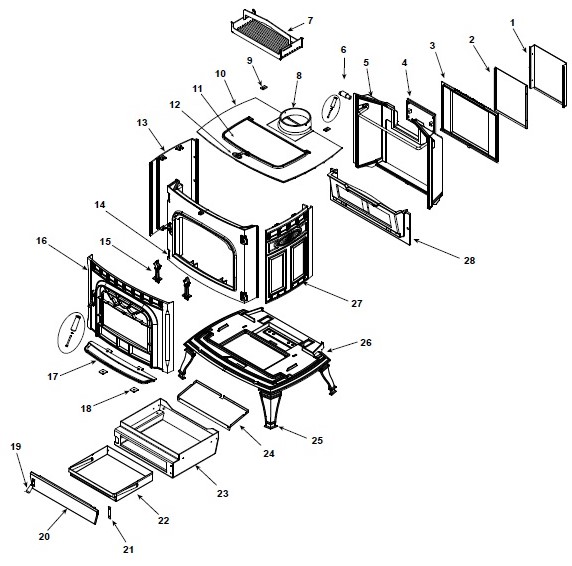

Harman Oakwood - Wood replacement parts diagram
Part #Part NamePart CodePrice
#1Harman Oakwood Outer Shield (2-00-249162S)2-00-249162S$239.00
#10Harman Oakwood Top (4-00-249105P)4-00-249105P$641.00
#11Harman Oakleaf & Oakwood Top Load Door (3-00-249115P)3-00-249115P$305.00
#11AHHT Door Rope Gasket - 30 Feet (1-00-00888)1-00-00888$48.00
#12Harman Oakwood Top Load Handle (2-00-249148)2-00-249148$94.00
#12AHarman Oakwood Top Handle Retainer (2-00-249190)2-00-249190$8.00
#13Harman Oakwood Side Panel - Left (4-00-249103D)4-00-249103D$395.00
#14Harman Oakwood Inner Front (4-00-249111S)4-00-249111S$671.00
#15Harman Oakwood and Oakleaf Andiron - Single (3-00-249101P)3-00-249101P$27.00
#16Harman Oakwood Front Load Door (4-00-249112P)4-00-249112P$542.00
#16AHarman Oakwood Front Door Glass (1-00-21130)1-00-21130$439.00
#17Harman Oakwood Ash Lip (3-00-249121P)3-00-249121P$251.00
#18Harman Oakwood Ash Fender Bolt Plate (2-00-249169L)2-00-249169L$19.00
#19Harman Wood Handle - PKG 3 (3-40-08746-3)3-40-08746-3$45.00
#2Harman Oakwood Inner Shield (2-00-249161S)2-00-249161S$156.00
#20Harman Oakwood Ash Door (4-00-249113D)4-00-249113D$258.00
#21Harman Oakwood Hinge Stiffener (2-00-249188L)2-00-249188L$21.00
#22Harman Oakwood Ash Pan (1-10-249151)1-10-249151$224.00
#23Harman Oakwood Steel Ash Box Weldment (1-10-249144S)1-10-249144S$1,007.00
#24Harman Oakwood CA Shield (2-00-249157B)2-00-249157B$102.00
#25Harman Oakwood & Oakleaf Leg - Painted (4-00-249100P)4-00-249100P$136.00
#26Harman Oakwood Bottom Panel (4-00-249104D)4-00-249104D$815.00
#27Harman Oakwood Right Side Panel (4-00-249102D)4-00-249102D$395.00
#28Harman Damper Frame Assembly with Gasket (1-10-249106)1-10-249106$473.00
#3Harman Oakwood Rear Housing Cover Assembly with Gasket (1-10-249116A)1-10-249116A$419.00
#3AHarman 1/4" Rope Glass Gasket - 10 Feet (1-00-11862)1-00-11862$25.00
#4Harman Oakleaf & Oakwood Flue Collar Cover with Gasket (1-10-249109)1-10-249109$107.00
#5Harman Oakwood Rear Housing (4-00-249110S)4-00-249110S$731.00
#5AHarman Flue Collar Cover Gasket (1-00-00999)1-00-00999$48.00
#6Harman Damper Handle Elbow (3-50-00500S)3-50-00500S$191.00
#7Harman Oakwood & TL200 Cooking Grill (1-00-08121)1-00-08121$168.00
#8Harman Oakwood & Oakleaf Flue Collar (4-00-249108D)4-00-249108D$196.00
#9Harman Oakwood Top Hinge Plate (2-00-249147S)2-00-249147S$14.00
