Harman P35i- Pellet Parts Diagram

Harman P35i- Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Harman P35i- Pellet. This Pellet stove has 59 parts mapped in our interactive diagram below. Common replacement parts include Accentra Insert Pipe Stub for 4" Flex Pipe, Harman Accentra Insert & P35i Burn Pot/Pipe Stub Gasket Set, Harman P35I Mounting Frame Assembly, Harman Insert Docking Gasket - Silicone, and Harman Circuit Board with Knobs & Shafts. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 59 replacement parts available.

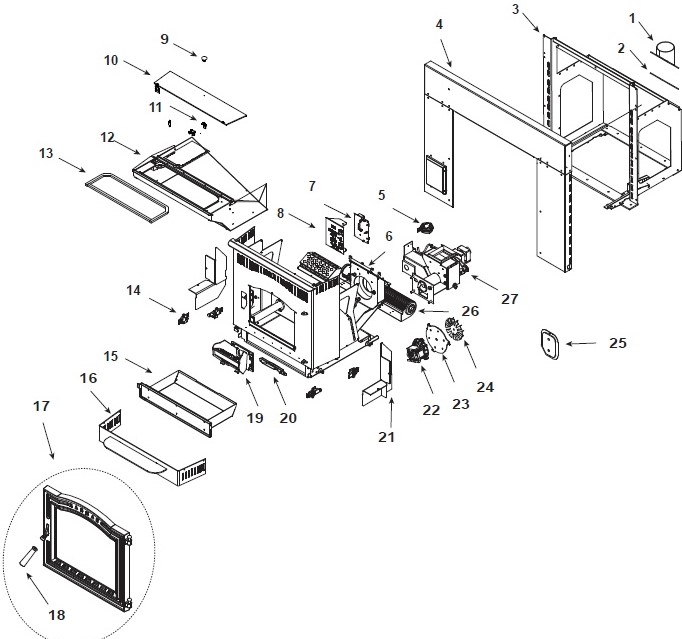

Harman P35i- Pellet replacement parts diagram
Part #Part NamePart CodePrice
#1Accentra Insert Pipe Stub for 4" Flex Pipe (1-00-674040)1-00-674040$95.00
#10Harman P35i Top Assembly (1-10-774223A)1-10-774223A$319.00
#10AHarman P35I Lid Assembly (1-10-774325A)1-10-774325A$527.00
#11Harman Hopper Lid Latch - Single Set (1-00-0669697)1-00-0669697$30.00
#12Harman P35I Hopper (1-10-774050A) 1-10-774050A$611.00
#12BHarman P35I Hopper (1-10-774028A) 1-10-774028A$682.00
#13Harman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#14Harman & Heatilator Spring Latch (3-31-00927)3-31-00927$16.00
#15Harman P35I Ash Pan with Gasket (1-10-774207)1-10-774207$252.00
#15AHarman P35i Ash Pan Gasket (3-44-774211)3-44-774211$63.00
#16Harman P35I Ash Pan Cover Assembly (1-10-774205A)1-10-774205A$258.00
#17Harman P35i & P68 Cast Door Frame (3-00-06718P)3-00-06718P$524.00
#18Harman & Vermont Castings Wooden Door Handle - Set of 2 (1-00-00247)1-00-00247$27.00
#19Harman P35i Burn Pot Assembly (1-10-774286)1-10-774286$370.00
#19BHarman & Heatilator Burnpot Clean Out Cover - 2 Sets (1-00-06623)1-00-06623$22.00
#1AHarman Stub Kit - 3" (1-00-674039)1-00-674039$110.05
#2Harman Accentra Insert & P35i Burn Pot/Pipe Stub Gasket Set (1-00-07384)1-00-07384$7.00
#20Harman and Heatilator Eco-Choice Flame Guide (3-00-03000)3-00-03000$48.00
#20AHarman P35i Flame Guide Extension (1-00-774338)1-00-774338$107.00
#21Harman P35i-C Cleanout Cover Set (1-00-774213)1-00-774213$147.00
#22Harman & Heatilator Eco-Choice Combustion Blower Motor (3-21-08639)3-21-08639$214.00
#22AHHT Combustion Blower Mounting Screws - 4 Pack (1-00-53483208)1-00-53483208$4.50
#23Harman P35i & XXV Combustion Blower Mounting Plate (1-10-677006)1-10-677006$47.00
#24Harman Single Paddle Fan Blade (3-21-00661)3-21-00661$19.00
#25Harman P35i Combustion Cleanout Cover (1-10-774167A)1-10-774167A$48.00
#26Harman Distribution Blower (1-00-29145)1-00-29145$409.00
#27Harman P35I UL Feeder Assembly (1-10-774000A)1-10-774000A$1,329.00
#3Harman P35I Mounting Frame Assembly (1-10-774235A)1-10-774235A$609.00
#6Harman Insert Docking Gasket - Silicone (3-44-06108)3-44-06108$47.00
#7Harman Circuit Board with Knobs & Shafts (1-00-05886)1-00-05886$296.00
#7AHarman & Heatilator Circuit Board D-Shaped Knob and Shaft (1-00-015605)1-00-015605$3.75
#8Harman P35i Circuit Board Plate (1-10-774114A)1-10-774114A$110.00
#8AHarman & Heatilator Eco-Choice 6 Amp Fuses - 5 Pack (3-20-49447-5)3-20-49447-5$26.00
#8BHarman Control Board Label (3-90-07766)3-90-07766$12.00
#9Harman Hopper Lid Knob with Screw - Black (1-00-02000-1)1-00-02000-1$53.00
#9BHarman Hopper Lid Knob with Screw - Gold (1-00-02000)1-00-02000$43.00
#N/SHarman 5/16" Push Retainers - 100 Pack (3-31-94807-100)3-31-94807-100$34.00
#N/SHarman P35I Hopper (1-10-774150A) 1-10-774150A$580.00
#N/SHarman P43-C Slick Pin - 1 Pair (1-00-110)1-00-110$28.00
#N/SHHT Door Rope Gasket - 30 Feet (1-00-00888)1-00-00888$48.00
#N/SHarman Door Latch Adjuster (2-00-06713D)2-00-06713D$22.00
#N/SHarman Painted Front Door Latch (3-00-249119P)3-00-249119P$38.00
#N/SHarman P35I Hopper (1-10-774128A) 1-10-774128A$662.00
#N/SHarman Ball Spring Bracket (2-00-06714)2-00-06714$52.00
#N/SHarman P35i Load Door Latch Kit (1-00-73553)1-00-73553$42.00
#N/SHarman Glass Clips - 4 Pack (1-00-249140)1-00-249140$68.00
#N/SHarman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#N/SHarman Door Glass with Gasket (1-00-00688)1-00-00688$292.00
#N/SHarman P35I Hopper (1-10-774850A) 1-10-774850A$682.00
#N/SHarman 48" Hopper Lid Switch (3-20-232108)3-20-232108$93.00
#N/SHarman P35I Hopper (1-10-774828A) 1-10-774828A$703.00
