Harman P38 Pellet Parts Diagram

Harman P38 Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Harman P38 Pellet. This Pellet stove has 48 parts mapped in our interactive diagram below. Common replacement parts include Harman Hopper Assembly, Harman Feeder Assembly, Harman P38 & P43 Feeder Assembly, Harman Flue Tailpipe - Cast, and Harman Auger Motor Cover. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 48 replacement parts available.

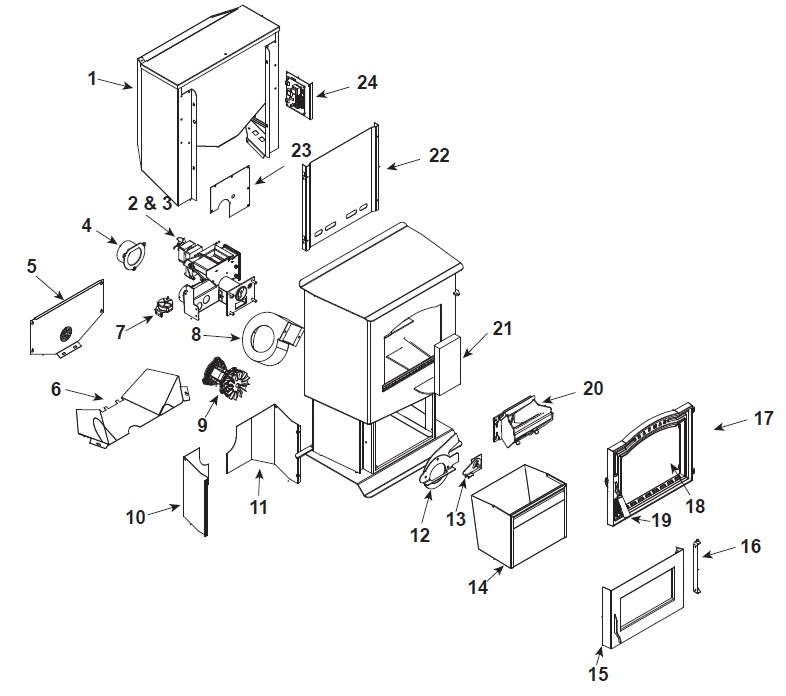

Harman P38 Pellet replacement parts diagram
Part #Part NamePart CodePrice
#1Harman Hopper Assembly (1-10-08517) 1-10-08517$733.00
#10Harman P38 & P43 Rear Left Cover (2-00-773828-1P)2-00-773828-1P$121.00
#11Harman P38 & P43 Rear Right Cover (2-00-773828-2P)2-00-773828-2P$121.00
#12Harman Combustion Intake Weldment (1-10-08516S)1-10-08516S$80.00
#13Harman Combustion Retainer Assembly (1-10-08533S)1-10-08533S$66.00
#14Harman Ash Pan (1-10-08508) 1-10-08508$580.00
#14AHarman P38 Ash Pan (1-10-773873)1-10-773873$249.00
#14BHarman P38 & P43 Ash Pan (1-10-7738108A)1-10-7738108A$270.00
#15Harman P38 Ash Door Assembly (1-10-773871)1-10-773871$371.00
#15AHarman Ash Door Assembly (1-10-7738106A)1-10-7738106A$382.00
#16Harman Bolt On Hinge Weldment (2-00-06952B)2-00-06952B$98.00
#17Harman Cast Door Frame (4-00-06800P)4-00-06800P$302.00
#17AHarman Cast Door with Glass (1-10-06800A)1-10-06800A$639.00
#18AHarman Glass Clip with Hardware (1-00-773862)1-00-773862$24.00
#18BHarman Glass Clips - 4 Pack (1-00-249140)1-00-249140$68.00
#19Harman Door Handle Assembly - Old Style (1-00-08704)1-00-08704$120.00
#19AHarman Door Handle Assembly (1-00-453001)1-00-453001$151.00
#19BHarman Paw Bolt (4-31-06393)4-31-06393$30.00
#19CHarman Wooden Door Handle with Screw (1-00-00122)1-00-00122$30.00
#19DHarman & Vermont Castings Wooden Door Handle - Set of 2 (1-00-00247)1-00-00247$27.00
#1AHarman Hopper Assembly (1-10-08500) 1-10-08500$764.00
#1BHarman 48" Hopper Lid Switch (3-20-232108)3-20-232108$93.00
#1CHarman Hopper Extension Retrofit Switch Kit (1-00-06826)1-00-06826$145.00
#2Harman Feeder Assembly (1-10-09525) 1-10-09525$1,270.00
#20Harman P38 Burn Pot Weldment (1-10-08514)1-10-08514$319.00
#21Harman Firebrick 9 x 4-1/2 x 1-1/4 - Set of 7 (1-00-900450125)1-00-900450125$110.00
#22Harman P38 & P41 Hopper Heat Shield (2-00-773854B)2-00-773854B$193.00
#24Harman P38 Circuit Board Upgrade Kit (1-00-7738111)1-00-7738111$511.00
#24AHarman Circuit Board with Knobs & Shafts (1-00-06142)1-00-06142$368.00
#24BHarman P38 Circuit Board Plate (1-10-08540)1-10-08540$185.00
#24CHarman P38 Control Panel Sticker (3-90-08537)3-90-08537$15.00
#24DHarman Control Board Label (3-90-08646)3-90-08646$11.00
#24EHarman & Heatilator Circuit Board D-Shaped Knob and Shaft (1-00-015605)1-00-015605$3.75
#3Harman P38 & P43 Feeder Assembly (1-10-09535A)1-10-09535A$1,589.00
#4Harman Flue Tailpipe - Cast (3-00-247237)3-00-247237$38.00
#5Harman Auger Motor Cover (2-00-773852P)2-00-773852P$117.00
#6Harman P38 & P43 Auger Motor Shield (2-00-773815P)2-00-773815P$178.00
#8Harman Distribution Blower (3-21-33647)3-21-33647$286.00
#9Harman & Heatilator Eco-Choice Combustion Blower Motor (3-21-08639)3-21-08639$214.00
#9AHarman & Heatilator Motor Mounting Bracket Grommet & Spacer (1-00-960026)1-00-960026$4.00
#9BHHT Combustion Blower Mounting Screws - 4 Pack (1-00-53483208)1-00-53483208$4.50
#N/SHarman & Heatilator Eco-Choice Flame Guide (3-00-08534)3-00-08534$44.00
#N/SHarman P38 & Pellet Pro II Burnpot Cleanout Cover (2-00-06112)2-00-06112$10.00
