Harman P43 Pellet Parts Diagram

Harman P43 Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Harman P43 Pellet. This Pellet stove has 40 parts mapped in our interactive diagram below. Common replacement parts include Harman P43 Hopper Assembly, Harman P38 & P43 Feeder Assembly, Harman Flue Tailpipe - Cast, Harman P43 Upper Auger Motor Cover, and Harman P38 & P43 Auger Motor Shield. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 40 replacement parts available.

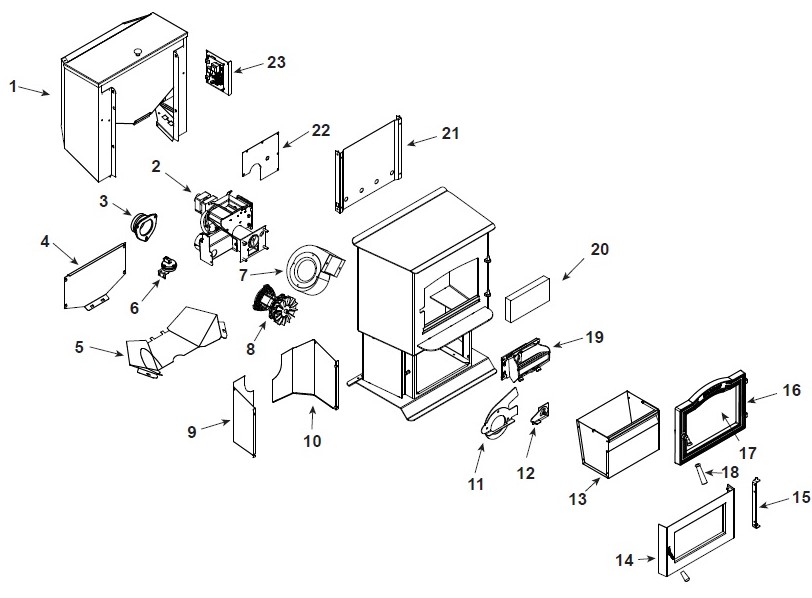

Harman P43 Pellet replacement parts diagram
Part #Part NamePart CodePrice
#1Harman P43 Hopper Assembly (1-10-04300)1-10-04300$1,691.00
#10Harman P38 & P43 Rear Right Cover (2-00-773828-2P)2-00-773828-2P$121.00
#11Harman Combustion Intake Weldment (1-10-08516S)1-10-08516S$80.00
#12Harman Combustion Retainer Assembly (1-10-08533S)1-10-08533S$66.00
#13Harman P38 & P43 Ash Pan (1-10-7738108A)1-10-7738108A$270.00
#14Harman Ash Door Assembly (1-10-7738106A)1-10-7738106A$382.00
#14AHHT Combustion Blower Mounting Screws - 4 Pack (1-00-53483208)1-00-53483208$4.50
#14BHarman Wood Handle - PKG 3 (3-40-08746-3)3-40-08746-3$45.00
#15Harman Ash Door Hinges with Bolts (2-00-06968B)2-00-06968B$135.00
#16Harman Cast Door Frame (4-00-06800P)4-00-06800P$302.00
#16AHarman Cast Door with Glass (1-10-06800A)1-10-06800A$639.00
#17Harman Glass with Gasket (1-00-950133647)1-00-950133647$219.00
#18Harman Door Handle Assembly (1-00-453001)1-00-453001$151.00
#18AHarman & Vermont Castings Wooden Door Handle - Set of 2 (1-00-00247)1-00-00247$27.00
#19Harman Burn Pot Weldment (1-10-00675)1-10-00675$337.00
#2Harman P38 & P43 Feeder Assembly (1-10-09535A)1-10-09535A$1,589.00
#20Harman Firebrick 9 x 4-1/2 x 1-1/4 - Set of 7 (1-00-900450125)1-00-900450125$110.00
#21Harman P38 & P41 Hopper Heat Shield (2-00-773854B)2-00-773854B$193.00
#22Harman Feeder Cover (2-00-773826L)2-00-773826L$35.00
#23Harman Circuit Board with Knobs & Shafts (1-00-05886)1-00-05886$296.00
#23AHarman Control Board Label (3-90-07766)3-90-07766$12.00
#23BHarman Circuit Board Plate (1-10-08327)1-10-08327$91.00
#23CHarman & Heatilator Circuit Board D-Shaped Knob and Shaft (1-00-015605)1-00-015605$3.75
#3Harman Flue Tailpipe - Cast (3-00-247237)3-00-247237$38.00
#4Harman P43 Upper Auger Motor Cover (2-00-773843P)2-00-773843P$142.00
#5Harman P38 & P43 Auger Motor Shield (2-00-773815P)2-00-773815P$178.00
#7Harman Distribution Blower (3-21-33647)3-21-33647$286.00
#8Harman & Heatilator Eco-Choice Combustion Blower Motor (3-21-08639)3-21-08639$214.00
#8AHHT Combustion Blower Mounting Screws - 4 Pack (1-00-53483208)1-00-53483208$4.50
#9Harman P38 & P43 Rear Left Cover (2-00-773828-1P)2-00-773828-1P$121.00
#N/SHarman Hopper Extension Retrofit Switch Kit (1-00-06826)1-00-06826$145.00
#N/SHarman 48" Hopper Lid Switch (3-20-232108)3-20-232108$93.00
#N/SHarman and Heatilator Eco-Choice Flame Guide (3-00-03000)3-00-03000$48.00
#N/SHarman & Heatilator Burnpot Clean Out Cover - 2 Sets (1-00-06623)1-00-06623$22.00
#N/SHarman P43 Hopper Lid with Hinge & Knob (1-10-773900)1-10-773900$504.00
#N/SHarman P38 and P43 Hopper Lid (1-10-08518)1-10-08518$279.00
#N/SHarman Hopper Lid Knob with Screw - Black (1-00-02000-1)1-00-02000-1$53.00
