Harman P61-A Pellet Parts Diagram

Harman P61-A Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Harman P61-A Pellet. This Pellet stove has 42 parts mapped in our interactive diagram below. Common replacement parts include Harman P61A & PC45 Hopper Assembly, Harman Feeder Assembly, Harman P61 & P61A Feeder Assembly, Harman Flue Tailpipe - Cast, and Harman Auger Motor Cover. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 42 replacement parts available.

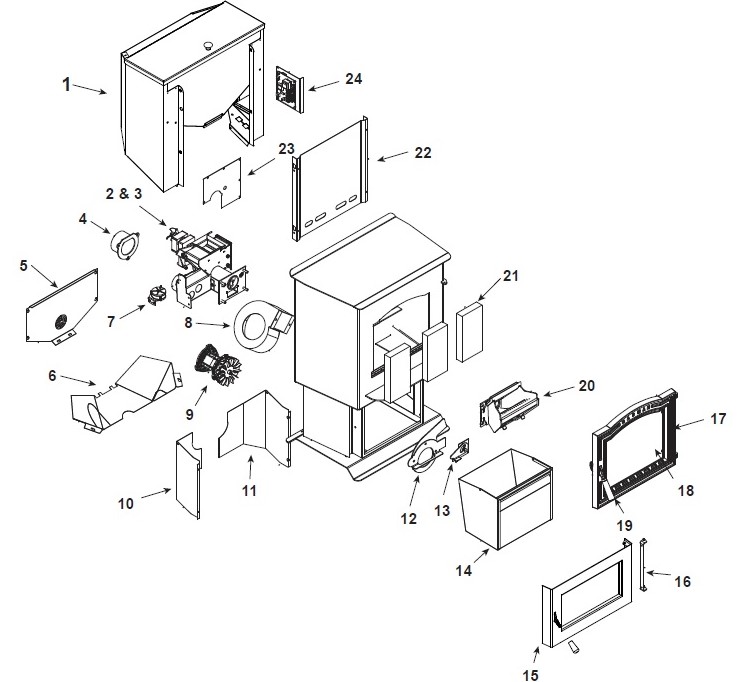

Harman P61-A Pellet replacement parts diagram
Part #Part NamePart CodePrice
#1Harman P61A & PC45 Hopper Assembly (1-10-08622)1-10-08622$699.00
#10Harman Rear Left Cover (2-00-06468-1P)2-00-06468-1P$131.00
#11Harman Rear Right Cover (2-00-06468-2P)2-00-06468-2P$131.00
#12Harman Combustion Intake Weldment (1-10-08516S)1-10-08516S$80.00
#13Harman Combustion Retainer Assembly (1-10-08533S)1-10-08533S$66.00
#14Harman Ash Pan with Handle (1-10-05800)1-10-05800$258.00
#15Harman Ash Door Assembly (1-10-06724S)1-10-06724S$269.00
#15AHarman Ash Door Assembly (1-10-06798A)1-10-06798A$515.00
#16Harman Ash Door Hinges with Bolts (2-00-06968B)2-00-06968B$135.00
#17Harman Cast Door Frame (4-00-06800P)4-00-06800P$302.00
#17AHarman Cast Door with Glass (1-10-06800A)1-10-06800A$639.00
#18Harman Glass with Gasket (1-00-950133647)1-00-950133647$219.00
#18AHarman Glass Clip with Hardware (1-00-773862)1-00-773862$24.00
#18BHarman Glass Clips - 4 Pack (1-00-249140)1-00-249140$68.00
#19Harman Door Handle Assembly - Old Style (1-00-08704)1-00-08704$120.00
#19AHarman Door Handle Assembly (1-00-453001)1-00-453001$151.00
#19BHarman Paw Bolt (4-31-06393)4-31-06393$30.00
#19CHarman & Vermont Castings Wooden Door Handle - Set of 2 (1-00-00247)1-00-00247$27.00
#1AHarman P61 & P61A Hopper Assembly (1-10-05803)1-10-05803$1,142.00
#1BHarman Hopper Extension Retrofit Switch Kit (1-00-06826)1-00-06826$145.00
#1CHarman Hopper Lid Knob with Screw - Black (1-00-02000-1)1-00-02000-1$53.00
#1DHarman 48" Hopper Lid Switch (3-20-232108)3-20-232108$93.00
#2Harman Feeder Assembly (1-10-09674A) 1-10-09674A$1,219.00
#20Harman Burn Pot Weldment (1-10-05802)1-10-05802$326.00
#21Harman Firebrick 9 x 4-1/2 x 1-1/4 - Set of 7 (1-00-900450125)1-00-900450125$110.00
#22Harman Hopper Heat Shield (2-00-06471B)2-00-06471B$167.00
#23Harman Feeder Cover (2-00-773826L)2-00-773826L$35.00
#24Harman Circuit Board with Knobs & Shafts (1-00-05886)1-00-05886$296.00
#24AHarman Circuit Board Plate (1-10-08327)1-10-08327$91.00
#24BHarman Control Board Label (3-90-07766)3-90-07766$12.00
#24CHarman & Heatilator Circuit Board D-Shaped Knob and Shaft (1-00-015605)1-00-015605$3.75
#3Harman P61 & P61A Feeder Assembly (1-10-09684A)1-10-09684A$1,859.00
#4Harman Flue Tailpipe - Cast (3-00-247237)3-00-247237$38.00
#5Harman Auger Motor Cover (2-00-06470P)2-00-06470P$153.00
#6Harman Auger Motor Shield (2-00-06467P)2-00-06467P$158.00
#8Harman Distribution Blower (3-21-33647)3-21-33647$286.00
#9Harman & Heatilator Eco-Choice Combustion Blower Motor (3-21-08639)3-21-08639$214.00
#9AHarman & Heatilator Motor Mounting Bracket Grommet & Spacer (1-00-960026)1-00-960026$4.00
#9BHHT Combustion Blower Mounting Screws - 4 Pack (1-00-53483208)1-00-53483208$4.50
#N/SHarman Wood Handle - PKG 3 (3-40-08746-3)3-40-08746-3$45.00
