Harman P68 Pellet Parts Diagram

Harman P68 Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Harman P68 Pellet. This Pellet stove has 120 parts mapped in our interactive diagram below. Common replacement parts include Harman P68 Hopper Assembly, Harman P68 Hopper Assembly, Harman Hopper Extension Retrofit Switch Kit, Harman Hopper Lid Knob with Screw - Black, and Harman 48" Hopper Lid Switch. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 120 replacement parts available.

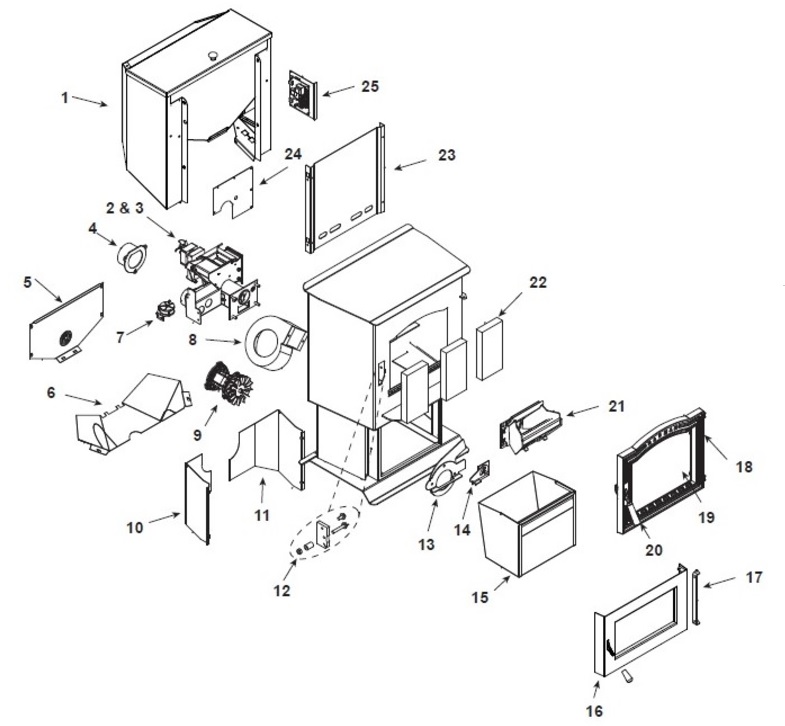

Harman P68 Pellet replacement parts diagram
Part #Part NamePart CodePrice
#1Harman P68 Hopper Assembly (1-10-06709)1-10-06709$772.00
#10Harman Rear Left Cover (2-00-06468-1P)2-00-06468-1P$131.00
#11Harman Rear Right Cover (2-00-06468-2P)2-00-06468-2P$131.00
#12Harman P68 Door Latch Assembly (1-00-06713)1-00-06713$24.00
#13Harman Combustion Intake Weldment (1-10-08516S)1-10-08516S$80.00
#14Harman Combustion Retainer Assembly (1-10-08533S)1-10-08533S$66.00
#15Harman Ash Pan with Handle (1-10-05800)1-10-05800$258.00
#16Harman Ash Door Assembly (1-10-06724S)1-10-06724S$269.00
#17Harman Ash Door Hinges with Bolts (2-00-06968B)2-00-06968B$135.00
#18Harman P35i & P68 Cast Door Frame (3-00-06718P)3-00-06718P$524.00
#19Harman Door Glass with Gasket (1-00-00688)1-00-00688$292.00
#2Harman P68 Feeder Assembly (1-10-07806)1-10-07806$1,219.00
#20Harman Door Handle Assembly (1-00-249119)1-00-249119$89.00
#21Harman P68 Burn Pot Weldment (1-10-06723)1-10-06723$371.00
#22Harman Firebrick 9 x 4-1/2 x 1-1/4 - Set of 7 (1-00-900450125)1-00-900450125$110.00
#23Harman P68 Hopper Heat Shield (2-00-06715B)2-00-06715B$149.00
#24Harman Feeder Cover (2-00-773826L)2-00-773826L$35.00
#25Harman Circuit Board with Knobs & Shafts (1-00-05886)1-00-05886$296.00
#3Harman P68 Feeder Assembly (1-10-07906A)1-10-07906A$1,487.00
#4Harman Flue Tailpipe - Cast (3-00-247237)3-00-247237$38.00
#5Harman Auger Motor Cover (2-00-06470P)2-00-06470P$153.00
#8Harman Distribution Blower (3-21-33647)3-21-33647$286.00
#9Harman & Heatilator Eco-Choice Combustion Blower Motor (3-21-08639)3-21-08639$214.00
#N/SHarman P68 Hopper Assembly (1-10-00688)1-10-00688$1,472.00
#N/SHarman Hopper Extension Retrofit Switch Kit (1-00-06826)1-00-06826$145.00
#N/SHarman Hopper Lid Knob with Screw - Black (1-00-02000-1)1-00-02000-1$53.00
#N/SHarman 48" Hopper Lid Switch (3-20-232108)3-20-232108$93.00
#N/SHarman Air Intake Damper Assembly (1-10-06466W)1-10-06466W$120.00
#N/SHarman Air Intake Weldment (1-10-06461)1-10-06461$95.00
#N/SHarman Feeder Weldment (1-10-677150)1-10-677150$329.00
#N/SHarman Feeder Slide Plate Assembly (1-10-08037)1-10-08037$51.00
#N/SHarman P68 Pusher Arm Assembly (1-10-06719)1-10-06719$97.00
#N/SHarman Feeder Cleanout Covers and Gaskets - 2 Sets (1-00-677152)1-00-677152$59.00
#N/SHarman Feeder Auger (3-50-00465)3-50-00465$236.00
#N/SHarman UL Feeder Cam Bearing (3-31-3014)3-31-3014$11.00
#N/SHarman & Heatilator Feeder Bearing Retainer (1-00-04035)1-00-04035$27.00
#N/SHarman Auger Motor Mount with Grommets - 2 Pack (1-00-01534)1-00-01534$15.00
#N/SHarman 4 RPM CW Feeder Motor (3-20-60906)3-20-60906$214.00
#N/SHarman Cast Cam Block (3-00-00153)3-00-00153$28.00
#N/SHarman & Heatilator Eco-Choice Feeder Air Crossover Tube Kit (1-00-67900)1-00-67900$43.00
#N/SHarman Feeder Repair Kit (1-00-677150)1-00-677150$563.00
#N/SHarman & Heatilator Eco-Choice 6 RPM CW Auger Feed Motor (3-20-09302)3-20-09302$316.00
#N/SHarman & Heatilator Eco-Choice Gear Motor Fan Blade - 3 Pack (3-20-09302-3)3-20-09302-3$14.00
#N/SHarman UL Feeder Cam Bearing (3-31-3014)3-31-3014$11.00
#N/SHarman & Heatilator Eco-Choice Feeder Air Crossover Tube Kit (1-00-67900)1-00-67900$43.00
#N/SHHT Silicone Tubing 9mm x 13mm x 5' (1-00-511427)1-00-511427$49.00
#N/SHHT UL Air Intake Assembly with Gasket (1-10-06810A)1-10-06810A$56.00
#N/SHarman UL Feeder Air Intake (1-10-72228)1-10-72228$170.00
#N/SHarman UL Feeder Weldment (1-10-724132)1-10-724132$427.00
#N/SHarman & Heatilator Eco-Choice UL Feeder Pusher Arm (1-10-677187W)1-10-677187W$104.00
#N/SHarman & Heatilator Eco-Choice UL Feeder Cover and Gasket - 2 Sets (1-00-677122)1-00-677122$79.00
#N/SHarman & Heatilator UL Slide Plate Assembly (1-10-677121A)1-10-677121A$99.00
#N/SHarman & Heatilator Eco-Choice UL Feeder Auger (3-50-00565)3-50-00565$191.00
#N/SHarman & Heatilator Feeder Bearing Retainer (1-00-04035)1-00-04035$27.00
#N/SHarman & Heatilator Eco-Choice UL Auger Motor Mount with Grommet (1-00-247406)1-00-247406$24.00
#N/SHarman and Heatilator Eco-Choice UL Cast Feeder Cam Block (3-00-677154)3-00-677154$23.00
#N/SHarman & Heatilator Eco-Choice Hopper Throat Gasket (3-44-677185)3-44-677185$18.00
#N/SHarman & Heatilator Eco-Choice Hopper Switch Feeder Fitting - 2 Pack (1-00-142818)1-00-142818$65.00
#N/SHHT Silicone Tubing - 1/8" x 5' (1-00-5113574)1-00-5113574$45.00
#N/SHarman & Heatilator Motor Mounting Bracket Grommet & Spacer (1-00-960026)1-00-960026$4.00
#N/SHHT Combustion Blower Mounting Screws - 4 Pack (1-00-53483208)1-00-53483208$4.50
#N/SHarman Ash Door Assembly (1-10-06798A)1-10-06798A$515.00
#N/SHarman Wood Handle - PKG 3 (3-40-08746-3)3-40-08746-3$45.00
#N/SHarman P43-C Slick Pin - 1 Pair (1-00-110)1-00-110$28.00
#N/SHarman Glass Clips - 4 Pack (1-00-249140)1-00-249140$68.00
#N/SHarman Painted Front Door Latch (3-00-249119P)3-00-249119P$38.00
#N/SHarman Ball Spring Bracket (2-00-06714)2-00-06714$52.00
#N/SHarman & Vermont Castings Wooden Door Handle - Set of 2 (1-00-00247)1-00-00247$27.00
#N/SHarman and Heatilator Eco-Choice Flame Guide (3-00-03000)3-00-03000$48.00
#N/SHarman & Heatilator Burnpot Clean Out Cover - 2 Sets (1-00-06623)1-00-06623$22.00
#N/SHarman Circuit Board Plate (1-10-08327)1-10-08327$91.00
#N/SHarman Control Board Label (3-90-07766)3-90-07766$12.00
#N/SHarman & Heatilator Circuit Board D-Shaped Knob and Shaft (1-00-015605)1-00-015605$3.75
#N/SHarman Air Wash O-Rings - 10 Pack - (1-00-939639)1-00-939639$38.00
#N/SHarman & Heatilator Eco-Choice Diagnostic Display Module (3-20-05401)3-20-05401$949.00
#N/SHarman & Heatilator Digital Diagnostic Meter (DDM) Replacement Cable Kit (1-00-05402)1-00-05402$144.00
#N/SHarman & Heatilator Draft Meter Assembly (1-00-00637)1-00-00637$1,343.00
#N/SHarman Draft Meter Bolt and Tube (1-00-04004)1-00-04004$26.00
#N/SHHT Exhaust Blower 5" Double-Paddle Fan Blade (3-20-502221)3-20-502221$24.00
#N/SHarman & Heatilator Eco-Choice 6 Amp Fuses - 5 Pack (3-20-49447-5)3-20-49447-5$26.00
#N/SHarman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#N/SHHT Door Rope Gasket - 30 Feet (1-00-00888)1-00-00888$48.00
#N/SHarman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#N/SHarman & Heatilator Eco-Choice Ceramic Insert Gasket (3-44-724114)3-44-724114$9.00
#N/SHarman & Heatilator Hopper Lid Gasket - 10 Feet (1-00-00248)1-00-00248$45.00
#N/SHarman 61/45/68 Hopper Lid (1-10-09109)1-10-09109$339.00
#N/SHarman Hopper Lid w/ Hinge & Knob (1-10-06493)1-10-06493$611.00
#N/SHarman Genuine 16 Fin 306 Watt Igniter (3-20-677200)3-20-677200$117.00
#N/SHarman Large Caution Label (3-90-00247)3-90-00247$22.00
#N/SHarman & Heatilator Eco-Choice Hopper Swell Latch & Spacer (1-00-199110)1-00-199110$56.00
#N/SHarman 3/16 Rubber Spacers - Pack of 10 (3-31-901311-10)3-31-901311-10$21.00
#N/SHarman P35i & P68 Load Door Hinge (2-00-06707L)2-00-06707L$60.00
#N/SHarman & Heatilator Eco-Choice Hopper Muffler & Fittings (1-00-18186618)1-00-18186618$25.00
#N/SHHT Outside Air Vent Assembly (1-10-09542)1-10-09542$109.00
#N/SHarman Room Air Sensor (3-20-00906)3-20-00906$34.00
#N/SHarman & Heatilator Eco-Choice Power Cord - 8' (3-20-39685)3-20-39685$22.00
#N/SHarman & Heatilator Eco-Choice Thermistor Probe - ESP Probe (3-20-11744)3-20-11744$132.00
#N/SHarman Thermister Probe - ESP Probe Red Wires (3-20-00844)3-20-00844$97.00
#N/SHarman Thermostat Extension (3-20-00607)3-20-00607$21.00
#N/SHarman Touch Up Paint - Black (3-42-1990)3-42-1990$32.00
#N/SHarman, Quadra-Fire & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)3-42-19905$24.00
#N/SHarman Wire Harness (3-20-08727)3-20-08727$67.00
