Harman PB105- Pellet Parts Diagram

Harman PB105- Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Harman PB105- Pellet. This Pellet stove has 56 parts mapped in our interactive diagram below. Common replacement parts include Harman PB105 Hopper Assembly, Harman PB105 Control Board Plate, Harman & Heatilator Circuit Board with Knobs & Shafts, Harman & Heatilator Feeder Cover Assembly, and Harman & Heatilator Eco-Choice Red Nylon Knob. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 56 replacement parts available.

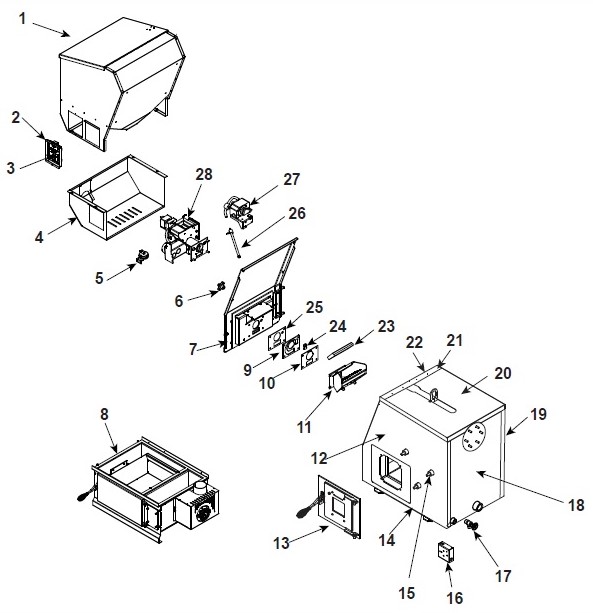

Harman PB105- Pellet replacement parts diagram
Part #Part NamePart CodePrice
#1Harman PB105 Hopper Assembly (1-10-72140A) 1-10-72140A$978.00
#10Harman & Heatilator Eco-Choice Ceramic Insert Gasket (3-44-724114)3-44-724114$9.00
#11Harman & Heatilator Burn Pot Weldment - Stainless Steel (1-00-73560)1-00-73560$824.00
#12Harman Front Side Jacket (2-00-72173B)2-00-72173B$515.00
#13Harman & Heatilator Eco-Choice View Door Assembly (1-10-72120S)1-10-72120S$587.00
#15Harman PB105 Cleanout Rod (2-00-01036)2-00-01036$45.00
#16Harman & Heatilator Eco-Choice 4X4 Steel Box (3-20-52171)3-20-52171$19.00
#17Harman PB105 1/2" NPT Boiler Drain (3-10-05060)3-10-05060$85.00
#17AHarman 3/4" NPT Boiler Drain (3-10-07560)3-10-07560$55.00
#18Harman & Heatilator Right Side Jacket (2-00-72171B)2-00-72171B$263.00
#19Harman & Heatilator Back Side Jacket (2-00-72174B)2-00-72174B$467.00
#2Harman PB105 Control Board Plate (1-10-09330)1-10-09330$239.00
#20Harman & Heatilator Top Jacket (2-00-72172B)2-00-72172B$287.00
#21Harman & Heatilator Top Angle Jacket (2-00-72170B)2-00-72170B$170.00
#22Harman PB105 Water Jacket Insulation - Left (3-44-72176)3-44-72176$125.00
#23Harman & Heatilator Flame Guide Insulator (3-44-35263)3-44-35263$142.00
#25Harman & Heatilator Eco-Choice Wafer Burn Pot Gasket (3-44-724115)3-44-724115$29.00
#26Harman Genuine 16 Fin 306 Watt Igniter (3-20-677200)3-20-677200$117.00
#26AHarman & Heatilator Eco-Choice 450w Igniter Element (1-00-10450)1-00-10450$349.00
#27AHarman & Heatilator Air Pump Filter and Fitting (1-00-02679)1-00-02679$21.00
#28Harman & Heatilator Ultra Feeder Weldment (1-10-72226S)1-10-72226S$323.00
#3Harman & Heatilator Circuit Board with Knobs & Shafts (1-00-06143)1-00-06143$368.00
#4Harman & Heatilator Feeder Cover Assembly (2-00-72158B)2-00-72158B$395.00
#6Harman & Heatilator Eco-Choice Red Nylon Knob (3-31-72196)3-31-72196$26.00
#7Harman & Heatilator Swing Plate Assembly (1-10-72153A)1-10-72153A$1,043.00
#8HHT 1" Gasket with Adhesive - 2 Ply (20 feet) (1-00-88250)1-00-88250$105.00
#9Harman & Heatilator Eco-Choice Ceramic Insert Plate - Steel (2-00-724104)2-00-724104$59.00
#N/AHHT Combustion Blower Mounting Screws - 4 Pack (1-00-53483208)1-00-53483208$4.50
#N/AHarman PB105 Ash Chamber Insulation - Left Side (3-44-72182)3-44-72182$28.00
#N/AHarman & Heatilator Left Ash Chamber Jacket (2-00-72125B)2-00-72125B$203.00
#N/AHarman & Heatilator Ash Chamber Jacket Back (2-00-72124B)2-00-72124B$203.00
#N/AHarman & Heatilator Eco-Choice Burnpot & Combustion Housing Gasket (1-00-07385)1-00-07385$15.00
#N/AHarman & Heatilator Right Ash Chamber Jacket (2-00-72127B)2-00-72127B$166.00
#N/AHarman & Heatilator Eco-Choice ESP Wiring Extension (3-20-72225)3-20-72225$59.00
#N/AHarman Thermister Probe - ESP Probe Red Wires (3-20-00844)3-20-00844$97.00
#N/AHarman & Heatilator Blower Heat Shield (2-00-72140A)2-00-72140A$383.00
#N/AHHT Exhaust Blower 5" Double-Paddle Fan Blade (3-20-502221)3-20-502221$24.00
#N/AHarman PB105 Relief Door with Pressure Relief (1-10-72209)1-10-72209$1,019.00
#N/AHarman & Heatilator Eco-Choice Combustion Blower Mount (1-10-73416)1-10-73416$119.00
#N/AHarman & Heatilator Eco-Choice Combustion Blower Motor (3-21-08639)3-21-08639$214.00
#N/AHarman & Heatilator Eco-Choice Flue Tunnel Weldment (1-10-72145W)1-10-72145W$543.00
#N/AHarman & Heatilator Right Ash Chamber Jacket (2-00-72126B)2-00-72126B$120.00
#N/AHarman & Heatilator Eco-Choice Access Plate Gasket (3-44-72207)3-44-72207$18.00
#N/AHarman & Heatilator Eco-Choice Ash Door Assembly (1-10-72137A)1-10-72137A$779.00
#N/AHarman & Heatilator Eco-Choice Ash Pan Assembly (1-10-72129)1-10-72129$371.00
#N/AHarman & Heatilator Sheet Metal Bracket (2-00-72203B)2-00-72203B$145.00
