Harman PC45 Pellet Parts Diagram

Harman PC45 Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Harman PC45 Pellet. This Pellet stove has 34 parts mapped in our interactive diagram below. Common replacement parts include Harman P61A & PC45 Hopper Assembly, Harman PC45 Feeder Assembly, Harman Flue Tailpipe - Cast, Harman PC45 Auger Extension, and Harman Auger Motor Shield. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 34 replacement parts available.

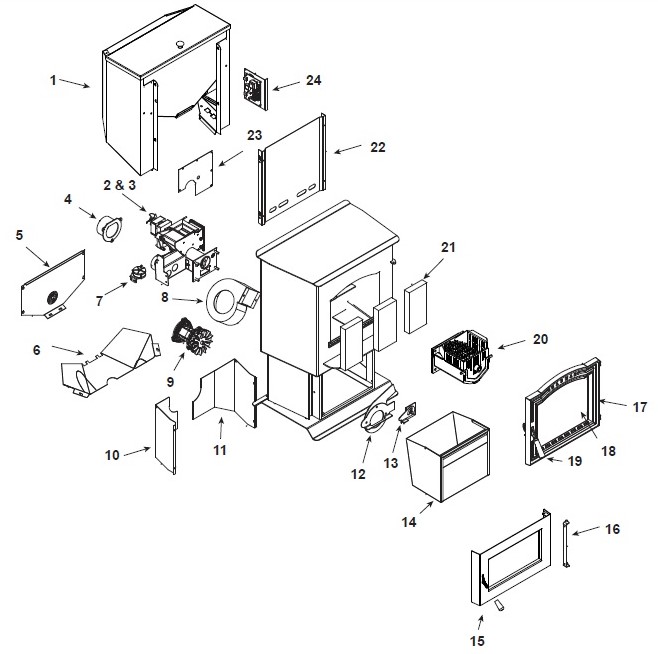

Harman PC45 Pellet replacement parts diagram
Part #Part NamePart CodePrice
#1Harman P61A & PC45 Hopper Assembly (1-10-08622)1-10-08622$699.00
#10Harman Rear Left Cover (2-00-06468-1P)2-00-06468-1P$131.00
#11Harman Rear Right Cover (2-00-06468-2P)2-00-06468-2P$131.00
#12Harman PC45 Combustion Intake Weldment (1-10-02677W)1-10-02677W$85.00
#12AHarman Combustion Intake Weldment (1-10-08516S)1-10-08516S$80.00
#13Harman Combustion Retainer Assembly (1-10-08533S)1-10-08533S$66.00
#14Harman Ash Pan with Handle (1-10-05800)1-10-05800$258.00
#15Harman Ash Door Assembly (1-10-06724S)1-10-06724S$269.00
#15AHarman Ash Door Assembly (1-10-06798A)1-10-06798A$515.00
#16Harman Ash Door Hinges with Bolts (2-00-06968B)2-00-06968B$135.00
#17Harman Cast Door Frame (4-00-06800P)4-00-06800P$302.00
#17AHarman Cast Door with Glass (1-10-06800A)1-10-06800A$639.00
#18Harman Glass with Gasket (1-00-950133647)1-00-950133647$219.00
#18AHarman Glass Clip with Hardware (1-00-773862)1-00-773862$24.00
#18BHarman Glass Clips - 4 Pack (1-00-249140)1-00-249140$68.00
#19Harman Door Handle Assembly - Old Style (1-00-08704)1-00-08704$120.00
#19AHarman Door Handle Assembly - Old Style (1-00-08704)1-00-08704$120.00
#1AHarman PC45 Hopper Assembly (1-10-06801)1-10-06801$866.00
#2Harman PC45 Feeder Assembly (1-10-724129A)1-10-724129A$1,299.00
#20Harman PC45 Burn Grate with Large Holes - .125 (1-10-724108)1-10-724108$149.00
#21Harman Firebrick 9 x 4-1/2 x 1-1/4 - Set of 7 (1-00-900450125)1-00-900450125$110.00
#22Harman Hopper Heat Shield (2-00-06471B)2-00-06471B$167.00
#23Harman Feeder Cover (2-00-773826L)2-00-773826L$35.00
#24Harman PC45 Circuit Board with Knobs & Shafts (1-00-05887)1-00-05887$400.00
#24AHarman PC45 Circuit Board Plate (1-10-02678)1-10-02678$85.00
#24BHarman & Heatilator Circuit Board D-Shaped Knob and Shaft (1-00-015605)1-00-015605$3.75
#4Harman Flue Tailpipe - Cast (3-00-247237)3-00-247237$38.00
#5Harman PC45 Auger Extension (3-00-02676)3-00-02676$98.00
#6Harman Auger Motor Shield (2-00-06467P)2-00-06467P$158.00
#8Harman Distribution Blower (3-21-33647)3-21-33647$286.00
#9Harman & Heatilator Eco-Choice Combustion Blower Motor (3-21-08639)3-21-08639$214.00
