Harman Shadowlight XL Gas Parts Diagram

Harman Shadowlight XL Gas Interactive Parts Finder

Find the exact replacement parts you need for your Harman Shadowlight XL Gas. This Gas stove has 19 parts mapped in our interactive diagram below. Common replacement parts include Harman Shadowlight XL Glass Door Frame, Harman Shadow Light XL Side Brick Panel - Left, Harman Shadowlight XL Rear Brick Panel, Harman Shadow Light XL Side Brick Panel - Right, and Harman Label Bracket Assembly. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 19 replacement parts available.

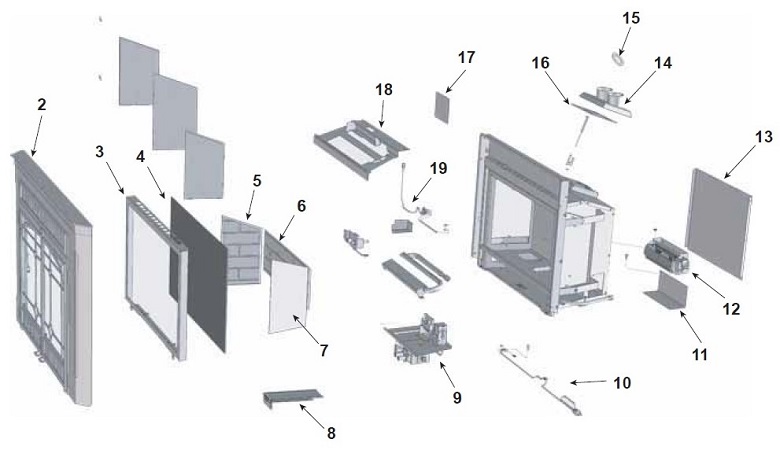

Harman Shadowlight XL Gas replacement parts diagram
Part #Part NamePart CodePrice
#10Harman CLARITY INSERT & SHADOWLIGHT XL Power Cord (3-20-348328)3-20-348328$44.00
#11Harman Shadowlight XL Blower Mount (2-00-384315B)2-00-384315B$65.00
#12Harman Blower - Right (SRV3-21-32080)SRV3-21-32080$349.00
#13Harman Shadowlight XL Rear Cover (2-00-384317B)2-00-384317B$81.00
#14Harman Tail Pipe Assembly (1-10-384314W) 1-10-384314W$62.00
#15Harman Shadowlight XL 2" Flue Restrictor Plate (2-00-384321L)2-00-384321L$14.00
#15AHarman Shadowlight XL 1.75" Flue Restrictor Plate (2-00-384323L)2-00-384323L$14.00
#16Harman Shadow Light XL Tail Pipe Gasket (3-44-384328)3-44-384328$55.00
#17Harman Shadowlight XL Flue Access Cover (2-00-384325L)2-00-384325L$10.00
#18Harman Air Plate Assembly (1-10-384307) 1-10-384307$258.00
#19Harman Low Voltage Harness (3-20-348329)3-20-348329$47.00
#3Harman Shadowlight XL Glass Door Frame (2-00-384111B)2-00-384111B$131.00
#5Harman Shadow Light XL Side Brick Panel - Left (3-40-384319-1)3-40-384319-1$92.00
#6Harman Shadowlight XL Rear Brick Panel (3-40-384318)3-40-384318$120.00
#7Harman Shadow Light XL Side Brick Panel - Right (3-40-384319-2)3-40-384319-2$83.00
#8Harman Label Bracket Assembly (1-10-384136) 1-10-384136$115.00
#9Harman Shadowlight XL Valve Assembly - LP (1-10-384329A)1-10-384329A$1,789.00
