Heat N Glo 6000CL-IPI-T, 6000CL-IPI-S Parts

Heat N Glo 6000CL-IPI-T, 6000CL-IPI-S Interactive Parts Finder

Find the exact replacement parts you need for your Heat N Glo 6000CL-IPI-T, 6000CL-IPI-S. This Gas stove has 67 parts mapped in our interactive diagram below. Common replacement parts include Heat N Glo 6000 Series Log Assembly, Heat N Glo 6000 Series Log #1, Heat N Glo 6000 Series Log #2, Heat N Glo 6000 Series Log #3, and Heat N Glo 6000 Series Log #4. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 67 replacement parts available.

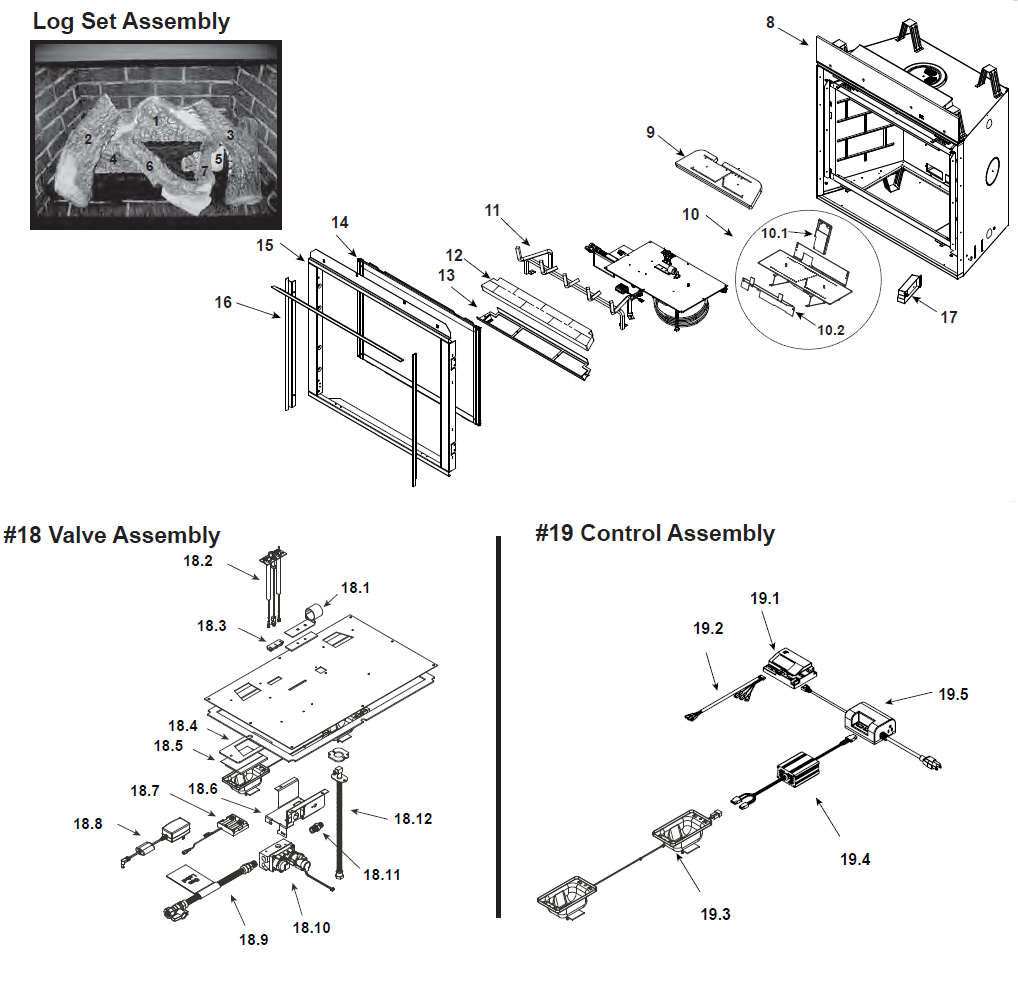

Heat N Glo 6000CL-IPI-T, 6000CL-IPI-S replacement parts diagram
Part #Part NamePart CodePrice
#1Heat N Glo 6000 Series Log #1 (SRV2164-701)SRV2164-701$245.00
#10.1Heat N Glo Air Scoop (2170-188)2170-188$17.00
#10.2Heat N Glo Pilot Cover (2170-181)2170-181$16.00
#10AHeat N Glo 6000CL Series Burner Assembly - NG (SRV2165-007)SRV2165-007$455.00
#10BHeat N Glo 600CL/CLX Burner Assembly - LP (SRV2165-008)SRV2165-008$339.00
#11Heat N Glo 6000 Series Log Grate (SRV2166-104)SRV2166-104$163.00
#12AHeat N Glo 6000CL-IPI Base Refractory - Tan (SRV6BASE-TAN)SRV6BASE-TAN$307.00
#12BHeat N Glo 6000 Series Base Refractory - Stratford (SRV6BASE-STRAT)SRV6BASE-STRAT$371.00
#13Heat N Glo 6000 Series Base Refractory Basket (2166-108)2166-108$42.00
#14Heat N Glo, Heatilator & Majestic Glass Assembly (GLA-6GLX)GLA-6GLX$860.00
#15Heat N Glo & Majestic Surround Assembly (2166-019)2166-019$71.00
#16Heat N Glo Finishing Strip Kit (SRVFS-6)SRVFS-6$57.00
#17HHT Junction Box (SRV4021-013)SRV4021-013$36.00
#18.1Heat N Glo Shutter Bracket Assembly (2166-157)2166-157$13.00
#18.10AHHT Variable IPI Gas Valve - NG (SRV2166-302)SRV2166-302$138.00
#18.10BHeatilator, Heat N Glo & Majestic Dexen Valve - LP (2166-303)2166-303$149.00
#18.11HHT Male Connector Fittings (303-315/5)303-315/5$44.00
#18.12HHT Bulkhead with Flex Tube (SRV2166-119)SRV2166-119$78.00
#18.2AHeat N Glo IPI Pilot Assembly - NG (2166-370)2166-370$73.00
#18.2BHeat N Glo IPI Pilot Assembly - LP (2166-371)2166-371$73.00
#18.3HHT 3-Hole Rubber Grommet - NG/LP (SRV2118-420)SRV2118-420$12.00
#18.4Heat N Glo & Majestic Kapton Lens - Light Orange (2166-171)2166-171$7.00
#18.6 Heatilator, Heat N Glo & Majestic Valve Bracket (2118-104)2118-104$11.00
#18.7HHT Battery Pack (SRV2166-323)SRV2166-323$19.00
#18.8HHT Power Supply / Wall Transformer - 6V (SRV2326-131)SRV2326-131$33.00
#18.9HHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#19.2Heatilator, Heat N Glo & Majestic IPI Wire Harness (2166-304)2166-304$17.00
#19.3Heat N Glo Accent 2-Gang LED Assembly (2166-316)2166-316$171.00
#19.4HHT LED Controller (SRV2166-336)SRV2166-336$170.00
#19.5HHT Dexen Auxiliary Box - RC300 (SRV2166-335)SRV2166-335$145.00
#2Heat N Glo 6000 Series Log #2 (SRV2164-702)SRV2164-702$286.00
#3Heat N Glo 6000 Series Log #3 (SRV2164-703)SRV2164-703$270.00
#4Heat N Glo 6000 Series Log #4 (SRV2164-704)SRV2164-704$125.00
#5Heat N Glo 6000 Series Log #5 (SRV2164-705)SRV2164-705$104.00
#7Heat N Glo 6000 & 8000 Series Log #7 (SRV2165-707)SRV2165-707$147.00
#8Heat N Glo, Heatilator & Majestic Insulation Board (2166-136)2166-136$55.00
#9Heat N Glo Fiber Burner Top (SRV2166-100)SRV2166-100$343.00
#LOGSETHeat N Glo 6000 Series Log Assembly (LOGS-6CL)LOGS-6CL$698.00
#N/SHeat N Glo Top Tan Refractory (SRV2166-717)SRV2166-717$340.00
#N/SHHT Regulator with Stepper Motor - LP (SRVLPK-DXV-50)SRVLPK-DXV-50$91.00
#N/SHHT IPI Regulator with Stepper Motor - NG (NGK-DXV-50)NGK-DXV-50$87.00
#N/SHeat N Glo, Heatilator & Majestic Pilot Orifice - LP (SRV593-527)SRV593-527$19.00
#N/SHeat N Glo, Heatilator & Majestic Pilot Orifice .0115 - NG (SRV593-528)SRV593-528$19.00
#N/SHeat N Glo 6000CL Series Conversion Kit - LP (LPKI-6CL)LPKI-6CL$289.00
#N/SHeat N Glo 6000 Series Conversion Kit - NG (NGKI-6CL)NGKI-6CL$289.00
#N/SHHT Touch Up Paint - Black (TUP-GBK-12)TUP-GBK-12$30.00
#N/SHeat N Glo & Heatilator Remote - RC300-HNG (2166-330)2166-330$153.00
#N/SHeat N Glo 6000 Series Top Refractory (SRV2166-713)SRV2166-713$350.00
#N/SHeat N Glo 6000 Series Right Refractory (SRV2166-712)SRV2166-712$282.00
#N/SHeat N Glo 6000CL-IPI Left Refractory - Stratford (SRV2166-711)SRV2166-711$337.00
#N/SHeat N Glo 6000 Series Back Refractory (SRV2166-710)SRV2166-710$348.00
#N/SHeat N Glo 6000CL/CLX-IPI Refractory Set - Stratford (SRV6CLXREF-STRT)SRV6CLXREF-STRT$623.00
#N/SHeat N Glo 6000 Series Right Refractory - Tan (SRV2166-716)SRV2166-716$318.00
#N/SHeat N Glo 6000 Series Left Refractory - Tan (SRV2166-715)SRV2166-715$307.00
#N/SHeat N Glo 6000 Back Refractory - Tan (SRV2166-714)SRV2166-714$326.00
#N/SHeat N Glo 6000CL/CLX-IPI Refractory Set - Tan (SRV6CLXREF-TAN)SRV6CLXREF-TAN$524.00
#N/SHHT Mineral Wool (050-721)050-721$6.00
#N/SHHT Glass Latch Assembly (2155-045)2155-045$13.00
#N/SHeatilator, Heat N Glo & Majestic Gasket Assembly (2166-081)2166-081$10.00
#N/SHHT Flue Restrictor (385-328)385-328$9.00
#N/SHHT Flue Restrictor (385-128)385-128$9.00
#N/S Heat N Glo, Heatilator & Majestic Orifice #51C - LP (SRV582-851)SRV582-851$12.00
#N/SHHT Burner Orifice #33C - NG (582-833)582-833$7.00
#N/SHHT Pilot Tube (SRV485-301)SRV485-301$99.00
