Heat N Glo 6000CLX-IPI-S, 6000CLX-IPI-T Parts

Heat N Glo 6000CLX-IPI-S, 6000CLX-IPI-T Interactive Parts Finder

Find the exact replacement parts you need for your Heat N Glo 6000CLX-IPI-S, 6000CLX-IPI-T. This Gas stove has 75 parts mapped in our interactive diagram below. Common replacement parts include Heat N Glo Replacement Log #1, Heat N Glo Replacement Log #2, Heat N Glo Replacement Log #3, Heat N Glo 6000CLX & HE36CLX Log #4, and Heat N Glo 6000CLX & HE36CLX Log #5. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 75 replacement parts available.

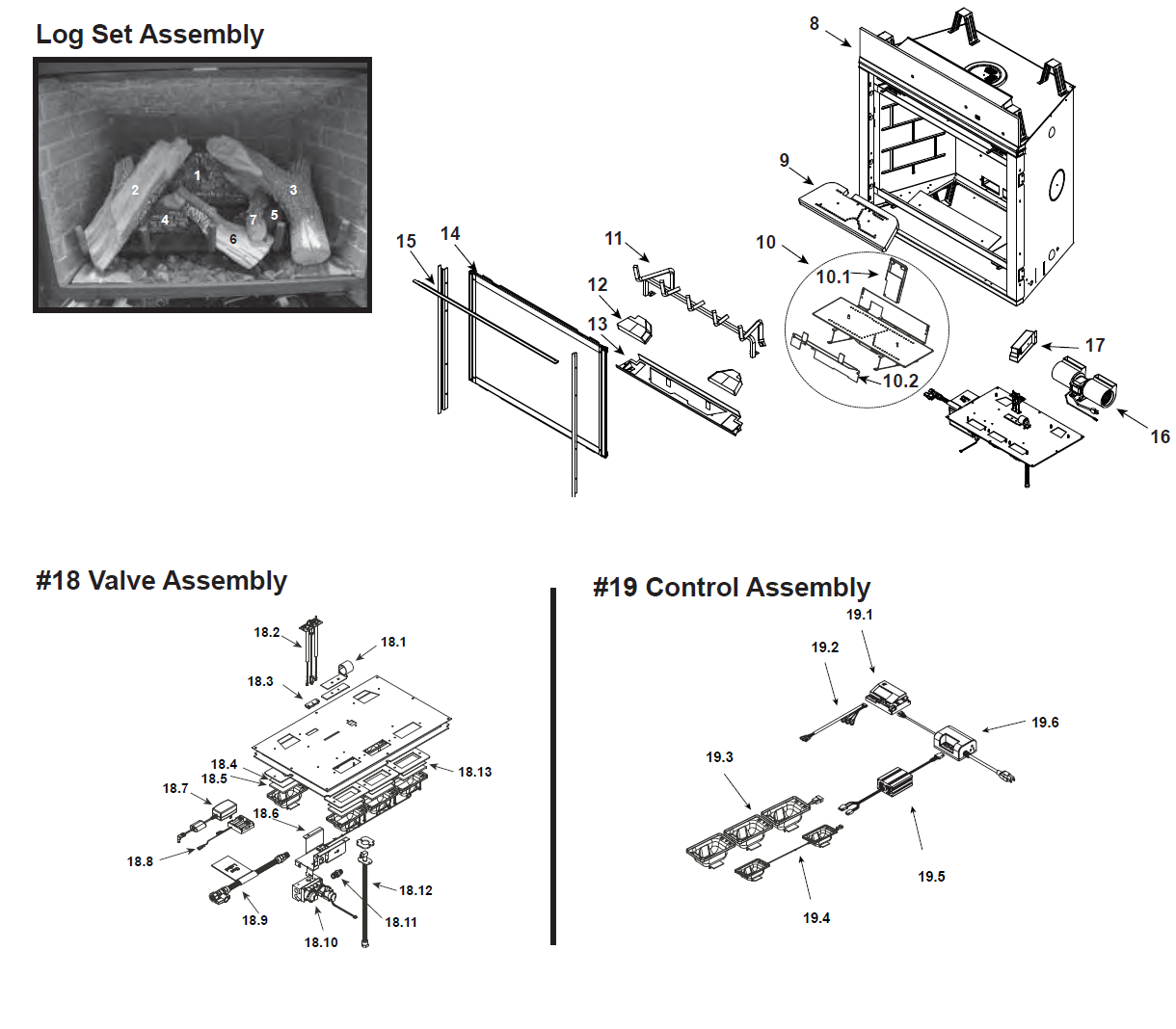

Heat N Glo 6000CLX-IPI-S, 6000CLX-IPI-T replacement parts diagram
Part #Part NamePart CodePrice
#1Heat N Glo Replacement Log #1 (SRV2166-721)SRV2166-721$190.00
#10.1Heat N Glo Air Scoop (2170-188)2170-188$17.00
#10.2Heat N Glo Pilot Cover (2170-181)2170-181$16.00
#10AHeat N Glo 600CLX Burner Assembly - NG (SRV2166-007)SRV2166-007$293.00
#10BHeat N Glo 600CL/CLX Burner Assembly - LP (SRV2165-008)SRV2165-008$339.00
#11Heat N Glo 6000 Series Log Grate (SRV2166-104)SRV2166-104$163.00
#12AHeat N Glo 6000CLX-IPI Base Refractory - Tan (SRV6CLXBASE-TAN)SRV6CLXBASE-TAN$513.00
#13Heat N Glo 6000 Series Base Refractory Basket (2166-108)2166-108$42.00
#14Heat N Glo, Heatilator & Majestic Glass Assembly (GLA-6GLX)GLA-6GLX$860.00
#15Heat N Glo Finishing Strip Kit (SRVFS-6)SRVFS-6$57.00
#16HHT Gas Stove Fan Kit (GFK-160A)GFK-160A$327.00
#17HHT Junction Box (SRV4021-013)SRV4021-013$36.00
#18.1Heat N Glo Shutter Bracket Assembly (2166-157)2166-157$13.00
#18.10AHHT Variable IPI Gas Valve - NG (SRV2166-302)SRV2166-302$138.00
#18.10BHeatilator, Heat N Glo & Majestic Dexen Valve - LP (2166-303)2166-303$149.00
#18.11HHT Male Connector Fittings (303-315/5)303-315/5$44.00
#18.12HHT Bulkhead with Flex Tube (SRV2166-119)SRV2166-119$78.00
#18.13Heat N Glo 10 MM Kapton Lens - Dark Orange (2166-184)2166-184$11.00
#18.2AHeat N Glo IPI Pilot Assembly - NG (2166-370)2166-370$73.00
#18.2BHeat N Glo IPI Pilot Assembly - LP (2166-371)2166-371$73.00
#18.3HHT 3-Hole Rubber Grommet - NG/LP (SRV2118-420)SRV2118-420$12.00
#18.4Heat N Glo & Majestic Kapton Lens - Light Orange (2166-171)2166-171$7.00
#18.5Heat N Glo & Majestic 1/4" Glass (2166-163)2166-163$33.00
#18.6 Heatilator, Heat N Glo & Majestic Valve Bracket (2118-104)2118-104$11.00
#18.7HHT Power Supply / Wall Transformer - 6V (SRV2326-131)SRV2326-131$33.00
#18.8HHT Battery Pack (SRV2166-323)SRV2166-323$19.00
#18.9HHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#19.2Heatilator, Heat N Glo & Majestic IPI Wire Harness (2166-304)2166-304$17.00
#19.3Heat N Glo 3-Gang LED Assembly (2166-315)2166-315$289.00
#19.4Heat N Glo Accent 2-Gang LED Assembly (2166-316)2166-316$171.00
#19.5HHT LED Controller (SRV2166-336)SRV2166-336$170.00
#19.6HHT Dexen Auxiliary Box - RC300 (SRV2166-335)SRV2166-335$145.00
#2Heat N Glo Replacement Log #2 (SRV2166-722)SRV2166-722$190.00
#3Heat N Glo Replacement Log #3 (SRV2166-723)SRV2166-723$199.00
#4Heat N Glo 6000CLX & HE36CLX Log #4 (SRV2166-724)SRV2166-724$123.00
#5Heat N Glo 6000CLX & HE36CLX Log #5 (SRV2166-725)SRV2166-725$85.00
#6Heat N Glo 6000CLX & HE36CLX Log #6 (SRV2166-726)SRV2166-726$105.00
#7Heat N Glo Replacement Log #7 (SRV2166-727)SRV2166-727$74.00
#8Heat N Glo, Heatilator & Majestic Insulation Board (2166-136)2166-136$55.00
#9Heat N Glo Fiber Burner Top (SRV2166-100)SRV2166-100$343.00
#N/SHeat N Glo 6000 Series Right Refractory (SRV2166-712)SRV2166-712$282.00
#N/SHeat N Glo 6000CL/CLX-IPI Refractory Set - Tan (SRV6CLXREF-TAN)SRV6CLXREF-TAN$524.00
#N/SHeat N Glo 6000 Back Refractory - Tan (SRV2166-714)SRV2166-714$326.00
#N/SHeat N Glo 6000 Series Left Refractory - Tan (SRV2166-715)SRV2166-715$307.00
#N/SHeat N Glo 6000 Series Right Refractory - Tan (SRV2166-716)SRV2166-716$318.00
#N/SHeat N Glo Top Tan Refractory (SRV2166-717)SRV2166-717$340.00
#N/SHeat N Glo 6000CL/CLX-IPI Refractory Set - Stratford (SRV6CLXREF-STRT)SRV6CLXREF-STRT$623.00
#N/SHeat N Glo 6000 Series Back Refractory (SRV2166-710)SRV2166-710$348.00
#N/SHeat N Glo 6000CL-IPI Left Refractory - Stratford (SRV2166-711)SRV2166-711$337.00
#N/SHeat N Glo 6000 Series Top Refractory (SRV2166-713)SRV2166-713$350.00
#N/SHeat N Glo 6000CLX Conversion Kit - NG (NGKI-6CLX)NGKI-6CLX$289.00
#N/SHeat N Glo 6000CLX Series Conversion Kit - LP (LPKI-6CLX)LPKI-6CLX$289.00
#N/SHeat N Glo, Heatilator & Majestic Pilot Orifice .0115 - NG (SRV593-528)SRV593-528$19.00
#N/SHHT Regulator with Stepper Motor - LP (SRVLPK-DXV-50)SRVLPK-DXV-50$91.00
#N/SHHT IPI Regulator with Stepper Motor - NG (NGK-DXV-50)NGK-DXV-50$87.00
#N/SHeat N Glo, Heatilator & Majestic Pilot Orifice - LP (SRV593-527)SRV593-527$19.00
#N/SHeat N Glo Touch Up Paint - Split Log (SRV999-472)SRV999-472$164.00
#N/SHeat N Glo Aerosol Touch Up Paint - Brown (SRV999-403)SRV999-403$90.00
#N/SHeat N Glo Aerosol Touch Up Paint - Black (SRV999-404)SRV999-404$104.00
#N/SHHT Touch Up Paint - Black (TUP-GBK-12)TUP-GBK-12$30.00
#N/SHeat N Glo & Quadra-Fire Teco-Sil White Ember Bed Rock - 5 LB (SRV700-790)SRV700-790$53.00
#N/SHeat N Glo & Heatilator Remote - RC300-HNG (2166-330)2166-330$153.00
#N/SHHT Mineral Wool (050-721)050-721$6.00
#N/SHHT Glass Latch Assembly (2155-045)2155-045$13.00
#N/SHeatilator, Heat N Glo & Majestic Gasket Assembly (2166-081)2166-081$10.00
#N/SHHT Flue Restrictor (385-328)385-328$9.00
#N/SHHT Flue Restrictor (385-128)385-128$9.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Burner Orifice #49C - LP (SRV582-849)SRV582-849$12.00
#N/SHeatilator & Heat N Glo Orifice #124C - NG (582-8124)582-8124$8.00
#N/SHHT Pilot Tube (SRV485-301)SRV485-301$99.00
#N/SHeat N Glo & Majestic Surround Assembly (2166-019)2166-019$71.00
#N/SHeat N Glo 6000 & 8000 Series Ember Mesh (2166-113)2166-113$10.00
