Heat N Glo EXCLAIM-42H Wood Parts Diagram

Heat N Glo EXCLAIM-42H Wood Interactive Parts Finder

Find the exact replacement parts you need for your Heat N Glo EXCLAIM-42H Wood. This Wood stove has 38 parts mapped in our interactive diagram below. Common replacement parts include HHT Starter Section Assembly, HHT Damper Blade Assembly, HHT Damper Control, HHT Damper Weight, and HHT Top Standoff. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 38 replacement parts available.

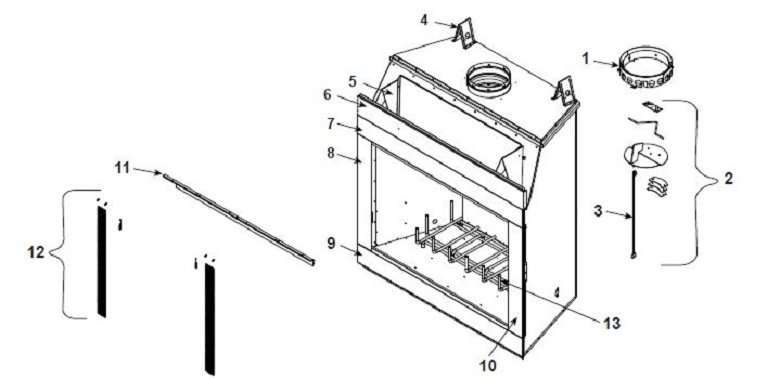

Heat N Glo EXCLAIM-42H Wood replacement parts diagram
Part #Part NamePart CodePrice
#1HHT Starter Section Assembly (SRV22072)SRV22072$68.00
#12HHT Firescreen Assembly (SRV29958)SRV29958$100.00
#12AHHT Firescreen Handle (SRV10002)SRV10002$10.00
#13Heat N Glo EXCLAIM & RUTHERFORD Grate Assembly (GR38)GR38$336.00
#2HHT Damper Blade Assembly (SRV29964)SRV29964$159.00
#3HHT Damper Control (SRV20549)SRV20549$7.00
#3AHHT Damper Weight (SRV19785)SRV19785$11.00
#4HHT Top Standoff (SRV19228)SRV19228$44.00
#6Heat N Glo, Heatilator & Majestic Upper Front (4013-207)4013-207$86.00
#N/SHeat N Glo Exclaim Series Herringbone Refractory - Left Side (SRV4013-056)SRV4013-056$216.00
#N/SHeat N Glo Exclaim Herringbone Right Side Refractory (SRV4013-055)SRV4013-055$285.00
#N/SHeat N Glo Exclaim Herringbone Back Refractory (4013-061)4013-061$154.00
#N/SHeat N Glo & Heatilator Hearth Refractory (4013-058)4013-058$175.00
#N/SHeat N Glo Exclaim Side Refractory - Traditional (4013-052)4013-052$160.00
#N/SHeat N Glo Back Refractory (4013-059)4013-059$160.00
#N/SHeat N Glo & Heatilator Refractory Retainer Kit (34584)34584$13.00
#N/SHHT Refractory Retainer (SRV11847)SRV11847$10.00
#N/SHHT Grate Retainer (SRV4017-060)SRV4017-060$32.00
#N/SHeat N Glo & Heatilator Hearth Refractory (4013-058)4013-058$175.00
#N/SHeatilator, Heat N Glo & Majestic Exterior Powder Coat Touch Up Paint - Black Gloss (71479)71479$30.00
#N/SHeat N Glo Side Trim (31326)31326$28.00
#N/SHHT Hearth Strip Protector (SRV18320)SRV18320$12.00
#N/SHeat N Glo EXCLAIM & Heatilator ICON Screen Cover - Top Only (29926)29926$20.00
#N/SHeatilator & Heat N Glo Smoke Shield (SRV35407)SRV35407$72.00
#N/SHHT Nailing Flange (SRV31190)SRV31190$7.00
#N/SUS Stove & King Bent Feed Door Handle (25692)25692$30.00
#N/SHHT Outside Air Shield (SRV33271)SRV33271$43.00
#N/SHHT Air Kit Fastener Pack (13580)13580$47.00
#N/SHHT Outside Air Kit (AK22)AK22$49.00
#N/SHHT Firescreen Rod (SRV28404)SRV28404$9.00
