Heat N Glo Vienna II Gas Parts Diagram

Heat N Glo Vienna II Gas Interactive Parts Finder

Find the exact replacement parts you need for your Heat N Glo Vienna II Gas. This Gas stove has 74 parts mapped in our interactive diagram below. Common replacement parts include Heat N Glo TIARA-II & VIENNA II Burner Assembly - NG, HHT On/Off Rocker Switch w/Wires, Heat N Glo .125 Orifice - NG, Heat N Glo & Quadra-Fire Orifice #50A - LP, and HHT Burner Supply Tube - 18". Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 74 replacement parts available.

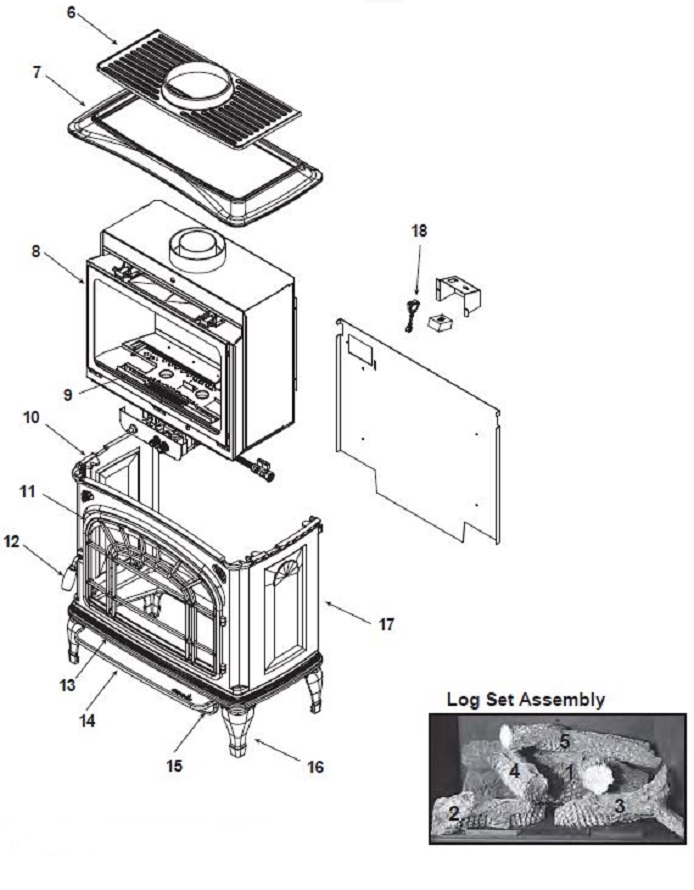

Heat N Glo Vienna II Gas replacement parts diagram
Part #Part NamePart CodePrice
#18HHT On/Off Rocker Switch w/Wires (060-521A)060-521A$14.00
#9Heat N Glo TIARA-II & VIENNA II Burner Assembly - NG (SRV586-174A)SRV586-174A$899.00
#N/SHeat N Glo, Heatilator and Quadra-Fire PSE Thermopile (2103-512)2103-512$54.00
#N/SHeat N Glo .125 Orifice - NG (586-800)586-800$48.00
#N/SHeat N Glo & Quadra-Fire Orifice #50A - LP (446-801)446-801$19.00
#N/SHHT Burner Supply Tube - 18" (567-301A)567-301A$69.00
#N/SQuadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#N/SQuadra-Fire, Harman, & Heatilator SIT Valve - NG (SRV230-0710)SRV230-0710$224.00
#N/SHHT Gas Valve - LP (SRV230-0720)SRV230-0720$224.00
#N/SHHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#N/SHHT Flame Control Extension / Hi-Lo Knob (571-533)571-533$6.00
#N/SQuadra-Fire, Heat N Glo & Heatilator Power Cord & Junction Box Assembly (040-250A)040-250A$48.00
#N/SHHT Mineral Wool (050-721)050-721$6.00
#N/SHeat N Glo Thermocouple - SIT (571-511)571-511$18.00
#N/SHeat N Glo Thermocouple - SIT (571-511)571-511$18.00
#N/SHHT Pilot Control Extension / On-Off Knob (571-534)571-534$12.00
#N/SHeat N Glo Tiara-II Conversion Kit - NG (NGK-V2)NGK-V2$89.00
#N/SHeat N Glo Tiara II & Vienna II Conversion Kit - LP (LPK-V2)LPK-V2$1,399.00
#N/SHeat N Glo Spud Pilot Orifice - NG (571-516)571-516$25.00
#N/SHeat N Glo Spud Pilot Orifice - LP (571-517)571-517$15.00
#N/SHHT Gas Valve Regulator - NG (SRV230-1570)SRV230-1570$53.00
#N/SHHT Gas Valve Regulator - LP (SRV230-1520)SRV230-1520$60.00
