Heatilator CD4842R, CD4842LR Parts Diagram

Heatilator CD4842R, CD4842LR Interactive Parts Finder

Find the exact replacement parts you need for your Heatilator CD4842R, CD4842LR. This Gas stove has 66 parts mapped in our interactive diagram below. Common replacement parts include Heatilator Caliber Series Log & Grate Assembly, Heatilator Flue Adaptor Plate, Heatilator Caliber & Novus Flue Adapter Plate, Heatilator Intake Collar Assembly, and Heatilator Exhaust Collar Assembly. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 66 replacement parts available.

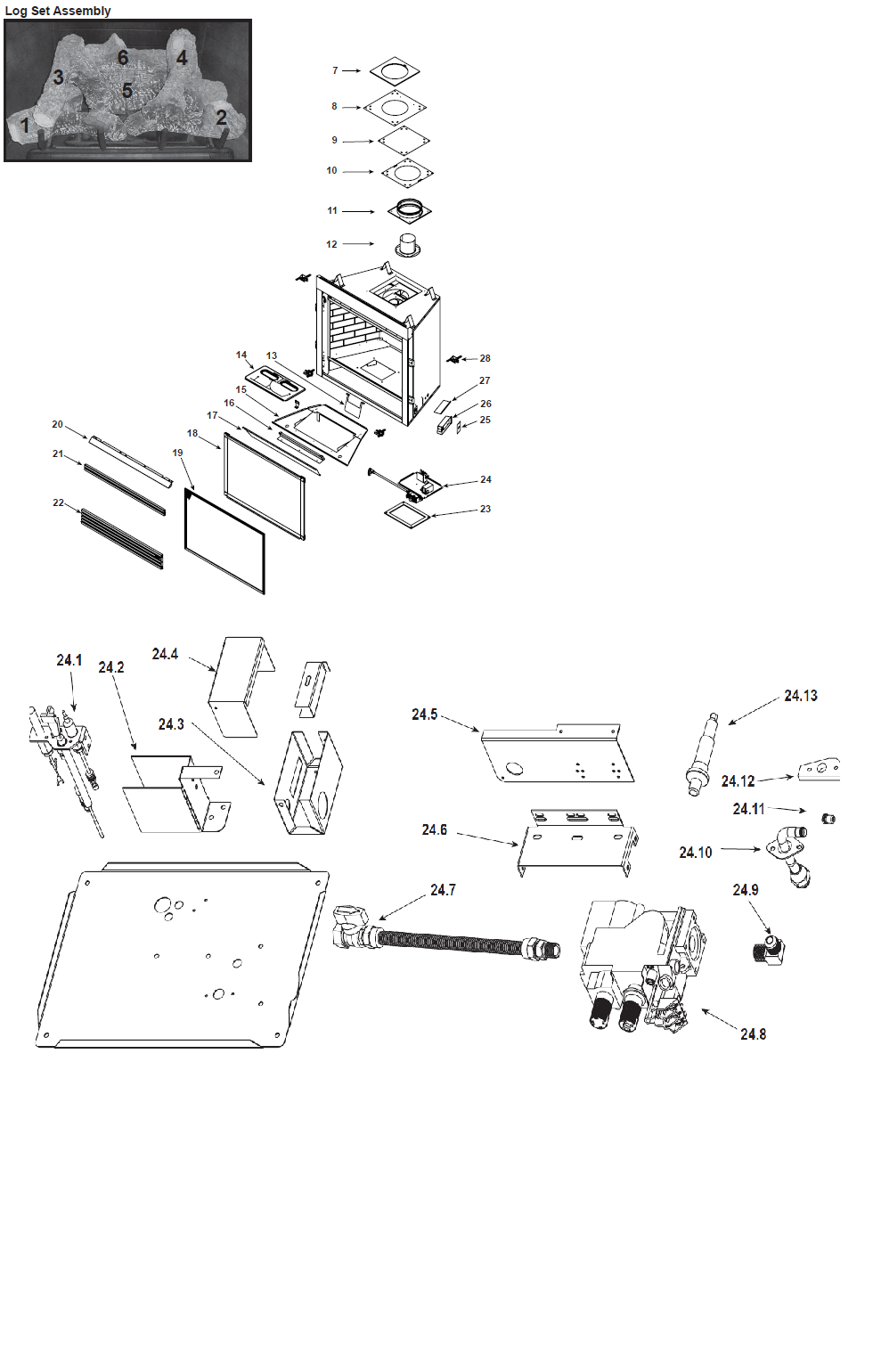

Heatilator CD4842R, CD4842LR replacement parts diagram
Part #Part NamePart CodePrice
#10Heatilator Caliber & Novus Flue Adapter Plate (4000-226)4000-226$11.00
#11Heatilator Intake Collar Assembly (4040-041) 4040-041$11.00
#12Heatilator Exhaust Collar Assembly (4040-042) 4040-042$11.00
#13Heatilator Flue Baffle (4040-193) 4040-197$9.00
#14Heatilator Caliber Series Burner Pan Assembly (4040-093)4040-093$347.00
#15Heatilator Caliber Hearth Pan (4040-256) 4040-256$48.00
#16Heatilator Caliber Burner Support (4040-259) 4040-259$13.00
#17Heatilator Glass Heat Shield (4040-154) 4040-154$15.00
#18Heatilator Caliber Series Glass Frame Assembly (4040-088)4040-088$669.00
#19Heatilator Caliber Series Screen Assembly (4040-032)4040-032$139.00
#20Heatilator Hood (SRV29576)SRV29576$64.00
#21Heatilator Caliber & Novus Series Upper Grille Assembly (4031-083)4031-083$155.00
#22Heatilator 42" Lower Grill Assembly (25144)25144$115.00
#23Heatilator Valve Plate Gasket (4040-198)4040-198$10.00
#24.11aHeatilator Threaded NG Orifice - .109 (SRV4021-061)SRV4021-061$21.00
#24.11bHeatilator Caliber Series Threaded LP Orifice - .067 (SRV4021-198)SRV4021-198$21.00
#24.12Heatilator Bulkhead Insulation / Gasket (4021-043)4021-043$10.00
#24.13Quadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#24.1aHeatilator Pilot Assembly - NG (4021-732)4021-732$130.00
#24.1bHeatilator Caliber & Novus Series Pilot Assembly - NG (4021-330)4021-330$119.00
#24.1cHeat N Glo & Heatilator Pilot Assembly - LP (4021-733)4021-733$134.00
#24.1dHeatilator Caliber & Novus Series Pilot Assembly - LP (4021-329)4021-329$105.00
#24.2aHeatilator Caliber Pilot Bracket (4040-273) 4040-273$12.00
#24.2bHeatilator Pilot Bracket (4047-126)4047-126$12.00
#24.3Heatilator Shutter Box Bottom (4040-189) 4040-189$11.00
#24.4Heatilator Shutter Box Top (4040-190) 4040-190$8.00
#24.5Heatilator Upper Valve Bracket (4040-193) 4040-193$8.00
#24.6aHeat N Glo & Heatilator Valve Bracket (SRV31824)SRV31824$8.00
#24.6bHeatilator Caliber & Novus Series SIT Valve Bracket (30060)30060$9.00
#24.7HHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#24.8aHHT Robertshaw Valve - NG (SRV24033)SRV24033$327.00
#24.8bQuadra-Fire, Harman, & Heatilator SIT Valve - NG (SRV230-0710)SRV230-0710$224.00
#24.8cHeatilator & Quadra-Fire Robertshaw Valve - LP (SRV24034)SRV24034$333.00
#24.8dHHT Gas Valve - LP (SRV230-0720)SRV230-0720$224.00
#24.9HHT Brass Connector - 3/8 Flare x 3/8 NPT Male Elbow (SRV4021-045)SRV4021-045$23.00
#25HHT Junction Box Cover Plate (SRV4031-222)SRV4031-222$43.00
#26HHT Junction Box (SRV4021-013)SRV4021-013$36.00
#27Heatilator Caliber & Novus Series Junction Box Radiation Shield (4031-193)4031-193$8.00
#28Heat N Glo, Heatilator & Quadra-Fire Glass Clip Assembly (33858/2)33858/2$54.00
#8Heatilator Flue Adaptor Plate (25882)25882$9.00
#LOG ASSYHeatilator Caliber Series Log & Grate Assembly (4040-052)4040-052$737.00
#N/SHeatilator Caliber Installation Instructions (4040-224) 4040-224$13.00
#N/SHeatilator Conversion Kit - LP (CKVP)CKVP$289.00
#N/SHeatilator Conversion Kit - NG (CKVN)CKVN$246.00
#N/SHHT Vermiculite Bag (28746)28746$6.00
#N/SHHT Mineral Wool (SRV14333)SRV14333$15.00
#N/SHHT Lava Rock - 2LB (SRV4021-296)SRV4021-296$49.00
#N/SHHT Lava Rock Bag Assembly (SRV4040-094)SRV4040-094$90.00
#N/SHeatilator Screen Bracket (SRV28159)SRV28159$9.00
#N/SHeatilator Gas Intake Cover Plate (25844)25844$13.00
#N/SHeatilator Gas Exhaust Cover Plate (25840)25840$8.00
#N/SHeatilator Caliber & Caliber nXt Series Top Log Assembly (4040-038)4040-038$306.00
