Heatilator GBCL36 Parts Diagram

Heatilator GBCL36 Interactive Parts Finder

Find the exact replacement parts you need for your Heatilator GBCL36. This Gas stove has 79 parts mapped in our interactive diagram below. Common replacement parts include Heatilator Middle Log, Heatilator Left Back Log, Heatilator Back Right Log, Heatilator Front Bottom Left Log, and Heatilator Front Bottom Right Log. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 79 replacement parts available.

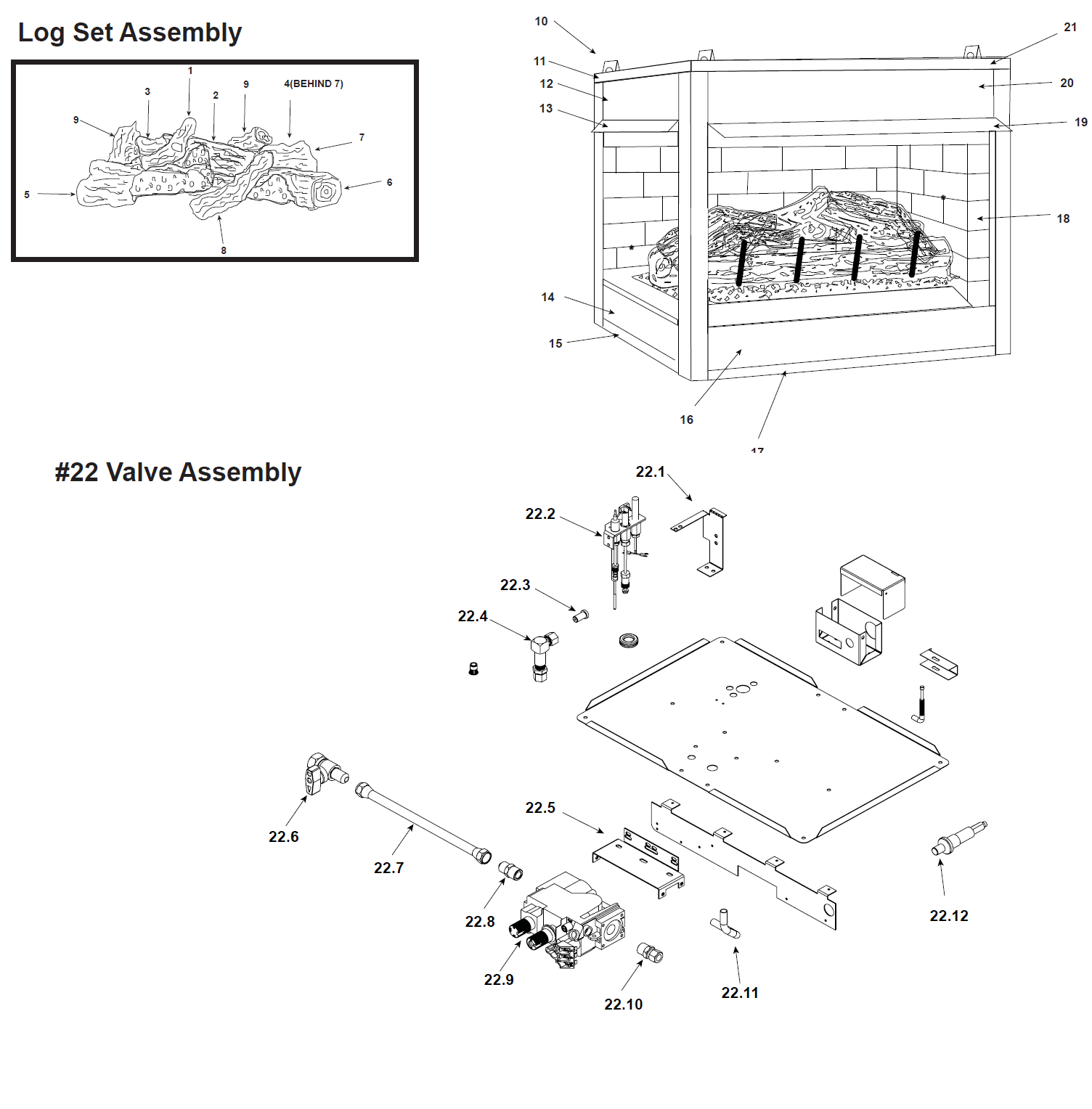

Heatilator GBCL36 replacement parts diagram
Part #Part NamePart CodePrice
#10HHT Top Standoff (SRV4044-111)SRV4044-111$11.00
#13Heatilator Side Hood (27659)27659$69.00
#14Heatilator Lower Face (25913)25913$100.00
#16Heatilator Caliber Series Control Access Door (25893)25893$99.00
#18aHHT Refractory End Panel (35367) 35367$36.00
#18bHeatilator Caliber Series End Refractory Panel (4002-071)4002-071$39.00
#19aHeatilator Front Hood (27658)27658$63.00
#19bHeatilator Caliber & Geneva Series Hood (SRV29575)SRV29575$62.00
#2Heatilator Middle Log (SRV26620)SRV26620$208.00
#20Heatilator Front Panel (27655)27655$60.00
#22.1Heatilator Caliber Series Pilot Bracket (25929)25929$6.00
#22.10Heatilator Male Brass Connector (SRV13425)SRV13425$42.00
#22.11aHeatilator Burner Supply Tube - 3/8" (27901)27901$12.00
#22.11bHeatilator Caliber Burner Tube (4002-091)4002-091$12.00
#22.12Quadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#22.2aHeatilator Pilot Assembly - NG (4021-732)4021-732$130.00
#22.2bHeatilator Caliber & Novus Series Pilot Assembly - NG (4021-330)4021-330$119.00
#22.3aHeatilator Burner Orifice - NG (SRV26617)SRV26617$19.00
#22.3bHeatilator Burner Orifice .067 - LP (SRV17812)SRV17812$17.00
#22.4Quadra-Fire and Heatilator Bulkhead (35403)35403$120.00
#22.5aHeatilator Valve Bracket (19303)19303$8.00
#22.5bHeatilator Caliber & Novus Series SIT Valve Bracket (30060)30060$9.00
#22.6HHT On/Off Valve (SRV15697)SRV15697$41.00
#22.7aHHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#22.7bHHT Stainless Flex Gas Tube - 22" (7000-197)7000-197$45.00
#22.8HHT Male Connector Fittings (303-315/5)303-315/5$44.00
#22.9aHHT Robertshaw Valve - NG (SRV24033)SRV24033$327.00
#22.9bQuadra-Fire, Harman, & Heatilator SIT Valve - NG (SRV230-0710)SRV230-0710$224.00
#3Heatilator Left Back Log (SRV26621)SRV26621$208.00
#4Heatilator Back Right Log (SRV26622)SRV26622$227.00
#5Heatilator Front Bottom Left Log (SRV26623)SRV26623$203.00
#6Heatilator Front Bottom Right Log (SRV26624)SRV26624$176.00
#7Heatilator Middle Right Log (SRV26625)SRV26625$158.00
#8Heatilator Front Middle Log (SRV26626)SRV26626$208.00
#9Heatilator Top Rear Log (SRV26627)SRV26627$203.00
#LOG ASSYHeatilator Caliber Series Log and Grate Assembly (27793)27793$1,014.00
#N/SHeatilator Conversion Kit - LP (CKVP)CKVP$289.00
#N/SHeatilator Caliber Series Outside Air Kit (28634)28634$89.00
#N/SHeatilator Caliber Series End Screen Assembly (29693)29693$110.00
#N/SHeatilator Caliber Series End Screen Assembly (26164)26164$340.00
#N/SHeatilator Caliber Series Face Screen Assembly (26161)26161$149.00
#N/SHeatilator, Heat N Glo & Majestic Exterior Powder Coat Touch Up Paint - Black Gloss (71479)71479$30.00
#N/SHeatilator Wall Switch Wire Assembly (SRV28602)SRV28602$44.00
#N/SHeatilator Caliber Series Wire Assembly - HIBLU60FM (4018-021)4018-021$14.00
#N/SHHT Vermiculite Bag (28746)28746$6.00
#N/SHeatilator Conversion Kit - NG (CKVN)CKVN$246.00
#N/SHeatilator Screen Bracket (SRV28159)SRV28159$9.00
#N/SHHT .021 Pilot Orifice - NG (SRV446-505)SRV446-505$9.00
#N/SHHT Pilot Orifice .021 - NG (SRV2103-116)SRV2103-116$17.00
#N/SHHT .0115 Pilot Orifice - LP (SRV446-517)SRV446-517$10.00
#N/SHHT Variable Gas Valve Regulator - NG (SRV060-518)SRV060-518$53.00
#N/S Quadra-Fire, Heat N Glo & Heatilator Variable Gas Valve Regulator - LP (060-519)060-519$54.00
#N/SHeatilator Pilot Tube (26474)26474$23.00
#N/SHeatilator Glass Latch Assembly (30537)30537$65.00
#N/SHeat N Glo, Heatilator and Quadra-Fire PSE Thermopile (2103-512)2103-512$54.00
#N/SHeatilator Caliber Series Burner Pan Assembly (25847)25847$326.00
#N/SHeatilator Exhaust Baffle (27654)27654$15.00
#N/SHeatilator Glass Assembly with Frame (4002-053)4002-053$568.00
#N/SHeatilator Glass Retainer (26798)26798$6.00
#N/SHeatilator Caliber End Glass & Frame Assembly (SRV4002-045) SRV4002-045$599.00
#N/SHeatilator Caliber Series End Glass Retainer - Bottom (4002-043)4002-043$133.00
#N/SHeatilator Caliber Series Side Glass Retainer (4002-044)4002-044$124.00
#N/SQuadra-Fire & Heatilator Thermocouple (SRV72956)SRV72956$36.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Glass Clip Assembly (33858/2)33858/2$54.00
#N/SHeatilator Caliber Series Glass Latch Handle (4002-061)4002-061$15.00
#N/SHeatilator High Limit Switch (SRV24968)SRV24968$19.00
#N/SHeatilator & Heat N Glo High Limit Switch (SRV4021-383)SRV4021-383$19.00
#N/SHeatilator Limit Switch Bracket (26619)26619$10.00
#N/SHeatilator Junction Box Kit (31581)31581$33.00
#N/SHHT Lava Rock - 2LB (SRV4021-296)SRV4021-296$49.00
#N/SHHT Mineral Wool (SRV14333)SRV14333$15.00
