Heatilator GBFL36 Parts Diagram

Heatilator GBFL36 Interactive Parts Finder

Find the exact replacement parts you need for your Heatilator GBFL36. This Gas stove has 74 parts mapped in our interactive diagram below. Common replacement parts include Heatilator Caliber Series Log and Grate Assembly, Heatilator Middle Log, Heatilator Left Back Log, Heatilator Back Right Log, and Heatilator Front Bottom Left Log. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 74 replacement parts available.

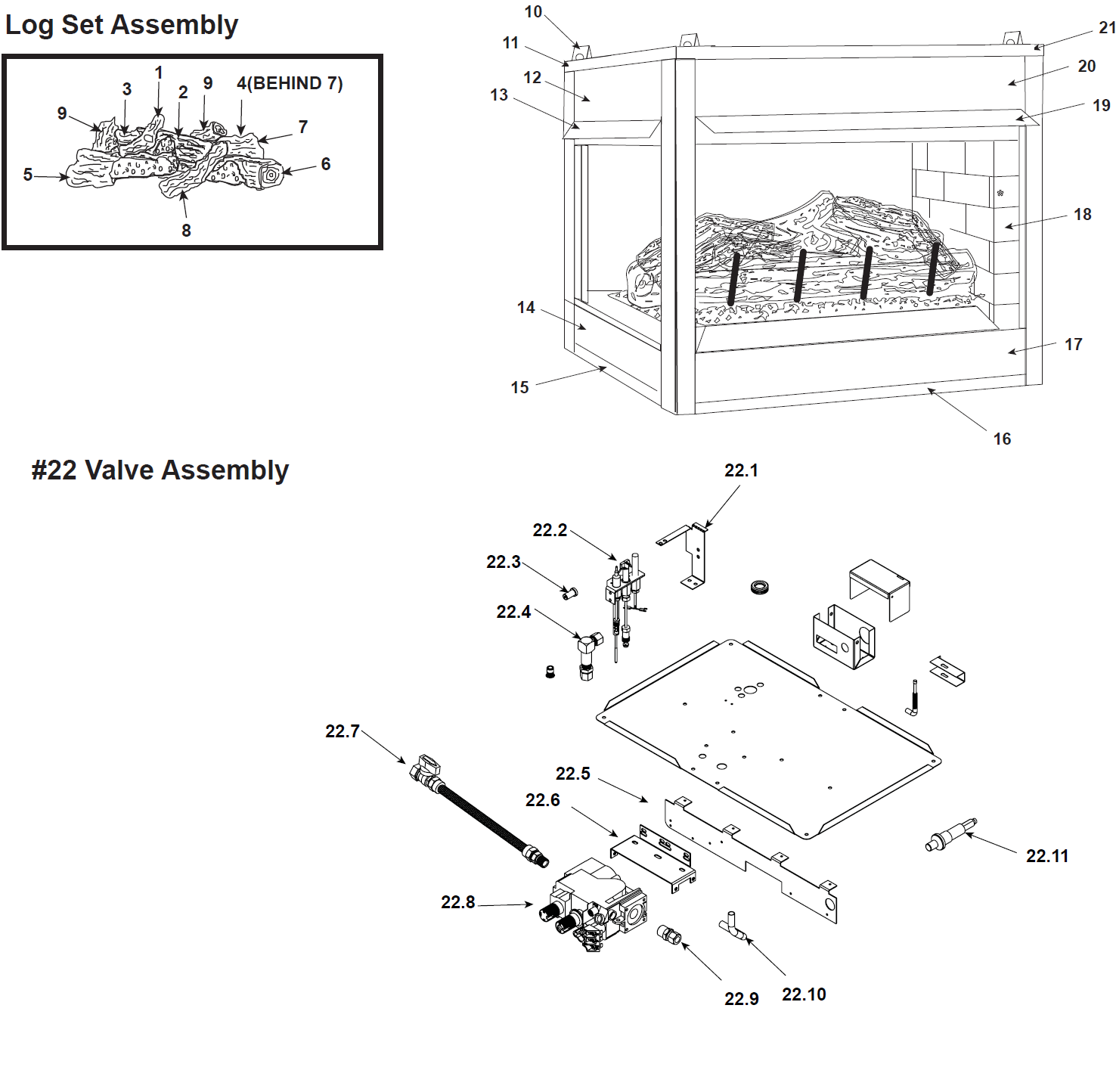

Heatilator GBFL36 replacement parts diagram
Part #Part NamePart CodePrice
#10HHT Top Standoff (SRV4044-111)SRV4044-111$11.00
#13Heatilator Side Hood (27659)27659$69.00
#14Heatilator Lower Face (25913)25913$100.00
#17aHeatilator Caliber Series Control Access Door (25893)25893$99.00
#17bHeatilator Lower Back Face (25912)25912$98.00
#18aHHT Refractory End Panel (35367) 35367$36.00
#18bHeatilator Caliber Series End Refractory Panel (4002-071)4002-071$39.00
#19aHeatilator Front Hood (27658)27658$63.00
#19bHeatilator Caliber & Geneva Series Hood (SRV29575)SRV29575$62.00
#2Heatilator Middle Log (SRV26620)SRV26620$208.00
#20Heatilator Front Panel (27655)27655$60.00
#22.1Heatilator Caliber Series Pilot Bracket (25929)25929$6.00
#22.10aHeatilator Burner Supply Tube - 3/8" (27901)27901$12.00
#22.10bHeatilator Caliber Burner Tube (4002-091)4002-091$12.00
#22.11Quadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#22.2aHeatilator Pilot Assembly - NG (4021-732)4021-732$130.00
#22.2bHeatilator Caliber & Novus Series Pilot Assembly - NG (4021-330)4021-330$119.00
#22.3Heatilator Burner Orifice - NG (SRV26617)SRV26617$19.00
#22.4Quadra-Fire and Heatilator Bulkhead (35403)35403$120.00
#22.6aHeatilator Valve Bracket (19303)19303$8.00
#22.6bHeatilator Caliber & Novus Series SIT Valve Bracket (30060)30060$9.00
#22.7HHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#22.8aHHT Robertshaw Valve - NG (SRV24033)SRV24033$327.00
#22.8bQuadra-Fire, Harman, & Heatilator SIT Valve - NG (SRV230-0710)SRV230-0710$224.00
#22.9Heatilator Male Brass Connector (SRV13425)SRV13425$42.00
#3Heatilator Left Back Log (SRV26621)SRV26621$208.00
#4Heatilator Back Right Log (SRV26622)SRV26622$227.00
#5Heatilator Front Bottom Left Log (SRV26623)SRV26623$203.00
#6Heatilator Front Bottom Right Log (SRV26624)SRV26624$176.00
#7Heatilator Middle Right Log (SRV26625)SRV26625$158.00
#8Heatilator Front Middle Log (SRV26626)SRV26626$208.00
#9Heatilator Top Rear Log (SRV26627)SRV26627$203.00
#LOG ASSY Heatilator Caliber Series Log and Grate Assembly (27793)27793$1,014.00
#N/SHeatilator Junction Box Kit (31581)31581$33.00
#N/SHeatilator Caliber Series Outside Air Kit (28634)28634$89.00
#N/SHeatilator Caliber Series Face Screen Assembly (26161)26161$149.00
#N/SHeatilator, Heat N Glo & Majestic Exterior Powder Coat Touch Up Paint - Black Gloss (71479)71479$30.00
#N/SHeatilator Pilot Tube (26474)26474$23.00
#N/SHeatilator Caliber Series End Screen Assembly (26164)26164$340.00
#N/SHeatilator Caliber Series End Screen Assembly (29693)29693$110.00
#N/SHeatilator Caliber Series Wire Assembly - HIBLU60FM (4018-021)4018-021$14.00
#N/SHeatilator Wall Switch Wire Assembly (SRV28602)SRV28602$44.00
#N/SHHT Lava Rock - 2LB (SRV4021-296)SRV4021-296$49.00
#N/SHHT Mineral Wool (SRV14333)SRV14333$15.00
#N/SHeatilator Conversion Kit - NG (CKVN)CKVN$246.00
#N/SHeatilator Conversion Kit - LP (CKVP)CKVP$289.00
#N/SHeatilator Caliber Series Side Glass Retainer (4002-044)4002-044$124.00
#N/SHHT .021 Pilot Orifice - NG (SRV446-505)SRV446-505$9.00
#N/SQuadra-Fire & Heatilator Thermocouple (SRV72956)SRV72956$36.00
#N/SHeat N Glo, Heatilator and Quadra-Fire PSE Thermopile (2103-512)2103-512$54.00
#N/SHeatilator Caliber Series Burner Pan Assembly (25847)25847$326.00
#N/SHeatilator Exhaust Baffle (27654)27654$15.00
#N/SHeatilator Glass Retainer (26798)26798$6.00
#N/SHeatilator Caliber End Glass & Frame Assembly (SRV4002-045) SRV4002-045$599.00
#N/SHeatilator Caliber Series End Glass Retainer - Bottom (4002-043)4002-043$133.00
#N/SHeatilator Outside Air Inlet Tube (19461A)19461A$8.00
#N/SHeatilator Glass Assembly with Frame (4002-053)4002-053$568.00
#N/SHeatilator Glass Latch Assembly (30537)30537$65.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Glass Clip Assembly (33858/2)33858/2$54.00
#N/SHeatilator Caliber Series Glass Latch Handle (4002-061)4002-061$15.00
#N/SHeatilator Caliber Series Hearth Assembly (28508)28508$345.00
#N/SHeatilator High Limit Switch (SRV24968)SRV24968$19.00
#N/SHeatilator & Heat N Glo High Limit Switch (SRV4021-383)SRV4021-383$19.00
