Heatilator GDCL60, GDCL60L Parts Diagram

Heatilator GDCL60, GDCL60L Interactive Parts Finder

Find the exact replacement parts you need for your Heatilator GDCL60, GDCL60L. This Gas stove has 78 parts mapped in our interactive diagram below. Common replacement parts include Heatilator Caliber Series Log & Grate Assembly, Heatilator Caliber Series Log Assembly, Heatilator Log #1, Heatilator Rear Log - Left, and Heatilator Log #3. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 78 replacement parts available.

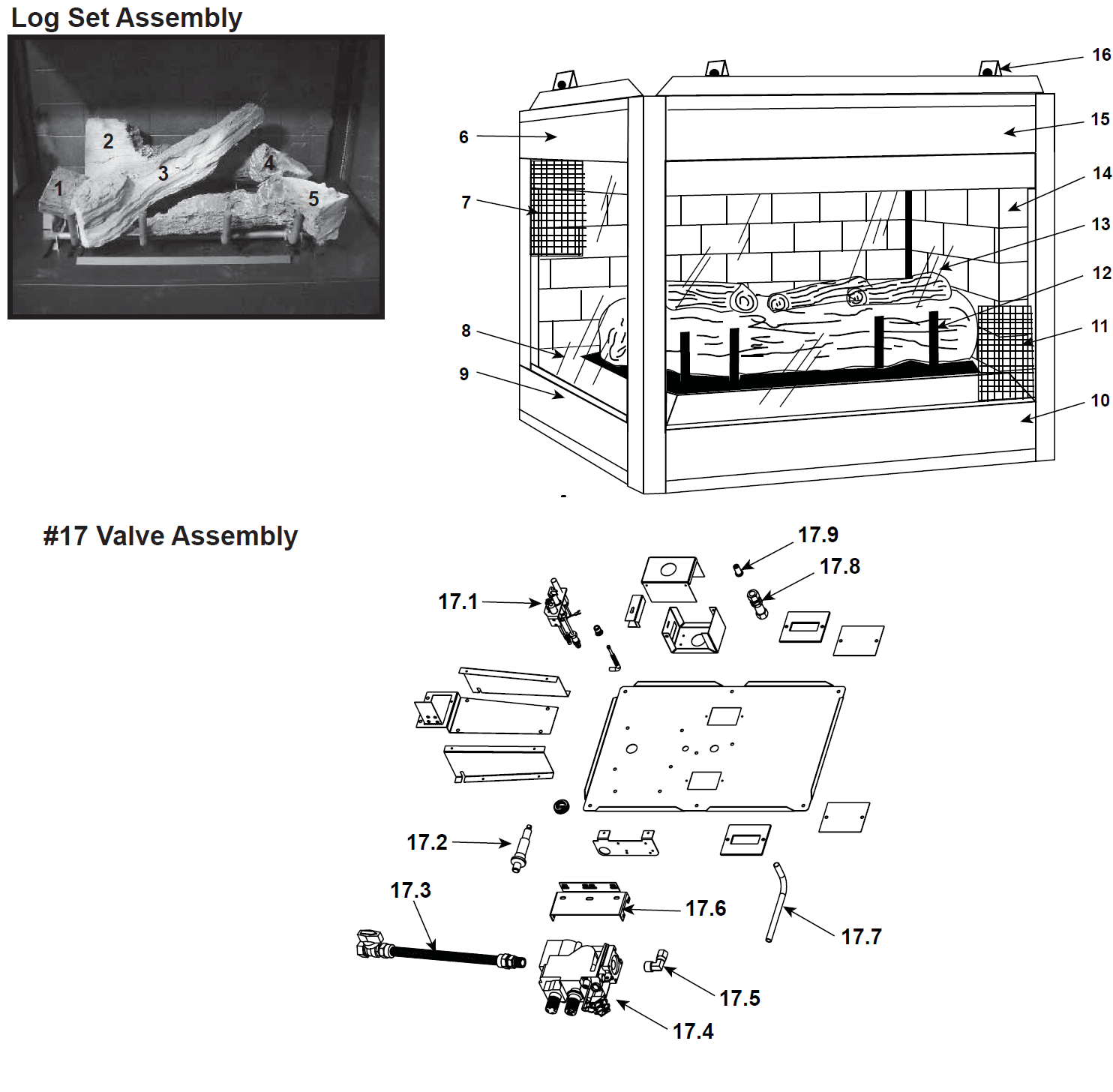

Heatilator GDCL60, GDCL60L replacement parts diagram
Part #Part NamePart CodePrice
#1Heatilator Log #1 (SRV33785)SRV33785$203.00
#10Heatilator Caliber Series Grate Assembly (35594)35594$154.00
#11Heatilator Caliber Series Face Screen Assembly (26161)26161$149.00
#12Heatilator Caliber Series Control Access Door (25893)25893$99.00
#13Heatilator Lower Face (25913)25913$100.00
#14Heatilator Caliber End Glass & Frame Assembly (SRV4002-045) SRV4002-045$599.00
#15Heatilator Caliber Series End Screen Assembly (29693)29693$110.00
#17.1aHeatilator Pilot Assembly - NG (4021-732)4021-732$130.00
#17.1bHeatilator Caliber & Novus Series Pilot Assembly - NG (4021-330)4021-330$119.00
#17.1cHeat N Glo & Heatilator Pilot Assembly - LP (4021-733)4021-733$134.00
#17.1dHeatilator Caliber & Novus Series Pilot Assembly - LP (4021-329)4021-329$105.00
#17.2Quadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#17.3HHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#17.4aHHT Robertshaw Valve - NG (SRV24033)SRV24033$327.00
#17.4bQuadra-Fire, Harman, & Heatilator SIT Valve - NG (SRV230-0710)SRV230-0710$224.00
#17.4cHeatilator & Quadra-Fire Robertshaw Valve - LP (SRV24034)SRV24034$333.00
#17.4dHHT Gas Valve - LP (SRV230-0720)SRV230-0720$224.00
#17.5Heatilator & Quadra-Fire Brass Elbow (SRV17524)SRV17524$22.00
#17.6aHeatilator Valve Bracket (19303)19303$8.00
#17.6bHeatilator Caliber & Novus Series SIT Valve Bracket (30060)30060$9.00
#17.7aHeatilator Burner Supply Tube - 3/8" (33619)33619$51.00
#17.7bHeatilator Caliber Burner Tube (4002-078)4002-078$13.00
#17.8Heatilator 3/8" Bulkhead Union (SRV13405A)SRV13405A$102.00
#17.9aHeatilator Burner Orifice - NG (SRV26617)SRV26617$19.00
#17.9bHeatilator Burner Orifice .067 - LP (SRV17812)SRV17812$17.00
#2Heatilator Rear Log - Left (SRV35592)SRV35592$239.00
#3Heatilator Log #3 (SRV35590)SRV35590$233.00
#4Heatilator Log #4 (SRV33782)SRV33782$203.00
#5Heatilator Log #5 (SRV35591)SRV35591$208.00
#6HHT Top Standoff (SRV4044-111)SRV4044-111$11.00
#7Heatilator Front Panel (27655)27655$60.00
#8HHT Refractory End Panel (35367) 35367$36.00
#9Heatilator Glass Assembly with Frame (4002-053)4002-053$568.00
#LOG ASSYHeatilator Caliber Series Log & Grate Assembly (35595)35595$749.00
#LOG ASSY 2Heatilator Caliber Series Log Assembly (35596)35596$593.00
#N/SHeatilator SIT Conversion Kit - LP (SCKVP-B)SCKVP-B$209.00
#N/SHHT Mineral Wool (SRV14333)SRV14333$15.00
#N/SHHT Nailing Flange (SRV31190)SRV31190$7.00
#N/SHeatilator Screen Bracket (SRV28159)SRV28159$9.00
#N/SHeatilator & Quadra-Fire Valve Plate Gasket (4002-039)4002-039$12.00
#N/SHeatilator, Heat N Glo & Majestic Exterior Powder Coat Touch Up Paint - Black Gloss (71479)71479$30.00
#N/SHHT Vermiculite Bag (28746)28746$6.00
#N/SHeatilator Wall Switch Wire Assembly (SRV28602)SRV28602$44.00
#N/SHeatilator Conversion Kit - NG (CKVN)CKVN$246.00
#N/SHeatilator SIT Conversion Kit - NG (SCKVN-B)SCKVN-B$257.00
#N/SHeatilator Conversion Kit - LP (CKVP)CKVP$289.00
#N/SHHT Variable Gas Valve Regulator - NG (SRV060-518)SRV060-518$53.00
#N/SHHT Gas Valve Regulator - NG (SRV230-1570)SRV230-1570$53.00
#N/SHHT .021 Pilot Orifice - NG (SRV446-505)SRV446-505$9.00
#N/SHHT Gas Valve Regulator - LP (SRV230-1520)SRV230-1520$60.00
#N/SHeatilator & Quadra-Fire Valve Regulator (SRV19900)SRV19900$110.00
#N/SHHT Pilot Orifice .021 - NG (SRV2103-116)SRV2103-116$17.00
#N/SHHT .0115 Pilot Orifice - LP (SRV446-517)SRV446-517$10.00
#N/SHeatilator Pilot Orifice (.014) LP (29477)29477$7.00
#N/SHeatilator Flue Cover Plate (25901)25901$10.00
#N/SHeatilator Caliber Series End Glass Retainer - Bottom (4002-043)4002-043$133.00
#N/SHeatilator Caliber Series Side Glass Retainer (4002-044)4002-044$124.00
#N/SQuadra-Fire & Heatilator Thermocouple (SRV72956)SRV72956$36.00
#N/SHeat N Glo, Heatilator and Quadra-Fire PSE Thermopile (2103-512)2103-512$54.00
#N/SHHT Brass Connector - 3/8 Flare x 3/8 NPT Male Elbow (SRV4021-045)SRV4021-045$23.00
#N/SHeatilator Caliber Series Burner Pan Assembly (33970)33970$327.00
#N/SHeatilator Gas Exhaust Cover Plate (25840)25840$8.00
#N/SHeatilator Flue Adaptor Assembly (25881)25881$60.00
#N/SHHT Lava Rock - 2LB (SRV4021-296)SRV4021-296$49.00
#N/SHeatilator Glass Latch Assembly (30537)30537$65.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Glass Clip Assembly (33858/2)33858/2$54.00
#N/SHeatilator Caliber Series Glass Latch Handle (4002-061)4002-061$15.00
#N/SHeatilator Side Hood (27659)27659$69.00
#N/SHeatilator Front Hood (27658)27658$63.00
#N/SHeatilator Caliber & Geneva Series Hood (SRV29575)SRV29575$62.00
#N/SHeatilator Gas Intake Cover Plate (25844)25844$13.00
#N/SHeatilator Junction Box Kit (31581)31581$33.00
