Heatilator GDCR60, GDCR60L Parts Diagram

Heatilator GDCR60, GDCR60L Interactive Parts Finder

Find the exact replacement parts you need for your Heatilator GDCR60, GDCR60L. This Gas stove has 72 parts mapped in our interactive diagram below. Common replacement parts include Heatilator Caliber Series Log & Grate Assembly, Heatilator Caliber Series Log Assembly, Heatilator Log #1, Heatilator Rear Log - Left, and Heatilator Log #3. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 72 replacement parts available.

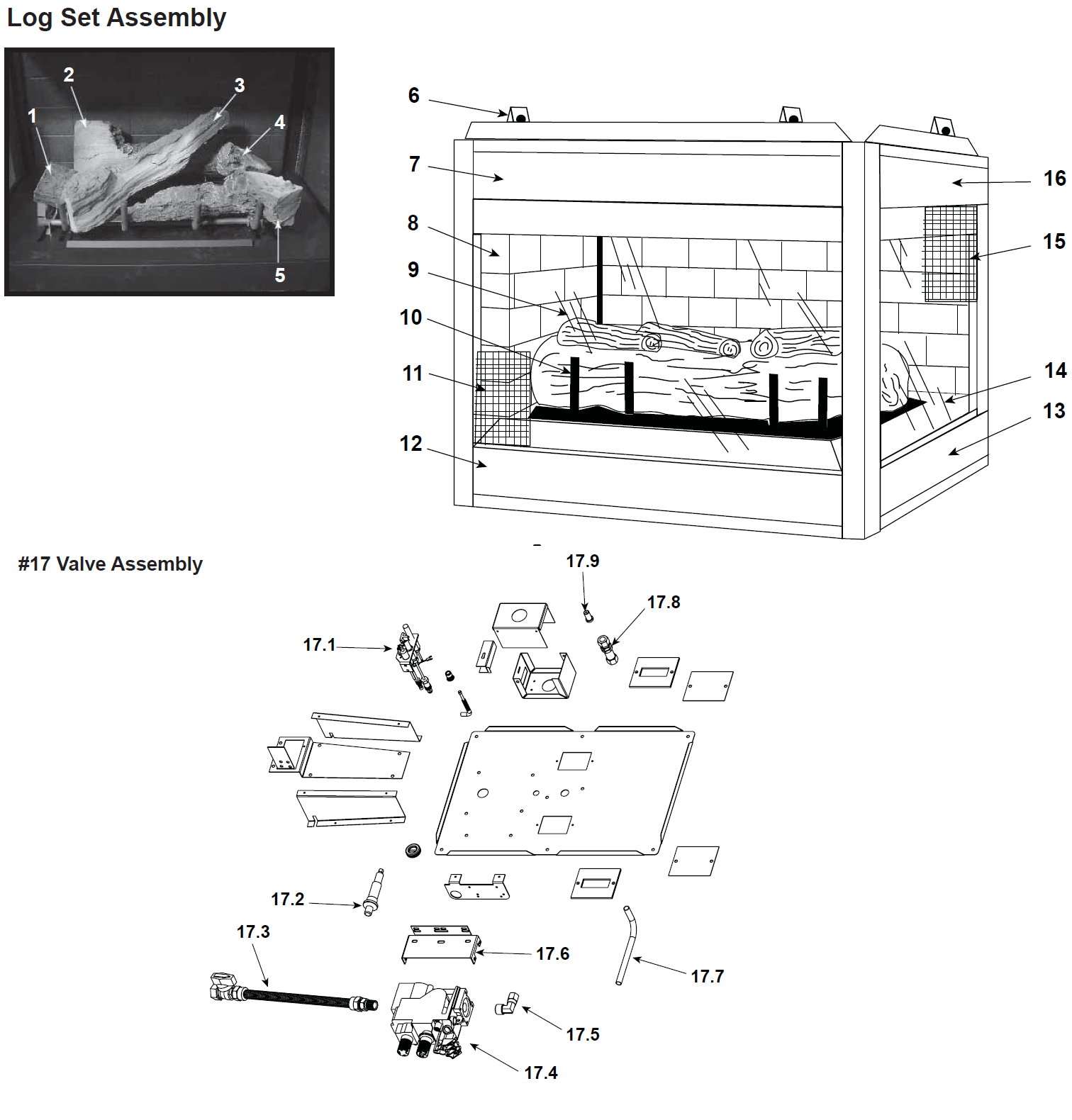

Heatilator GDCR60, GDCR60L replacement parts diagram
Part #Part NamePart CodePrice
#1Heatilator Log #1 (SRV33785)SRV33785$203.00
#10Heatilator Caliber Series Grate Assembly (35594)35594$154.00
#11Heatilator Caliber Series Face Screen Assembly (26161)26161$149.00
#12Heatilator Caliber Series Control Access Door (25893)25893$99.00
#13Heatilator Lower Face (25913)25913$100.00
#14aHeatilator Caliber End Glass & Frame Assembly (SRV4002-045) SRV4002-045$599.00
#14bHeatilator Caliber Series End Glass Retainer - Bottom (4002-043)4002-043$133.00
#14cHeatilator Caliber Series Side Glass Retainer (4002-044)4002-044$124.00
#15Heatilator Caliber Series End Screen Assembly (29693)29693$110.00
#17.1aHeatilator Pilot Assembly - NG (4021-732)4021-732$130.00
#17.1bHeatilator Caliber & Novus Series Pilot Assembly - NG (4021-330)4021-330$119.00
#17.2Quadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#17.3HHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#17.4aHHT Robertshaw Valve - NG (SRV24033)SRV24033$327.00
#17.4bQuadra-Fire, Harman, & Heatilator SIT Valve - NG (SRV230-0710)SRV230-0710$224.00
#17.5Heatilator & Quadra-Fire Brass Elbow (SRV17524)SRV17524$22.00
#17.6aHeatilator Valve Bracket (19303)19303$8.00
#17.6bHeatilator Caliber & Novus Series SIT Valve Bracket (30060)30060$9.00
#17.7aHeatilator Burner Supply Tube - 3/8" (33619)33619$51.00
#17.7bHeatilator Caliber Burner Tube (4002-078)4002-078$13.00
#17.8Heatilator 3/8" Bulkhead Union (SRV13405A)SRV13405A$102.00
#17.9Heatilator Burner Orifice - NG (SRV26617)SRV26617$19.00
#2Heatilator Rear Log - Left (SRV35592)SRV35592$239.00
#3Heatilator Log #3 (SRV35590)SRV35590$233.00
#4Heatilator Log #4 (SRV33782)SRV33782$203.00
#5Heatilator Log #5 (SRV35591)SRV35591$208.00
#6HHT Top Standoff (SRV4044-111)SRV4044-111$11.00
#7Heatilator Front Panel (27655)27655$60.00
#8aHHT Refractory End Panel (35367) 35367$36.00
#8bHeatilator Caliber Series End Refractory Panel (4002-071)4002-071$39.00
#9Heatilator Glass Assembly with Frame (4002-053)4002-053$568.00
#LOG ASSYHeatilator Caliber Series Log & Grate Assembly (35595)35595$749.00
#LOG ASSY 2Heatilator Caliber Series Log Assembly (35596)35596$593.00
#N/SHHT Variable Gas Valve Regulator - NG (SRV060-518)SRV060-518$53.00
#N/SHeatilator Screen Bracket (SRV28159)SRV28159$9.00
#N/SHeatilator & Quadra-Fire Valve Plate Gasket (4002-039)4002-039$12.00
#N/SHeatilator, Heat N Glo & Majestic Exterior Powder Coat Touch Up Paint - Black Gloss (71479)71479$30.00
#N/SHHT Vermiculite Bag (28746)28746$6.00
#N/SHeatilator Wall Switch Wire Assembly (SRV28602)SRV28602$44.00
#N/SHeatilator Conversion Kit - NG (CKVN)CKVN$246.00
#N/SHeatilator SIT Conversion Kit - NG (SCKVN-B)SCKVN-B$257.00
#N/SHeatilator Conversion Kit - LP (CKVP)CKVP$289.00
#N/SHeatilator SIT Conversion Kit - LP (SCKVP-B)SCKVP-B$209.00
#N/SHHT Gas Valve Regulator - NG (SRV230-1570)SRV230-1570$53.00
#N/SHHT .021 Pilot Orifice - NG (SRV446-505)SRV446-505$9.00
#N/SHHT Gas Valve Regulator - LP (SRV230-1520)SRV230-1520$60.00
#N/SHeatilator & Quadra-Fire Valve Regulator (SRV19900)SRV19900$110.00
#N/SHHT Pilot Orifice .021 - NG (SRV2103-116)SRV2103-116$17.00
#N/SHHT .0115 Pilot Orifice - LP (SRV446-517)SRV446-517$10.00
#N/SHeatilator Pilot Orifice (.014) LP (29477)29477$7.00
#N/SHeatilator Caliber Series Glass Latch Handle (4002-061)4002-061$15.00
#N/SQuadra-Fire & Heatilator Thermocouple (SRV72956)SRV72956$36.00
#N/SHeat N Glo, Heatilator and Quadra-Fire PSE Thermopile (2103-512)2103-512$54.00
#N/SHeatilator Caliber Series Burner Pan Assembly (33970)33970$327.00
#N/SHeatilator Gas Exhaust Cover Plate (25840)25840$8.00
#N/SHeatilator Flue Adaptor Assembly (25881)25881$60.00
#N/SHeatilator Flue Cover Plate (25901)25901$10.00
#N/SHeatilator Glass Latch Assembly (30537)30537$65.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Glass Clip Assembly (33858/2)33858/2$54.00
#N/SHHT Nailing Flange (SRV31190)SRV31190$7.00
#N/SHeatilator Side Hood (27659)27659$69.00
#N/SHeatilator Front Hood (27658)27658$63.00
#N/SHeatilator Caliber & Geneva Series Hood (SRV29575)SRV29575$62.00
#N/SHeatilator Gas Intake Cover Plate (25844)25844$13.00
#N/SHeatilator Junction Box Kit (31581)31581$33.00
#N/SHHT Lava Rock - 2LB (SRV4021-296)SRV4021-296$49.00
#N/SHHT Mineral Wool (SRV14333)SRV14333$15.00
