Heatilator ICON I80CT Wood Parts Diagram

Heatilator ICON I80CT Wood Interactive Parts Finder

Find the exact replacement parts you need for your Heatilator ICON I80CT Wood. This Wood stove has 42 parts mapped in our interactive diagram below. Common replacement parts include HHT Starter Section Assembly, HHT Damper Blade Assembly, HHT Damper Blade Assembly, HHT Damper Control, and HHT Damper Weight. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 42 replacement parts available.

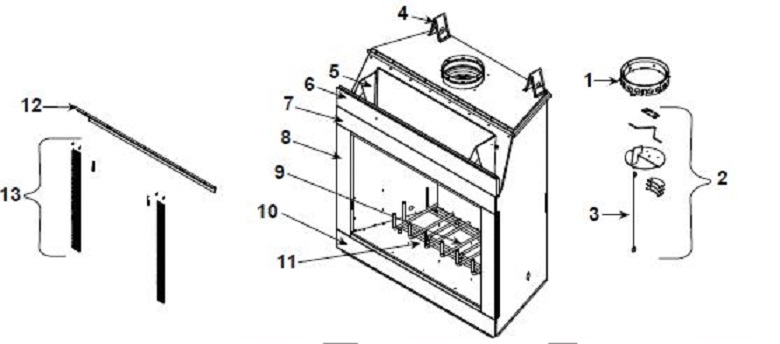

Heatilator ICON I80CT Wood replacement parts diagram
Part #Part NamePart CodePrice
#1HHT Starter Section Assembly (SRV22072)SRV22072$68.00
#11Majestic & Heatilator Grate Assembly (GR29)GR29$347.00
#13HHT Firescreen Assembly (SRV29958)SRV29958$100.00
#2HHT Damper Blade Assembly (SRV4059-030)SRV4059-030$148.00
#2AHHT Damper Blade Assembly (SRV29964)SRV29964$159.00
#3HHT Damper Control (SRV20549)SRV20549$7.00
#3AHHT Damper Weight (SRV19785)SRV19785$11.00
#4HHT Top Standoff (SRV19228)SRV19228$44.00
#5HHT Top Standoff (SRV11864)SRV11864$12.00
#6Heat N Glo, Heatilator & Majestic Upper Front (4013-207)4013-207$86.00
#N/SHeatilator Icon Series Hearth Refractory (SRV29957)SRV29957$343.00
#N/SHeatilator Herringbone Left Refractory Brick - Dusky Rose (SRV33677)SRV33677$230.00
#N/SHeatilator Herringbone Right Refractory Brick - Dusky Rose (SRV33676)SRV33676$290.00
#N/SHeatilator Icon Back Refractory (SRV4013-227)SRV4013-227$256.00
#N/SHeat N Glo & Heatilator Hearth Refractory (4013-058)4013-058$175.00
#N/SHeatilator Icon Hearth Refractory (SRV4013-226)SRV4013-226$286.00
#N/SHeatilator Icon Side Refractory (SRV4013-224)SRV4013-224$290.00
#N/SHeat N Glo & Heatilator Refractory Retainer Kit (34584)34584$13.00
#N/SHHT Refractory Retainer (SRV11847)SRV11847$10.00
#N/SHeatilator Herringbone Back Refractory Brick- Dusky Rose (SRV33675)SRV33675$305.00
#N/SHeatilator, Heat N Glo & Majestic Exterior Powder Coat Touch Up Paint - Black Gloss (71479)71479$30.00
#N/SHHT Hearth Strip Protector (SRV18320)SRV18320$12.00
#N/SHeatilator & Heat N Glo Smoke Shield (SRV35407)SRV35407$72.00
#N/SHeat N Glo Side Trim (31326)31326$28.00
#N/SHeat N Glo EXCLAIM & Heatilator ICON Screen Cover - Top Only (29926)29926$20.00
#N/SUS Stove & King Bent Feed Door Handle (25692)25692$30.00
#N/SHHT Outside Air Shield (SRV33271)SRV33271$43.00
#N/SHHT Air Kit Fastener Pack (13580)13580$47.00
#N/SHHT Outside Air Kit (AK22)AK22$49.00
#N/SHHT Nailing Flange (SRV31190)SRV31190$7.00
#N/SHHT Grate Retainer (SRV4017-060)SRV4017-060$32.00
#N/SHHT Firescreen Rod (SRV28404)SRV28404$9.00
#N/SHHT Firescreen Handle (SRV10002)SRV10002$10.00
