Heatilator NDV4842 Gas Parts Diagram

Heatilator NDV4842 Gas Interactive Parts Finder

Find the exact replacement parts you need for your Heatilator NDV4842 Gas. This Gas stove has 59 parts mapped in our interactive diagram below. Common replacement parts include Heatilator 42" Novus Series Log Set Assembly, Heatilator Novus Series Back Log, Heatilator Novus Series Log - Left, Heatilator Novus Series Top Log, and Heatilator Novus Series Log - Right. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 59 replacement parts available.

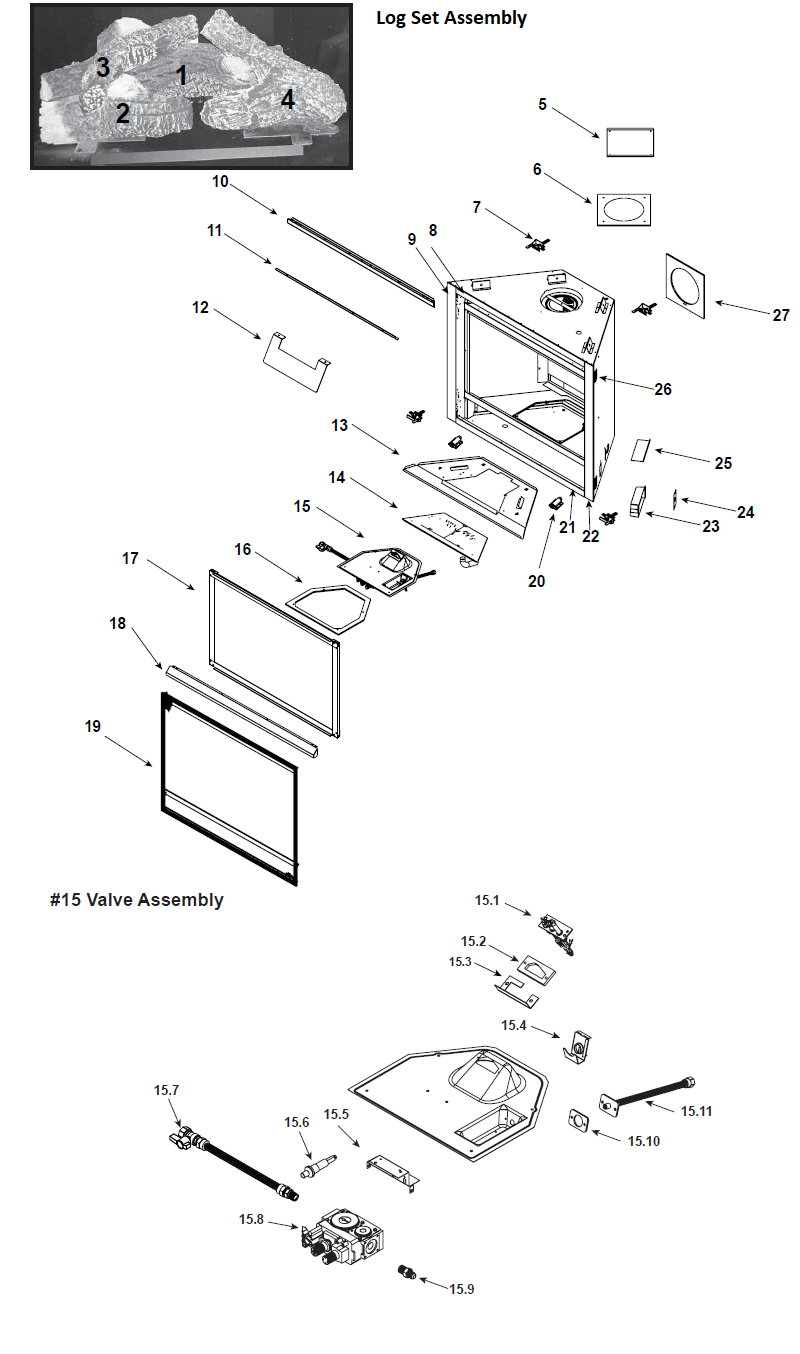

Heatilator NDV4842 Gas replacement parts diagram
Part #Part NamePart CodePrice
#1Heatilator Novus Series Back Log (SRV4055-082)SRV4055-082$203.00
#10Heatilator Novus Series Drywall Lip (4031-208)4031-208$15.00
#11Heatilator Novus Series Glass Shield (4031-220)4031-220$18.00
#12Heatilator Novus Series Flue Visor (4055-148)4055-148$19.00
#13Heatilator Novus Series 42" Hearth Pan (4055-112)4055-112$130.00
#14Heatilator Novus Series Burner Pan Assembly (4055-049)4055-049$204.00
#15.10HHT Bulkhead Gasket (SRV4021-429)SRV4021-429$45.00
#15.11Heatilator & Heat N Glo Flexible Bulkhead (4021-512)4021-512$43.00
#15.1AHeat N Glo, Heatilator & Quadra-Fire Pilot Assembly - NG (2103-010)2103-010$115.00
#15.1BHeat N Glo, Heatilator & Quadra-Fire Pilot Assembly - LP (2103-011)2103-011$117.00
#15.2Heat N Glo & Heatilator Pilot Gasket (4021-042)4021-042$6.00
#15.3Heatilator Novus Series Pilot Bracket (4065-182)4065-182$14.00
#15.4Heatilator Novus Series Air Shutter Assembly (SRV4055-202)SRV4055-202$12.00
#15.5Heatilator Valve Bracket (4055-205)4055-205$6.00
#15.6Quadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#15.7HHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#15.8AQuadra-Fire, Harman, & Heatilator SIT Valve - NG (SRV230-0710)SRV230-0710$224.00
#15.8BHHT Gas Valve - LP (SRV230-0720)SRV230-0720$224.00
#15.9HHT Male Connector Fittings (303-315/5)303-315/5$44.00
#16Heatilator Valve Plate Gasket (4055-135)4055-135$10.00
#17Heatilator Glass Assembly with Frame (GLA4031-096)GLA4031-096$497.00
#18Heatilator Novus Series Hood (4055-216)4055-216$23.00
#2Heatilator Novus Series Log - Left (SRV4055-086)SRV4055-086$149.00
#20Heatilator Magnetic Touch Latch (4021-650)4021-650$6.00
#23HHT Junction Box (SRV4021-013)SRV4021-013$36.00
#24HHT Junction Box Cover Plate (SRV4031-222)SRV4031-222$43.00
#25Heatilator Caliber & Novus Series Junction Box Radiation Shield (4031-193)4031-193$8.00
#26HHT Nailing Flange (SRV4044-161)SRV4044-161$10.00
#27Heatilator Flue Gasket (SRV4000-225)SRV4000-225$12.00
#3Heatilator Novus Series Top Log (SRV4055-083)SRV4055-083$112.00
#4Heatilator Novus Series Log - Right (SRV4055-089)SRV4055-089$124.00
#5AHeatilator Gas Intake Cover Plate (25844)25844$13.00
#5BHeatilator Intake Cover Plate (2166-450)2166-450$17.00
#6Heatilator Intake Cover Gasket (4031-239)4031-239$7.00
#7Heat N Glo, Heatilator & Quadra-Fire Glass Clip Assembly (33858/2)33858/2$54.00
#LOGSETHeatilator 42" Novus Series Log Set Assembly (SRV4055-079)SRV4055-079$368.00
#N/SMonessen Touch Up Paint (SRV4021-110)SRV4021-110$48.00
#N/SHeatilator, Heat N Glo & Majestic Exterior Powder Coat Touch Up Paint - Black Gloss (71479)71479$30.00
#N/SHHT Touch Up Paint - Black (TUP-GBK-12)TUP-GBK-12$30.00
#N/SHHT Lava Rock Bag Assembly (SRV4040-094)SRV4040-094$90.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Lava Rock Bag - 3lb (4021-297)4021-297$18.00
#N/SHHT Mineral Wool (SRV14333)SRV14333$15.00
#N/SHHT Vermiculite Bag (28746)28746$6.00
#N/SHHT Thumb Screws - 25 Pack (4021-558/25)4021-558/25$35.00
#N/SHHT Gas Valve Regulator - LP (SRV230-1520)SRV230-1520$60.00
#N/SHHT Gas Valve Regulator - NG (SRV230-1570)SRV230-1570$53.00
#N/SHeatilator Pilot Orifice (.014) LP (29477)29477$7.00
#N/SHHT Pilot Orifice .021 - NG (SRV2103-116)SRV2103-116$17.00
#N/SHeatilator SIT Conversion Kit - LP (SCKVP-B)SCKVP-B$209.00
#N/SHeatilator SIT Conversion Kit - NG (SCKVN-B)SCKVN-B$257.00
#N/SHHT Burner Orifice #52C - LP (SRV582-852)SRV582-852$12.00
#N/SHeat N Glo, Heatilator, & Majestic Burner Orifice #37C NG (582-837)582-837$7.00
#N/SHeat N Glo, Heatilator & Majestic Thermostat Wire Assembly (2045-024)2045-024$7.00
