Hotblast Furnace 1400 Parts Diagram

Hotblast Furnace 1400 Interactive Parts Finder

Find the exact replacement parts you need for your Hotblast Furnace 1400. This Wood furnace has 50 parts mapped in our interactive diagram below. Common replacement parts include Ashley, Breckwell, US Stove & Vogelzang Flue Collar, Ashley, Breckwell, US Stove & Vogelzang Flue Collar Gasket, US Stove & Vogelzang Pipe Plug, Johnson J9000 & US Stove Hotblast 1400 Grate, and Johnson, US Stove & Vogelzang Front/Back Liner. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 50 replacement parts available.

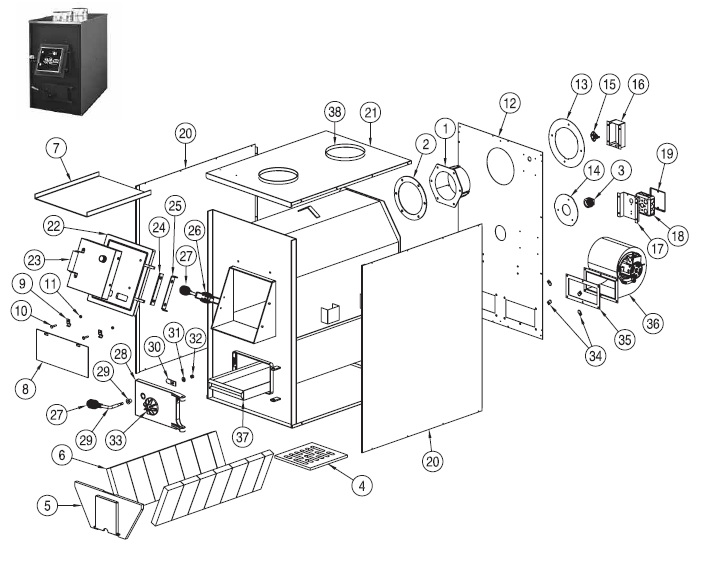

Hotblast Furnace 1400 replacement parts diagram
Part #Part NamePart CodePrice
#1Ashley, Breckwell, US Stove & Vogelzang Flue Collar (40246)40246$67.00
#10US Stove Smoke Curtain Clip (23787)23787$14.00
#11US Stove Kep Nut (83250)83250$4.75
#12Us Stove Hotblast Cabinet Back (23459R)23459R$160.25
#13Breckwell, US Stove & Vogelzang Furnace Flue Collar Ring (891217)891217$33.50
#14US Stove & Vogelzang Furnace Forced Draft Ring (22762B)22762B$28.32
#15Ashley, US Stove & Vogelzang Low Limit Thermodisc (80314)80314$34.00
#16US Stove & Vogelzang Blower Thermostat Bracket (68234)68234$25.00
#17Ashley, US Stove & Vogelzang Relay Box Bracket (22140)22140$21.42
#18Ashley, US Stove & Vogelzang Junction Box (80131)80131$10.68
#19US Stove Junction Box Cover (80231)80231$7.00
#2Ashley, Breckwell, US Stove & Vogelzang Flue Collar Gasket (88032)88032$23.00
#22Ashley, US Stove & Vogelzang Feed Door Assembly (68217)68217$235.00
#24Ashley & US Stove Door Hinge Spacer (24232)24232$13.00
#25US Stove Feed Door Bracket (22662)22662$20.00
#26Ashley, US Stove & Vogelzang Feed Door Locking Mechanism (891097)891097$56.00
#27US Stove & Vogelzang Spring Door Handle - Brass (89574)89574$17.00
#28US Stove & Vogelzang Ash Door Assembly (68218)68218$194.25
#29Johnson, US Stove & Vogelzang Handle Assembly (891098)891098$42.00
#3US Stove & Vogelzang Pipe Plug (86402)86402$17.00
#30Ashley, US Stove & Vogelzang Door Latch (86626)86626$7.00
#33US Stove Spin Damper (23859B)23859B$53.50
#34US Stove Hotblast Blower Clip Nut (83340)83340$4.77
#35Ashley, US Stove & Vogelzang Blower Gasket (89319)89319$11.00
#37US Stove HotBlast and Johnson Ash Pan (68228)68228$67.00
#38Ashley, US Stove & Vogelzang 8" Collar (891214)891214$19.00
#4Johnson J9000 & US Stove Hotblast 1400 Grate (40263)40263$100.00
#5Johnson, US Stove & Vogelzang Front/Back Liner (40258)40258$78.00
#6US Stove Firebrick (89066)89066$17.00
#7US Stove & Vogelzang Flue Baffle (23398)23398$62.00
#8Breckwell, US Stove & Vogelzang Smoke Curtain (23800)23800$22.50
#9US Stove Carriage Bolt (83445)83445$4.75
#N/SUS Stove Kep Nut (83250)83250$4.75
#N/SUSSC Half Firebrick (891414)891414$20.00
#N/SUS Stove Leg Bolt (83339)83339$5.00
#N/SUS Stove & Vogelzang Fan Control Cord Assembly (68231)68231$32.50
#N/SUS Stove Power Supply Cord (80232)80232$33.00
#N/SUSSC Door Gasket Kit (DGK3)DGK3$50.00
