Quadrafire Garnet-IPI Gas Parts Diagram

Quadrafire Garnet-IPI Gas Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Garnet-IPI Gas. This Gas stove has 75 parts mapped in our interactive diagram below. Common replacement parts include Heat N Glo & Quadra-Fire Log Assembly, Heat N Glo & Quadra-Fire Left Log, Heat N Glo & Quadra-Fire Log - Right, Heat N Glo & Quadra-Fire Rear Log, and Quadra-Fire Garnet Top Plate - Matte Black. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 75 replacement parts available.

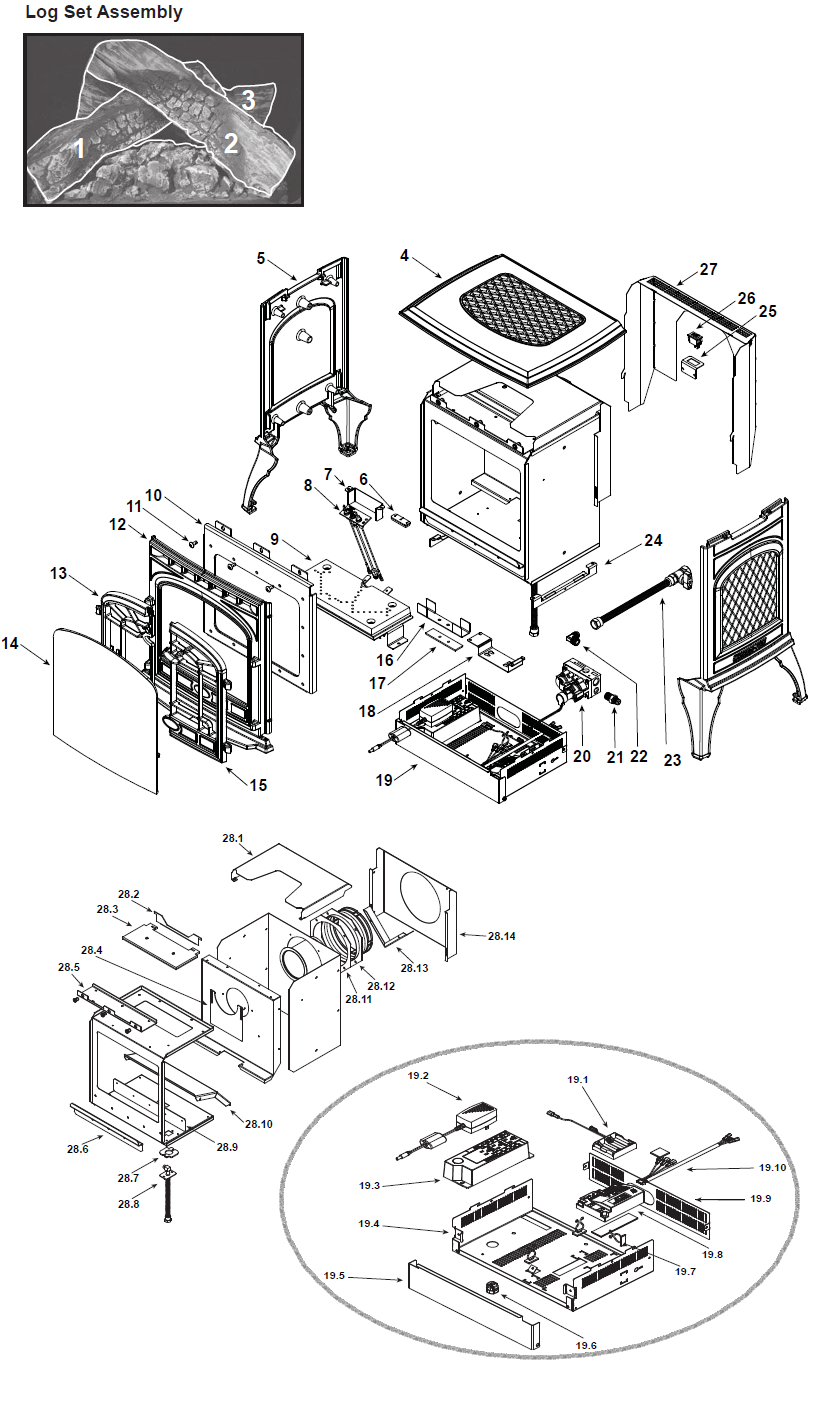

Quadrafire Garnet-IPI Gas replacement parts diagram
Part #Part NamePart CodePrice
#1Heat N Glo & Quadra-Fire Left Log (SRV7016-171)SRV7016-171$72.00
#10Heat N Glo & Quadra-Fire Glass Assembly (GLA2344-019)GLA2344-019$575.00
#11Heat N Glo & Quadra-Fire Screws - 24 Pack (220-0440/24)220-0440/24$25.00
#12AQuadra-Fire Garnet Quartet Front - Black (7016-106MBK)7016-106MBK$491.00
#12BQuadra-Fire Garnet-IPI Series Front - Sienna Bronze (7016-106CSB)7016-106CSB$647.00
#12CQuadra-Fire Garnet Quartet Front - Porcelain Mahogany (7016-106PMH)7016-106PMH$863.00
#13AQuadra-Fire Garnet Left Door - Black (7016-108MBK)7016-108MBK$407.00
#13BQuadra-Fire GARNET-IPI Left Door - Sienna Bronze (7016-108CSB)7016-108CSB$263.00
#13CQuadra-Fire Garnet Left Door - Porcelain Mahogany (7016-108PMH)7016-108PMH$467.00
#14Quadra-Fire Garnet Series Screen (7016-040)7016-040$175.00
#15AQuadra-Fire Garnet Right Door - Black (7016-107MBK)7016-107MBK$431.00
#15BQuadra-Fire GARNET-IPI Right Door - Sienna Bronze (7016-107CSB)7016-107CSB$275.00
#15CQuadra-Fire Garnet Right Door - Porcelain Mahogany (7016-107PMH)7016-107PMH$467.00
#16Quadra-Fire & Heat N Glo Shutter Assembly (SRV2344-154)SRV2344-154$71.00
#17Heat N Glo & Quadra-Fire Adjustable Air Shutter Gasket (2342-159)2342-159$15.00
#18Quadra-Fire & Heat N Glo Valve Bracket (SRV2344-104)SRV2344-104$73.00
#19.1HHT Battery Pack (SRV2166-323)SRV2166-323$19.00
#19.10HHT Power Cord (832-2410)832-2410$120.00
#19.2HHT Junction Box (SRV4021-013)SRV4021-013$36.00
#19.3HHT Power Supply / Wall Transformer - 6V (SRV2326-131)SRV2326-131$33.00
#19.4Quadra-Fire & Heat N Glo Component Tray (SRV2344-133)SRV2344-133$169.00
#19.5Quadra-Fire & Heat N Glo Access Door (SRV2344-152)SRV2344-152$79.00
#19.6HHT IPI Control Module (SRV2166-338)SRV2166-338$196.00
#19.7Quadra-Fire & Heat N Glo Rear Cover (SRV2344-107)SRV2344-107$74.00
#19.8Heatilator, Heat N Glo & Majestic IPI Wire Harness (2166-304)2166-304$17.00
#2Heat N Glo & Quadra-Fire Log - Right (SRV7016-170)SRV7016-170$158.00
#20AHHT Variable IPI Gas Valve - NG (SRV2166-302)SRV2166-302$138.00
#20BHeatilator, Heat N Glo & Majestic Dexen Valve - LP (2166-303)2166-303$149.00
#21HHT Brass Connector - 3/8 Flare x 3/8 NPT Male Elbow (SRV4021-045)SRV4021-045$23.00
#22HHT Male Connector Fittings (303-315/5)303-315/5$44.00
#23Heat N Glo & Quadra-Fire Flex Ball Valve Assembly - Black (3-40-2098034)3-40-2098034$42.00
#24Quadra-Fire & Heat N Glo Component Tray Bracket (SRV2344-151)SRV2344-151$78.00
#25Quadra-Fire & Heat N Glo Switch Bracket (SRV2344-143)SRV2344-143$70.00
#26HHT On/Off Rocker Switch (SRV060-511)SRV060-511$12.00
#27Quadra-Fire & Heat N Glo Fan Shroud (SRV2344-140)SRV2344-140$143.00
#28.1Quadra-Fire & Heat N Glo Blower Top Shroud (SRV2344-118)SRV2344-118$102.00
#28.10Quadra-Fire & Heat N Glo Baffle (SRV2344-125)SRV2344-125$109.00
#28.11Heat N Glo & Quadra-Fire Elbow Gasket (SRV460-0610)SRV460-0610$48.00
#28.12Heat N Glo & Quadra-Fire Starting Collar Assembly (SRV2189-002)SRV2189-002$63.00
#28.14Quadra-Fire & Heat N Glo Blower Shroud - Back (SRV2344-132)SRV2344-132$114.00
#28.2Quadra-Fire Relief Door Bracket (SRV7016-121)SRV7016-121$60.00
#28.3Heat n Glo & Quadra-Fire Relief Door Assembly (7016-005)7016-005$115.00
#28.4Quadra-Fire & Heat N Glo Flue Restrictor (SRV2344-172)SRV2344-172$43.00
#28.5Quadra-Fire & Heat N Glo Stiffener (SRV2344-129)SRV2344-129$84.00
#28.6Quadra-Fire & Heat N Glo Door Retainer (SRV2344-134)SRV2344-134$78.00
#28.7Heat N Glo, Quadra-Fire & Majestic Burner Neck Gasket - NG/LP (2025-407)2025-407$8.00
#28.8HHT Bulkhead with Flex Tube (SRV7000-156)SRV7000-156$52.00
#28.9Quadra-Fire & Heat N Glo Support Plate (SRV2344-199)SRV2344-199$44.00
#3Heat N Glo & Quadra-Fire Rear Log (SRV7016-172)SRV7016-172$169.00
#4AQuadra-Fire Garnet Top Plate - Matte Black (464-0140MBK)464-0140MBK$719.00
#4BQuadra-Fire GARNET-IPI Top - Sienna Bronze (464-0140CSB)464-0140CSB$347.00
#4CQuadra-Fire Top - Porcelain Mahogany (464-0140PMH)464-0140PMH$731.00
#5AQuadra-Fire Garnet Side - Black (7016-109MBK)7016-109MBK$568.00
#5BQuadra-Fire GARNET-IPI Side - Sienna Bronze (7016-109CSB)7016-109CSB$503.00
#5CQuadra-Fire Garnet Side - Porcelain Mahogany (7016-109PMH)7016-109PMH$983.00
#6HHT 3-Hole Rubber Grommet - NG/LP (SRV2118-420)SRV2118-420$12.00
#7Quadra-Fire & Heat N Glo Pilot Shield (SRV2344-103)SRV2344-103$60.00
#8AHHT IPI Pilot Assembly - NG (SRV2090-012)SRV2090-012$54.00
#8BHeat N Glo, Heatilator & Quadra-Fire IPI Pilot Assembly - LP (2090-013)2090-013$47.00
#9Heat N Glo & Quadra-Fire Burner Assembly (SRV2344-007)SRV2344-007$889.00
#LOGASSHeat N Glo & Quadra-Fire Log Assembly (LOGS-GARNET)LOGS-GARNET$292.00
#N/SHeat N Glo & Quadra-Fire Leveling Assembly (SRV7000-000)SRV7000-000$22.00
#N/SHHT Mineral Wool (050-721)050-721$6.00
#N/SHeat N Glo & Quadra-Fire Snap Disc Bracket (7009-108)7009-108$11.00
#N/SQuadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (844-5750)844-5750$25.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Burner Orifice #49C - LP (SRV582-849)SRV582-849$12.00
#N/SHeat N Glo & Quadra-Fire #57 C-Style Orifice (582-857)582-857$6.00
#N/SHeat N Glo & Quadra-Fire IPI Conversion Kit - NG (NGKI-TIARAP)NGKI-TIARAP$149.00
#N/SHeat N Glo TIARAP-IPI Conversion Kit - LP (LPKI-TIARAP)LPKI-TIARAP$129.00
#N/SHeat N Glo, Heatilator & Majestic Pilot Orifice .0115 - NG (SRV593-528)SRV593-528$19.00
#N/SHeat N Glo, Heatilator & Majestic Pilot Orifice - LP (SRV593-527)SRV593-527$19.00
#N/SHHT IPI Regulator with Stepper Motor - NG (NGK-DXV-50)NGK-DXV-50$87.00
#N/SHHT Regulator with Stepper Motor - LP (SRVLPK-DXV-50)SRVLPK-DXV-50$91.00
#N/SHarman, Quadra-Fire & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)3-42-19905$24.00
