Quadrafire Hudbay-FS Gas Parts Diagram

Quadrafire Hudbay-FS Gas Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Hudbay-FS Gas. This Gas stove has 72 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Hudson Bay Log Assembly, Quadra-Fire Hudson Bay Top Assembly, Quadra-Fire Hudson Bay-FS Top Heat Shield, Quadra-Fire Hudson Bay FS Lower Heat Shield, and Quadra-Fire Hudson Bay Outer Skin. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 72 replacement parts available.

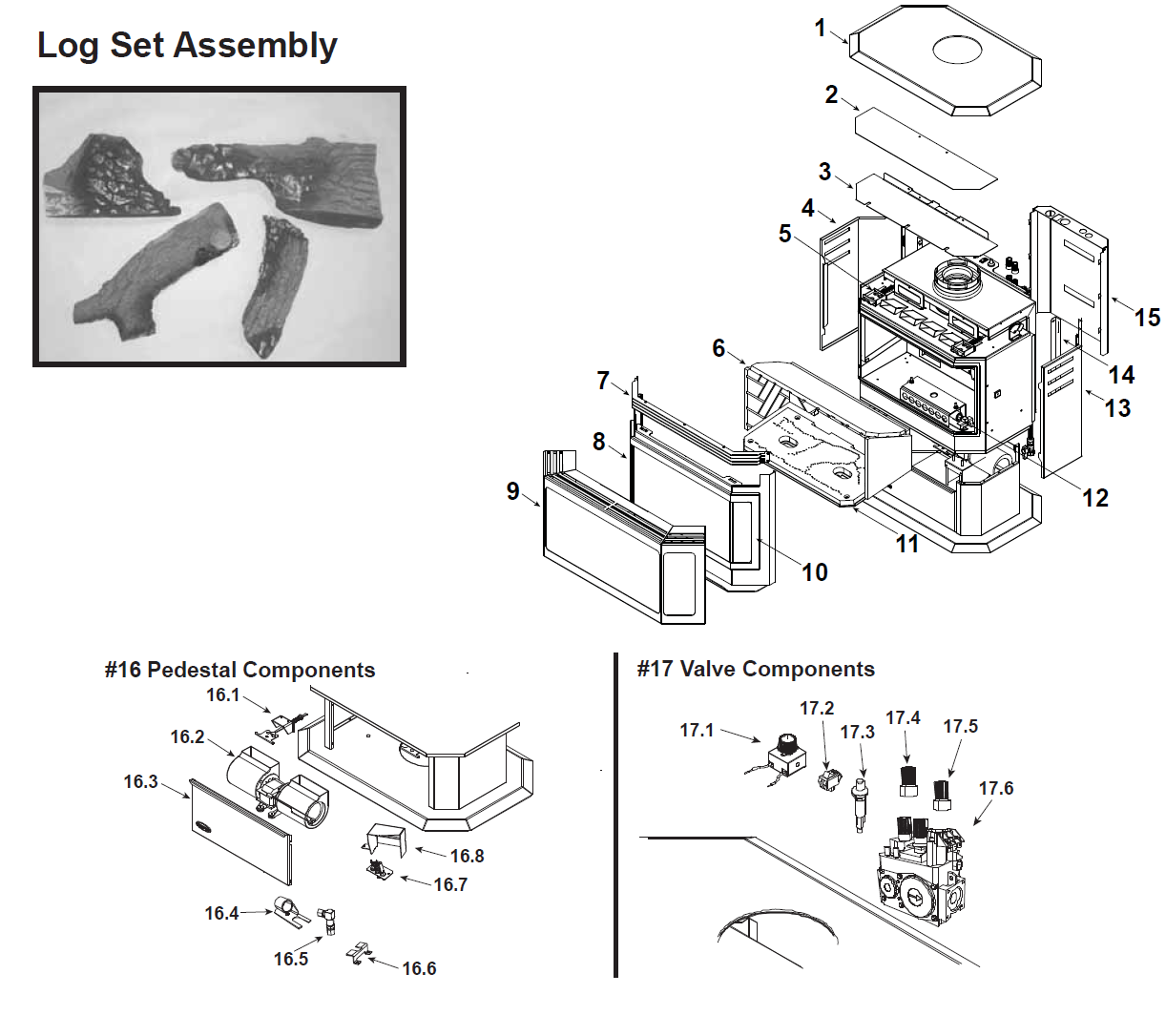

Quadrafire Hudbay-FS Gas replacement parts diagram
Part #Part NamePart CodePrice
#10AQuadra-Fire Hudson Bay Door Crown (SRV462-0150A)SRV462-0150A$399.00
#11Quadra-Fire Hudson Bay Burner Assembly - LP/NG (SRV7008-004)SRV7008-004$1,239.00
#12Quadra-Fire Hudson Bay Burner Neck Support (SRV7008-005)SRV7008-005$133.00
#13Quadra-Fire Hudson Bay Outer Skin (SRV7003-117)SRV7003-117$169.00
#14Quadra-Fire Side Curtain Mount (SRV479-0110)SRV479-0110$64.00
#15AQudra-Fire Hudson Bay Valve Cover (SRV7003-119)SRV7003-119$239.00
#15BQudra-Fire Hudson Bay Valve Cover (SRV7003-119)SRV7003-119$239.00
#16.1Quadra-Fire Columbia & Hudson Bay Latch Assembly (7003-005)7003-005$64.00
#16.2HHT Convection Blower (812-4900)812-4900$245.00
#16.3AQuadra-Fire Hudson Bay Pedestal Door (SRV7003-107)SRV7003-107$148.00
#16.3BQuadra-Fire Hudson Bay Pedestal Door (SRV7003-107)SRV7003-107$148.00
#16.4Quadra-Fire & Heat N Glo Shutter Assembly (SRV468-5060)SRV468-5060$109.00
#16.5HHT Bulkhead Fitting (26457)26457$48.00
#16.6Heat N Glo & Quadra-Fire Bulkhead Stop (SRV474-0090)SRV474-0090$71.00
#16.7Quadra-Fire & Heat N Glo Pilot Assembly - LP/NG (842-4940)842-4940$162.00
#16.8Quadra-Fire HUDBAY-FS Pilot Shield (PS-7008)PS-7008$54.00
#17.1Heatilator Eco-Choice & Quadra-Fire Blower Speed Control (842-0370)842-0370$168.00
#17.3Quadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#17.4HHT Pilot Control Extension / On-Off Knob (571-534)571-534$12.00
#17.5HHT Flame Control Extension / Hi-Lo Knob (571-533)571-533$6.00
#17.6AQuadra-Fire SIT Gas Valve - NG (842-0240)842-0240$274.00
#17.6BHeat N Glo & Quadra-Fire SIT Gas Valve - LP (842-0230)842-0230$305.00
#1AQuadra-Fire Hudson Bay Top Assembly (SRV7003-010A)SRV7003-010A$325.00
#2Quadra-Fire Hudson Bay-FS Top Heat Shield (7003-154)7003-154$64.00
#3Quadra-Fire Hudson Bay FS Lower Heat Shield (SRV7003-153)SRV7003-153$73.00
#4AQuadra-Fire Hudson Bay Outer Skin (SRV7003-117)SRV7003-117$169.00
#4BQuadra-Fire Hudson Bay FS Outer Skin - Left (SRV7003-131)SRV7003-131$58.00
#5Heat N Glo & Quadra-Fire Stationary Latch Assembly (7003-006)7003-006$70.00
#6Quadra-Fire Hudson Bay FS & Insert Refractory Assembly (7008-002)7008-002$252.00
#7AQuadra-Fire Hudson Bay Grill Bar Assembly - Black (SRV7008-010)SRV7008-010$259.00
#7BQuadra-Fire Hudson Bay Grill Bar Assembly - Black (SRV7008-010)SRV7008-010$259.00
#8AQuadra-Fire HUDBAY-FS Door Assembly (DOOR-HUDBAY) DOOR-HUDBAY$1,414.00
#8BQuadra-Fire HUDBAY-FS Door Assembly - Post SN 0021621084 (DOOR-HUDBAY-B)DOOR-HUDBAY-B$1,894.00
#9Quadra-Fire HUDBAY-FS Screen (SRV7002-020)SRV7002-020$489.00
#LOGASSQuadra-Fire Hudson Bay Log Assembly (SRV7008-012)SRV7008-012$380.00
#N/SQuadra-Fire & Heat N Glo 34" Thermocouple (200-2950)200-2950$34.00
#N/SQuadra-Fire Hudson Bay Component Pack (SRV7003-007)SRV7003-007$149.00
#N/SQuadra-Fire Columbia Bay & Hudson Bay Wire Harness (474-0350)474-0350$31.00
#N/SQuadra-Fire Convection Snap Disc 125-20 (#1) (SRV230-0960)SRV230-0960$33.00
#N/SHeat N Glo and Quadra-Fire DV Adapter (SRV7010-172)SRV7010-172$66.00
#N/SHeat N Glo & Quadra-Fire Thermopile (842-0250)842-0250$92.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SHHT Power Cord (832-2410)832-2410$120.00
#N/SHHT Touch Up Paint - Black (TUP-GBK-12)TUP-GBK-12$30.00
#N/SHarman, Quadra-Fire & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)3-42-19905$24.00
#N/SQuadra-Fire Hudson Bay Conversion Kit - LP (LPK-7008)LPK-7008$107.00
#N/SQuadra-Fire & Heat n Glo EZ Pilot Injector Orifice - NG (842-4440)842-4440$65.00
#N/SQuadra-Fire & Heat N Glo EZ Pilot Injector Orifice - LP (SRV200-2630)SRV200-2630$19.00
#N/SHHT Gas Valve Regulator - NG (SRV230-1570)SRV230-1570$53.00
#N/SHHT Gas Valve Regulator - LP (SRV230-1520)SRV230-1520$60.00
#N/SHHT Burner Orifice .125 - NG (SRV24691)SRV24691$19.00
#N/SQuadra-Fire Burner Orifice (.076) LP (29388)29388$9.00
#N/SHHT Mineral Wool (050-721)050-721$6.00
#N/SHeat N Glo & Quadra-Fire Flex Ball Valve Assembly - Black (3-40-2098034)3-40-2098034$42.00
#N/SQuadra-Fire Hudson Bay FS Gas Tube Assembly (200-2940A)200-2940A$145.00
#N/SQuadra-Fire Hudson Bay Fan Deflector (SRV468-0190)SRV468-0190$61.00
#N/SQuadra-Fire & Heat N Glo SIT EZ Electrode (842-4580)842-4580$64.00
#N/SQuadra-Fire & Heat N Glo Brick Retainer (SRV479-0190)SRV479-0190$58.00
#N/SHeat N Glo & Quadra-Fire 4" Inner Flue Collar Adapter (200-2470)200-2470$11.00
#N/SQuadra-Fire Hudson Bay FS Valve Bracket (SRV7003-118) SRV7003-118$116.00
#N/SQuadra-Fire & Heatilator Eco-Choice Blower Speed Control (Rheostat) Knob (200-2041)200-2041$9.00
#N/SQuadra-Fire Blower Bracket (SRV474-0210)SRV474-0210$74.00
#N/SQuadra-Fire Columbia Bay & Hudson Bay Blower Plate (SRV457-0560)SRV457-0560$84.00
#N/SQuadra-Fire Tadpole Gasket (842-5130)842-5130$38.00
#N/SHHT Glass Gasket Tape - 3/4" x 5' (832-0460)832-0460$20.00
