Quadrafire Mt Vernon E2 Pellet Parts Diagram

Quadrafire Mt Vernon E2 Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Mt Vernon E2 Pellet. This Pellet stove has 128 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Hopper Lid - Matte Black, Quadra-Fire Hopper Lid - Porcelain Black, Quadra-Fire Hopper Lid - Porcelain Dark Blue, Quadra-Fire Hopper Lid - Porcelain Frost, and Quadra-Fire Hopper Lid - Sienna Bronze. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 128 replacement parts available.

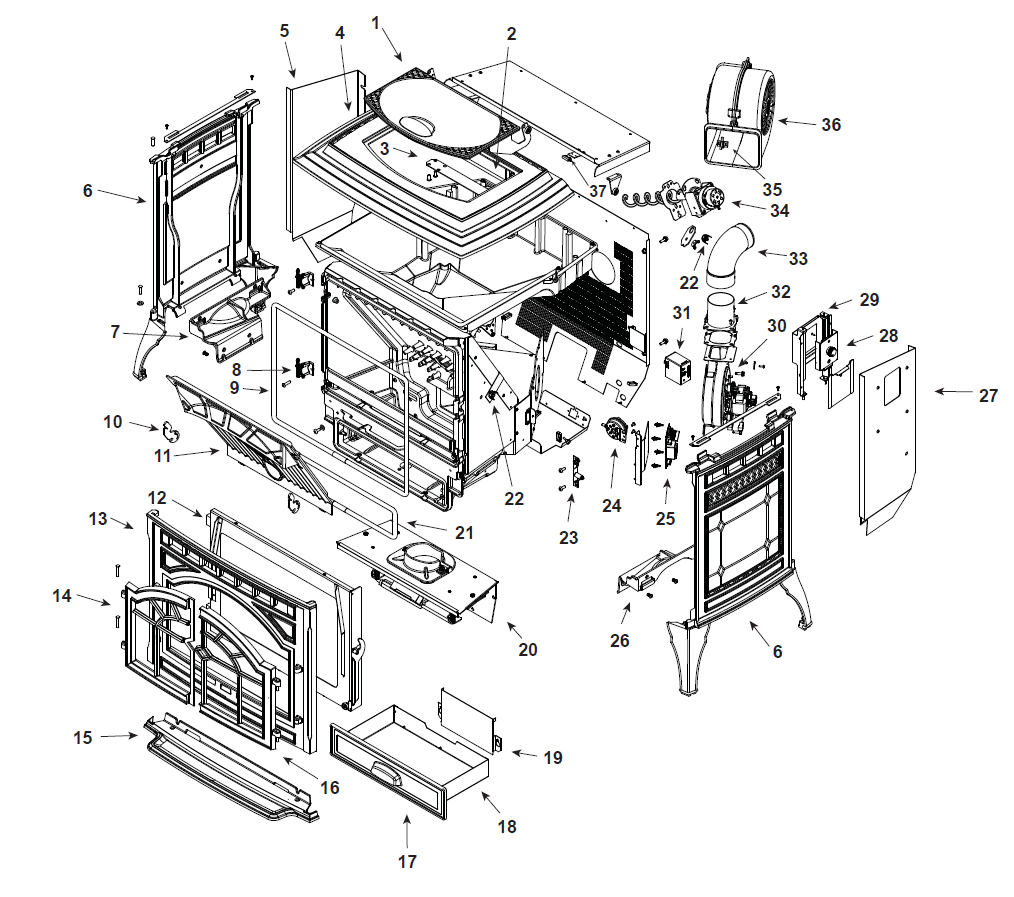

Quadrafire Mt Vernon E2 Pellet replacement parts diagram
Part #Part NamePart CodePrice
#10Heatilator & Quadra-Fire Baffle Latch (SRV7034-149)SRV7034-149$15.00
#11Heatilator & Quadra-Fire Baffle - Cast Iron (SRV7034-263)SRV7034-263$281.00
#12Quadra-Fire Door Assembly (SRV7080-015)SRV7080-015$1,187.00
#12.1Quadra-Fire & Heatilator Glass Retainer (SRV7034-136)SRV7034-136$67.00
#12.2Quadra-Fire Door Glass Assembly with Gasket (SRV7034-007)SRV7034-007$366.00
#12.3Quadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#12.4Quadra-Fire Old Style Door Latch Assembly (SRV413-5200)SRV413-5200$46.00
#13AQuadra-Fire Mt Vernon Front Face - Matte Black (7005-108MBK)7005-108MBK$959.00
#13BQuadra-Fire Mt Vernon Front Face - Porcelain Black (7005-108PBK)7005-108PBK$1,199.00
#13CQuadra-Fire Mt Vernon Front Face - Porcelain Dark Blue (7005-108PDB)7005-108PDB$1,199.00
#13DQuadra-Fire MT VERNON Front Face - Porcelain Frost (7005-108PFT)7005-108PFT$1,283.00
#13EQuadra-Fire MT Vernon Front Face - Porcelain Mahogany (7005-108PMH)7005-108PMH$1,511.00
#13FQuadra-Fire Mt Vernon Front Face - Sienna Bronze (7005-108CSB)7005-108CSB$983.00
#14AQuadra-Fire Mt Vernon Left Door - Matte Black (7005-110MBK)7005-110MBK$527.00
#14BQuadra-Fire Mt Vernon Left Door - Porcelain Black (7005-110PBK)7005-110PBK$791.00
#14CQuadra-Fire Mt Vernon-AE Left Door - Porcelain Dark Blue (7005-110PDB)7005-110PDB$863.00
#14DQuadra-Fire MT Vernon AE & E2 Left Door - Porcelain Frost (7005-110PFT)7005-110PFT$863.00
#14EQuadra-Fire MT VERNON Left Door - Porcelain Mahogany (7005-110PMH)7005-110PMH$947.00
#14FQuadra-Fire Mt Vernon Left Door - Sienna Bronze (7005-110CSB)7005-110CSB$635.00
#15AQuadra-Fire Ash Lip - Matte Black (7080-140MBK)7080-140MBK$263.00
#15BQuadra-Fire Ash Lip - Porcelain Black (7080-140PBK)7080-140PBK$347.00
#15CQuadra-Fire Ash Lip - Porcelain Dark Blue (7080-140PDB)7080-140PDB$347.00
#15DQuadra-Fire Ash Lip - Porcelain Frost (7080-140PFT)7080-140PFT$275.00
#15EQuadra-Fire Ash Lip - Porcelain Mahogany (7080-140PMH)7080-140PMH$299.00
#15FQuadra-Fire Ash Lip - Sienna Bronze (7080-140CSB)7080-140CSB$287.00
#16AQuadra-Fire Mt Vernon Right Door - Matte Black (7005-109MBK)7005-109MBK$431.00
#16BQuadra-Fire Mt Vernon Right Door - Porcelain Black (7005-109PBK)7005-109PBK$863.00
#16CQuadra-Fire Mt Vernon Right Door - Porcelain Dark Blue (7005-109PDB)7005-109PDB$863.00
#16DQuadra-Fire Mt Vernon Right Door - Porcelain Frost (7005-109PFT)7005-109PFT$863.00
#16EQuadra-Fire MT VERNON Right Door - Porcelain Mahogany (7005-109PMH)7005-109PMH$971.00
#16FQuadra-Fire Mt Vernon Right Door - Sienna Bronze (7005-109CSB)7005-109CSB$635.00
#17Quadra-Fire & Heatilator Ash Pan Door (SRV7034-133)SRV7034-133$195.00
#18Quadra-Fire & Heatilator Ash Pan Assembly (SRV7034-069)SRV7034-069$252.00
#19Heatilator & Quadra-Fire Intake Shield (SRV7034-224)SRV7034-224$12.00
#1AQuadra-Fire Hopper Lid - Matte Black (7034-157MBK)7034-157MBK$552.00
#1BQuadra-Fire Hopper Lid - Porcelain Black (7034-157PBK)7034-157PBK$839.00
#1CQuadra-Fire Hopper Lid - Porcelain Dark Blue (7034-157PDB)7034-157PDB$803.00
#1DQuadra-Fire Hopper Lid - Porcelain Frost (7034-157PFT)7034-157PFT$803.00
#1FQuadra-Fire Hopper Lid - Sienna Bronze (7034-157CSB)7034-157CSB$647.00
#2Quadra-Fire Hinge Pin (SRV7034-159)SRV7034-159$70.00
#20Quadra-Fire MT VERNON E2 Firepot Riser Assembly (SRV7080-002)SRV7080-002$671.00
#20.1Heatilator & Quadra-Fire Firepot Assembly (SRV7034-072B)SRV7034-072B$202.00
#20.2Quadra-Fire & Heatilator Eco-Choice Burnpot / Firepot Gasket (SRV7034-190)SRV7034-190$13.00
#20.3Quadra-Fire & Heatilator Eco-Choice Burn Pot Springs - 4 Pack (7000-513/4)7000-513/4$14.00
#20.4Heatilator & Quadra-Fire Auto Clean Rail (SRV7034-152)SRV7034-152$49.00
#20.6Heatilator & Quadra-Fire Auto Clean Plow Weldment (SRV7034-024)SRV7034-024$45.00
#20.7Quadra-Fire & Heatilator Eco-Choice Burnpot / Firepot Bottom (SRV7034-153)SRV7034-153$124.00
#20.8Quadra-Fire Firepot Floor Lever Assembly (SRV7080-018)SRV7080-018$242.00
#22Quadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#23Quadra-Fire & Heatilator Latch Bracket Assembly (SRV7034-049)SRV7034-049$25.00
#24 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#25Quadra-Fire Mt Vernon E2 Control Board (SRV7080-050)SRV7080-050$337.00
#26Quadra-Fire Side Mount - Right (7034-126)7034-126$89.00
#27Quadra-Fire Mt Vernon E2 Right Shroud - Pre 7/2015 (SRV7080-122)SRV7080-122$215.00
#28Quadra-Fire Control Panel Assembly (SRV7080-036)SRV7080-036$123.00
#29Quadra-Fire MT Vernon E2 Control Panel Door Assembly (SRV7080-037)SRV7080-037$549.00
#3Quadra-Fire Hinge Retainer (SRV7034-163)SRV7034-163$44.00
#30Quadra-Fire Combustion Blower (SRV7080-106)SRV7080-106$394.00
#32Quadra-Fire Mt. Vernon E2 & Trekker Flue Collar Assembly (SRV7080-013)SRV7080-013$73.00
#33Quadra-Fire Exhaust Transition Assembly (SRV7034-139)SRV7034-139$177.00
#34Quadra-Fire Feed / Auger Assembly (SRV7080-010)SRV7080-010$270.00
#35Quadra-Fire Elbow Catch (7000-393)7000-393$35.00
#36Quadra-Fire Convection Blower (SRV7080-105)SRV7080-105$204.00
#37Quadra-Fire & Heatilator Eco-Choice Magnetic Hopper Lid Switch (SRV7000-375)SRV7000-375$30.00
#4AQuadra-Fire Top - Matte Black (7034-155MBK)7034-155MBK$639.00
#4BQuadra-Fire Top - Porcelain Black (7034-155PBK)7034-155PBK$1,307.00
#4CQuadra-Fire Top - Porcelain Dark Blue (7034-155PDB)7034-155PDB$1,199.00
#4DQuadra-Fire Top - Porcelain Frost (7034-155PFT)7034-155PFT$1,079.00
#4EQuadra-Fire Top - Porcelain Mahogany (7034-155PMH)7034-155PMH$1,022.00
#4FQuadra-Fire Top - Sienna Bronze (7034-155CSB)7034-155CSB$983.00
#5Quadra-Fire Trekker & Mt Vernon E2 Left Shroud (SRV7080-123)SRV7080-123$191.00
#6AQuadra-Fire Side - Matte Black (7005-107MBK)7005-107MBK$946.00
#6BQuadra-Fire Interchangeable Side - Porcelain Black (7005-107PBK)7005-107PBK$1,307.00
#6CQuadra-Fire Side - Porcelain Dark Blue (7005-107PDB)7005-107PDB$1,727.00
#6DQuadra-Fire Side - Porcelain Frost (7005-107PFT)7005-107PFT$1,379.00
#6EQuadra-Fire MT Vernon Side Plate - Porcelain Mahogany (7005-107PMH)7005-107PMH$1,413.00
#6FQuadra-Fire Interchangeable Side - Sienna Bronze (7005-107CSB)7005-107CSB$1,199.00
#7Quadra-Fire Side Mount - Left (7034-128)7034-128$109.00
#8Heatilator & Quadra-Fire Male Hinge (SRV7034-138)SRV7034-138$48.00
#9Heatilator & Quadra-Fire Door Rope Gasket (SRV7034-177)SRV7034-177$65.00
#N/SQuadra-Fire Extruded Gasket - 10 Feet (7000-320/10)7000-320/10$45.00
#N/SQuadra-Fire Glass Gasket - 10 Feet (7000-377/10)7000-377/10$48.00
#N/SHeatilator Eco-Choice & Quadra-Fire Twin Ball Catch & Striker (SRV7000-532)SRV7000-532$97.00
#N/SQuadra-Fire & Heatilator Eco-Choice Vacuum Hose (SRV7000-373)SRV7000-373$57.00
#N/SQuadra-Fire Wire Harness (SRV7080-129)SRV7080-129$63.00
#N/SQuadra-Fire Combustion Blower Housing Gasket (SRV7080-117)SRV7080-117$23.00
#N/SQuadra-Fire Combustion Motor Gasket (SRV7080-107)SRV7080-107$88.00
#N/SHeatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#N/SHeailator & Quadra-Fire Feed Motor Gasket (SRV7034-144)SRV7034-144$17.00
#N/SHeatilator Eco-Choice & Quadra-Fire 2.4 RPM Feed Motor (812-4421)812-4421$255.00
#N/SQuadra-Fire Component Pack Assembly - Matte Black (SRV7080-040)SRV7080-040$417.00
#N/SQuadra-Fire Component Pack Assembly - Porcelain Black (SRV7080-043)SRV7080-043$417.00
#N/SQuadra-Fire Component Pack Assembly - Porcelain Dark Blue (SRV7080-044)SRV7080-044$417.00
#N/SQuadra-Fire Component Pack Assembly - Porcelain Frost (SRV7080-045)SRV7080-045$417.00
#N/SQuadra-Fire Component Pack Assembly - Porcelain Mahogany (SRV7080-042)SRV7080-042$417.00
#N/SQuadra-Fire Component Pack Assembly - Sienna Bronze (SRV7080-041)SRV7080-041$417.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SHeat N Glo & Quadra-Fire Leveling Assembly (SRV7000-000)SRV7000-000$22.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SHarman & Quadra-Fire Touch Up Paint - Black Enamel (1-00-0022)1-00-0022$26.00
#N/SHarman & Quadra-Fire Touch Up Paint - Blue Enamel (1-00-0020)1-00-0020$24.00
#N/SHarman & Quadra-Fire Touch Up Paint - Frost Porcelain Enamel (1-00-0021)1-00-0021$27.00
#N/SQuadra-Fire Touch Up Paint - Porcelain Mahogany (855-1450)855-1450$30.00
#N/SQuadra-Fire Touch Up Paint - Sienna Bronze (TOUCHUP-CSB)TOUCHUP-CSB$26.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SPelPro & Quadra-Fire Exhaust Probe (SRV7000-669)SRV7000-669$30.00
#N/SQuadra-Fire 18" Loop Igniter - 300 Watt (SRV7000-647)SRV7000-647$50.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SPelPro & Quadra-Fire Plastic Wire Clip - 10 Pack (7000-400/10)7000-400/10$12.00
#N/SQuadra-Fire & Eco-Choice Top Vent Offset Collar (812-3570)812-3570$169.00
#N/SQuadra-Fire & Eco-Choice Pellet Stove 3" Damper (PEL-DAMP3)PEL-DAMP3$255.00
#N/SQuadra-Fire & Heatilator 4" Damper (PEL-DAMP4)PEL-DAMP4$455.00
#N/SQuadra-Fire Log Set (LOGS-60-AE-B)LOGS-60-AE-B$249.00
#N/SQuadra-Fire & Eco-Choice Outside Air Kit (OAK-3)OAK-3$149.00
#N/SQuadra-Fire Vertically Centering Adapter Kit (TPVNT-3)TPVNT-3$139.00
#N/SQuadra-Fire Warming Shelves With Brackets (844-9780)844-9780$260.00
