Quadrafire Mt. Vernon Insert-E2 Parts Diagram

Quadrafire Mt. Vernon Insert-E2 Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Mt. Vernon Insert-E2. This Pellet insert has 125 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Hopper Lid - Matte Black, Quadra-Fire Hopper Lid - Porcelain Magogany, Quadra-Fire Hopper Lid - Sienna Bronze, Quadra-Fire Extruded Gasket - 10 Feet, and Quadra-Fire Top Hinge Assembly. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 125 replacement parts available.

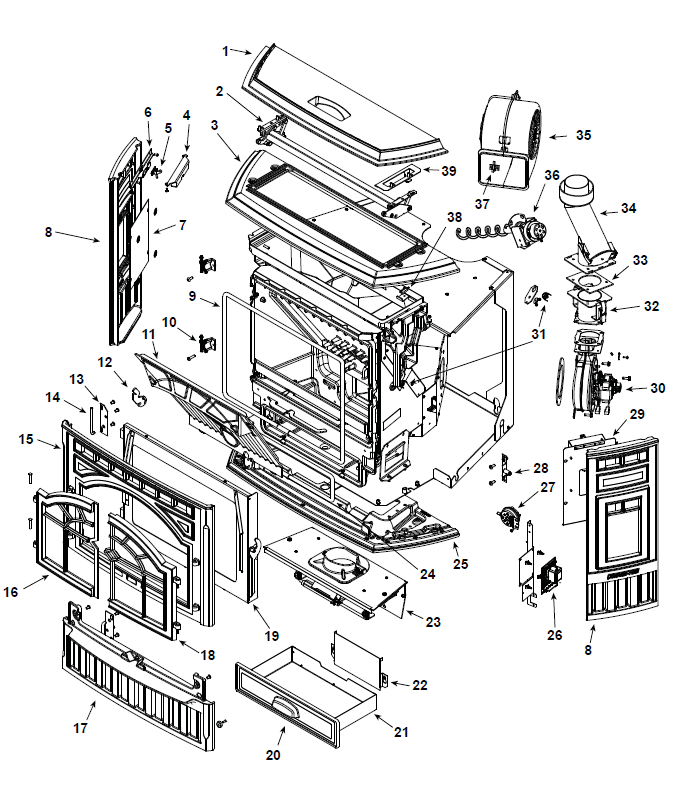

Quadrafire Mt. Vernon Insert-E2 replacement parts diagram
Part #Part NamePart CodePrice
#10Heatilator & Quadra-Fire Male Hinge (SRV7034-138)SRV7034-138$48.00
#11Heatilator & Quadra-Fire Baffle - Cast Iron (SRV7034-263)SRV7034-263$281.00
#12Heatilator & Quadra-Fire Baffle Latch (SRV7034-149)SRV7034-149$15.00
#13Quadra-Fire Hinge Pin Retainer (SRV7036-112)SRV7036-112$42.00
#14Quadra-Fire Hinge Pin (SRV7036-110)SRV7036-110$56.00
#15AQuadra-Fire Upper Front - Matte Black (7036-105MBK)7036-105MBK$815.00
#15BQuadra-Fire Upper Front - Porcelain Mahogany (7036-105PMH)7036-105PMH$1,415.00
#15CQuadra-Fire Upper Front - Sienna Bronze (7036-105CSB)7036-105CSB$947.00
#16AQuadra-Fire Mt Vernon Left Door - Matte Black (7005-110MBK)7005-110MBK$527.00
#16BQuadra-Fire MT VERNON Left Door - Porcelain Mahogany (7005-110PMH)7005-110PMH$947.00
#16CQuadra-Fire Mt Vernon Left Door - Sienna Bronze (7005-110CSB)7005-110CSB$635.00
#17AQuadra-Fire Lower Front - Matte Black (7036-122MBK)7036-122MBK$399.00
#17BQuadra-Fire MT VERNON Lower Front - Porcelain Mahogany (7036-122PMH)7036-122PMH$911.00
#17CQuadra-Fire Lower Front - Sienna Bronze (7036-122CSB)7036-122CSB$635.00
#18AQuadra-Fire Mt Vernon Right Door - Matte Black (7005-109MBK)7005-109MBK$431.00
#18BQuadra-Fire MT VERNON Right Door - Porcelain Mahogany (7005-109PMH)7005-109PMH$971.00
#18CQuadra-Fire Mt Vernon Right Door - Sienna Bronze (7005-109CSB)7005-109CSB$635.00
#19Quadra-Fire Door Assembly (SRV7080-015)SRV7080-015$1,187.00
#19.1Quadra-Fire & Heatilator Glass Retainer (SRV7034-136)SRV7034-136$67.00
#19.2Quadra-Fire Door Glass Assembly with Gasket (SRV7034-007)SRV7034-007$366.00
#19.3Quadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#19.4Quadra-Fire Old Style Door Latch Assembly (SRV413-5200)SRV413-5200$46.00
#1AQuadra-Fire Hopper Lid - Matte Black (7036-107MBK)7036-107MBK$503.00
#1BQuadra-Fire Hopper Lid - Porcelain Magogany (7036-107PMH)7036-107PMH$835.00
#1CQuadra-Fire Hopper Lid - Sienna Bronze (7036-107CSB)7036-107CSB$623.00
#1DQuadra-Fire Extruded Gasket - 10 Feet (7000-320/10)7000-320/10$45.00
#2Quadra-Fire Top Hinge Assembly (SRV7036-006)SRV7036-006$124.00
#20Quadra-Fire & Heatilator Ash Pan Door (SRV7034-133)SRV7034-133$195.00
#21Quadra-Fire & Heatilator Ash Pan Assembly (SRV7034-069)SRV7034-069$252.00
#22Heatilator & Quadra-Fire Intake Shield (SRV7034-224)SRV7034-224$12.00
#23Quadra-Fire MT VERNON E2 Firepot Riser Assembly (SRV7080-002)SRV7080-002$671.00
#23.1Heatilator & Quadra-Fire Firepot Assembly (SRV7034-072B)SRV7034-072B$202.00
#23.2Quadra-Fire & Heatilator Eco-Choice Burnpot / Firepot Gasket (SRV7034-190)SRV7034-190$13.00
#23.3Quadra-Fire & Heatilator Eco-Choice Burn Pot Springs - 4 Pack (7000-513/4)7000-513/4$14.00
#23.4Heatilator & Quadra-Fire Auto Clean Rail (SRV7034-152)SRV7034-152$49.00
#23.5Heatilator & Quadra-Fire Auto Clean Plow Weldment (SRV7034-024)SRV7034-024$45.00
#23.7Quadra-Fire & Heatilator Eco-Choice Burnpot / Firepot Bottom (SRV7034-153)SRV7034-153$124.00
#23.8Quadra-Fire Firepot Floor Lever Assembly (SRV7080-018)SRV7080-018$242.00
#24Heatilator & Quadra-Fire Ash Door Gasket (SRV7034-178)SRV7034-178$65.00
#25AQuadra-Fire Bottom (7036-109MBK)7036-109MBK$395.00
#25BQuadra-Fire Bottom - Sienna Bronze (7036-109CSB)7036-109CSB$635.00
#25CQuadra-Fire Bottom - Porcelain Mahogany (7036-109PMH)7036-109PMH$772.00
#26Quadra-Fire Mt Vernon E2 Control Board (SRV7080-050)SRV7080-050$337.00
#27 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#28Quadra-Fire & Heatilator Latch Bracket Assembly (SRV7034-049)SRV7034-049$25.00
#29Quadra-Fire Dial Control Panel Door Assembly (SRV7082-037)SRV7082-037$709.00
#30Quadra-Fire Combustion Blower (SRV7080-106)SRV7080-106$394.00
#31Quadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#32Quadra-Fire Flue Collar Assembly (SRV7082-013)SRV7082-013$113.00
#33Quadra-Fire Flue Adapter Flange Gasket (SRV7036-180)SRV7036-180$23.00
#34Quadra-Fire Vertically Centering Adapter Kit (TPVNT-4)TPVNT-4$135.00
#35Quadra-Fire Convection Blower (SRV7080-105)SRV7080-105$204.00
#36Quadra-Fire Feed / Auger Assembly (SRV7080-010)SRV7080-010$270.00
#36AHeatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#36BHeatilator Eco-Choice & Quadra-Fire 2.4 RPM Feed Motor (812-4421)812-4421$255.00
#37Quadra-Fire Elbow Catch (7000-393)7000-393$35.00
#38Quadra-Fire & Heatilator Eco-Choice Magnetic Hopper Lid Switch (SRV7000-375)SRV7000-375$30.00
#39Quadra-Fire Hopper Magnet Bracket (SRV7036-149)SRV7036-149$52.00
#3AQuadra-Fire Top - Matte Black (7036-101MBK)7036-101MBK$649.00
#3BQuadra-Fire Top - Porcelain Mahogany (7036-101PMH)7036-101PMH$1,139.00
#3CQuadra-Fire Top - Sienna Bronze (7036-101CSB)7036-101CSB$767.00
#4Quadra-Fire Catch Clip (SRV7036-146)SRV7036-146$48.00
#5Quadra-Fire Elbow Catch (7000-393)7000-393$35.00
#6Quadra-Fire Catch Bracket (SRV7036-145)SRV7036-145$40.00
#7Quadra-Fire Side Window Backer (SRV414-0280)SRV414-0280$20.00
#8AQuadra-Fire Insert Side - Matte Black (7036-103MBK)7036-103MBK$389.00
#8BQuadra-Fire Side - Porcelain Mahogany (7036-103PMH)7036-103PMH$725.00
#8CQuadra-Fire Side - Sienna Bronze (7036-103CSB)7036-103CSB$659.00
#9Heatilator & Quadra-Fire Door Rope Gasket (SRV7034-177)SRV7034-177$65.00
#N/SQuadra-Fire Glass Gasket - 10 Feet (7000-377/10)7000-377/10$48.00
#N/SHeatilator Eco-Choice & Quadra-Fire Twin Ball Catch & Striker (SRV7000-532)SRV7000-532$97.00
#N/SQuadra-Fire Wire Harness (SRV7080-129)SRV7080-129$63.00
#N/SQuadra-Fire & Heatilator Eco-Choice Vacuum Hose (SRV7000-373)SRV7000-373$57.00
#N/SQuadra-Fire Control Panel Assembly (SRV7080-036)SRV7080-036$123.00
#N/SQuadra-Fire Combustion Blower Housing Gasket (SRV7080-117)SRV7080-117$23.00
#N/SQuadra-Fire Combustion Motor Gasket (SRV7080-107)SRV7080-107$88.00
#N/SQuadra-Fire Exhaust Gasket (SRV7034-109)SRV7034-109$14.00
#N/SHeailator & Quadra-Fire Feed Motor Gasket (SRV7034-144)SRV7034-144$17.00
#N/SQuadra-Fire Component Pack - Matte Black (SRV7082-040)SRV7082-040$429.00
#N/SQuadra-Fire Component Pack - Sienna Bronze (SRV7082-041)SRV7082-041$438.00
#N/SQuadra-Fire Component Pack - Porcelain Mahogany (SRV7082-042)SRV7082-042$417.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SQuadra-Fire Touch Up Paint - Sienna Bronze (TOUCHUP-CSB)TOUCHUP-CSB$26.00
#N/SQuadra-Fire Touch Up Paint - Porcelain Mahogany (855-1450)855-1450$30.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SHeatilator & Quadra-Fire Loop Igniter - 380 Watt (SRV7000-462)SRV7000-462$50.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SPelPro & Quadra-Fire Plastic Wire Clip - 10 Pack (7000-400/10)7000-400/10$12.00
#N/SHHT Programmable Thermostat with Wire (PROG-STAT)PROG-STAT$247.00
#N/SQuadra-Fire & Eco-Choice Pellet Stove 3" Damper (PEL-DAMP3)PEL-DAMP3$255.00
#N/SQuadra-Fire & Heatilator 4" Damper (PEL-DAMP4)PEL-DAMP4$455.00
#N/SPelPro & Quadra-Fire Exhaust Probe (SRV7000-669)SRV7000-669$30.00
#N/SQuadra-Fire Log Set (LOGS-60-AE-B)LOGS-60-AE-B$249.00
#N/SQuadra-Fire & Eco-Choice Outside Air Kit (OAK-3)OAK-3$149.00
#N/SQuadra-Fire Vertically Centering Adapter Kit (TPVNT-4)TPVNT-4$135.00
#N/SQuadra-Fire Mt Vernon & Trekker Steel Surround - Classic Black (SP-MTVS-CST)SP-MTVS-CST$329.00
#N/SQuadra-Fire Component Pack Assembly (SRV7036-041)SRV7036-041$34.00
#N/SQuadra-Fire Component Pack Assembly (SRV7036-042)SRV7036-042$31.00
#N/SQuadra-Fire Gold Trim Panel Set (SRV250-4660)SRV250-4660$234.00
#N/SQuadra-Fire Component Pack Assembly (SRV7036-042)SRV7036-042$31.00
#N/SQuadra-Fire Black Nickel Trim Set - Black (7019-027)7019-027$181.00
#N/SQuadra-Fire Trim Bracket (SRV7022-503G)SRV7022-503G$77.00
#N/SQuadra-Fire Cast Trim Kit - Classic Black (811-0930)811-0930$555.00
#N/SQuadra-Fire Cast Trim Kit - Porcelain Mahogany (811-0960)811-0960$729.00
#N/SQuadra-Fire Left Trim Footer - Matte Black (414-7090MBK)414-7090MBK$419.00
#N/SQuadra-Fire Left Trim Footer - Sienna Bronze (414-7090CSB)414-7090CSB$407.00
#N/SQuadra-Fire Left Trim Footer - Porcelain Mahogany (414-7090PMH)414-7090PMH$528.00
#N/SQuadra-Fire Trim Footer - Right - Matte Black (414-7100MBK)414-7100MBK$431.00
#N/SQuadra-Fire Right Trim Footer - Sienna Bronze (414-7100CSB)414-7100CSB$479.00
#N/SQuadra-Fire Right Trim Footer - Porcelain Mahogany (414-7100PMH)414-7100PMH$614.00
#N/SQuadra-Fire Trim Header - Matte Black (414-7110MBK)414-7110MBK$575.00
#N/SQuadra-Fire Trim Header - Sienna Bronze (414-7110CSB)414-7110CSB$563.00
#N/SQuadra-Fire Trim Header - Porcelain Mahogany (414-7110PMH)414-7110PMH$863.00
#N/SQuadra-Fire Trim Leg - Left - Matte Black (414-7120MBK)414-7120MBK$623.00
#N/SQuadra-Fire Left Trim Leg - Sienna Bronze (414-7120CSB)414-7120CSB$599.00
#N/SQuadra-Fire Left Trim Leg - Porcelain Mahogany (414-7120PMH)414-7120PMH$863.00
#N/SQuadra-Fire Trim Leg - Right - Matte Black (414-7130MBK)414-7130MBK$575.00
#N/SQuadra-Fire Right Trim Leg - Sienna Bronze (414-7130CSB)414-7130CSB$599.00
#N/SQuadra-Fire Right Trim Leg - Porcelain Mahogany (414-7130PMH)414-7130PMH$863.00
