Quadrafire QFP44-NG-Gas Parts Diagram

Quadrafire QFP44-NG-Gas Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire QFP44-NG-Gas. This Gas stove has 73 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire QFP44-NG Back Log, Quadra-Fire QFP44-NG Front Log - Right, Quadra-Fire QFP44-NG Middle Log - Left, Quadra-Fire QFP44-NG Middle Log - Right, and Quadra-Fire QFP44-NG Front Log - Left. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 73 replacement parts available.

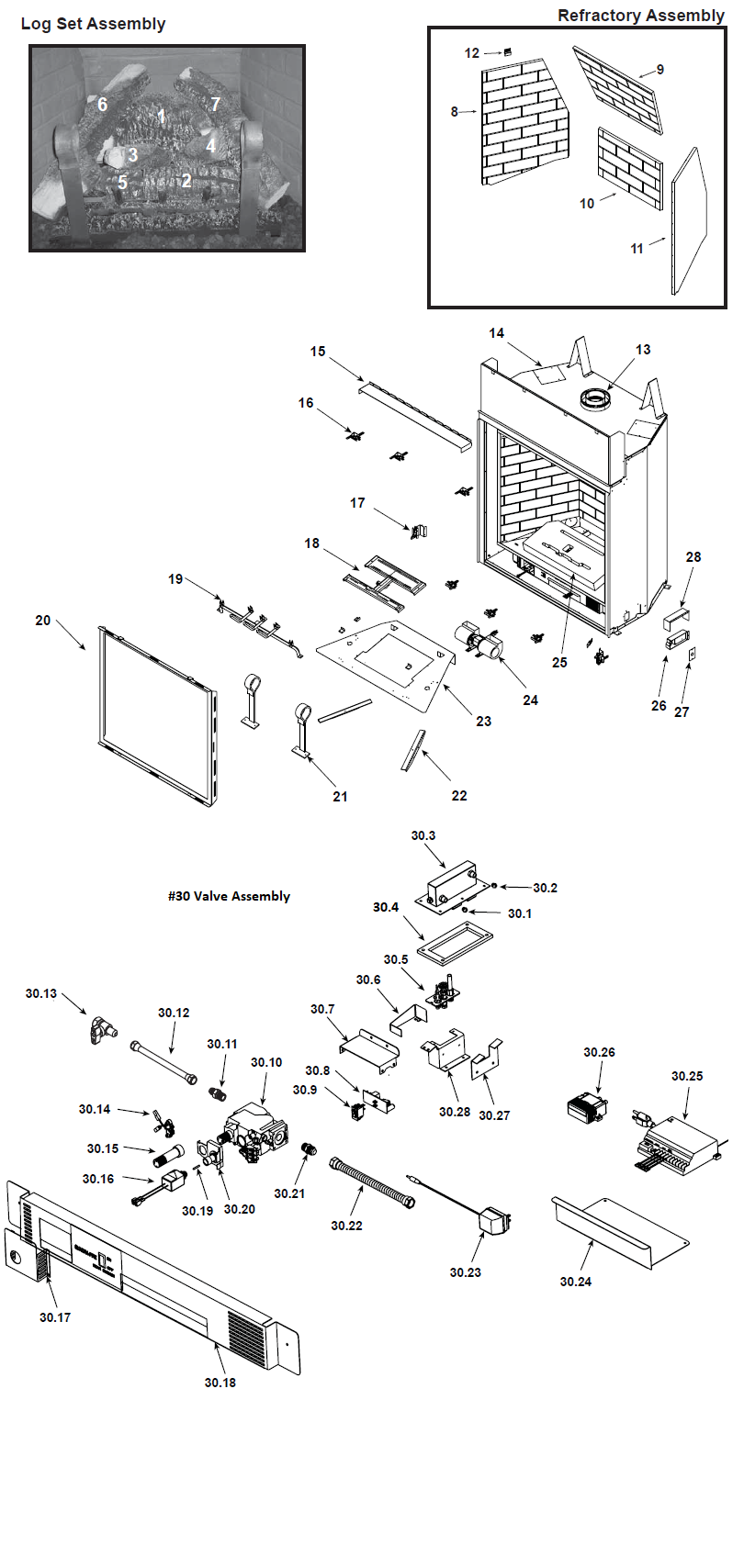

Quadrafire QFP44-NG-Gas replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire QFP44-NG Back Log (SRV4051-134)SRV4051-134$275.00
#10Quadra-Fire Lower Back Refractory (4051-148)4051-148$85.00
#11Quadra-Fire QFP44-NG Right Refractory (4051-147)4051-147$153.00
#12Heat N Glo & Heatilator Refractory Retainer Kit (34584)34584$13.00
#13Heatilator & Heat N Glo Intake Collar Assembly (4002-002)4002-002$213.00
#14Quadra-Fire Cover Plate (4051-122)4051-122$106.00
#15Quadra-Fire QFP44-NG Front Shield (4051-114)4051-114$137.00
#16Heat N Glo, Heatilator & Quadra-Fire Glass Clip Assembly (33858/2)33858/2$54.00
#17Heat N Glo & Quadra-Fire Side Glass Latch Assembly (4051-003)4051-003$120.00
#18Quadra-Fire QFP44 Burner Assembly - NG/LP (4051-008)4051-008$1,049.00
#19Quadra-Fire QFP44-NG Grate Assembly (4051-012)4051-012$264.00
#2Quadra-Fire QFP44-NG Front Log - Right (SRV4051-135)SRV4051-135$172.00
#20Quadra-Fire QFP44-NG Glass Frame Assembly (SRV4051-005)SRV4051-005$2,451.00
#21Quadra-Fire Andiron (4051-311)4051-311$169.00
#22Quadra-Fire QFP44 Hearth Pan Support (4051-160)4051-160$106.00
#23Quadra-Fire QFP44-NG Hearth Sheet (4051-125)4051-125$407.00
#24HHT Gas Stove Fan Kit (GFK-160A)GFK-160A$327.00
#25Quadra-Fire QFP44-NG Burner Cover (SRV4051-024)SRV4051-024$589.00
#26HHT Junction Box (SRV4021-013)SRV4021-013$36.00
#27HHT Junction Box Cover Plate (SRV4031-222)SRV4031-222$43.00
#3Quadra-Fire QFP44-NG Middle Log - Left (SRV4051-138)SRV4051-138$172.00
#30.10Quadra-Fire, Harman, & Heatilator SIT Valve - NG (SRV230-0710)SRV230-0710$224.00
#30.11HHT Male Connector Fittings (303-315/5)303-315/5$44.00
#30.12HHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#30.13HHT On/Off Valve (SRV15697)SRV15697$41.00
#30.14Heat N Glo & Quadra-Fire SIT Ignition Cable & Switch Assembly (230-1900)230-1900$39.00
#30.15Quadra-Fire Pilot Control Extension (On/Off) Knob (230-1250)230-1250$12.00
#30.16HHT Hi-Low Solenoid (4021-379)4021-379$59.00
#30.17Quadra-Fire QFP44 Valve Shield (4051-193)4051-193$106.00
#30.18Quadra-Fire QFP44-NG Dash Board (4051-121) 4051-121$162.00
#30.19AQuadra-Fire QFP44 Conversion Pin - NG (4021-367)4021-367$7.00
#30.19BQuadra-Fire QFP44 Conversion Pin - LP (4021-368)4021-368$5.00
#30.1AHeat N Glo, Heatilator & Quadra-Fire Burner Orifice #46C - NG (582-846)582-846$7.00
#30.1BHHT Burner Orifice #56C - LP (582-856)582-856$6.00
#30.20Quadra-Fire QFP44-NG MLT Solenoid Regulator (4021-378)4021-378$80.00
#30.21Quadra-Fire QFP44-NG 1/2" to 3/8" NPT Male Flare (SRV4021-373)SRV4021-373$12.00
#30.22Quadra-Fire QFP44-NG 1/2" Diameter Flex Line (4021-374)4021-374$15.00
#30.23Quadra-Fire & Heat N Glo 12 Volt Power Transformer - NG/LP (2101-290)2101-290$19.00
#30.24Quadra-Fire QFP44 Remote Tray (4051-169)4051-169$106.00
#30.25Heatilator MLT Receiver (HTI-13-006)HTI-13-006$196.00
#30.26Heat N Glo & Quadra-Fire Ignition Control Module -NG/LP (230-1880)230-1880$55.00
#30.27Quadra-Fire QFP44 Pilot Support (4051-179)4051-179$97.00
#30.28Quadra-Fire QFP44 Pilot Bracket (4051-161)4051-161$108.00
#30.2AQuadra-Fire Burner Orifice (#18) NG (4021-376)4021-376$17.00
#30.2BHeat N Glo, Heatilator & Quadra-Fire Burner Orifice #46C - NG (582-846)582-846$7.00
#30.3Quadra-Fire QFP44-NG Solenoid Block Assembly (4051-010)4051-010$997.00
#30.4Heatilator Icon Cover Plate Gasket (4042-306A) 4042-306A$50.00
#30.5 Heat N Glo & Quadra-Fire Pilot Assembly - NG (230-1781)230-1781$112.00
#30.6Quadra-Fire QFP44 Pilot Shield (4051-184)4051-184$100.00
#30.7Quadra-Fire QFP44-NG Valve Bracket (4051-120)4051-120$106.00
#30.8Quadra-Fire QFP44-NG MLT Solenoid Interface (4021-375)4021-375$29.00
#30.9HHT On/Off Rocker Switch w/Wires (060-521A)060-521A$14.00
#4Quadra-Fire QFP44-NG Middle Log - Right (SRV4051-139)SRV4051-139$172.00
#5Quadra-Fire QFP44-NG Front Log - Left (SRV4051-142)SRV4051-142$154.00
#6Quadra-Fire QFP44-NG Top Log - Left (SRV4051-136)SRV4051-136$203.00
#7Quadra-Fire QFP44-NG Top Log - Right (SRV4051-137)SRV4051-137$203.00
#8Quadra-Fire QFP44-NG Left Refractory (4051-146)4051-146$153.00
#9Quadra-Fire Upper Back Refractory (4051-149)4051-149$100.00
#N/SQuadra-Fire QFP44-NG Remote Transmitter (4021-381)4021-381$149.00
#N/SQuadra-Fire & Heat N Glo EZ Pilot Injector Orifice - LP (SRV200-2630)SRV200-2630$19.00
#N/SHeatilator IPI Remote Transmitter Wall Holder (HTI-16-006)HTI-16-006$10.00
#N/SQuadra-Fire QFP44 Conversion Kit - NG (44CKN)44CKN$113.00
#N/SQuadra-Fire & Heat n Glo EZ Pilot Injector Orifice - NG (842-4440)842-4440$65.00
#N/SHHT Vermiculite Bag (28746)28746$6.00
#N/SHeatilator Flue Gasket (SRV4000-225)SRV4000-225$12.00
#N/SQuadra-Fire QFP44 Vertical Baffle (4051-185)4051-185$93.00
#N/SHHT Lava Rock Bag Assembly (SRV4040-094)SRV4040-094$90.00
#N/SHHT Lava Rock - 2LB (SRV4021-296)SRV4021-296$49.00
#N/SQuadra-Fire & Heat N Glo 34" Thermocouple (200-2950)200-2950$34.00
#N/SHHT Mineral Wool (SRV14333)SRV14333$15.00
