Quadrafire QV32B Gas Parts Diagram

Quadrafire QV32B Gas Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire QV32B Gas. This Gas stove has 54 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire QV32B Log Assembly, Quadra-Fire & Heat N Glo Junction Box - NG/LP, Heat N Glo, Heatilator and Quadra-Fire Glass Clips - 2 Pack, Quadra-Fire Log Grate Assembly, and Quadra-Fire QV32B Burner Assembly - NG/LP. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 54 replacement parts available.

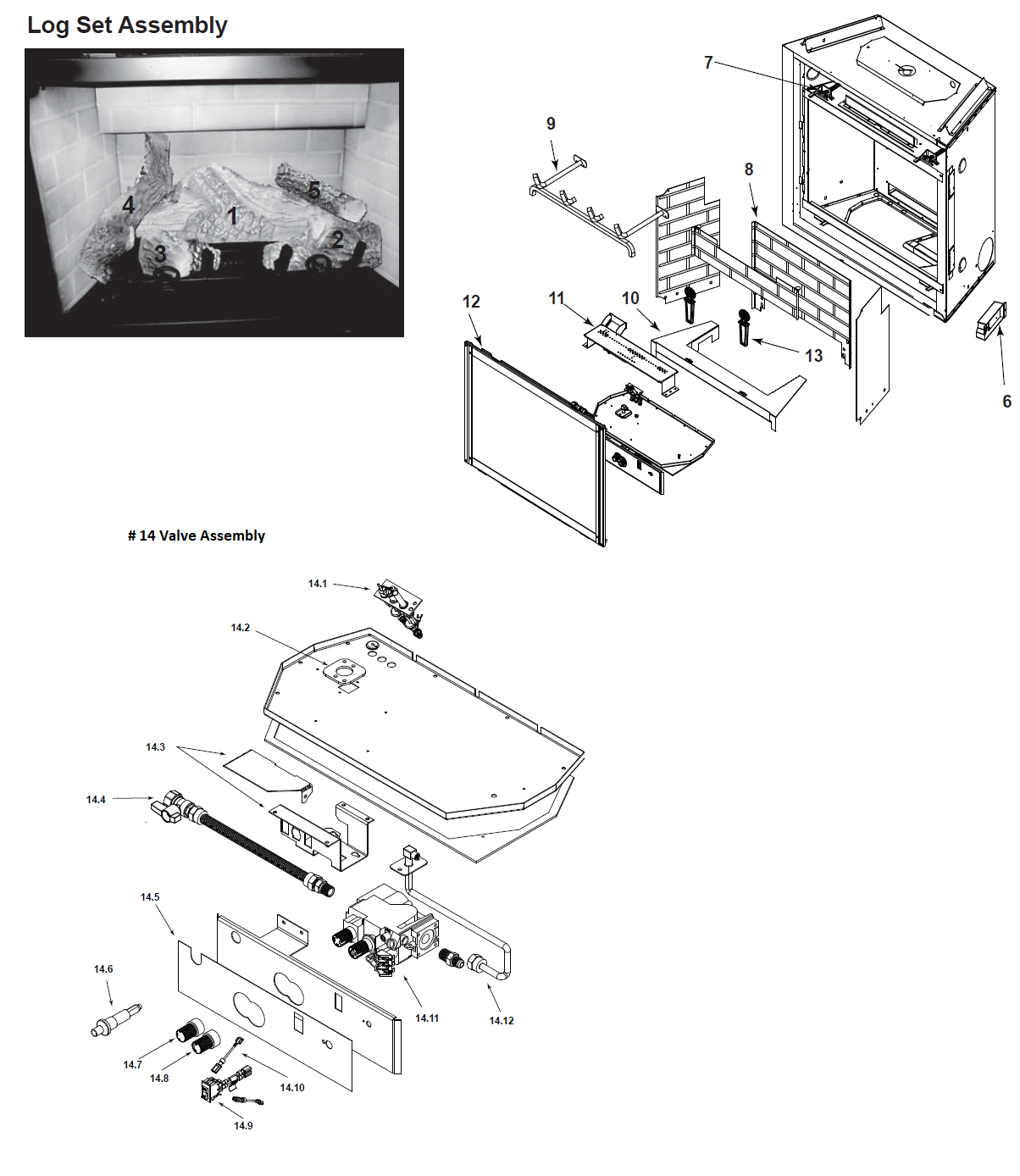

Quadrafire QV32B Gas replacement parts diagram
Part #Part NamePart CodePrice
#11AQuadra-Fire QV32B Burner Assembly - NG/LP (2013-002)2013-002$707.00
#11BQuadra-Fire QV32B Burner Assembly - LP/NG (2013-018)2013-018$443.00
#12HHT Glass Door Assembly (GLA-550TR)GLA-550TR$433.00
#14.10Heat N Glo & Quadra-Fire Jumper Wire (049-552A)049-552A$10.00
#14.11AHHT Valve - NG (060-522)060-522$343.00
#14.11BQuadra-Fire, Harman, & Heatilator SIT Valve - NG (SRV230-0710)SRV230-0710$224.00
#14.11CHHT Gas Fireplace Valve - LP (060-523)060-523$343.00
#14.11DHHT Gas Valve - LP (SRV230-0720)SRV230-0720$224.00
#14.12HHT Flexible Gas Connector - 18" (530-302A)530-302A$48.00
#14.1AHeat N Glo, Heatilator & Quadra-Fire Pilot Assembly - NG (2103-010)2103-010$115.00
#14.1BHeat N Glo, Heatilator & Quadra-Fire Pilot Assembly - NG (2103-010)2103-010$115.00
#14.1DHeat N Glo, Heatilator & Quadra-Fire Pilot Assembly - LP (2103-011)2103-011$117.00
#14.2Heat N Glo & Quadra-Fire Burner Neck Gasket (2045-407)2045-407$12.00
#14.3AHeat N Glo & Quadra-Fire Valve Bracket (2025-101)2025-101$29.00
#14.4HHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#14.5AQuadra-Fire Control Panel (291-119)291-119$120.00
#14.5BQuadra-Fire Control Panel (291-125)291-125$115.00
#14.6Quadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#14.7AQuadra-Fire Pilot Control Extension Knob - On/Off (291-530)291-530$7.00
#14.7BHHT Pilot Control Extension / On-Off Knob (571-534)571-534$12.00
#14.8AHeat N Glo & Quadra-Fire Flame Control Extension (291-531)291-531$7.00
#14.8BHHT Flame Control Extension / Hi-Lo Knob (571-533)571-533$6.00
#14.9HHT On/Off Rocker Switch w/Wires (060-521A)060-521A$14.00
#6Quadra-Fire & Heat N Glo Junction Box - NG/LP (100-250A)100-250A$37.00
#7Heat N Glo, Heatilator and Quadra-Fire Glass Clips - 2 Pack (386-122A/2)386-122A/2$55.00
#9Quadra-Fire Log Grate Assembly (2014-001)2014-001$63.00
#LOGASSQuadra-Fire QV32B Log Assembly (LOGS-2013)LOGS-2013$695.00
#N/SHeat N Glo & Quadra-Fire Pilot Bracket (530-164)530-164$23.00
#N/SHHT Pilot Orifice - LP (SRV2103-117)SRV2103-117$44.00
#N/SHHT .0115 Pilot Orifice - LP (SRV446-517)SRV446-517$10.00
#N/SHHT Pilot Orifice .021 - NG (SRV2103-116)SRV2103-116$17.00
#N/SHHT .021 Pilot Orifice - NG (SRV446-505)SRV446-505$9.00
#N/SHHT Gas Valve Regulator - LP (SRV230-1520)SRV230-1520$60.00
#N/S Quadra-Fire, Heat N Glo & Heatilator Variable Gas Valve Regulator - LP (060-519)060-519$54.00
#N/SHHT Gas Valve Regulator - NG (SRV230-1570)SRV230-1570$53.00
#N/SHHT Variable Gas Valve Regulator - NG (SRV060-518)SRV060-518$53.00
#N/SQuadra-Fire QV32B Conversion Kit - After 0021080519 - LP (LPKS-2013)LPKS-2013$89.00
#N/SQuadra-Fire QV32B Conversion Kit - Pre 0021080519 - LP (LPK-2013)LPK-2013$169.00
#N/SQuadra-Fire QV32B Conversion Kit - NG (NGKS-2013)NGKS-2013$89.00
#N/SQuadra-Fire QV32B Conversion Kit - Pre 0021080519 - NG (NGK-2013)NGK-2013$89.00
#N/SHeat N Glo, Heatilator and Quadra-Fire PSE Thermopile (2103-512)2103-512$54.00
#N/SHeat N Glo Burner Orifice Assembly #54C - LP (582-854A)582-854A$15.00
#N/SHHT Burner Orifice #44C - NG/LP (582-844)582-844$7.00
#N/SHHT Exhaust Restrictor (530-299)530-299$11.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Lava Rock Bag - 3lb (4021-297)4021-297$18.00
#N/SHHT Mineral Wool (050-721)050-721$6.00
#N/SHHT Touch Up Paint - Black (TUP-GBK-12)TUP-GBK-12$30.00
#N/SHHT Pilot Tube (SRV485-301)SRV485-301$99.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Thermocouple (446-511)446-511$24.00
