Quadrafire Sapphire-IPI Gas Parts Diagram

Quadrafire Sapphire-IPI Gas Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Sapphire-IPI Gas. This Gas stove has 95 parts mapped in our interactive diagram below. Common replacement parts include Heat N Glo & Quadra-Fire Log Assembly, Heat N Glo & Quadra-Fire Rear Log, Heat N Glo & Quadra-Fire Front Right Log, Heat N Glo & Quadra-Fire Left Log, and Quadra-Fire Top Vent Grill - Matte Black. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 95 replacement parts available.

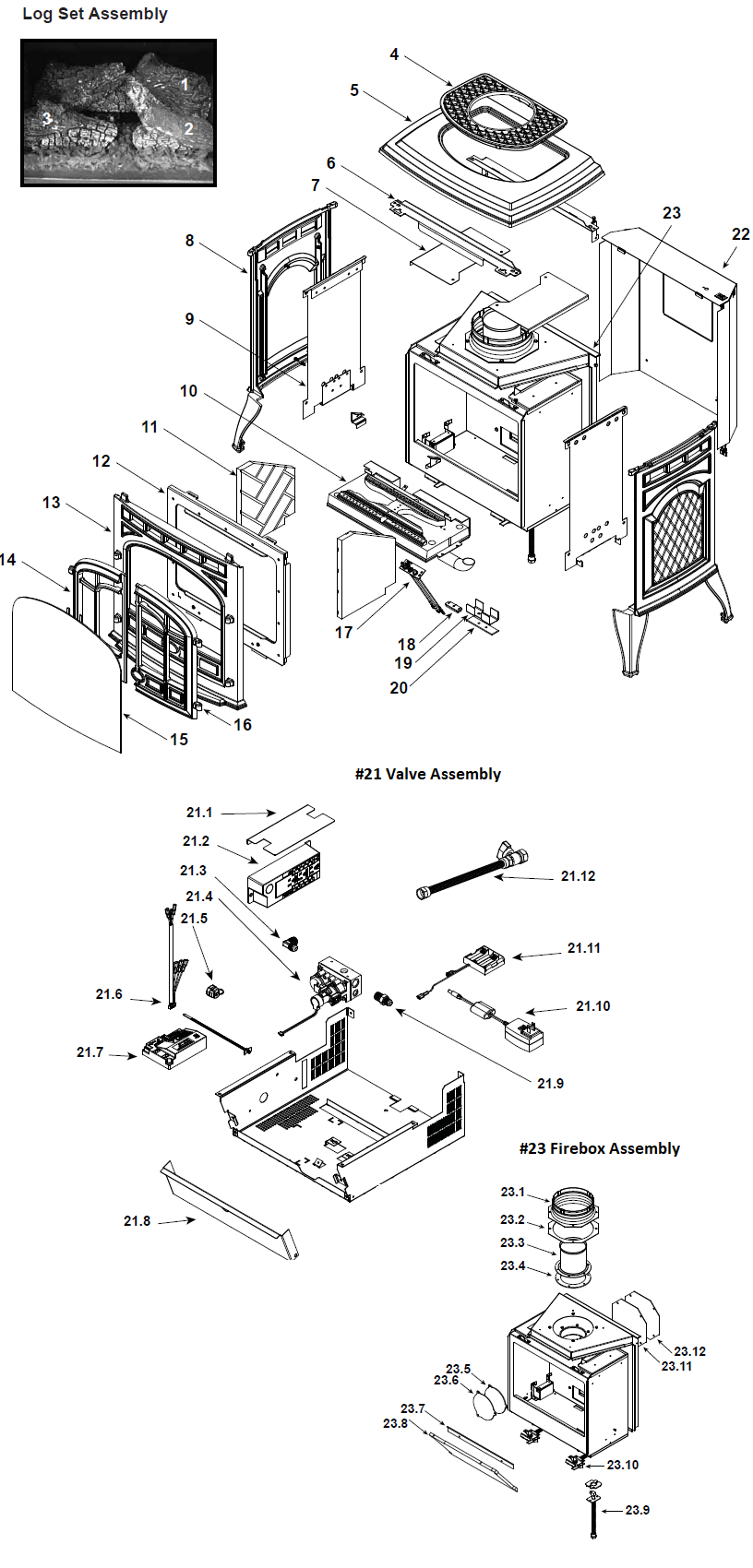

Quadrafire Sapphire-IPI Gas replacement parts diagram
Part #Part NamePart CodePrice
#1Heat N Glo & Quadra-Fire Rear Log (SRV2342-701)SRV2342-701$431.00
#10AHeat N Glo & Quadra-Fire Conversion Kit - NG (NGKI-TIARAI)NGKI-TIARAI$562.00
#11Heat N Glo & Quadra-Fire Brick Set (BRICK-TS)BRICK-TS$159.00
#12Heat N Glo TIARA I-IPI Glass Assembly (GLA2342-019)GLA2342-019$849.00
#13AQuadra-Fire Sapphire Front - Black Solitaire (SRV7055-123MBK)SRV7055-123MBK$671.00
#13BQuadra-Fire Sapphire Series Cabinet Style Front - Classic Black (SRV7055-103MBK)SRV7055-103MBK$647.00
#13CQuadra-Fire Sapphire Series Cabinet Style Front - Porcelain Mahogany (SRV7055-103PMH)SRV7055-103PMH$1,367.00
#13DQuadra-Fire Sapphire Series Cabinet Style Front - Sienna Bronze (SRV7055-103CSB)SRV7055-103CSB$767.00
#14AQuadra-Fire Sapphire Series Left Door - Classic Black (SRV7055-107MBK)SRV7055-107MBK$419.00
#14BQuadra-Fire Sapphire Series Left Door - Porcelain Mahogany (SRV7055-107PMH)SRV7055-107PMH$1,043.00
#14CQuadra-Fire Sapphire Series Left Door - Sienna Bronze (SRV7055-107CSB)SRV7055-107CSB$527.00
#15Quadra-Fire Sapphire-IPI Screen (7055-020)7055-020$154.00
#16AQuadra-Fire Sapphire Series Right Door - Classic Black (SRV7055-105MBK)SRV7055-105MBK$419.00
#16BQuadra-Fire Sapphire Series Right Door - Porcelain Mahogany (SRV7055-105PMH)SRV7055-105PMH$1,067.00
#16CQuadra-Fire Sapphire Series Right Door - Sienna Bronze (SRV7055-105CSB)SRV7055-105CSB$527.00
#17AHHT IPI Pilot Assembly - NG (SRV2090-012)SRV2090-012$54.00
#17BHeat N Glo, Heatilator & Quadra-Fire IPI Pilot Assembly - LP (2090-013)2090-013$47.00
#18HHT 3-Hole Rubber Grommet - NG/LP (SRV2118-420)SRV2118-420$12.00
#19Heat N Glo & Quadra-Fire Shutter Assembly (SRV2342-154)SRV2342-154$64.00
#2Heat N Glo & Quadra-Fire Front Right Log (SRV2342-702)SRV2342-702$339.00
#20Heat N Glo & Quadra-Fire Adjustable Air Shutter Gasket (2342-159)2342-159$15.00
#21.1Heat N Glo & Quadra-Fire J-Box Heat Shield (2342-132)2342-132$80.00
#21.10HHT Power Supply / Wall Transformer - 6V (SRV2326-131)SRV2326-131$33.00
#21.11HHT Battery Pack (SRV2166-323)SRV2166-323$19.00
#21.12Heat N Glo & Quadra-Fire Flex Ball Valve Assembly - Black (3-40-2098034)3-40-2098034$42.00
#21.2HHT Junction Box (SRV4021-013)SRV4021-013$36.00
#21.3HHT Brass Connector - 3/8 Flare x 3/8 NPT Male Elbow (SRV4021-045)SRV4021-045$23.00
#21.4AHHT Variable IPI Gas Valve - NG (SRV2166-302)SRV2166-302$138.00
#21.4BHeatilator, Heat N Glo & Majestic Dexen Valve - LP (2166-303)2166-303$149.00
#21.5Harman & Quadra-Fire Cord Clamp (3-20-12402)3-20-12402$9.00
#21.6Heatilator, Heat N Glo & Majestic IPI Wire Harness (2166-304)2166-304$17.00
#21.7HHT IPI Control Module (SRV2166-338)SRV2166-338$196.00
#21.8Heat N Glo & Quadra-Fire Access Door (2342-112)2342-112$90.00
#21.9HHT Male Connector Fittings (303-315/5)303-315/5$44.00
#22Quadra-Fire Sapphire-D & Sapphire-IPI Back Fan Shroud (2343-129)2343-129$95.00
#23.1Heat N Glo & Quadra-Fire Starting Collar Assembly (SRV2189-002)SRV2189-002$63.00
#23.10Heat N Glo, Heatilator & Quadra-Fire Glass Clip Assembly (33858/2)33858/2$54.00
#23.11Heat N Glo & Quadra-Fire Cover Plate Gasket (7010-160)7010-160$8.00
#23.2Heat N Glo & Quadra-Fire Elbow Gasket (SRV460-0610)SRV460-0610$48.00
#23.3Heat N Glo & Quadra-Fire Flue Assembly (SRV2340-025)SRV2340-025$91.00
#23.4Heat N Glo & Quadra-Fire Spacer Gasket (2340-203)2340-203$25.00
#23.5Heat n Glo & Quadra-Fire Flue Cover Gasket (2340-135)2340-135$14.00
#23.6Heat N Glo & Quadra-Fire Flue Cover (SRV2340-134)SRV2340-134$37.00
#23.7Heat N Glo & Quadra-Fire Lower Baffle Support (SRV2342-121)SRV2342-121$38.00
#23.8Heat N Glo & Quadra-Fire Baffle (2342-146)2342-146$94.00
#23.9HHT Bulkhead with Flex Tube (SRV7000-156)SRV7000-156$52.00
#3Heat N Glo & Quadra-Fire Left Log (SRV2342-703)SRV2342-703$371.00
#4AQuadra-Fire Top Vent Grill - Matte Black (455-0370MBK)455-0370MBK$151.00
#4BQuadra-Fire Top Vent Grill - Porcelain Mahogany (455-0370PMH)455-0370PMH$1,091.00
#4CQuadra-Fire Top CSB Vent Grill - Sienna Bronze (455-0370CSB)455-0370CSB$863.00
#5AQuadra-Fire Sapphire Series Top Plate - Classic Black (SRV7055-101MBK)SRV7055-101MBK$575.00
#5BQuadra-Fire Sapphire Top Plate - Porcelain Mahogany (SRV7055-101PMH)SRV7055-101PMH$1,403.00
#5CQuadra-Fire Sapphire Series Top Plate - Sienna Bronze (SRV7055-101CSB)SRV7055-101CSB$767.00
#6AQuadra-Fire Sapphire Front Cast Retainer (SRV7055-108)SRV7055-108$175.00
#6BQuadra-Fire Sapphire Rear Cast Retainer (2343-109)2343-109$98.00
#7Quadra-Fire Sapphire-D & Sapphire-IPI Upper Fan Shroud (2343-130)2343-130$91.00
#8AQuadra-Fire Castile Side - Matte Black (SRV7021-125MBK)SRV7021-125MBK$658.00
#8BQuadra-Fire Castile Side - Porcelain Mahogany (SRV7021-125PMH)SRV7021-125PMH$1,343.00
#8CQuadra-Fire Castile Side - Sienna Bronze (SRV7021-125CSB)SRV7021-125CSB$815.00
#9Quadra-Fire Sapphire Side Heat Shield (2343-108)2343-108$131.00
#LOGASSHeat N Glo & Quadra-Fire Log Assembly (LOGS-TS-IPI)LOGS-TS-IPI$555.00
#N/SHeat N Glo Burner Orifice Assembly #54C - LP (582-854A)582-854A$15.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SHarman, Quadra-Fire & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)3-42-19905$24.00
#N/SHeat N Glo Touch Up Paint - Porcelain Brown (210-0710)210-0710$17.00
#N/SHeat N Glo & Quadra-Fire Touch Up Paint - Espresso (TOUCHUP-CES)TOUCHUP-CES$28.00
#N/SHHT IPI Wireless Wall Switch - White (RC100-QDF)RC100-QDF$125.00
#N/SOutdoor Lifestyles & Quadra-Fire IPI Remote Control (RC200-QDF)RC200-QDF$209.00
#N/SQuadra-Fire IPI Remote (RC300-QDF)RC300-QDF$252.00
#N/SHHT Orifice #42C - NG (582-842)582-842$7.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SHeat N Glo & Quadra-Fire Conversion Kit - NG (NGKI-TIARAI)NGKI-TIARAI$562.00
#N/SHeat N Glo Conversion Kit with Burner Assembly - LP (LPKI-TIARAI)LPKI-TIARAI$417.00
#N/SHeat N Glo, Heatilator & Majestic Pilot Orifice .0115 - NG (SRV593-528)SRV593-528$19.00
#N/SHeat N Glo, Heatilator & Majestic Pilot Orifice - LP (SRV593-527)SRV593-527$19.00
#N/SHHT IPI Regulator with Stepper Motor - NG (NGK-DXV-50)NGK-DXV-50$87.00
#N/SHHT Regulator with Stepper Motor - LP (SRVLPK-DXV-50)SRVLPK-DXV-50$91.00
#N/SHarman, Quadra-Fire & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)3-42-19905$24.00
#N/SHeat N Glo & Quadra-Fire Wire Harness (3-20-2159315)3-20-2159315$21.00
#N/SHHT Mineral Wool (050-721)050-721$6.00
#N/SHHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#N/SQuadra-Fire & Heat N Glo Satin Nickel Knob (3-43-4560080-9)3-43-4560080-9$42.00
#N/SHeat N Glo & Quadra-Fire .75 Brass Knob (456-0080)456-0080$25.00
#N/SQuadra-Fire Sapphire-IPI Hinge Pins - Nickel (1-00-4331590)1-00-4331590$42.00
#N/SQuadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (844-5750)844-5750$25.00
#N/SHeat N Glo, Heatilator, & Majestic Burner Orifice #55C - LP (582-855)582-855$7.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Burner Orifice #46C - NG (582-846)582-846$7.00
#N/SQuadra-Fire Sapphire-IPI Series Top Grill (RV-SAPH-IPI)RV-SAPH-IPI$329.00
#N/SQuadra-Fire & Heat N Glo Upper Refractory Bracket (SRV2342-122)SRV2342-122$70.00
#N/SHHT Gas Stove Fan Kit (GFK-160A)GFK-160A$327.00
#N/SHHT Power Cord (832-2410)832-2410$120.00
#N/SHHT On/Off Rocker Switch (SRV060-511)SRV060-511$12.00
