VC Encore Flexburn 2040 & 2044 Parts Diagram

VC Encore Flexburn 2040 & 2044 Interactive Parts Finder

Find the exact replacement parts you need for your VC Encore Flexburn 2040 & 2044. This Wood stove has 97 parts mapped in our interactive diagram below. Common replacement parts include Vermont Castings Brick Support Bracket, Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT, Vermont Castings Back, Vermont Castings Right End Refractory, and Vermont Castings End Refractory - Left. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 97 replacement parts available.

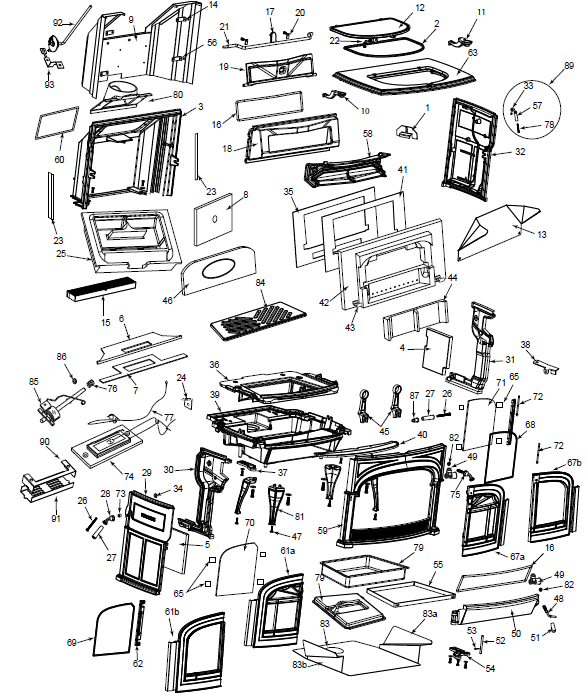

VC Encore Flexburn 2040 & 2044 replacement parts diagram
Part #Part NamePart CodePrice
#1Vermont Castings Brick Support Bracket (30005279)30005279$69.00
#10Vermont Castings Left Griddle Quadrant (30002399A)30002399A$40.00
#11Vermont Castings Right Griddle Quadrant (30002401A)30002401A$33.00
#12Vermont Castings Griddle (30002386A)30002386A$148.00
#13Vermont Castings Encore Flue Collar Heat Shield (30005266)30005266$119.00
#14Vermont Castings Encore Upper Side Bracket (30005267)30005267$63.00
#16Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#17Vermont Castings Damper Ramp (1301811A)1301811A$42.00
#18Vermont Castings Encore Damper Housing (30005293A)30005293A$156.00
#19Vermont Encore Castings Damper (30006467)30006467$51.00
#2Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT (1203668)1203668$3.30
#20Vermont Castings Damper Tab (1601488)1601488$3.00
#21Vermont Castings Encore Damper Rod (1600851)1600851$96.00
#22Vermont Castings Complete Griddle Handle (30002775)30002775$63.00
#23Vermont Castings Flexburn Back Refractory Gasket - SOLD PER FOOT (30005270)30005270$2.50
#24Vermont Castings Defiant & Encore Rheostat Bracket (30002863)30002863$43.00
#25Vermont Castings Defiant & Encore Refractory Engine (30005202)30005202$331.00
#26Vermont Castings Damper Handle Screw - Only (1201310)1201310$3.50
#27Vermont Castings Maple Damper Handle - Only (1600664)1600664$7.00
#28Vermont Castings Steel Damper Handle w/Screw Assembly (30002720A)30002720A$63.00
#29Vermont Castings Left Side - Classic Black (30002388A)30002388A$277.00
#3Vermont Castings Back (30005289A)30005289A$479.00
#30Vermont Castings Left Air Manifold (30002408)30002408$66.00
#31Vermont Castings Air Manifold - Right (30005290)30005290$78.00
#32Vermont Castings Right Side - Classic Black (30002405A)30002405A$247.00
#33Vermont Castings Thermostat Handle - Complete - (30002716)30002716$29.00
#35Defiant 2N1 & Encore 2N1 Fireback Plate (30005217)30005217$195.00
#36Vermont Castings Inner Bottom (30005291)30005291$133.00
#37Vermont Castings Upper Ashdoor Hinge (30002403A)30002403A$115.00
#38Vermont Castings Door Handle Bracket (30002909)30002909$85.00
#39Encore 2N1 2040-2044 Outer Bottom (30005292A)30005292A$209.00
#4Vermont Castings Right End Refractory (30005497)30005497$156.00
#40Vermont Castings Ash Lip - Classic Black (30002402A)30002402A$109.00
#41Vermont Castings Fireback Gasket (30005209)30005209$30.00
#43Vermont Castings Lower Fireback Retainer (30005248)30005248$24.00
#44Vermont Castings Refractory Inner Cover (30005205)30005205$70.00
#45Vermont Castings Encore Andiron (30002397A)30002397A$49.00
#46Vermont Castings Refractory Access Cover - Old Style (30007251)30007251$179.00
#47Vermont Castings Leg Leveler Bolt (1201745)1201745$4.50
#48Vermont Castings Ash Door Handle Shaft (1600622)1600622$32.00
#5Vermont Castings End Refractory - Left (30005498)30005498$156.00
#50Vermont Castings Encore Ash Door - Classic Black (30002392A)30002392A$127.00
#51Vermont Castings Wooden Ash Door Handle - Only (1600663)1600663$8.00
#53Vermont Castings Encore & Defiant Ash Door Cotter Pin (30001749)30001749$3.00
#54Vermont Castings Encore Ash Door Lower Hinge (30002404A)30002404A$40.00
#55Vermont Castings Ash Pan Bracket (1601039)1601039$81.00
#56Vermont Castings Lower Side Bracket (30005268)30005268$49.00
#57Vermont Castings Maple Thermostat Handle (1600660)1600660$7.00
#58Vermont Castings Front Manifold (30002407)30002407$89.00
#59Vermont Castings Front - Classic Black (30002393A)30002393A$395.00
#6Vermont Castings Refractory Support (30005233)30005233$44.00
#60Vermont Castings 3/8" Adhesive Gasket - 15 Feet (1-00-30002422)1-00-30002422$44.00
#61aVermont Castings Left Door - Classic Black (30003938A)30003938A$179.00
#61bVermont Castings Left Door - Classic Black (30007081A)30007081A$95.00
#62Vermont Castings Door Hinge Strip (1308634A)1308634A$38.00
#63Vermont Castings Top - Classic Black (30002387A)30002387A$510.00
#65Vermont Castings Glass Clip - Long (1601396)1601396$3.00
#66 (N/S)Vermont Castings Front Steel Door Handle (30002717)30002717$55.00
#67aVermont Castings Right Door - Classic Black (30003939A)30003939A$186.00
#67bVermont Castings Left Door - Classic Black (30007081A)30007081A$95.00
#68Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#69Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#7Vermont Castings Refractory Support Gasket (30005237)30005237$14.00
#70Vermont Castings Left Door Glass (30005300)30005300$99.00
#71Vermont Castings Right Door Glass (30005299)30005299$101.00
#72Vermont Castings Long Door Pin (30002727)30002727$6.00
#73Vermont Castings Defiant & Encore 7/16" Spacer (1201779)1201779$4.00
#74Vermont Castings Primary Air Valve Assembly (30005324)30005324$164.00
#74a Vermont Castings Primary Air Frame - Only (1307411)1307411$33.00
#74bVermont Castings Primary Air Rod (30005260)30005260$21.00
#75Vermont Castings Front Steel Door Handle (30002717)30002717$55.00
#76Vermont Castings Friction Spring (1201846)1201846$4.00
#77Vermont Castings Primary Air Cable - Thermostat Cable (5005471)5005471$23.00
#78Vermont Castings Thermostat Handle Long Screw - Only (1201243)1201243$3.00
#79Vermont Castings Ash Pan and Cover Assembly (5005746)5005746$129.00
#8Vermont Castings Back Insulation Board (30005269)30005269$71.00
#81Vermont Castings Encore Leg (30002396A)30002396A$56.00
#82Vermont Castings Large Pawl Jam Nut (1203290)1203290$3.00
#83Vermont Castings Bottom Heat Shield (30002470)30002470$90.00
#83aVermont Castings Bottom Heat Shield Right Wing (30005030)30005030$82.00
#83bVermont Castings Bottom Heat Shield Left Wing (30005031)30005031$83.00
#84Vermont Castings Bottom Grate (30005294)30005294$108.00
#85Vermont Castings Thermostat Coil & Rod Assembly (5005470)5005470$63.00
#86Vermont Castings Flat Washer 1/4" (1202471)1202471$3.00
#87Vermont Castings Handle Base Stub (30002714)30002714$19.00
#89Vermont Castings Complete Fallaway Handle Assembly (30004175K)30004175K$48.00
#9Vermont Castings Encore Outer Back (30005261)30005261$335.00
#90Vermont Castings Primary Air Cover (30007069)30007069$73.00
#91Vermont Castings Primary Air Base (30007071)30007071$75.00
#92Vermont Castings Catalyst Temperature Probe (30007274)30007274$99.00
#93Vermont Castings CAT-C Temperature Probe Bracket (30007278)30007278$21.00
