VC Intrepid Non Catalytic 1640 Parts Diagram

VC Intrepid Non Catalytic 1640 Interactive Parts Finder

Find the exact replacement parts you need for your VC Intrepid Non Catalytic 1640. This Wood stove has 104 parts mapped in our interactive diagram below. Common replacement parts include Intrepid NC 1640 Top, Vermont Castings Hex Nut for Griddle Handle, Vermont Castings 1/4" BLK Hex Head Cap Screw, Vermont Castings Intrepid Individual Leg, and Vermont Castings 3/8-16 X 1" Screw. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 104 replacement parts available.

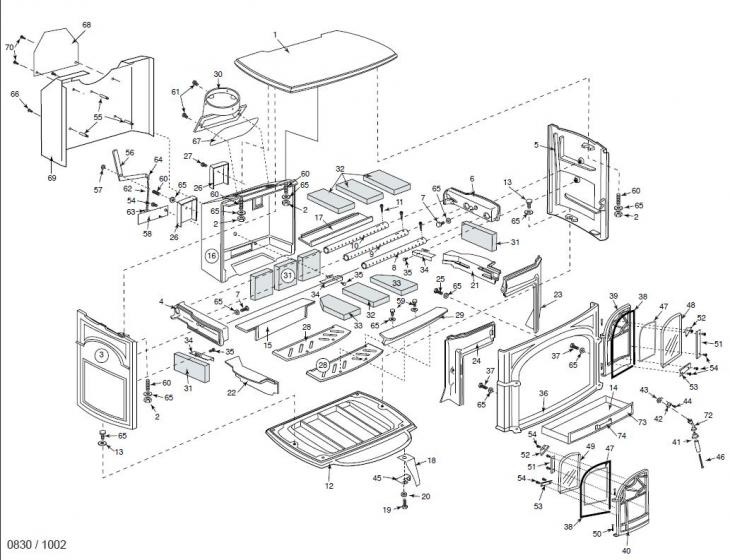

VC Intrepid Non Catalytic 1640 replacement parts diagram
Part #Part NamePart CodePrice
#1Intrepid NC 1640 Top (30000824)30000824$106.00
#13Vermont Castings 1/4" BLK Hex Head Cap Screw (1201376)1201376$3.00
#13Vermont Castings 1/4" BLK Hex Head Cap Screw (1201376)1201376$3.00
#18Vermont Castings Intrepid Individual Leg (1306333A)1306333A$73.00
#19Vermont Castings 3/8-16 X 1" Screw (1201432)1201432$8.00
#2Vermont Castings Hex Nut for Griddle Handle (1203210)1203210$2.50
#2Vermont Castings Hex Nut for Griddle Handle (1203210)1203210$2.50
#2Vermont Castings Hex Nut for Griddle Handle (1203210)1203210$2.50
#2Vermont Castings Hex Nut for Griddle Handle (1203210)1203210$2.50
#25Vermont Castings 1/4"- 20 X 3/4 Hex Head Cap Screw (1201374)1201374$2.50
#30Vermont Castings Intrepid Flue Collar (1306561A)1306561A$191.00
#31Intrepid NC 1640 & Madison 1650-1655 Back/Side Brick (30000969)30000969$57.50
#31Intrepid NC 1640 & Madison 1650-1655 Back/Side Brick (30000969)30000969$57.50
#31Intrepid NC 1640 & Madison 1650-1655 Back/Side Brick (30000969)30000969$57.50
#32Vermont Castings Firebrick (1601103)1601103$15.00
#32Vermont Castings Firebrick (1601103)1601103$15.00
#33Vermont Castings Intrepid NC 1640 Bottom Brick (SRV30000971)SRV30000971$39.00
#33Vermont Castings Intrepid NC 1640 Bottom Brick (SRV30000971)SRV30000971$39.00
#34Vermont Castings Brick Support Bracket (30000986)30000986$38.00
#34Vermont Castings Brick Support Bracket (30000986)30000986$38.00
#34Vermont Castings Brick Support Bracket (30000986)30000986$38.00
#38Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#38Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#39Vermont Castings Intrepid Right Door - Classic Black (1308648A)1308648A$270.00
#40Vermont Castings Intrepid Left Door - Classic Black (1308649A)1308649A$232.00
#41Vermont Castings Ceramic Fallaway Handle Assembly (0004342)0004342$19.49
#43Vermont Castings Large Pawl Jam Nut (1203290)1203290$3.00
#44Vermont Castings 3/4" Striker Bolt (1200461)1200461$4.00
#45Vermont Castings Door Handle Holder Insert (1600600)1600600$14.00
#46Vermont Castings Oval Head Handle Screw - Screw Only (1201294)1201294$6.00
#47Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#47Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#48Vermont Castings Intrepid Right Door Glass (1401156)1401156$65.00
#49Vermont Castings Intrepid Left Door Glass (1401157)1401157$65.00
#50Vermont Castings 3/16" x 3/4" Door Hinge Pin (1600535)1600535$6.00
#51Vermont Castings Intrepid NC 1640 & Intrepid II 1990 Side Glass Clip (30000833)30000833$21.00
#51Vermont Castings Intrepid NC 1640 & Intrepid II 1990 Side Glass Clip (30000833)30000833$21.00
#52Vermont Castings Intrepid NC 1640 & Intrepid II 1990 Corner Glass Clip (30000834)30000834$21.00
#52Vermont Castings Intrepid NC 1640 & Intrepid II 1990 Corner Glass Clip (30000834)30000834$21.00
#53Vermont Castings Intrepid NC 1640 & Intrepid II 1990 Bottom Glass Clip (30000832)30000832$30.00
#53Vermont Castings Intrepid NC 1640 & Intrepid II 1990 Bottom Glass Clip (30000832)30000832$30.00
#54Vermont Castings Glass Clip Screws - 10 Pack (1200998-10)1200998-10$11.00
#54Vermont Castings Glass Clip Screws - 10 Pack (1200998-10)1200998-10$11.00
#54Vermont Castings Glass Clip Screws - 10 Pack (1200998-10)1200998-10$11.00
#54Vermont Castings Glass Clip Screws - 10 Pack (1200998-10)1200998-10$11.00
#56Intrepid NC 1640 Primary Air Rod (30000892)30000892$30.00
#57Vermont Castings Lock Hex Nut (1203213)1203213$8.00
#58Intrepid NC 1640 Primary Air Flap (30000827)30000827$16.00
#59Vermont Castings Hex Head Cap Screw (1201372)1201372$3.00
#60Vermont Castings Intrepid & Seville Stud (1204214)1204214$13.00
#60Vermont Castings Intrepid & Seville Stud (1204214)1204214$13.00
#60Vermont Castings Intrepid & Seville Stud (1204214)1204214$13.00
#60Vermont Castings Intrepid & Seville Stud (1204214)1204214$13.00
#61Vermont Castings 1/4" 20 x 3/4" Pan Head Screw for Intrepid II (1200901)1200901$8.00
#62Vermont Castings #6 Thermostat Ball Chain - SOLD PER FOOT (1201960)1201960$8.00
#64Vermont Castings Ball Chain Fitting (1201972)1201972$3.50
#66Vermont Castings Intrepid NC 1640 Screw - 10-24 X 3/8" (1200985)1200985$9.00
#69Intrepid NC 1640 Rear Shroud (30000826)30000826$99.00
#72Majestic & Vermont Castings Front Door Handle w/ Shaft (5004245)5004245$47.00
#73Intrepid II Ash Pan Front Cover (1306493A)1306493A$86.00
#74Vermont Castings Intrepid Ash Pan Handle (30000973)30000973$75.00
