VC Large Winterwarm 2100 Parts Diagram

VC Large Winterwarm 2100 Interactive Parts Finder

Find the exact replacement parts you need for your VC Large Winterwarm 2100. This Wood stove has 102 parts mapped in our interactive diagram below. Common replacement parts include Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT, Large Winterwarm 2100 Left Fan Heat Shield, Large Winterwarm 2100 Right Fan Heat Shield, Large Winterwarm 1280 & 2100 Ash Grate, and Large Winterwarm 1280 & 2100 Bar Grate. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 102 replacement parts available.

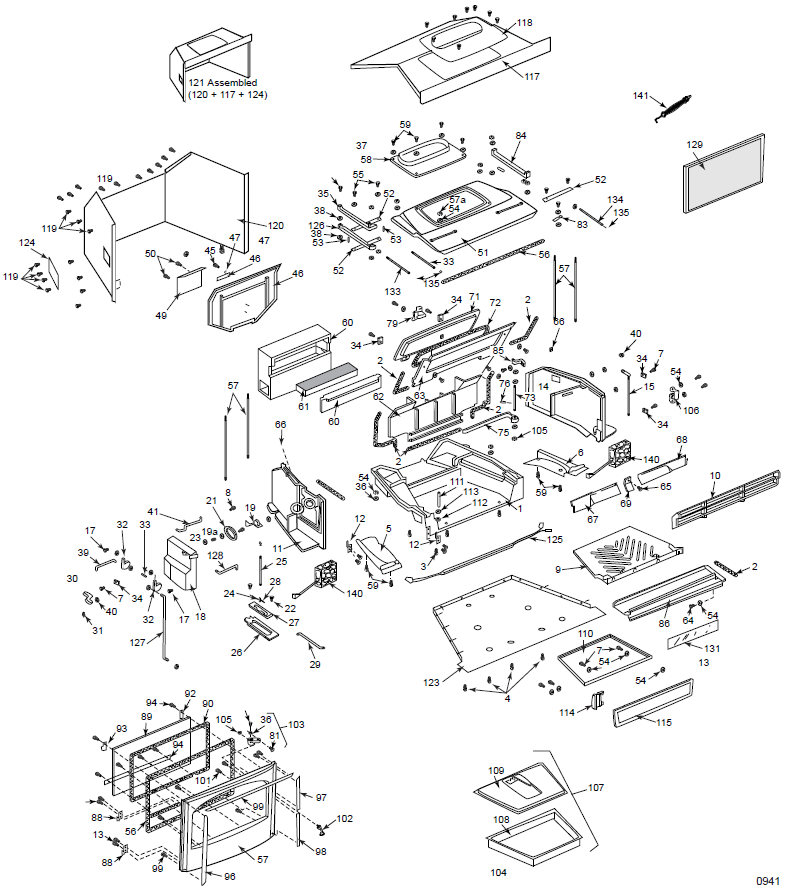

VC Large Winterwarm 2100 replacement parts diagram
Part #Part NamePart CodePrice
#10Large Winterwarm 1280 & 2100 Bar Grate (1301275A)1301275A$129.00
#102Vermont Castings Gold Handle Stub Assembly with Shaft (5004273)5004273$45.00
#103Vermont Castings 3/4" Pawl Assembly - Door Latch (30002362)30002362$8.00
#105Vermont Castings Large Pawl Jam Nut (1203290)1203290$3.00
#106Vermont Castings Winterwarm 1280 & 2100 Striker Plate (1301273)1301273$15.00
#107Vermont Castings Ash Pan and Cover Assembly (5005746)5005746$129.00
#108Vermont Castings Ash Pan (1601025)1601025$97.00
#109Vermont Castings Ash Pan Cover (1601027)1601027$73.00
#11Large Winterwarm 1280 & 2100 Left Side Firebox (1301280A)1301280A$113.00
#110Vermont Castings Ash Pan Bracket (1601039)1601039$81.00
#111Winterwarm 1280 & 2100 Ash Pan Swing Pin 3/8" (1600523)1600523$15.00
#114Winterwarm 1280 & 2100 Ash Pan Door Clamp (1301272)1301272$15.00
#115Winterwarm 1280 & 2100 Decorative Ash Door (1301277)1301277$69.00
#116Vermont Castings Hex Head Cap Screw (1201372)1201372$3.00
#117Vermont Castings Winterwarm 1280 & 2100 Top Shroud (1402445)1402445$134.00
#118Vermont Castings Winterwarm 1280 & 2100 Shroud Flue Connector Plate (1403363)1403363$39.00
#12Vermont Castings Winterwarm Half Hing - Body (1604281)1604281$12.00
#120Winterwarm 1280 & 2100 Shroud Sides & Back Assembly (SRV1402450)SRV1402450$253.00
#123Winterwarm 1280 & 2100 Shroud Bottom (1402448)1402448$101.00
#124Vermont Castings Winterwarm 1280 & 2100 Outside Air Cover (SRV1402453)SRV1402453$25.00
#125Vermont Castings Winterwarm 2100 Wireway Assembly (5002779)5002779$48.00
#126Large Winterwarm 2100 Rheostat Control Lever (1301255)1301255$45.00
#128Vermont Castings Winterwarm 1280 & 2100 Upper Rheostat Wire Link (1604512)1604512$30.00
#129Vermont Castings Winterwarm 1280 & 2100 Spark Screen (1206343)1206343$130.00
#133Vermont Castings Wire Handle for Fans & Thermostat (1604504)1604504$6.00
#134Vermont Castings Damper Wire Handle (1604514)1604514$15.00
#135Vermont Castings Air Control Decorative Brass Cap (1602470)1602470$9.00
#14Large Winterwarm 1280 & 2100 Right Side Firebox (1301264A)1301264A$149.00
#140Vermont Castings Large Winterwarm 2100 Fan Assembly (5002771)5002771$185.00
#141Vermont Castings Wireform Handle Assembly - Complete Package (0004349)0004349$98.00
#15Large Winterwarm 1280 & 2100 Door Interlock (1301299)1301299$30.00
#17Vermont Castings 1/4-20 x 1-3/4 Bolt (1200830)1200830$7.00
#18Large Winterwarm 1280 & 2100 Primary Air Box (1301281)1301281$73.00
#19Vermont Castings Thermostat Coil & Rod Assembly (5005470)5005470$63.00
#19aVermont Castings Friction Spring (1201846)1201846$4.00
#2Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#21Large Winterwarm 1280 & 2100 Thermostat Disc (1301269)1301269$20.00
#23Vermont Castings Flat Washer 1/4" (1202471)1202471$3.00
#24Vermont Castings Ball Chain Fitting (1201972)1201972$3.50
#25Vermont Castings #6 Thermostat Ball Chain - SOLD PER FOOT (1201960)1201960$8.00
#26Vermont Castings Thermostat Valve for Large Winterwarm 1280 & 2100 (1301268)1301268$30.00
#27Large Winterwarm 1280 & 2100 Thermostat Flap (1301265)1301265$35.00
#28Cotter Pin for Large Winterwarm Firebox 1280 & 2100 (1203027)1203027$8.00
#31Vermont Castings Front Door Handle Set Screw (1200417)1200417$5.00
#33Large Winterwarm 1280 & 2100 Crank Pin (1600524)1600524$10.00
#34Vermont Castings Damper Tab (1601488)1601488$3.00
#35Large Winterwarm 1280 & 2100 Thermostat Control Arm (1301284)1301284$47.00
#36Vermont Castings Hex Nut for Griddle Handle (1203210)1203210$2.50
#39Large Winterwarm 1280 & 2100 Lower Thermostat Wire Link (1604501)1604501$29.00
#40Lock Hex Nut for Large Winterwarm Firebox 1280 & 2100 (1203275)1203275$8.00
#41Vermont Castings Large Winterwarm 1280 & 2100 Upper Thermostat Wire Link (1604502)1604502$15.00
#42(N/S)Vermont Castings 5/16" Hole Plug (1201899)1201899$7.00
#43(N/S)Vermont Castings Winterwarm 1280 & 2100 Firebox Back (1301251)1301251$145.00
#44(N/S)Vermont Castings Secondary Air Probe Assembly (1601489A)1601489A$90.00
#46Vermont Castings Secondary Air Flap (1601490)1601490$19.00
#47Vermont Castings Secondary Air Shim Ring (1201986)1201986$6.00
#48(N/S)Vermont Castings Secondary Air Linkage (1601486)1601486$6.00
#49Vermont Castings Winterwarm 1280 & 2100 Secondary Air Cover Plate (1604505)1604505$45.00
#5Large Winterwarm 2100 Left Fan Heat Shield (1301151)1301151$37.00
#51Large Winterwarm 1280 & 2100 Firebox Top (1301253)1301253$117.00
#52Large Winterwarm 1280 & 2100 Control Shim (1604338)1604338$7.00
#53Vermont Castings Control Spacer (1201781)1201781$10.00
#54Vermont Castings Zinc 1/4" Standard Flat Washers- 10 Pack (1202474-10)1202474-10$12.00
#57Vermont Castings Tie Rod Set w/Hardware (5007499)5007499$165.00
#57aVermont Castings Lock Hex Nut (1203213)1203213$8.00
#58Large Winterwarm 1280 & 2100 Flue Collar (1301276A)1301276A$78.00
#59Vermont Castings 1/4"- 20 X 3/4 Hex Head Cap Screw (1201374)1201374$2.50
#6Large Winterwarm 2100 Right Fan Heat Shield (1301152)1301152$36.00
#60Vermont Castings Refractory Assembly (1602510A)1602510A$675.00
#62Large Winterwarm 1280 & 2100 Lower Fireback (1301252A)1301252A$200.00
#63Large Winterwarm 1280 & 2100 Upper Fireback (1301260A)1301260A$159.00
#63Vermont Castings Winterwarm 1280 & 2100 Upper Fireback & Damper Assembly (5000044)5000044$359.00
#64Vermont Castings 1/4" BLK Hex Head Cap Screw (1201376)1201376$3.00
#65Vermont Castings 1/4" Hex Head Cap Screw (1201386)1201386$3.50
#67Large Winterwarm 1280 & 2100 Left Throat (1301296A)1301296A$67.00
#68Large Winterwarm 1280 & 2100 Right Throat (1301297A)1301297A$56.00
#69Large Winterwarm 1280 & 2100 Throat Clamp (1301298A)1301298A$30.00
#70(N/S)Vermont Castings 1/4"- 20 Plain Square Nut (1203329)1203329$3.00
#71Large Winterwarm 1280 & 2100 Damper (1301259)1301259$89.00
#72Vermont Castings 3/8" Low Density Door Gasket- SOLD PER FOOT (1203589)1203589$2.00
#73Vermont Castings Winterwarm 1280 & 2100 Damper Control Rod (1604522)1604522$30.00
#75Large Winterwarm 1280 & 2100 Damper Swing Arm (1301282)1301282$42.00
#76Damper Rod Pin for Large Winterwarm Firebox (1201839)1201839$20.00
#79Large Winterwarm 1280 & 2100 Damper Swing Arm Retainer (1301270)1301270$34.00
#80Vermont Castings 1/4" Flat Washer (1202475)1202475$4.00
#81Vermont Castings 3/4" Striker Bolt (1200461)1200461$4.00
#83Vermont Castings Winterwarm Damper Actuator Link Stop (1604507)1604507$35.00
#84Vermont Castings Large Winterwarm Damper Actuator Link (1301283)1301283$48.00
#85Winterwarm 1280 & 2100 Damper Rod Retainer (1301271)1301271$20.00
#86Winterwarm 1280 & 2100 Door Air Manifold (1301274)1301274$95.00
#86aDoor Assembly for Large Winterwarm 1280 & 2100 (5006079)5006079$888.00
#87Winterwarm 1280 & 2100 Door (1301257)1301257$164.00
#88Vermont Castings Winterwarm 2100 Door Half Hinge (1604280)1604280$14.00
#89Vermont Castings Winterwarm 1280 & 2100 Glass Cassette Assembly (5002617)5002617$575.00
#9Large Winterwarm 1280 & 2100 Ash Grate (1301256A)1301256A$191.00
#90Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#92Vermont Castings Winterwarm 1280 & 2100 Upper Glass Retainer (1601409)1601409$20.00
#N/SVermont Castings Fan Mount (1601244)1601244$17.00
#N/SVermont Castings Silicone Suspension Tube (1601245)1601245$6.00
#N/SVermont Castings #10 Flat Washer (1202423)1202423$6.00
#N/SRadiance BV30 2600-2603 Hex Nut (1203273)1203273$6.00
#N/SVermont Castings Thermostat Handle Long Screw - Only (1201243)1201243$3.00
