VC Vigilant 1400 Coal Stove Parts Diagram

VC Vigilant 1400 Coal Stove Interactive Parts Finder

Find the exact replacement parts you need for your VC Vigilant 1400 Coal Stove. This Coal stove has 71 parts mapped in our interactive diagram below. Common replacement parts include Lennox Micro Switch, Vigilant Coal 1400 & Vigilant Coal II 2310 Front Grate Support, Vigilant Coal 1400 & Vigilant Coal II 2310 Rear Grate Support, Vigilant Coal 1400 & Vigilant Coal II 2310 Air Tube, and Vigilant Coal 1400 & Vigilant Coal II 2310 Damper Retainer. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 71 replacement parts available.

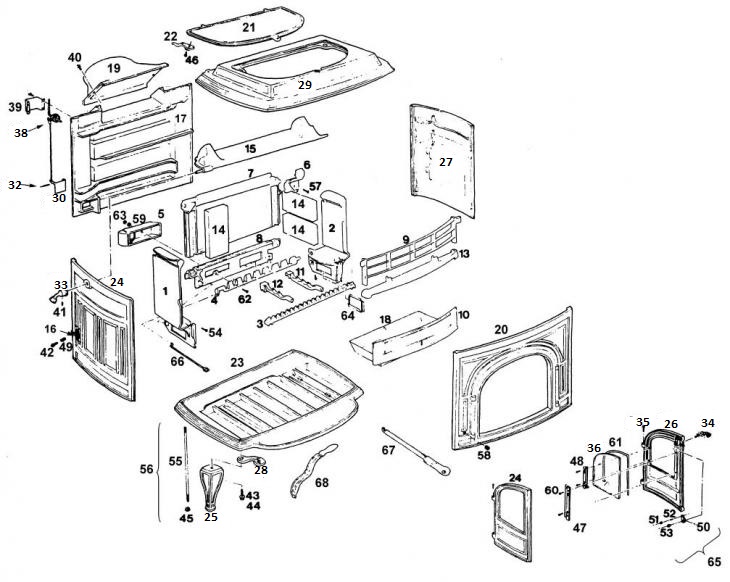

VC Vigilant 1400 Coal Stove replacement parts diagram
Part #Part NamePart CodePrice
#1Lennox Micro Switch (H3452)H3452$16.00
#10Vermont Castings Vigilant Coal 1400 & Vigilant Coal II 2310 Front Ash Pan (1305033A)1305033A$71.00
#11Vigilant 1400 High Grate Bar (1305041A)1305041A$36.00
#12Vigilant 1400 Low Grate Bar (1305038A)1305038A$32.00
#13Vermont Castings Vigilant Fettle (1305047A)1305047A$53.00
#14Vermont Castings Firebrick (1601103)1601103$15.00
#14Vermont Castings Firebrick (1601103)1601103$15.00
#15Vermont Castings Vigilant Damper w/Pin (5000992)5000992$122.00
#16Vermont Castings Secondary Air Control Cover (1300671A)1300671A$72.00
#17Vermont Castings Vigilant Back (1304277)1304277$132.00
#19Vermont Castings 8" Oval Flue Collar - Classic Black (0000555)0000555$199.00
#20Vigilant Coal 1400 & Vigilant Coal II 2310 Front (1304273A)1304273A$289.00
#21Vermont Castings Vigilant Front w/Doors Assembly (5000945)5000945$289.00
#22Vermont Castings Straight Quadrant (1300809A)1300809A$46.00
#23Vigilant Coal 1400 Bottom (1304258)1304258$180.00
#24Vigilant Coal 1400 & Vigilant Coal II 2310 Left End (1304269A)1304269A$203.00
#24Vermont Castings Vigilant Door - Left (1304224A)1304224A$133.00
#26Vermont Castings Vigilant Right Door (1304216A)1304216A$137.00
#27Vigilant Coal 1400 & Vigilant Coal II 2310 Right End (1304262A)1304262A$171.00
#29Vigilant Coal 1400 & Vigilant Coal II 2310 Top (1304251A)1304251A$347.00
#3Vigilant Coal 1400 & Vigilant Coal II 2310 Front Grate Support (1305009)1305009$35.00
#30Vermont Castings Thermostat Flap Assembly (0005800)0005800$75.00
#32Defiant, Intrepid, & Vigilant Thermostat Pivot Pin (1601555)1601555$6.00
#33Vermont Castings Steel Damper Handle Stub (5004265)5004265$48.00
#34Vermont Castings Front Door Steel Handle Stub & Shaft (5004237)5004237$51.00
#35Vermont Castings Door Pin 3/16" X 1 1/8" (1600546)1600546$6.00
#36Vermont Castings Vigilant Door Glass Panel (1401119)1401119$76.00
#37Vermont Castings Thermostat Assembly (5005483)5005483$89.00
#38Vermont Castings Friction Spring (1201846)1201846$4.00
#39Defiant & Vigilant Sheet Metal Thermostat Cover (1601487)1601487$70.00
#4Vigilant Coal 1400 & Vigilant Coal II 2310 Rear Grate Support (1305011)1305011$51.00
#40Majestic and Vermont Castings 1" Striker Bolt (1200907)1200907$3.50
#41Vermont Castings Set Screw (1200563)1200563$3.00
#42Vermont Castings Defiant 10-24 X 3/4-Z" Screw (1201007)1201007$9.00
#44Vermont Castings 3/8-16 x 1-1/4" Hex Head Bolt (1201443)1201443$3.00
#45Vermont Castings Lock Hex Nut (1203213)1203213$8.00
#47Vermont Castings Vigilant Long Glass Clip (1601392)1601392$43.00
#48Vermont Castings Vigilant Coal Short Glass Clip (1601391)1601391$30.00
#49Vermont Castings Friction Spring (1201846)1201846$4.00
#5Vigilant Coal 1400 & Vigilant Coal II 2310 Air Tube (1305015)1305015$49.00
#50Vermont Castings Front Door Handle Set Screw (1200417)1200417$5.00
#51Vermont Castings Hex Nut for Griddle Handle (1203210)1203210$2.50
#52Vermont Castings 1/4" - 20 x 1" Striker Bolt - Socket Set Screw (1200436)1200436$3.00
#53Vermont Castings Large Pawl Jam Nut (1203290)1203290$3.00
#55Vermont Castings Vigilant Tie Rod (1601629)1601629$43.00
#56Vermont Castings Vigilant Tie Rod Set (5007498)5007498$155.00
#57Vermont Castings 1/4"- 20 X 3/4 Hex Head Cap Screw (1201374)1201374$2.50
#58Vermont Castings Vigilant Shaker Rod Bushing (1201903)1201903$10.00
#6Vigilant Coal 1400 & Vigilant Coal II 2310 Damper Retainer (1305018)1305018$25.00
#60Vermont Castings 3/8" Pan Head Bolt (1200983)1200983$3.00
#61Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#61Vermont Castings Ceramic Fallaway Handle Assembly (0004342)0004342$19.49
#64Vermont Castings Vigilant Coal Clean-Out Access Panel (1602202)1602202$55.00
#65Vermont Castings Pawl Assembly (5004024)5004024$8.00
#66Vigilant 1400 & Vigilant II 2310 Shaker Rod (1600904)1600904$19.00
#67Vermont Castings Slicer/Poker for Intrepid, Vigilant & Resolute Stoves (5005708)5005708$42.00
#68Vermont Castings Vigilant Coal Shaker Handle (1301931A)1301931A$79.00
#7Vigilant Coal 1400 & Vigilant Coal II 2310 Upper Fireback (1305022)1305022$103.00
#8Vigilant Coal 1400 & Vigilant Coal II 2310 Lower Fireback (1305025)1305025$79.00
#9Vermont Castings Vigilant Front Grill (1305029A)1305029A$120.00
#N/SVermont Castings Mitten Rod / Mitten Rack (1601705)1601705$10.00
